RG-AP9220 Datasheet
Table of Contents
Overview #

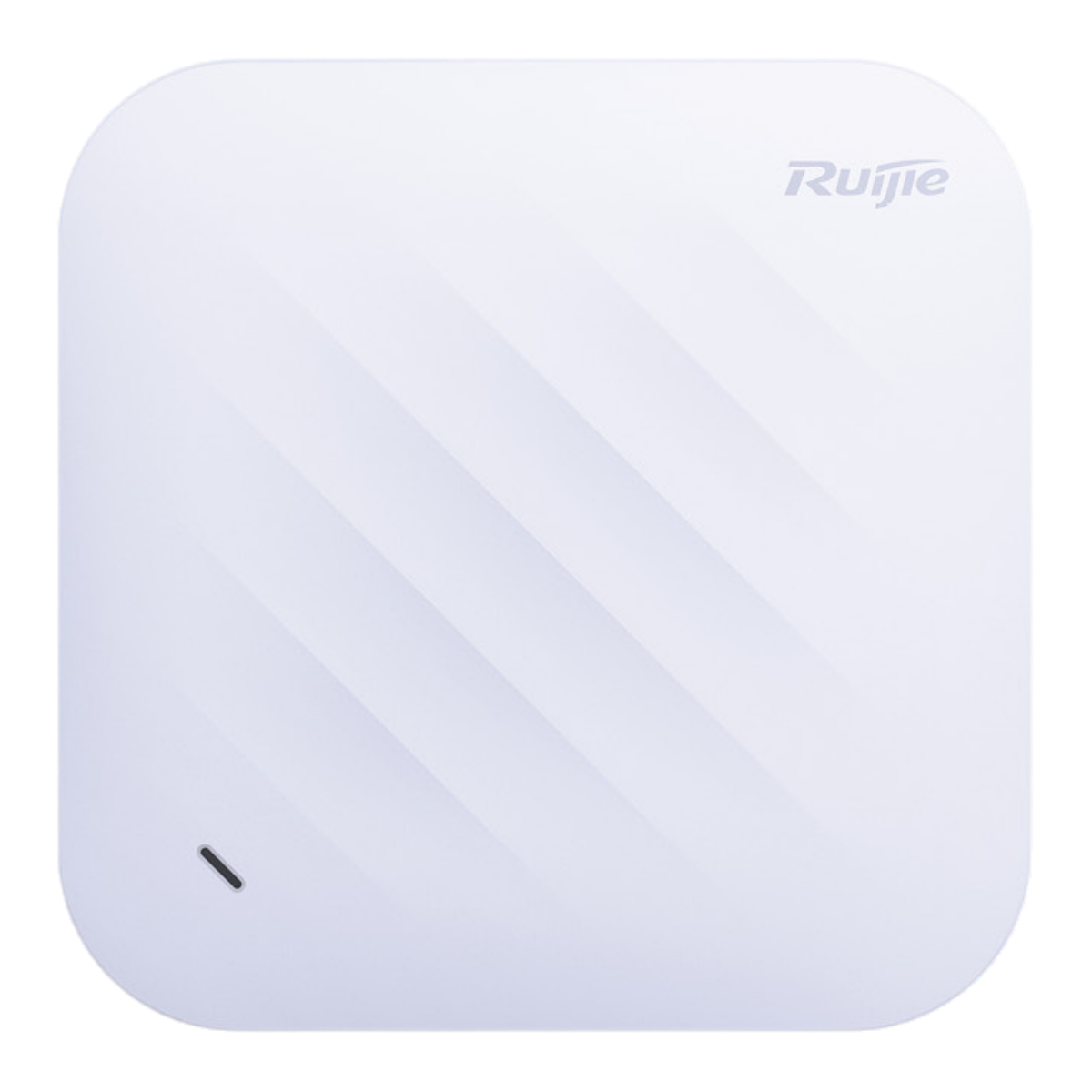

Introducing the RG-AP9220, an advanced Wi-Fi 7 dual-radio access point designed for high-performance wireless connectivity. Ideal for environments such as education, government, enterprise, finance, and retail, it ensures seamless connections and a superior user experience.
Highlighted Features #
- Next-Gen Wi-Fi 7: Powered by the 802.11be protocol with 4096QAM, it achieves remarkable speeds of up to 3.57 Gbps.
- Dual-Band Capability: Simultaneously operates on 2.4 GHz and 5 GHz bands for optimal performance and coverage.
- OFDMA Technology: Efficiently manages high user density, reducing network congestion and enhancing performance.
- Enhanced Radio Technologies: Incorporates DFS, CDD/CSD, MRC, STBC, LDPC, and TxBF for superior signal quality and reliability.
- Energy Efficient Design: Utilizes advanced power-saving features to minimize energy usage without compromising performance.
- Smart Device Detection: Automatically recognizes different device types, allowing for better network management.
- Local Forwarding Intelligence: Reduces latency by sending data directly to the network, alleviating load on the wireless controller.
- Quality of Service (QoS): Ensures smooth multimedia streaming and prioritizes critical network traffic.
- Robust Security Features: Includes WIDS, rogue AP defense, ARP spoofing prevention, and more for a secure network.
- Convenient Authentication Options: Supports seamless, SMS, and QR code authentication for easy access.
- Flexible Management Modes: Switch between Fat, Fit, and Cloud modes for easy deployment and management.
- Comprehensive Solution for Branch Offices: Functions as a VPN gateway, simplifying network setup and reducing costs.
Hardware Specifications #
| Feature | Details |
|---|---|
| Dimensions | 200mm x 200mm x 46.8mm (HxWxD) |
| Weight | 0.8 kg |
| Radio Configuration | Dual-radio with 4 spatial streams (2×2 MIMO) |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Maximum Throughput | 3.57 Gbps (2.4 GHz + 5 GHz) |
| Antenna Type | Internal smart antennas with 3dBi peak gain |
| Interfaces | 1 x 2.5G/ PoE IN and 1 x 2.5G SFP |
| Power Consumption | 16W (maximum) |
| Power Supply Options | PoE (802.3af/at) or DC power |
| Operating Environment | -10°C to 50°C, 5% to 95% humidity (non-condensing) |
Software Specifications #
| Feature | Details |
|---|---|
| Firmware | RGOS 11.9(6)W3B19 or later |
| WLAN Capacity | Supports up to 32 BSSIDs and 16 WLAN IDs |
| Security Protocols | Offers WPA3 and WPA2 for secure authentication |
| Management Options | Supports web management, console, Telnet, SSH, FTP, and TFTP |
Use Cases #
- General Applications: Ideal for small offices, meeting rooms, corridors, and areas with low to moderate user density.
- Cloud-Based Deployment: Perfect for small to medium-sized businesses seeking simplified network management.
Ordering Information #
- Model: RG-AP9220
- Optional Accessories:
- GE-SFP-LX20-SM1550-BIDI (1G SFP module)
- 2.5G-SFP-LX03-SM1550-BIDI (2.5G SFP module)
Package Contents #
| Item | Description |
|---|---|
| Main Unit | The RG-AP9220 access point. |
| Mounting Bracket | For installation on walls or ceilings. |
| User Manual | Provides installation and configuration guidance. |
| Tamper-proof Screws (M3 x 20) | For securing the access point. |
| Expansion Screws (M6 x 50) | For various mounting surfaces. |
| Management Software | Pre-installed for easy network management. |
Updated on October 14, 2024
