1. Product Overview #

RG-N8000-R series routers are a new generation of all-scenario intelligent core routers launched by Ruijie Networks, including models RG-N8018-R and RG-N8010-R. The RG-N8000-R series routers adopt an advanced orthogonal CLOS zero-backplane architecture, separating the control plane from the forwarding plane. They support high-density 10GE, 40GE, and 100GE interfaces, with flexible scalability in single slots to meet different network location needs. They also feature the next-generation DSA NPU network chip, supporting the open-source P4 programming language, making network capabilities more open and business implementations faster and more flexible.

The RG-N8000-R series routers are equipped with Ruijie Networks’ self-owned RGOS 12.X network operating system, which is highly integrated with the RG-N8000-R series in areas such as multi-core CPU support, distributed computing, modular design, high availability architecture, virtualization, and openness. The RG-N8000-R series routers are mainly used in industries such as government, finance, electricity, transportation, education, and telecommunications, covering scenarios including enterprise WAN core nodes, large enterprise access nodes, campus interconnection and aggregation nodes, and various large IDC network exit nodes.

2. Product Appearance #

RG-N8018-R and RG-N8010-R #

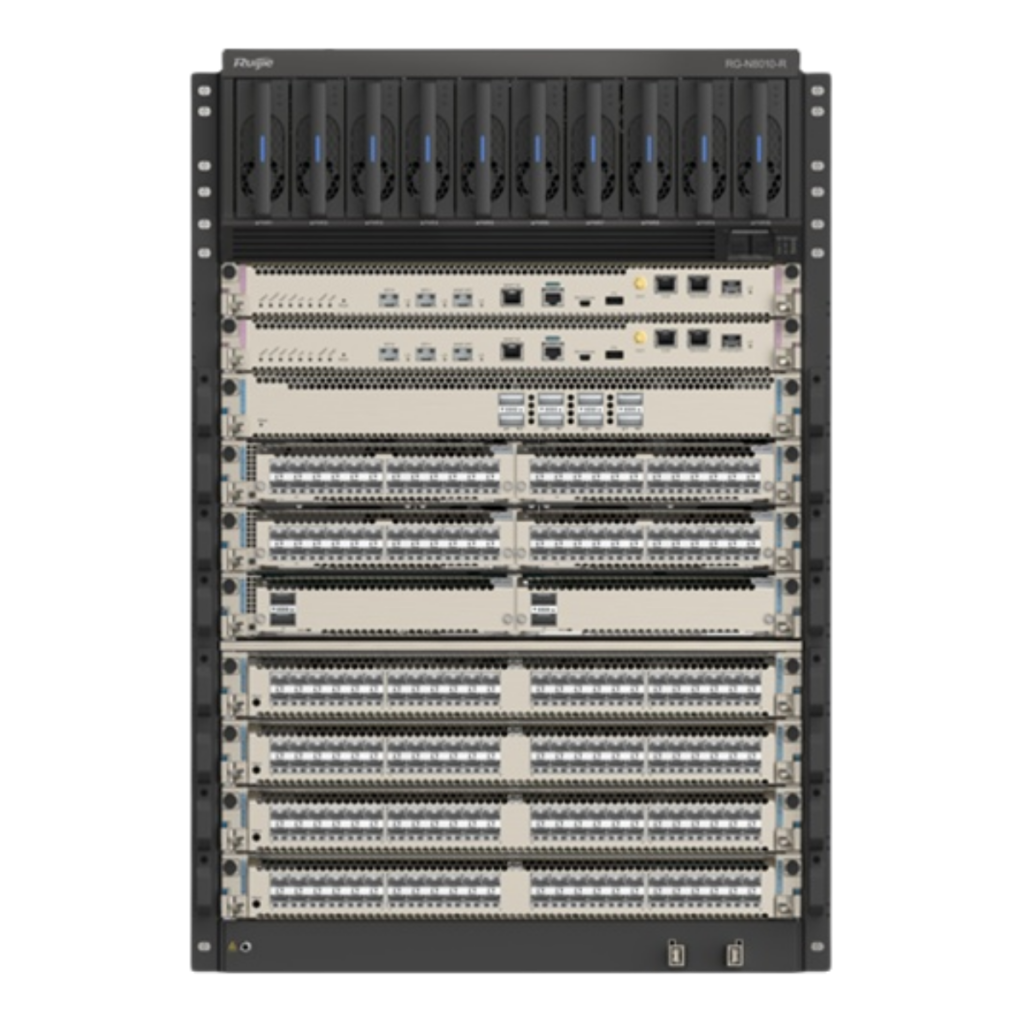

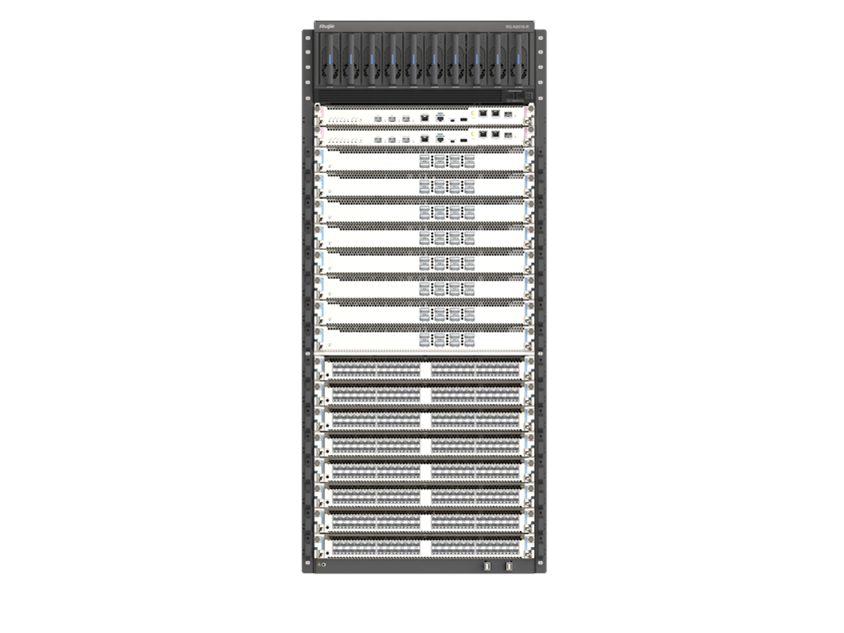

• Front View RG-N8018-R Left RG-N8010-R Right

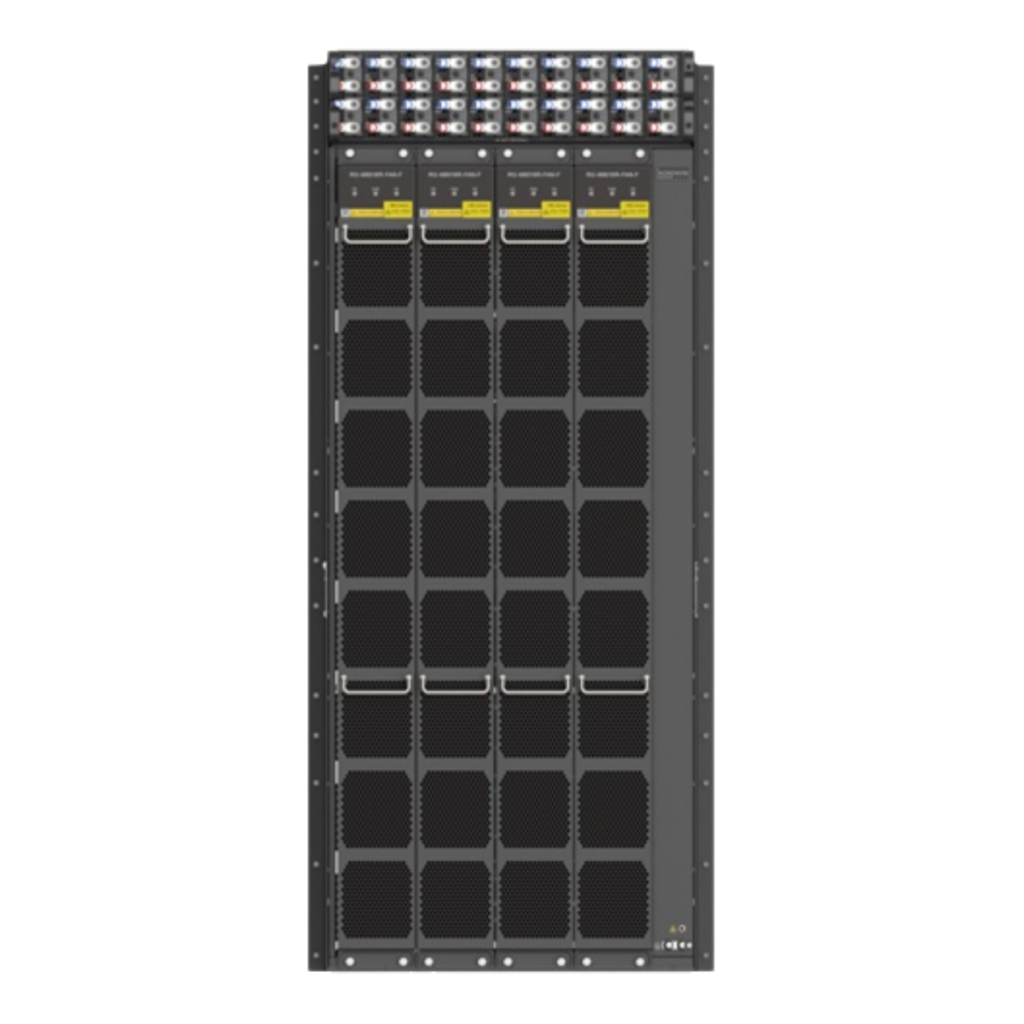

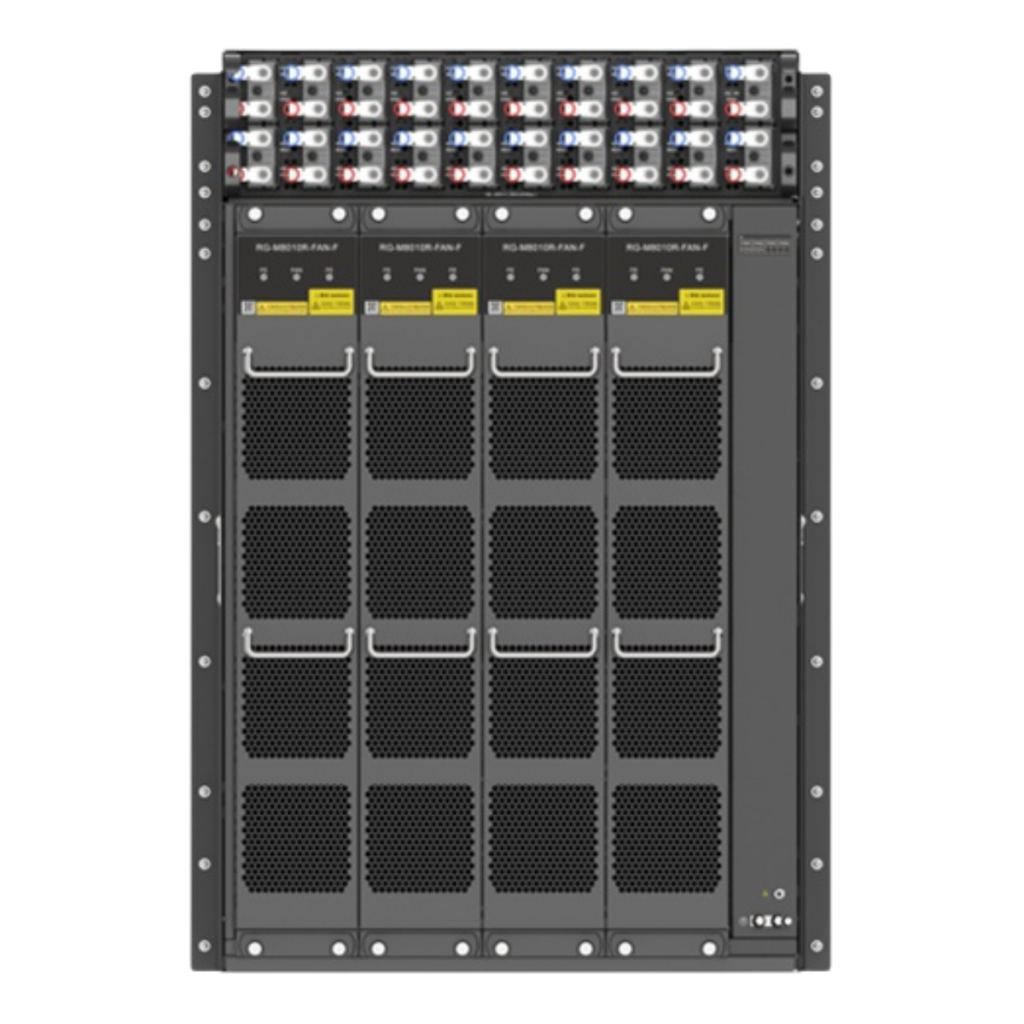

• Back View RG-N8018-R Left RG-N8010-R Right

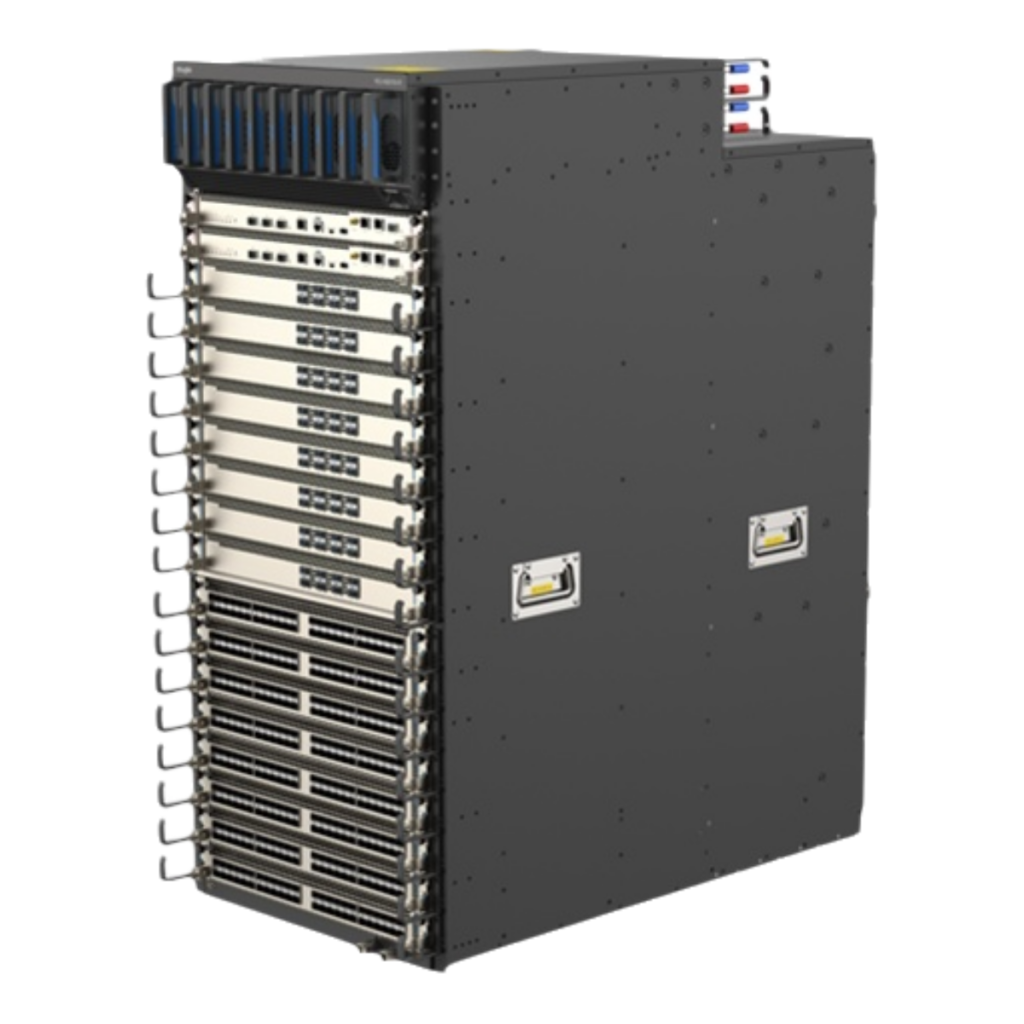

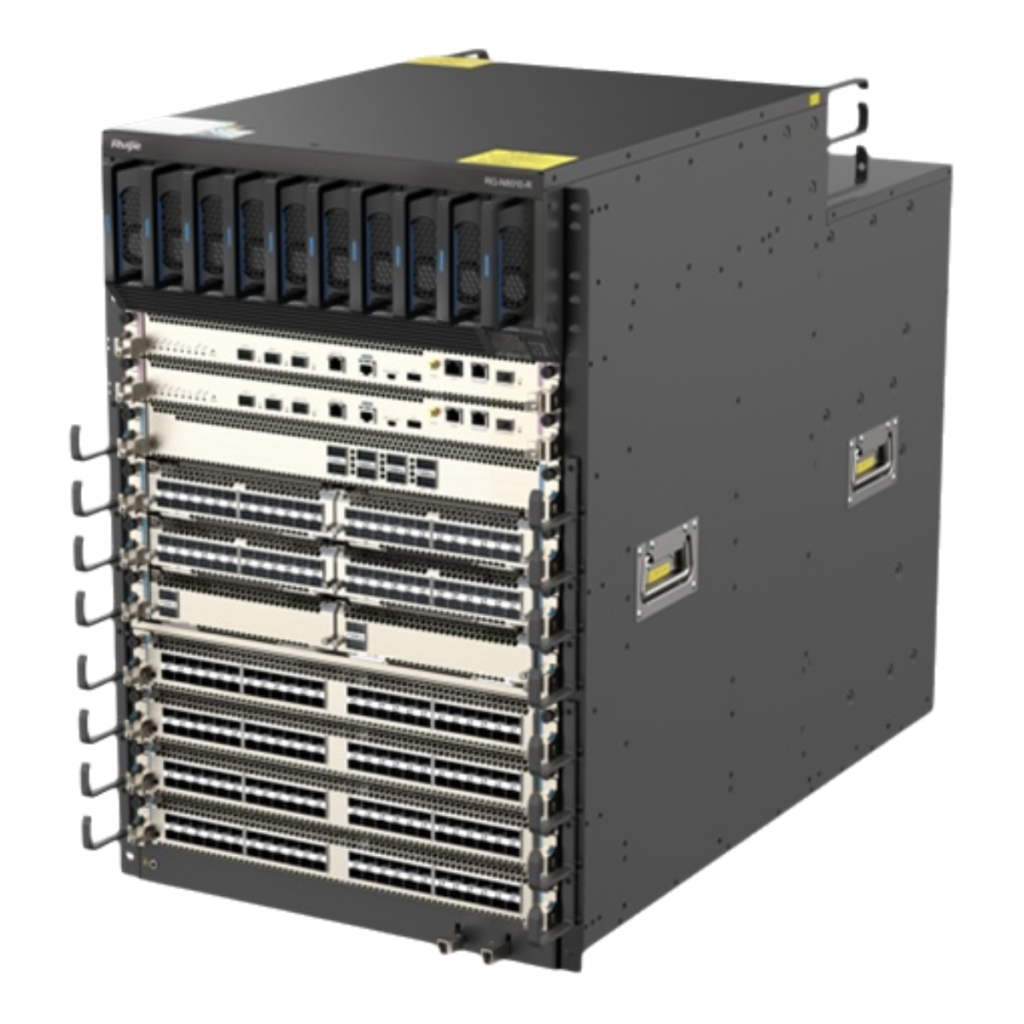

• Left Front View RG-N8018-R Left RG-N8010-R Right

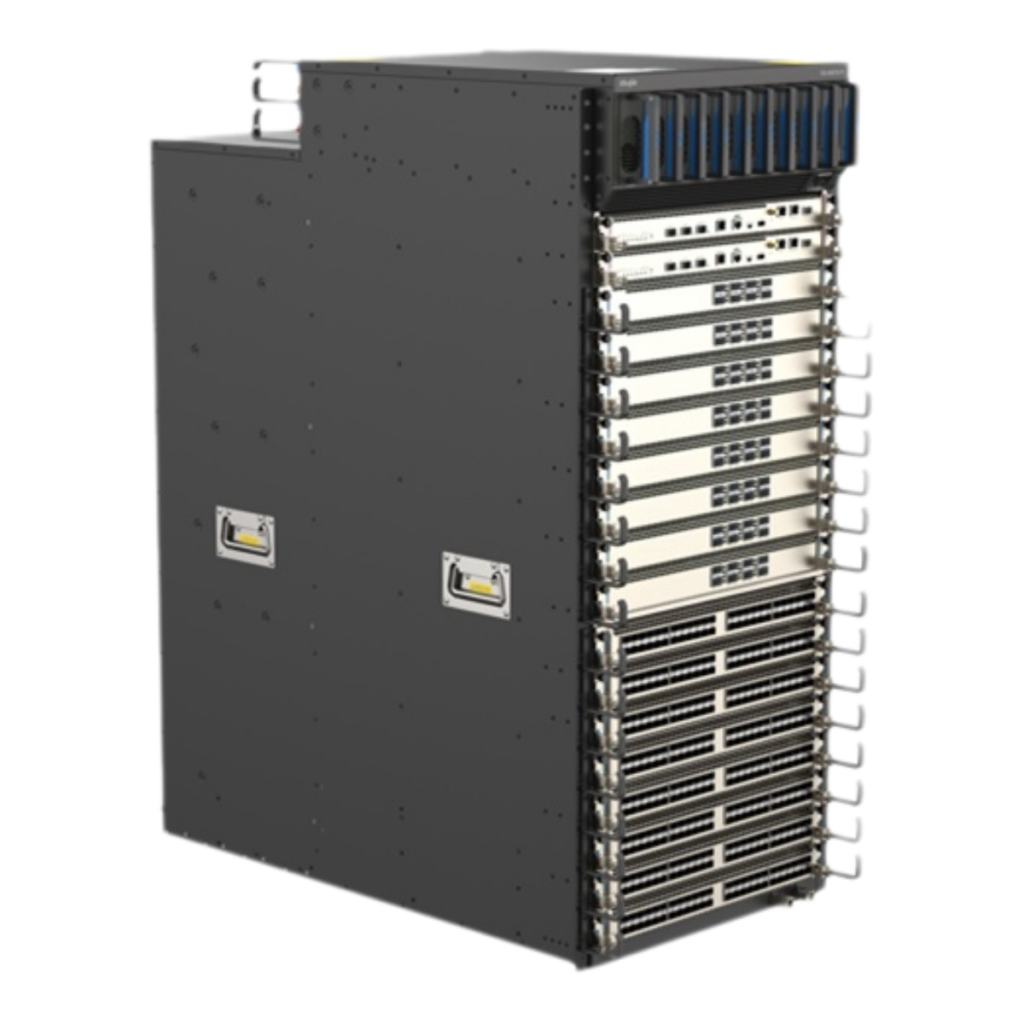

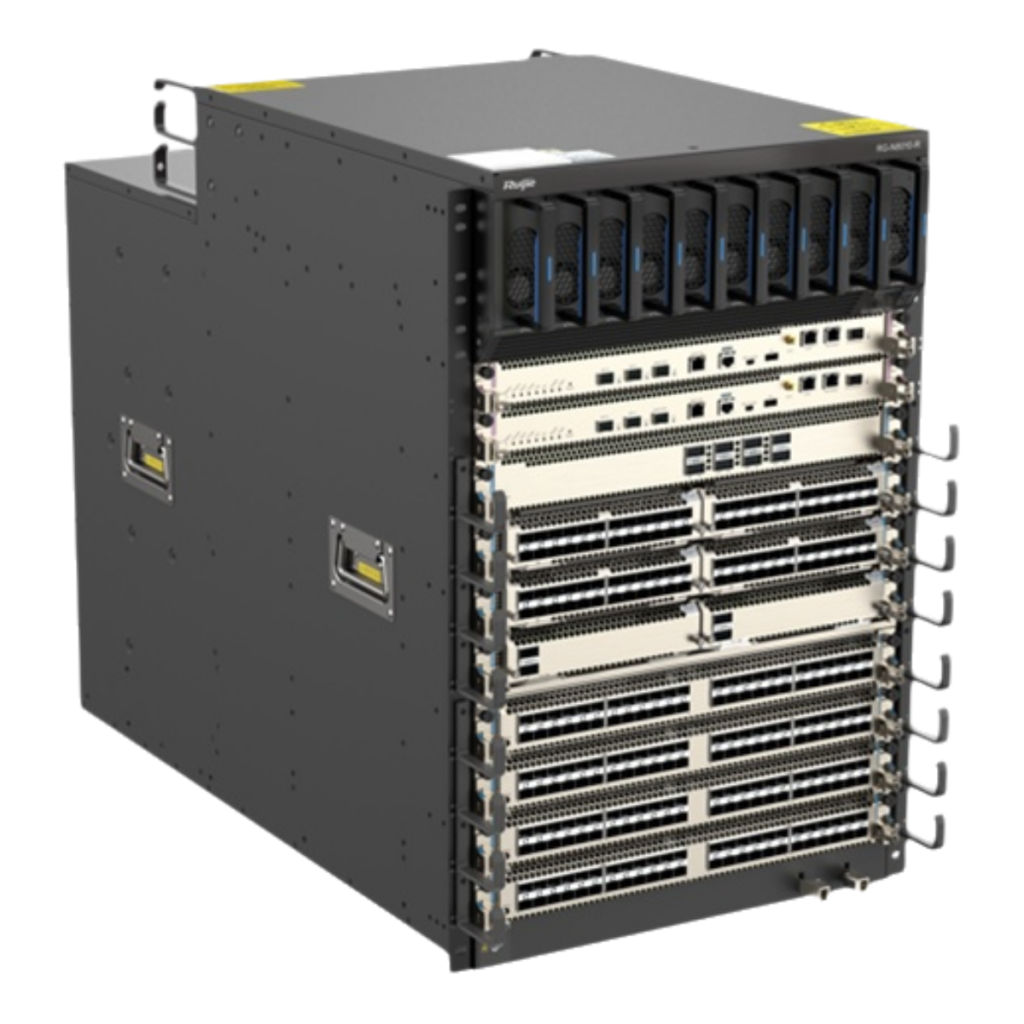

• Right Front View RG-N8018-R Left RG-N8010-R Right

M8000R Series #

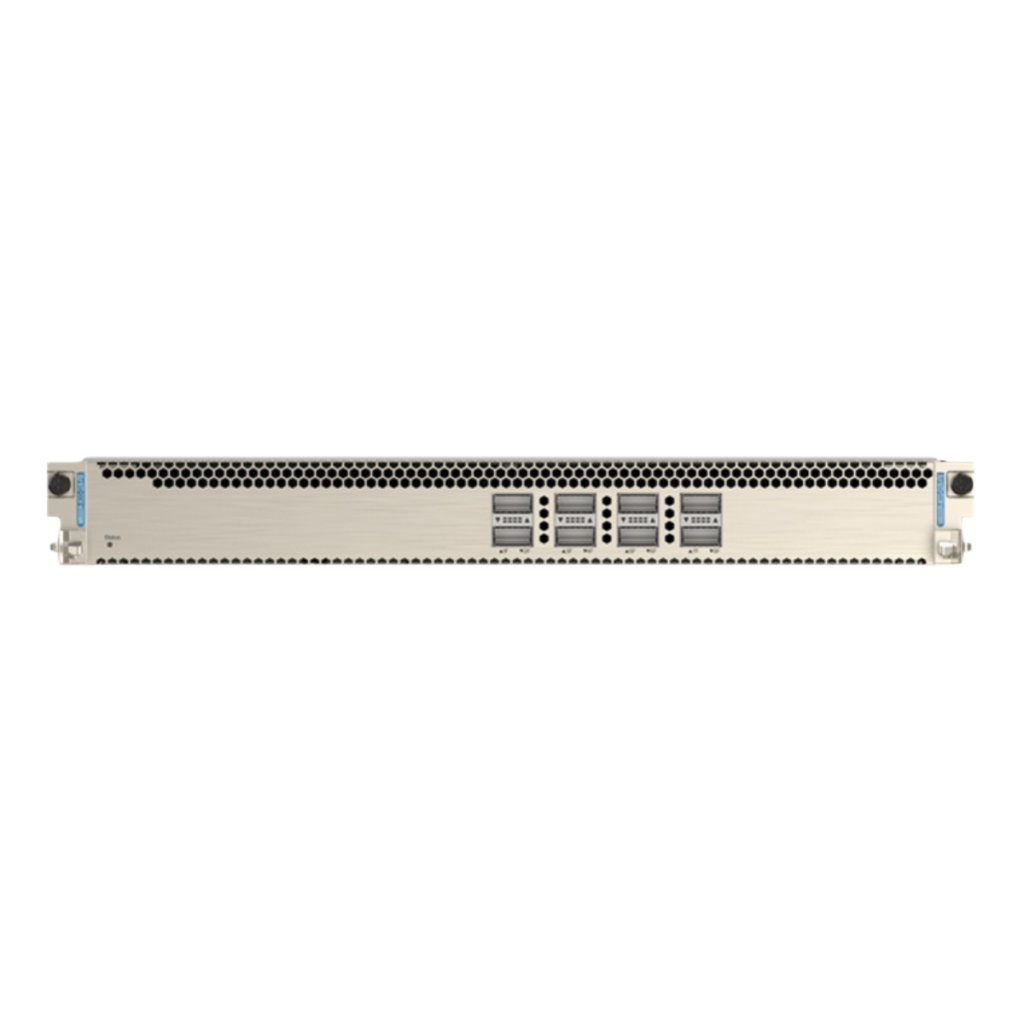

• M8000R-8CQ-Q28-FB
• Front View

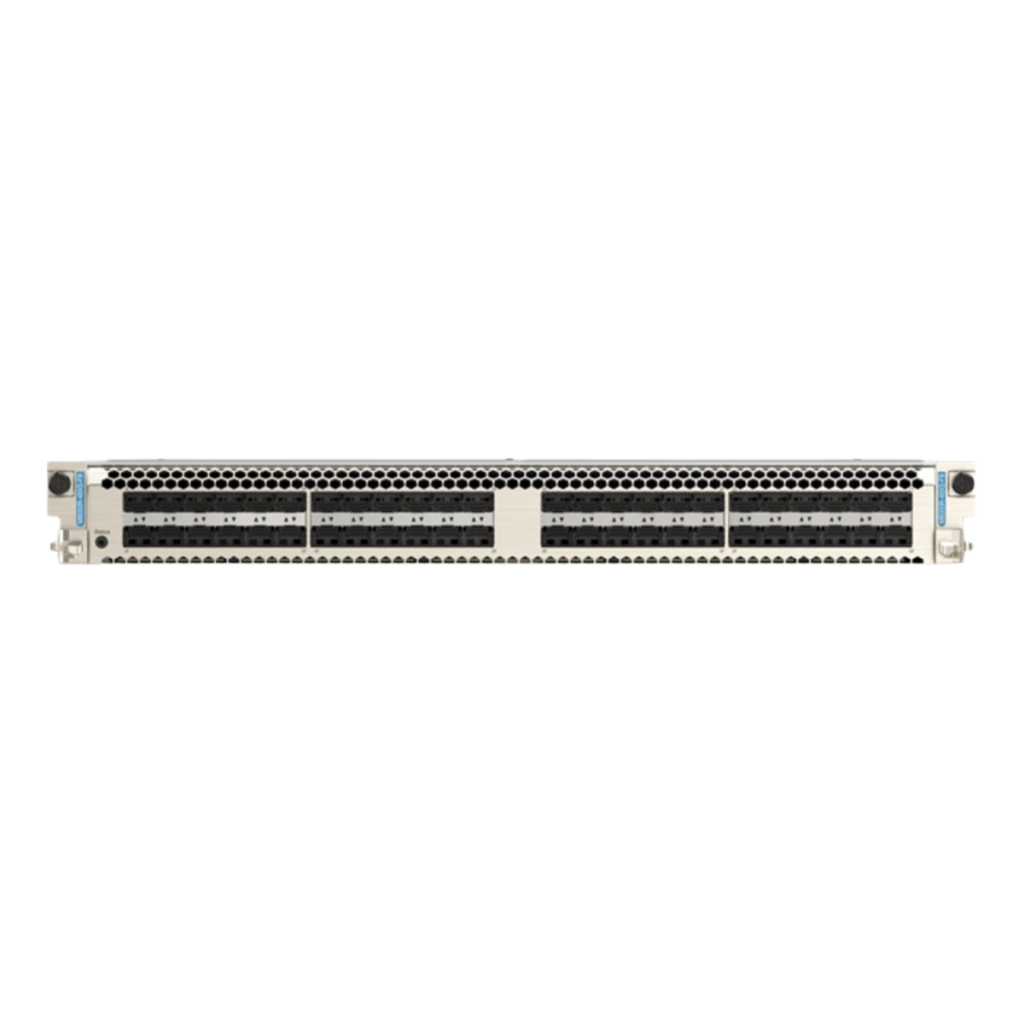

• M8000R-48XS-FB
• Front View

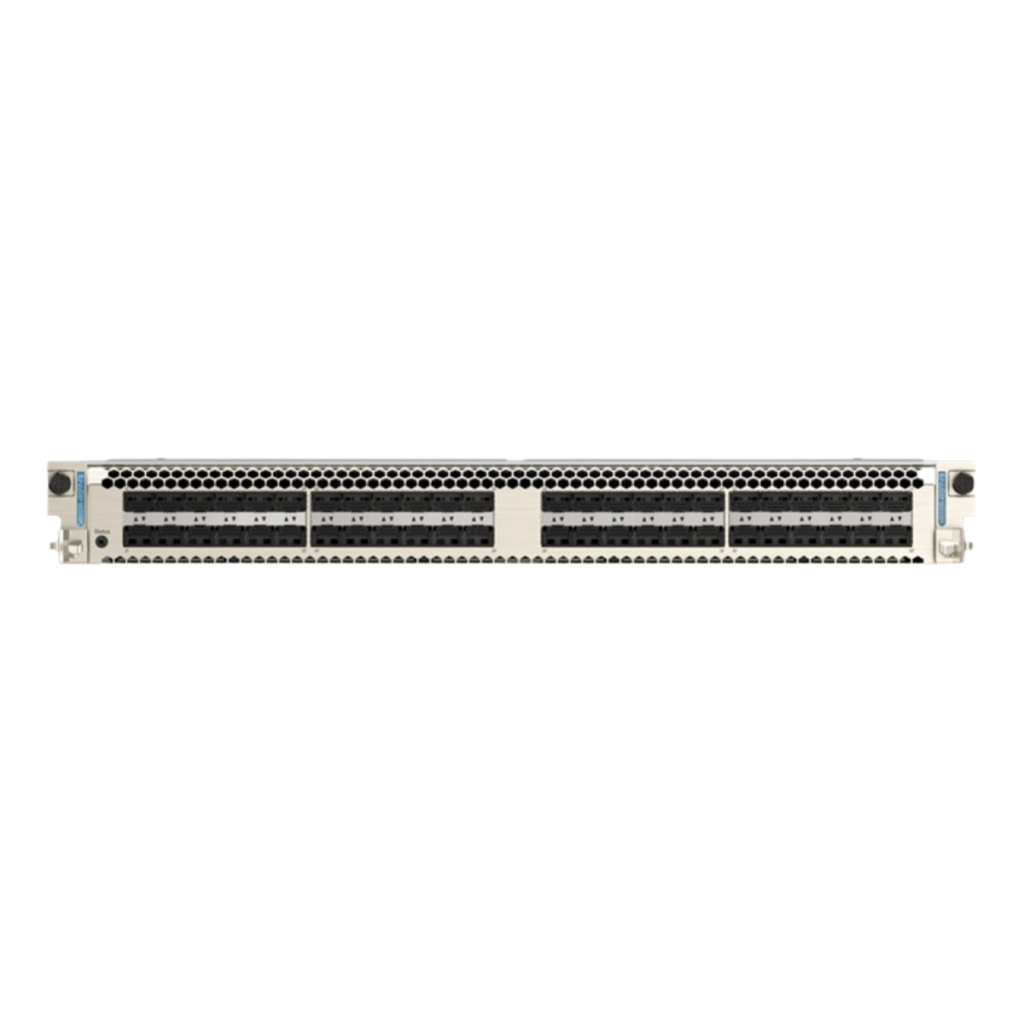

• M8000R-48SFP-FB
• Front View

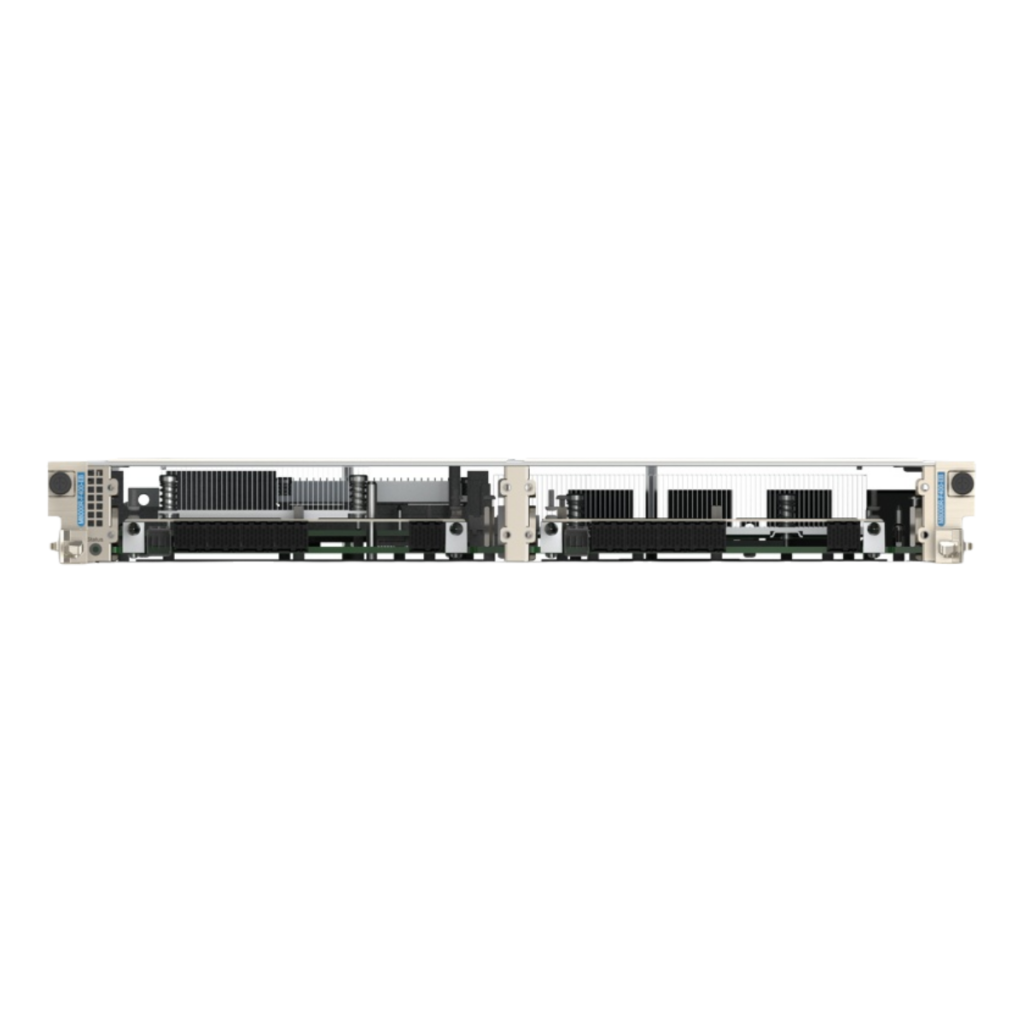

• M8000R-F400-FB
• Front View

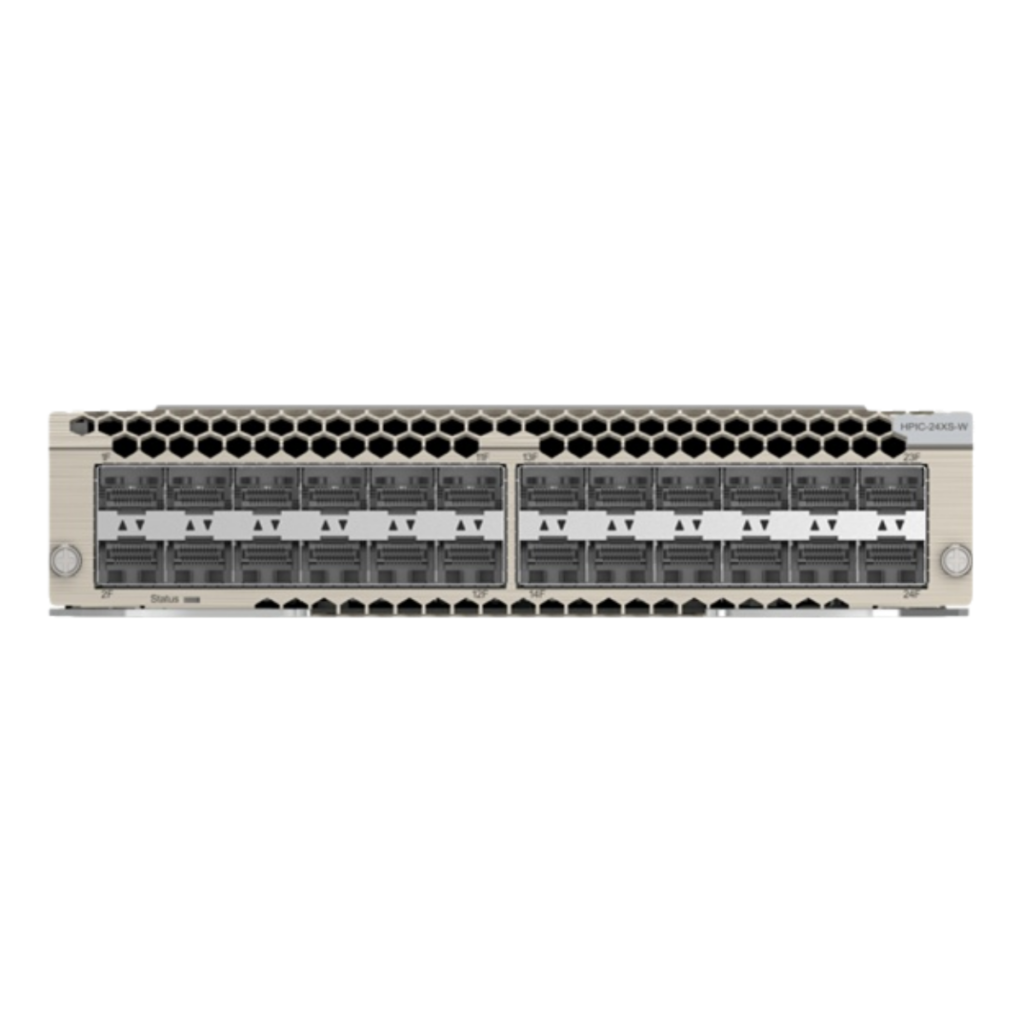

• HPIC-24XS-W
• Front View

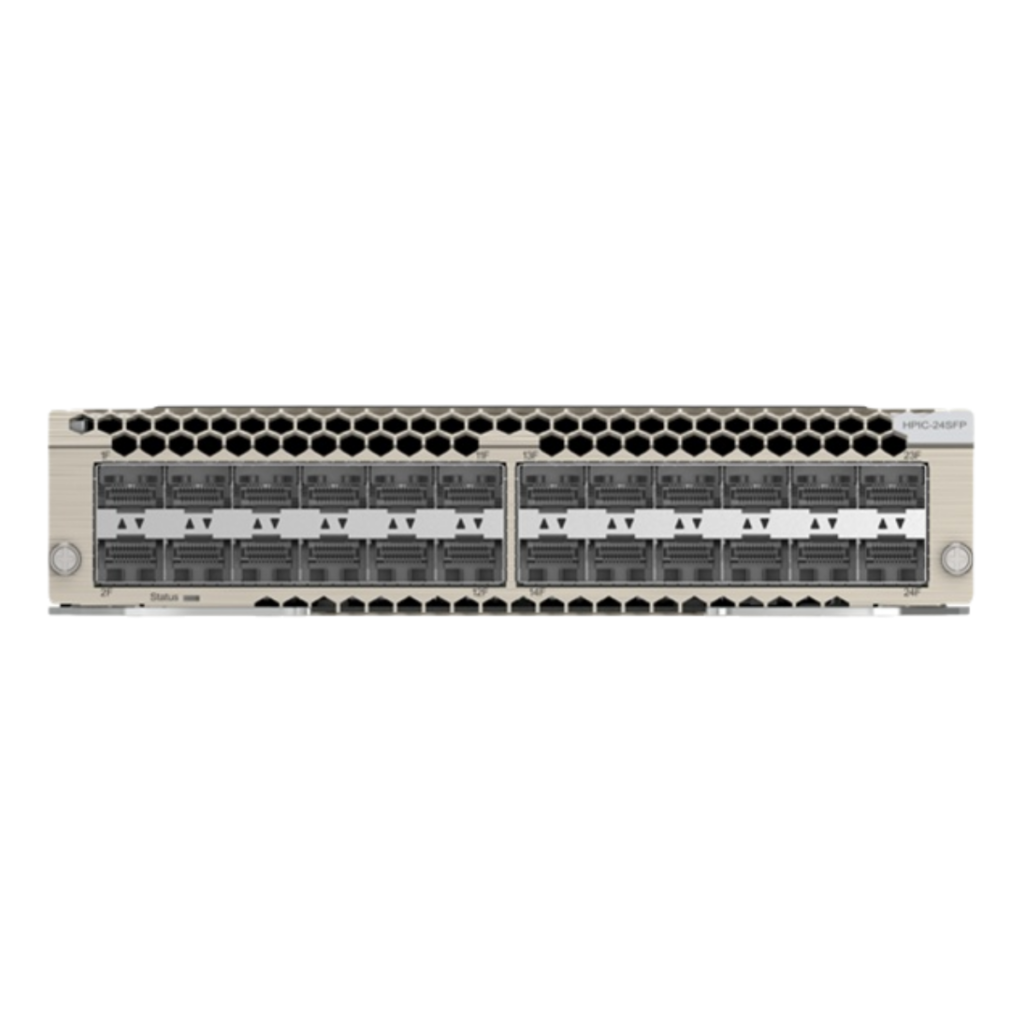

• HPIC-24SFP
• Front View

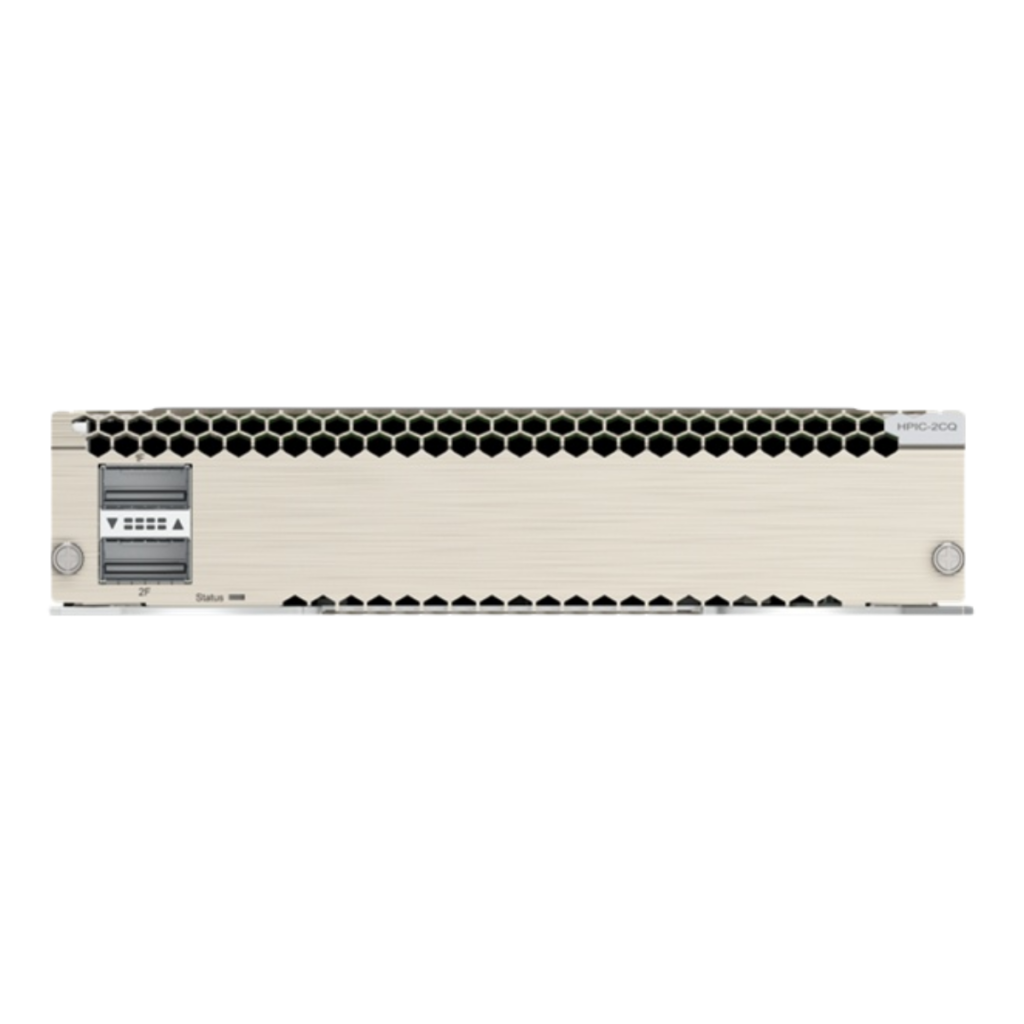

• HPIC-2CQ
• Front View

3. Product Features #

Advanced Integrated Architecture #

The RG-N8000-R series chassis is based on an elastic, scalable platform and uses distributed hardware forwarding and non-blocking switching technology, providing excellent line-speed forwarding performance, outstanding scalability, a complete QoS mechanism, and powerful service processing capabilities. The chassis features independent switching network boards, while the main control board, switching network board, and line card are separated to achieve three-plane separation of management, control, and data.

Green Energy-saving Design #

The RG-N8000-R series core routers adopt advanced cooling and energy-saving systems, including advanced air duct designs, advanced heat dissipation designs, intelligent fan designs, and modular power supply designs. These features enable automatic temperature sensing and adjustment, significantly improving power utilization. Additionally, the use of new VC heat sinks and phase change material thermal pads provides enhanced heat dissipation capabilities, combined with dynamic frequency modulation and intelligent fan speed control technologies to greatly reduce device power consumption.

High-Performance Multi-Service #

The RG-N8000-R series core routers have robust routing capabilities, supporting large routing tables. They provide technologies like IPv6, BGP, MPLS, SRv6, EVPN, HQoS, multicast, and support clear/encrypted authentication, ensuring rapid convergence in complex environments while maintaining line-speed performance without impact during complex service stacking.

SRv6-based Intelligent Connectivity #

The RG-N8000-R series core routers support SRv6 segment routing technologies, including support for NETCONF, Ti-LFA, SRv6-BE, cross-domain E2E, PCEP interactions, BGP for SRv6 Policy, G-SRv6, SRv6 OAM, and more. With comprehensive SRv6 support, protocol simplification is achieved, enabling intelligent path selection based on delay, bandwidth, and ensuring SLA.

Telecom-grade Reliability Design #

The RG-N8000-R series core routers provide reliability protection at multiple levels, including device-level, network-level, and service-level reliability, forming a solution tailored to the entire network to meet enterprises’ reliability demands for various services.

4. Product Specifications #

Hardware Specifications #

Software Specifications #

5. Typical Applications #

Financial Backbone Network Solution #

The RG-N8000-R series routers are applied in the financial industry for backbone network scenarios, including core bearer networks and first-level backbone networks.

Government External Network Solution #

In the government sector, the RG-N8000-R series routers are used for backbone networks and metropolitan networks, covering various WAN core nodes and metropolitan network core nodes.

6. Optional Guide #

Steps for selecting RG-N8000-R series devices:

1. Choose the chassis based on product model and power supply needs (DC/AC).
2. Select at least one management engine; two are recommended for redundancy.
3. Choose suitable line cards and functional modules based on specific business needs.
4. Ensure thermal management by equipping four fan modules.
5. Select power supply modules for redundancy.

7. Ordering Information #

Chassis Models #

Main Control Engines #

Switching Network Boards #

Power Fans #

Integrated Line Processing Cards #

Flexible Plug-in Cards #

8. Packing List #

RG-N8010-R/RG-N8010-R-AC Packing List #

RG-N8018-R/RG-N8018-R-AC Packing List #
