1. Product Overview #

The RG-RSR77-X series core service routers are designed by Ruijie Networks to meet the demands of cloud architecture and services for enterprise networks. They are an upgrade of the widely-used RG-RSR77 series, offering high performance and ample redundancy for future service growth over the next 5-10 years.

Key Features: #

• Separation of Routing, Switching, and Service Planes: Utilizes a distributed architecture with independent routing engines, switch boards, and service boards.
• Dual Data Plane: Enhances performance and ensures uninterrupted service.
• High Availability: Supports high-performance, multi-service, high-security networks.
• Backward Compatibility: Fully compatible with the existing RG-RSR77 series service cards, protecting user investments.
• RGOS Operating System: Supports multi-service features such as NAT, IPFIX, IPv6, BGP, IPSec, MPLS VPN, H-QoS, and multicast.

Model Options: #

• RG-RSR7716-X
• RG-RSR7708-X

Application Scenarios: #

• Government, finance, telecoms, education, large enterprise WAN core, aggregation points, and data center edge aggregation.

2. Product Appearance #

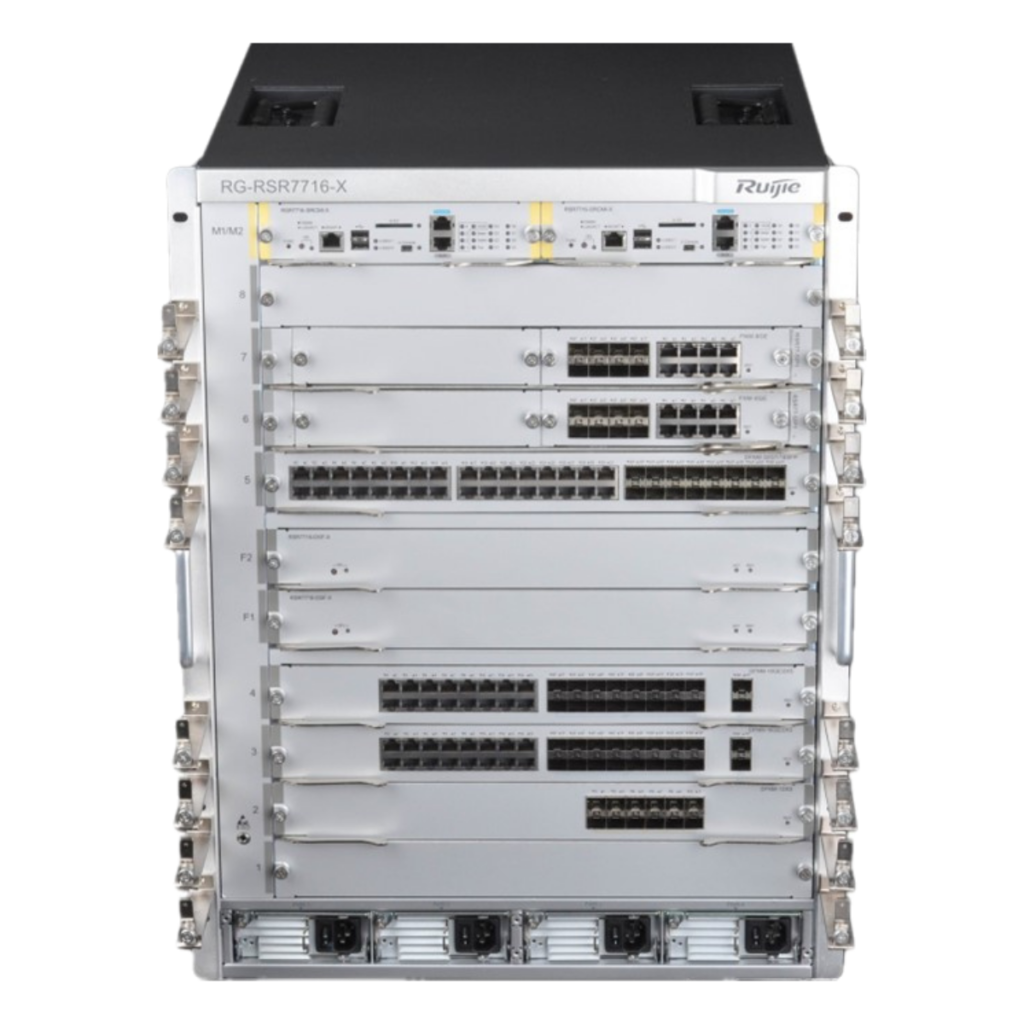

• RG-RSR7716-X:
  Top view of the RG-RSR7716-X series core router.

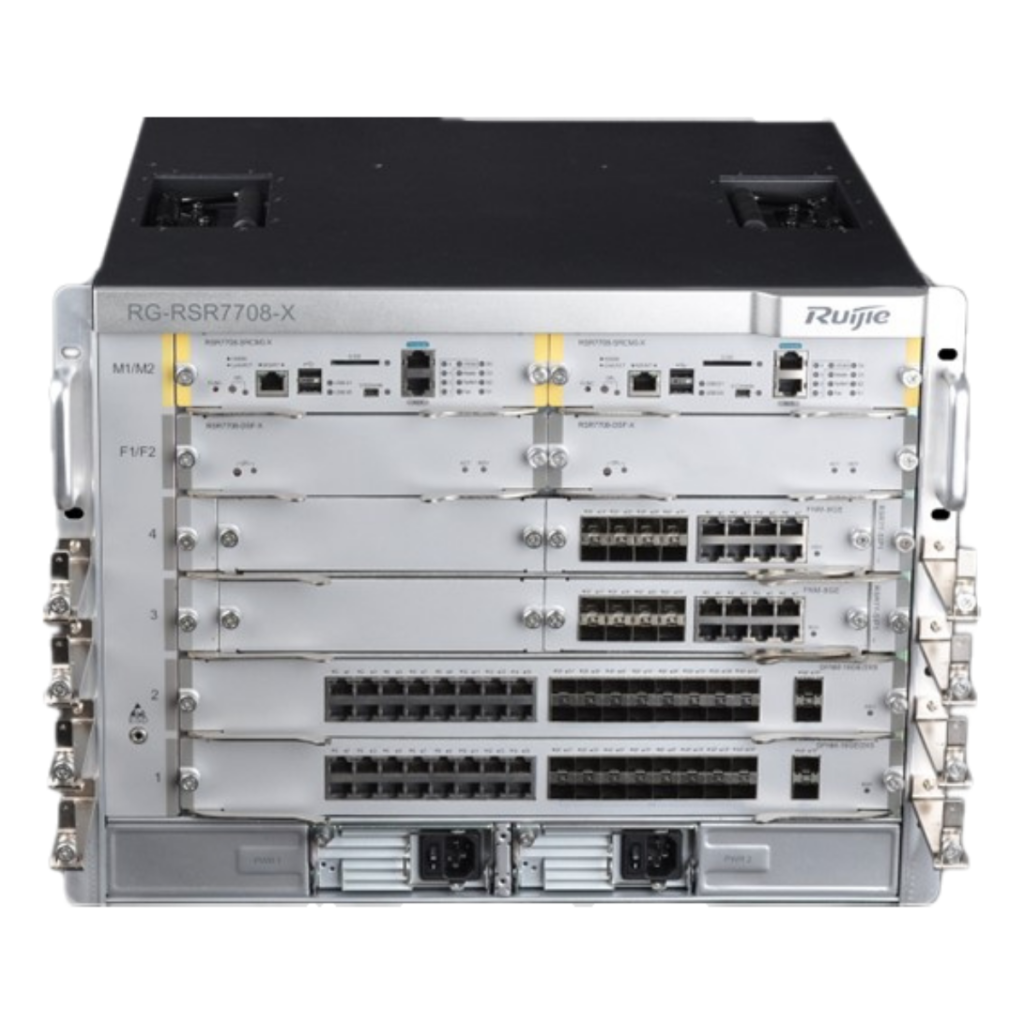

• RG-RSR7708-X:
  Top view of the RG-RSR7708-X series core router.

3. Product Features #

Architecture Upgrade #

• Based on a scalable, elastic platform.
• CLOS non-blocking switching and a distributed multi-service processing architecture supporting 100GE and 40GE interfaces.
• Innovative dual-plane switching architecture for high availability.

Modular Compatibility #

• Modular design with two models (RG-RSR7716-X and RG-RSR7708-X).
• Fully compatible with all existing RG-RSR77 series service cards.

Green Energy Efficiency #

• Modular power supply and intelligent fan design for independent power and heat management.
• Energy-saving features reduce energy consumption in data centers.

Built-in High-Performance Services #

• Supports full service integration, including NAT, IPv6, BGP, IPSec, MPLS VPN, and multicast.
• Distributed NAT and IPFIX functionality for campus networks.
• Flow monitoring and anomaly detection with IPFIX technology.

Security #

• Hardware-level attack defense with stateful firewall, URL filtering, SSL VPN, and national-standard encryption algorithms (SM1/SM2/SM3/SM4).
• Comprehensive support for MPLS VPN with multicast VPN and MPLS TE FRR.

IPv6 Full Support #

• Seamless IPv6 integration with full support for static routing, OSPFv3, BGP4+, IS-ISv6, and NAT64 transition technologies.

4. Technical Specifications #

5. Typical Applications #

• National IP Backbone Network Solution
• Government Backbone Network Solution
• Financial Backbone Network Solution
• IPv6 Transition Solution
• Simplified Campus Network Export Solution

6. Configuration Guide #

The configuration process for the RG-RSR77-X series devices is as follows:

1. Chassis, Management Engine, and Switch Fabric Board:
   Start by selecting the chassis, management engine, and switch fabric board. To ensure redundancy, it’s recommended to choose two management engines and two switch fabric boards.
2. Power Modules:
   Choose the power modules according to the power requirements of the device. At least one power module is required.
3. Service and Interface Cards:
   Select the service and interface cards based on specific business requirements.

Note: Products marked with an asterisk (*) are either supported later or require consultation with our product Sale.

7. Ordering Information #

Chassis and Components #

Power Modules #

DFNM Business Modules #

FNM Service Boards and Modules #

NME Service Boards and Modules #

ENM Service Boards and Modules #

Other Business Modules #

Accessories #

10G Optical Modules #

2.5G Optical Modules #

1000M Optical Modules #

622M Optical Modules #

155M Optical Modules #
