Product Overview #

RG-RSR77-XA series core all-service routers are the next-generation high-end distributed routers launched by Ruijie Networks to meet the needs of enterprise network cloud architecture and cloud services through independent innovation.

Based on Ruijie’s self-developed RGOS 12.X operating system, these routers deliver high performance, reliability, and security for multi-service core routing. The RG-RSR77-XA series supports smooth upgrades and expansion of devices, providing robust support for current network business needs while leaving ample redundancy for the development of new services over the next 5-10 years.

The series features physically separated routing engines, switching network boards, and service cards, implementing three-plane separation of management, control, and data forwarding on a high-performance multi-core platform and distributed architecture. The RG-RSR77-XA series adopts dual data planes to enhance performance and ensure uninterrupted operation of services.

With advantages such as high availability, high performance, multi-service capabilities, and high security, the RG-RSR77-XA series supports enterprise business operations and network construction, effectively increasing network value and reducing network construction costs. Built on an elastic and scalable architecture, the RG-RSR77-XA series can improve performance by adding service cards, achieving load balancing at the card level within the chassis.

Based on Ruijie’s self-owned intellectual property in RGOS 12.X, the RG-RSR77-XA series fully inherits the multi-service characteristics of the RG-RSR77-X series. It supports high-speed forwarding technologies such as VCPU and REF, continuously enhancing multi-service concurrent processing capabilities. The distributed service line cards support various interfaces and integrate full-service features, organically combining technologies like NAT, IPFIX, IPv6, BGP, IPSec, MPLS VPN, QoS, and multicast.

The RG-RSR77-XA series includes two product models: RG-RSR77XA-08 and RG-RSR77XA-03. It is primarily used in government, finance, telecommunications, education, and large and medium-sized enterprise networks for wide area core and aggregation nodes, large campus network exits, and various data center edge aggregations. It can be integrated with the RSR30-XA and RSR20-X1 series routers to achieve a one-stop delivery of overall WAN solutions.

Product Images #

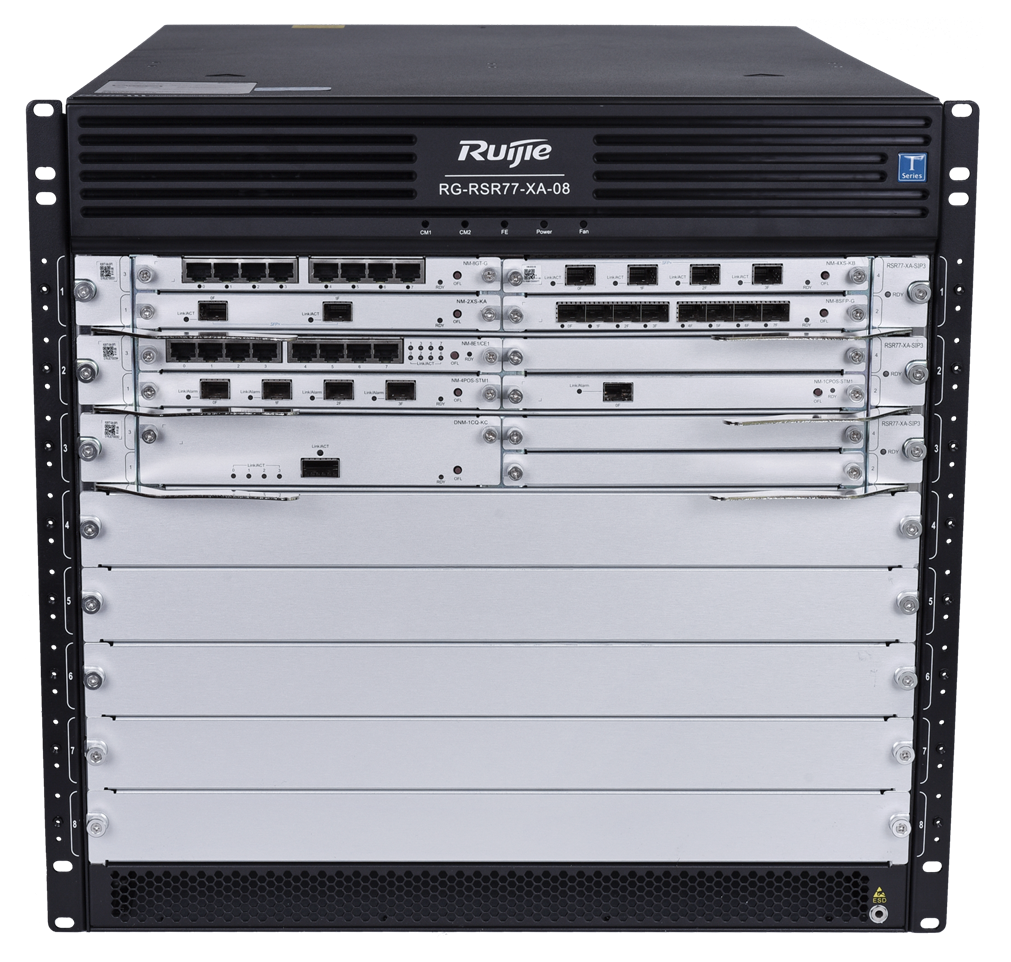

RG-RSR77-XA-08 #

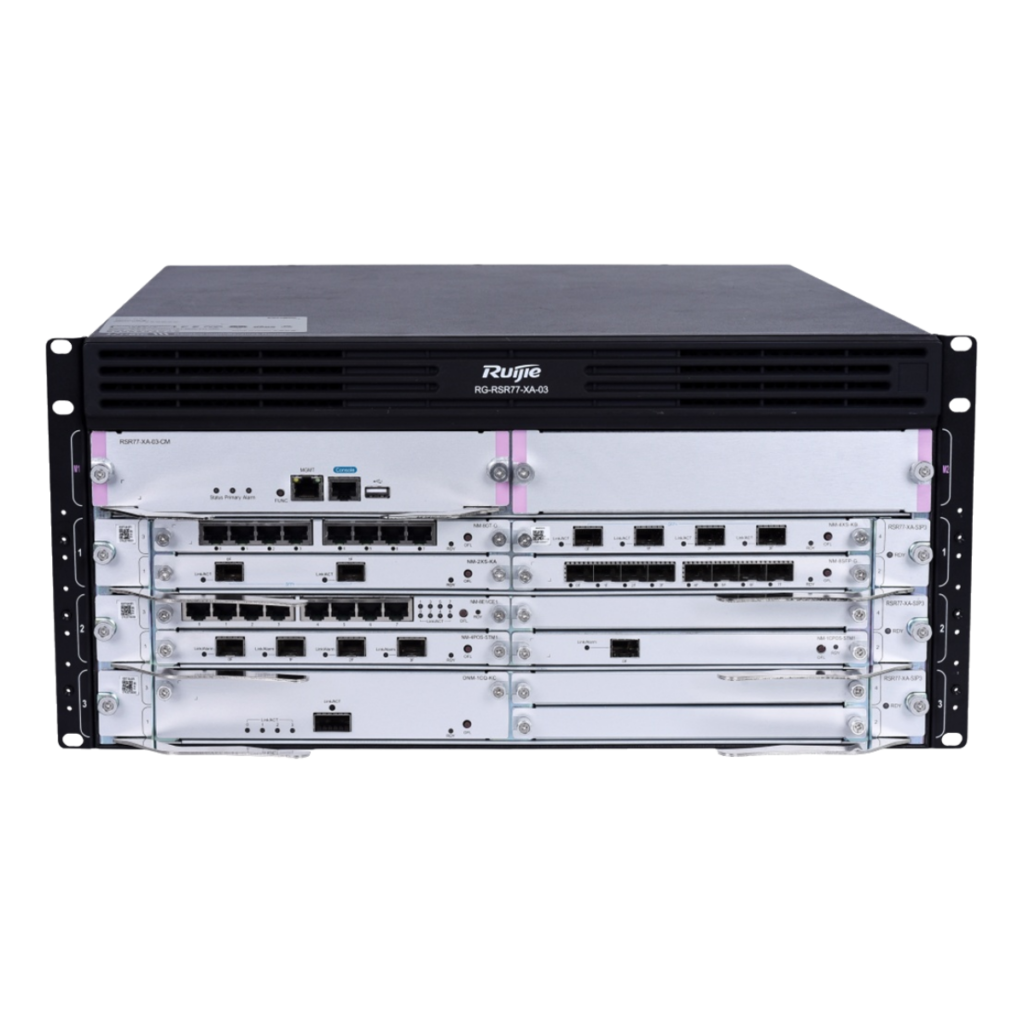

RG-RSR77-XA-03 #

Product Features #

Comprehensive Architecture Upgrade #

• The RG-RSR77-XA series chassis is based on an elastic and scalable platform, adopting CLOS non-blocking switching and advanced distributed multi-service processing architecture, supporting high-speed interfaces like 100GE and 40GE.
• The RSR77-XA-08 chassis features independent switching network boards, while the routing engine, service engine, and forwarding engine are completely independent, achieving three-plane separation of management, control, and data, further enhancing service availability.

Modular Full Compatibility #

• The RG-RSR77-XA series employs a sub-card separation design, currently offering RG-RSR77-XA-08 and RG-RSR77-XA-03 modular products. They utilize a unified hardware and software platform, ensuring full compatibility of line cards to adapt to the evolving network application needs of enterprises.

Green Energy-saving Design #

• The RG-RSR77-XA series adheres to environmental protection and energy-saving design principles, supporting efficient modular power supplies with independent power distribution for each partition to enhance power system efficiency and reduce data center energy consumption.
• The chassis features physically isolated thermal partitioning, with intelligent fan modules supporting partition temperature control, multi-level speed regulation, and energy savings, significantly reducing air conditioning energy costs.

High-performance Built-in Multi-service #

• The distributed service line cards of the RG-RSR77-XA series come with built-in full-service capabilities, supporting technologies like NAT, IPv6, BGP, IPSec, MPLS VPN, QoS, multicast, and SRv6. New service features can be loaded without purchasing software licenses or additional service cards, saving investment costs for customers.

Powerful Routing Processing Capability #

• Supports various dynamic routing protocols to meet diverse networking requirements, along with policy routing features for flexible control and scheduling of network traffic, catering to the routing characteristics required by financial, government, and enterprise networks.
• Leveraging high-performance flow tables and fast forwarding technologies, traditional routing protocol convergence mechanisms are improved through GR, FRR, and BFD functionalities, facilitating rapid convergence in large networks.

Comprehensive MPLS VPN Functionality #

• The RG-RSR77-XA series supports a comprehensive MPLS protocol, suitable for high-performance P/PE applications, and offers fully distributed Layer 3 VPN services.
• It enables high-performance multicast services in MPLS VPN networks, fulfilling user requirements for video conferencing and remote teaching.
• The series includes MPLS VPN network fault location capabilities, supporting MPLS PING/TRACEROUTE to help users quickly identify fault points.

Full Support for SRv6 #

• Comprehensive support for SRv6 segment routing technologies, including SRv6 support for Netconf, TI-LFA, cross-domain E2E, BGP For SRv6 Policy, and more.

Telecom-grade Reliability Design #

• Redundancy in key modules: routing engine, switching network board, N+N redundancy for power supplies, dual startup image files, and dual configuration files.
• Hot-swappable critical components: routing engine, line card, service board, power modules, and fan frame support hot-swapping.

Flexible Device Management #

• The RG-RSR77-XA series supports user-level management and password protection, leveraging multi-core CPU technology for control and forwarding separation to ensure management capabilities in both on-site and remote environments; authenticating login users and granting different management permissions based on user levels for device security.

Product Specifications #

Hardware Specifications #

Software Specifications #

Typical Applications #

E-Government Network #

Application Characteristics:
The RG-RSR77-XA series core all-service routers support comprehensive MPLS VPN solutions for the government sector, meeting the requirements of both external and internal e-government networks.

Financial Backbone Network #

Application Characteristics:
Supporting large-capacity aggregation for branches, the RG-RSR77-XA series ensures high-performance network demands for the banking, insurance, and other financial sectors.

Ordering Information #

RG-RSR77-XA Series #

• RG-RSR77-XA-08 Chassis
• RSR77-XA-08 Routing Engine
• RSR77-XA-08 Switching Board
• RG-RSR77-XA-03 Chassis
• RSR77-XA-03 Routing Engine

Service Modules #

• RSR77-XA-SIP3/6 Service Line Cards
• Various Ethernet Interface Modules: Includes 100G, 10G, 1G interface modules, etc.

Power Modules #

• RSR77-XA-08 Router AC/DC Power Module
• RSR77-XA-03 Router AC Power Module
