RG-S6510-4C Datasheet
Overview #
The RG-S6510-4C is a high-performance, next-generation data center switch designed for cloud environments. With support for modular interface cards and flexible configurations, this 2U switch is capable of scaling to meet demanding network requirements.
- Max Ports: Up to 96 x 25G ports, or 32 x 100G ports, or 64 x 40G ports.
- Redundancy: 1+1 hot-swappable power supplies, 2+1 fan redundancy.
- Adaptive Ports: 100G ports supporting 100G/40G adaptive switching.

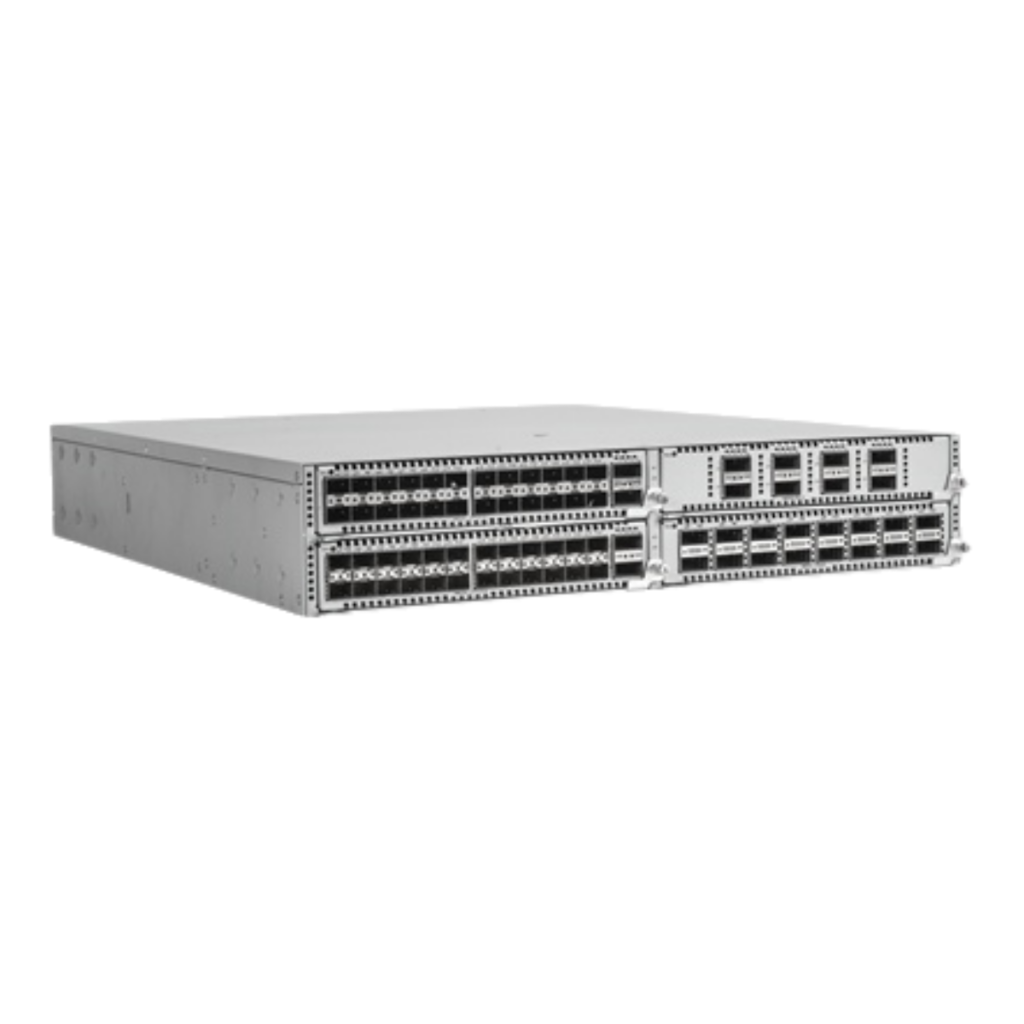

RG-S6510-4C Left top view
Core Features #
High-Capacity Buffer for Non-Blocking Networks #
The RG-S6510-4C delivers line-rate transmission across all ports, ensuring no traffic bottlenecks in large data centers. With an advanced buffer management system, it guarantees optimal utilization of network resources even in high-traffic environments.
Virtualization with VSU 2.0 #
Supports VSU 2.0 (Virtual Switch Unit) technology, virtualizing multiple devices into one logical switch. This simplifies management and enhances network reliability with cross-device link aggregation and rapid failover within 50-200 ms, ideal for mission-critical operations.
VXLAN Support for Data Center Overlay Networks #
Facilitates seamless creation of VXLAN-based overlay networks, solving the VLAN scalability challenges in traditional architectures. The switch supports EVPN, which automates VXLAN tunnel discovery, enabling flexible and scalable L2 networks.
RDMA for Lossless Ethernet #
By integrating RDMA (Remote Direct Memory Access), the switch achieves low-latency, lossless data forwarding—critical for improving performance in bandwidth-heavy environments like cloud storage or HPC.
Advanced Traffic Visualization #
With hardware-accelerated traffic visualization, you can monitor traffic paths, delay times, and quickly resolve network issues, improving troubleshooting efficiency by more than 10x.
Carrier-Grade Reliability #
The switch supports multiple layers of redundancy:
- Power and fan module redundancy, with all components hot-swappable.
- Protection mechanisms including overcurrent, overvoltage, and overheating protection.
- BFD and GR support to ensure fast network convergence during failures.
Dual-Stack IPv4/IPv6 Protocol Support #
Offers seamless IPv4/IPv6 dual-stack operation with line-rate forwarding for both. Supports various tunneling mechanisms and routing protocols (OSPFv3, BGP4+, etc.), making it adaptable for both current and future IPv6 networks.
Comprehensive Security Suite #
Features a robust set of security measures:
- DoS attack prevention, ARP inspection, IP spoofing detection, and hardware-based ACLs.
- SSH, SNMPv3, and Telnet/SSHv6 support for secure management.
- IPv4/IPv6 ACLs ensure granular access control.
Complete Management Capabilities #
The switch comes equipped with multiple management interfaces:
- Console, MGMT, USB ports.
- SNMPv1/v2c/v3, CLI, Telnet, SSH2.0, and SSL for secure device management.
- Supports traffic monitoring with SPAN/RSPAN.
Key Specifications #
Hardware #
| Specification | Details |
|---|---|
| Port Types | 25G, 40G, 100G |
| Slot Count | 4 slots for expansion cards |
| Expansion Card Types | M6500-24VS2CQ, M6500-08CQ, M6500-16QXS |
| Management Ports | 1 MGMT, 1 Console, 1 USB |
| Switching Capacity | 6.4 Tbps / 57.6 Tbps |
| Forwarding Rate | 2030 Mpps |
| Dimensions | 442mm x 520mm x 86mm (2U) |
| Weight | Approx. 14 kg (with power and fans) |
Power and Environmental #
| Specification | Details |
|---|---|
| AC Input | 100V-240V AC (50Hz-60Hz) |
| DC Input | 36V-72V DC |
| Max Power Consumption | 650W |
| Typical Power Usage | 455W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% – 90% RH (non-condensing) |
Software Features #
- L2 Protocols: Includes IEEE 802.3ad, 802.1p, 802.1Q, MSTP, QinQ, GVRP.
- L3 Protocols (IPv4): OSPFv2, BGP4, RIP, VRRP, and others.
- IPv6 Support: IPv6 routing protocols including OSPFv3, BGP4+, MLDv1/v2, and more.
- Data Center Features: VXLAN routing, bridging, and EVPN.
- Traffic Control: Advanced QoS features including SP, WRR, DRR, and WRED.
- Security: DoS prevention, IP spoofing protection, and secure access via SSH/SNMPv3.
Optional Configuration Guide #
1. Choose Main Unit, Fans, and Power Modules #
Start by selecting the main RG-S6510-4C unit, fans, and power supply modules based on your redundancy and power needs.
2. Select Expansion Cards #
Choose the appropriate expansion cards based on your network’s port requirements:
- M6500-08CQ: 8 x 40G/100G QSFP28
- M6500-24VS2CQ: 24 x 25G SFP28 + 2 x QSFP28
- M6500-16QXS: 16 x 40G QSFP+
3. Choose Optical Modules #
Finally, complete the setup with compatible optical modules based on transmission distances and fiber type.
Optical Module Information #
25G Optical Modules #
| Model | Description |
|---|---|
| VG-SFP-SR-SM850 | 25G SR, SFP28, 850nm, max 100m on multimode fiber |
| VG-SFP-LR-SM1310 | 25G LR, SFP28, 1310nm, max 10km on single-mode fiber |
| VG-SFP-AOC5M | 25G AOC, SFP28, active optical cable, length 5m |
40G Optical Modules #
| Model | Description |
|---|---|
| 40G-QSFP-SR-MM850 | 40G SR, QSFP+, 850nm, MPO interface, max 150m on multimode fiber |
| 40G-QSFP-LR4-SM1310 | 40G LR4, QSFP+, 1310nm, dual LC interface, max 10km on single-mode fiber |
| 40G-QSFP-LSR-MM850 | 40G LSR, QSFP+, MPO interface, max 400m on multimode fiber |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4, QSFP+, dual LC interface, max 2km on single-mode fiber |
| 40G-QSFP-LX4-SM1310 | 40G LX4, QSFP+, dual LC interface, supports both multimode (OM3/OM4 up to 150m) and single-mode fiber (up to 2km) |
| 40G-AOC-5M | 40G QSFP+ active optical cable, length 5m |
| 40G-AOC-30M | 40G QSFP+ active optical cable, length 30m |
100G Optical Modules #
| Model | Description |
|---|---|
| 100G-QSFP-SR-MM850 | 100G SR, QSFP28, 850nm, MPO interface, max 100m on multimode fiber |
| 100G-QSFP-LR4-SM1310 | 100G LR4, QSFP28, dual LC interface, 1310nm, max 10km on single-mode fiber |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4, QSFP28, dual LC interface, 1310nm, max 2km on single-mode fiber |
| 100G-QSFP-ER4-SM1310 | 100G ER4, QSFP28, dual LC interface, 1310nm, max 40km on single-mode fiber |
| 100G-AOC-5M | 100G AOC, QSFP28, active optical cable, length 5m |
| 100G-AOC-10M | 100G AOC, QSFP28, active optical cable, length 10m |
1G Optical Modules #
| Model | Description |
|---|---|
| GE-SFP-LH40-SM1310-BIDI | 1G LH, SFP, BIDI LC interface, max 40km on single-mode fiber |
| GE-SFP-LX20-SM1310-BIDI | 1G LX, SFP, BIDI LC interface, max 20km on single-mode fiber |
| GE-SFP-LX20-SM1550-BIDI | 1G LX, SFP, BIDI LC interface, max 20km on single-mode fiber |
| MINI-GBIC-LH40-SM1310 | 1G LH, SFP, dual LC interface, max 40km on single-mode fiber |
| MINI-GBIC-LX-SM1310 | 1G LX, SFP, dual LC interface, max 10km on single-mode fiber |
| MINI-GBIC-SX-MM850 | 1G SR, SFP, dual LC interface, max 550m on multimode fiber |
| MINI-GBIC-ZX80-SM1550 | 1G ZX, SFP, dual LC interface, max 80km on single-mode fiber |
10G Optical Modules #
| Model | Description |
|---|---|
| XG-LR-SM1310 | 10G LR, SFP+, dual LC interface, max 10km on single-mode fiber |
| XG-SFP-ER-SM1550 | 10G ER, SFP+, dual LC interface, max 40km on single-mode fiber |
| XG-SFP-LR-SM1310 | 10G LR, SFP+, dual LC interface, max 10km on single-mode fiber |
| XG-SFP-SR-MM850 | 10G SR, SFP+, dual LC interface, max 300m on multimode fiber |
| XG-SFP-ZR-SM1550 | 10G ZR, SFP+, dual LC interface, max 80km on single-mode fiber |
| XG-SR-MM850 | 10G SR, SFP+, dual LC interface, max 300m on multimode fiber |
| XG-SFP-AOC1M | 10G AOC, SFP+, active optical cable, length 1m |
| XG-SFP-AOC3M | 10G AOC, SFP+, active optical cable, length 3m |
| XG-SFP-AOC5M | 10G AOC, SFP+, active optical cable, length 5m |
1G Electrical Modules #
| Model | Description |
|---|---|
| Mini-GBIC-GT(F) | 1G electrical module, SFP form factor, RJ45 interface, max transmission distance 100m using Cat 5e/6/6a cables |
