RG-S6580 Series: Next-Generation Data Center and Cloud Computing Switch
1. Product Overview #
The RG-S6580 series switch is a new generation high-performance, high-density switch introduced by Ruijie Networks to meet the development trends of AI and other applications. It provides high-density 200GE/100GE port access. The RG-S6580 series switch, in conjunction with the RG-S6980-64QC switch, meets the design requirements of a Spine-Leaf all-layer network architecture.
The RG-S6580 series switch currently includes the following models:
- RG-S6580-48CQ8QC: Supports 48 100G DSFP ports + 8 400G QSFP-DD ports.
- RG-S6580-24DC8QC: Supports 24 200G QSFP56 ports + 8 400G QSFP-DD ports.
2. Product Appearance #

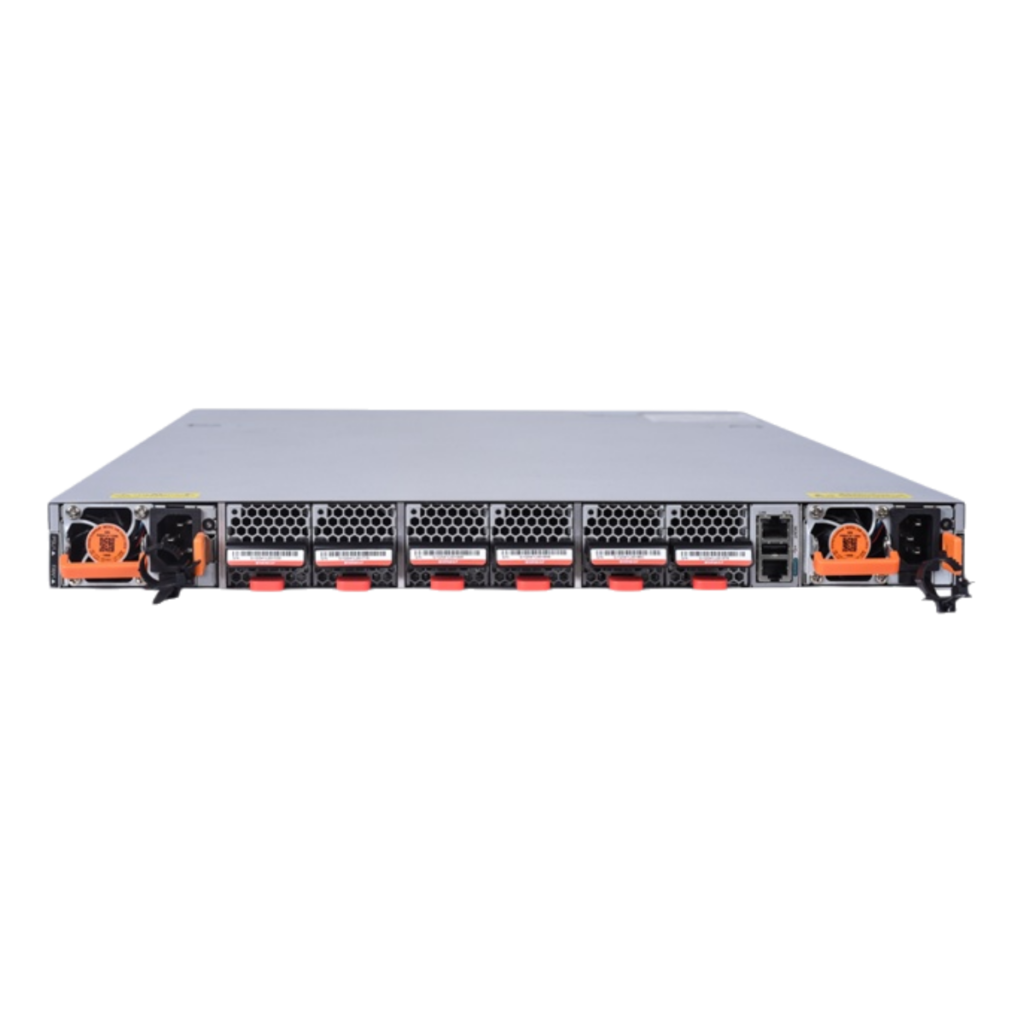

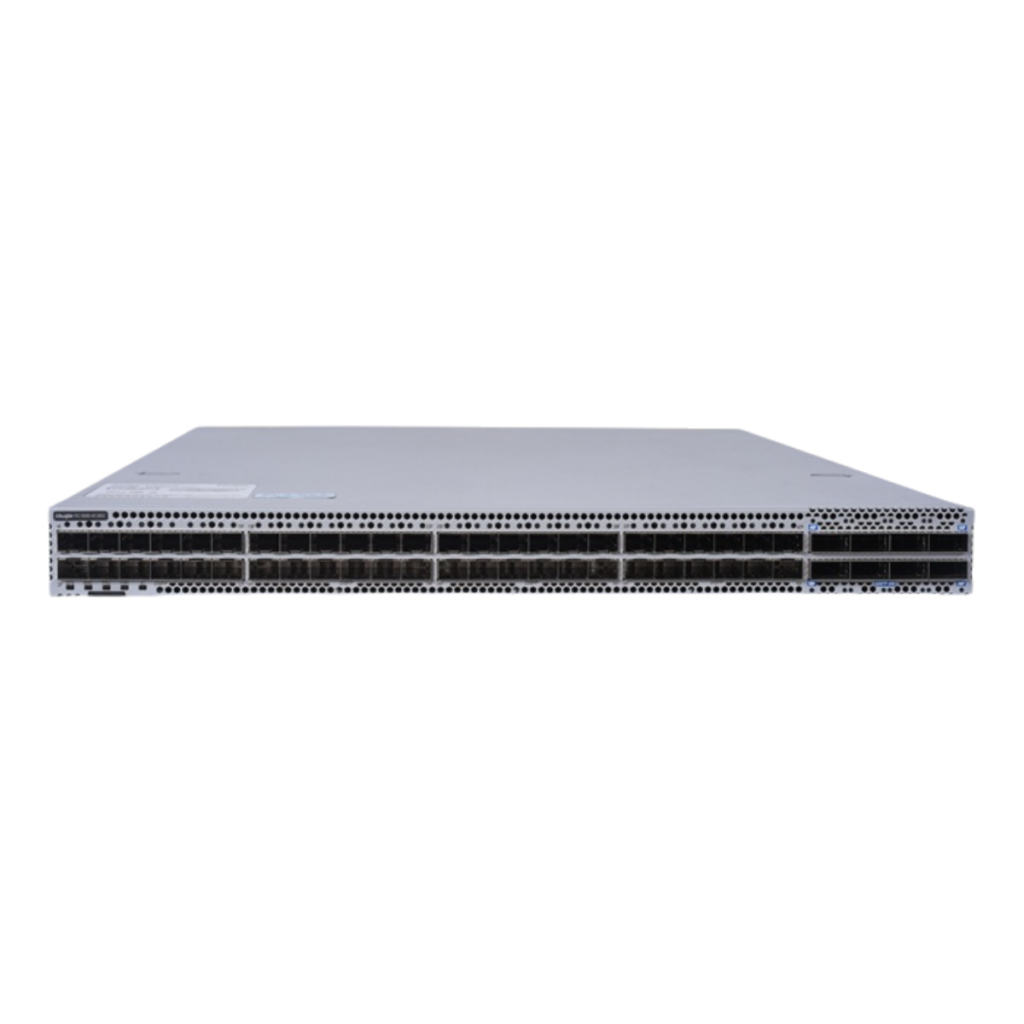

RG-S6580-48CQ8QC #
- Front View
- Back View

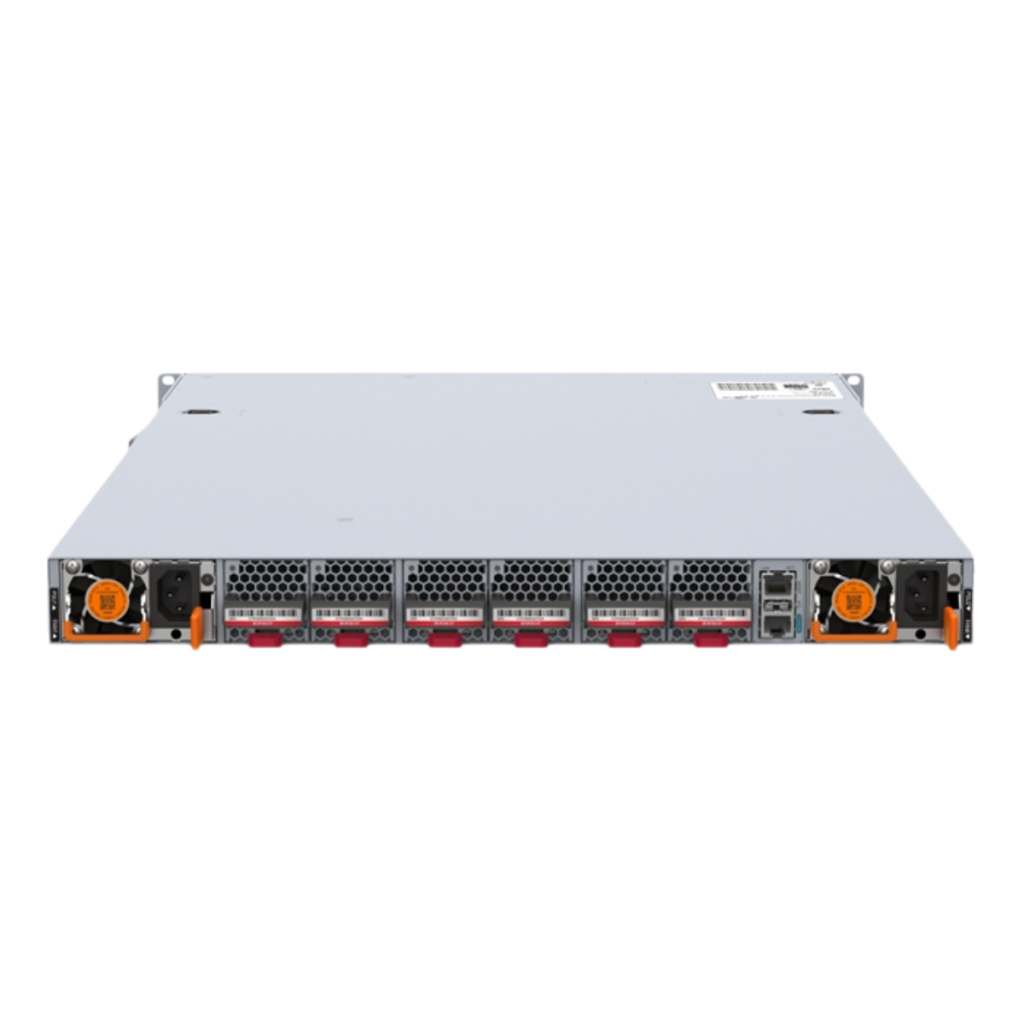

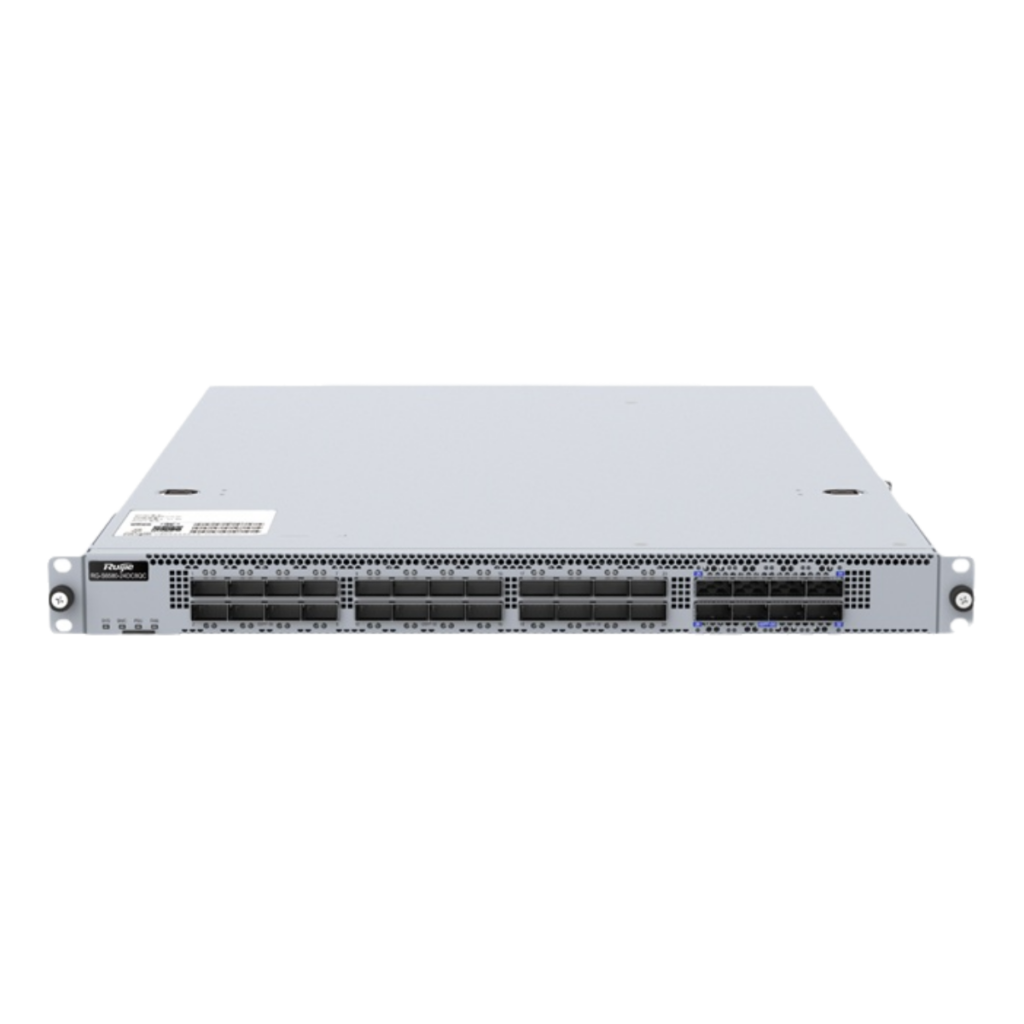

RG-S6580-24DC8QC #
- Front View
- Back View
3. Product Features #
Building Next-Generation Data Center Networks #
The rapid development of AI/machine learning applications drives the evolution of next-generation data center networks towards 100G/400G. The RG-S6580 series switches can provide up to 48 100G/24 200G ports and 8 400G ports in a 1U height, better meeting the evolution requirements of next-generation data center networks.
Building High-Performance, Low-Latency Data Center Networks #
When paired with the RG-S6980-64QC switch and leveraging technologies like PFC/ECN and MMU tuning, the RG-S6580 series can create an end-to-end, lossless, low-latency RDMA (Remote Direct Memory Access) network foundation, fulfilling the network deployment requirements for AI/machine learning, high-performance computing, and big data in distributed storage.
Telecom-Level Reliability Protection #
The RG-S6580 series supports 1+1 power redundancy and 5+1 fan redundancy. All power and fan modules can be hot-swapped without affecting normal operation. The switch also supports power and fan fault detection and alarms, automatically adjusting fan speeds based on temperature changes. It incorporates device-level and link-level reliability protections, including overcurrent, overvoltage, and overheating protection.
IPv4/IPv6 Dual-Stack Protocol Multi-layer Switching #
The RG-S6580 series supports hardware-based IPv4/IPv6 dual-stack multi-layer wire-speed switching, handling IPv4 and IPv6 protocol messages separately. It supports various tunnel technologies and offers flexible communication solutions based on IPv6 network needs.
Comprehensive Management Features #
The switch offers various management interfaces, including Console, MGMT port, and USB port. It supports SNMP v1/v2c/v3 and general network management platforms, facilitating easy management and secure operations through encryption methods like SSH2.0 and SSL.
4. Product Specifications #
Hardware Specifications #
| Specification | RG-S6580-48CQ8QC | RG-S6580-24DC8QC |
|---|---|---|
| Ports | 48 x 100G DSFP + 8 x 400G QSFP-DD | 24 x 200G QSFP56 + 8 x 400G QSFP-DD |
| Management Ports | 1 x MGMT, 1 x Console, 1 x USB | 1 x MGMT, 1 x Console, 1 x USB |
| Switching Capacity | 16.0T | 16.0T |
| Packet Forwarding Rate | 5350 Mpps | 5350 Mpps |
| Dimensions (W x D x H) | 442 mm x 700 mm x 44 mm (1RU) | 442 mm x 670.8 mm x 43.6 mm (1RU) |
| Weight | ~11.5 KG (including 6 fan modules) | ~11 KG (including 6 fan modules) |
Power and Consumption #
| Specification | RG-S6580-48CQ8QC | RG-S6580-24DC8QC |
|---|---|---|
| Power Input | AC or HVDC | AC or HVDC |
| Max Power Consumption | 742W | 850W |
| Typical Power Consumption | 633W | 700W |
| Static Power Consumption | 178W | 300W |
Environmental and Reliability #
| Specification | RG-S6580-48CQ8QC | RG-S6580-24DC8QC |
|---|---|---|
| Operating Temperature | 0 ~ 40°C | 0 ~ 40°C |
| Storage Temperature | -40 ~ 70°C | -40 ~ 70°C |
| Operating Humidity | 10% ~ 90% RH (non-condensing) | 10% ~ 90% RH (non-condensing) |
5. Selection Guide #
The steps for selecting RG-S6580 series devices are as follows:
- Select the main unit (fully configured with power and fans).
- Choose optical modules based on interface requirements.
6. Ordering Information #
Main Units #
| Product Model | Product Description |
|---|---|
| RG-S6580-48CQ8QC | Main unit with 48 x 100G (DSFP) Ethernet ports, 8 x 400G (QSFP-DD) Ethernet ports, 2 power slots, 6 fan slots. Fully configured with 2 RG-PA1200I-F power supplies and 6 M1HFAN II-F fans. |
| RG-S6580-24DC8QC | Main unit with 24 x 200G (QSFP56) Ethernet ports, 8 x 400G (QSFP-DD) Ethernet ports, 2 power slots, 6 fan slots. Fully configured with 2 RG-PA1200I-F power supplies and 6 M1HFAN II-F fans. |
Power Supply #
| Product Model | Product Description |
|---|---|
| RG-PA1200I-F | 1200W AC power supply module (supports AC and 240V HVDC). |
Fan #
| Product Model | Product Description |
|---|---|
| M1HFAN II-F | Switch fan module (air intake from the port side). |
100G Optical Modules #
| Product Model | Product Description |
|---|---|
| 100G-AOC-D-5M | 100G AOC cable, DSFP package, length 5m. |
| 100G-AOC-5M | 100G AOC cable, QSFP28 package, length 5m. |
| 100G-AOC-10M | 100G AOC cable, QSFP28 package, length 10m. |
| 100G-QSFP-SR-MM850 | 100G SR optical module, QSFP28 package, MPO interface, wavelength 850nm, max distance 100m. |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, max distance 2Km. |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, max distance 10Km. |
| 100G-QSFP-ER4-SM1310 | 100G ER4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, max distance 40Km. |
400G Optical Modules #
| Product Model | Product Description |
|---|---|
| 400G-QDD-SR8-MM850 | 400G optical module, QSFP-DD package, MPO-16 APC connector, wavelength 850nm, max distance 100m. |
| 400G-QDD-DR4-SM1310 | 400G optical module, QSFP-DD package, MPO-12 APC connector, wavelength 1310nm, max distance 500m. |
| 400G-QDD-FR4-SM1310 | 400G FR4 optical module, QSFP-DD package, dual LC interface, wavelength 1310nm, max distance 2Km. |
| 400G-QDD-ZR-SM1550 | 400G ZR optical module, QSFP-DD package, dual LC interface, wavelength 1550nm, max distance 80Km. |
