RG-S6910-3C Datasheet
Overview #
The RG-S6910-3C is Ruijie Networks’ latest high-density modular switch, engineered for exceptional performance. With a compact 4U design, it offers a remarkable 96 ports at 100G, making it an ideal solution for both small and large data center networks.

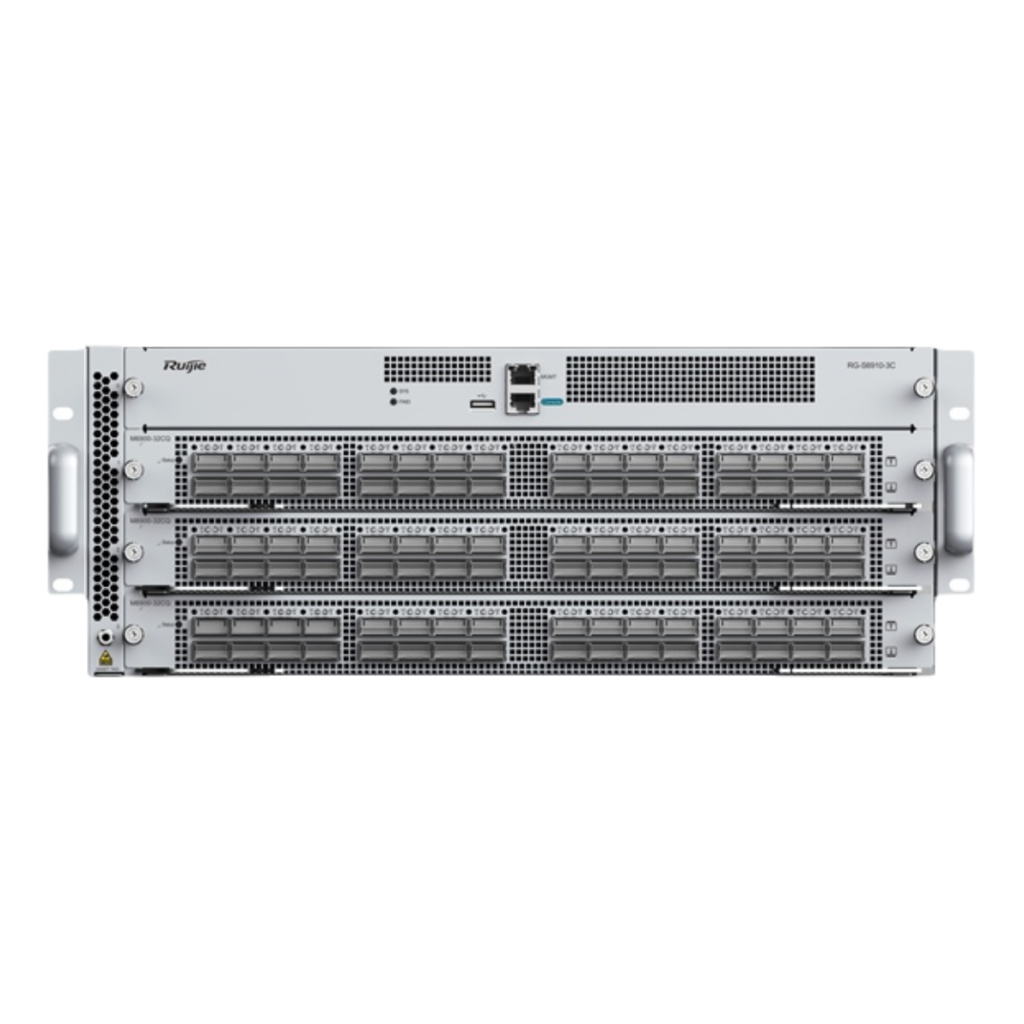

Product Appearance #
Features #
Advanced Data Center Networking #
Designed to meet the challenges of modern data centers, the RG-S6910-3C provides:
- 96 x 100G ports or 24 x 400G ports within just 4U of rack space.
- 16GB of port buffering to handle demanding data traffic efficiently.
Robust Reliability #
This switch is built for reliability, featuring:
- 2+2 power redundancy and 5+1 fan redundancy.
- Hot-swappable components that ensure continuous operation during maintenance.
With built-in fault detection and automatic fan speed adjustment based on temperature, it adapts seamlessly to varying data center conditions.
Dual-Stack Protocol Support #
The RG-S6910-3C supports both IPv4 and IPv6, enabling effective multi-layer switching. It handles diverse tunneling technologies, including manual and automatic configurations, to facilitate flexible communication in IPv6 networks.
Routing protocols available:
- IPv4: Static routing, RIP, OSPF, IS-IS, BGP4.
- IPv6: Static routing, RIPng, OSPFv3, BGP4+.
Enhanced Traffic Insights #
Harnessing advanced chip technology, the RG-S6910-3C allows for comprehensive traffic visualization across complex networks. This feature enhances the ability to monitor and troubleshoot network paths efficiently.
Comprehensive Management Capabilities #
Equipped with various management interfaces—Console, MGMT, USB—the RG-S6910-3C supports:
- SNMP versions 1, 2c, and 3.
- GRPC for streamlined communication.
- CLI command-line and Telnet for flexible device management.
Features like SPAN/RSPAN/ERSPAN facilitate in-depth traffic analysis, empowering users to optimize their network performance.
Technical Specifications #
Hardware Details #
- System Model: RG-S6910-3C
- Port Configuration: Supports **100G/*400G ports
- Expansion Slots: 3 slots (32 x 100G or 8 x *400G each)
- Management Interfaces: 1 MGMT port, 1 Console port, 1 USB port
- Switching Capacity: 19.2T
- Forwarding Rate: 4000Mpps
- VLAN Capability: 4K
Dimensions and Weight #
- Dimensions: 442mm × 735mm × 173.6mm (4RU)
- Weight: Approximately 42 kg (fully equipped)
Power Specifications #
- Maximum Power Consumption: 2046W
- Typical Power Consumption: 1092W
- Static Power Consumption: 760W
- Voltage Range: Supports 110V/220V AC
Environmental Conditions #
- Operating Temperature: 0℃ to 40℃
- Humidity Range: 10%RH to 90%RH (non-condensing)
Software Features #
- Layer 2 Protocols: Supports IEEE802.3 standards, IGMP Snooping, Jumbo Frames, GVRP.
- Layer 3 Protocols: BGP4, OSPF, RIPv2, and IPv6 functionalities.
- Security Protocols: Protects against DDoS, illegal packet detection, with support for RADIUS/TACACS.
- Management Methods: SNMP, Telnet, Console, RMON, Syslog.
Cloud Compatibility #
The RG-S6910-3C seamlessly integrates with various cloud platforms, including JD Cloud.
Configuration Steps #
- Select the main unit and expansion cards.
- Choose the appropriate fan and power modules.
- Pick optical modules based on your interface requirements.
Ordering Information #
Main Unit, Expansion Cards, Fan Modules, Power Modules #
| Product Model | Description |
|---|---|
| RG-S6910-3C | Supports 3 expansion slots, 4 power slots, 6 fan slots; compatible with RG-PA1200I-F and M2EFAN I-F |
| M6900-32CQ | 32-port 100G module |
| RG-PA1200I-F | Power module with 2+2 redundancy, hot-swappable |
| M2EFAN I-F | Fan module with 5+1 redundancy, hot-swappable |
Optical Modules #
40G Options #
| Product Model | Description |
|---|---|
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 module, QSFP+ package, 2Km range with single-mode fiber |
| 40G-QSFP-LR4-SM1310 | 40G LR4 module, QSFP+ package, 10Km range with single-mode fiber |
| 40G-QSFP-LSR-MM850 | 40G SR module, QSFP+ package, MPO interface, 400m range with multi-mode fiber |
| 40G-QSFP-SR-MM850 | 40G SR module, QSFP+ package, MPO interface, 150m range with multi-mode fiber |
| 40G-QSFP-LX4-SM1310 | 40G LX4 module, QSFP+ package, dual LC interface, max transmission distance 150m (OM3/OM4), max 2Km with single-mode fiber |
| 40G-AOC-30M | 40G QSFP+ active optical cable, 30m |
| 40G-AOC-5M | 40G QSFP+ active optical cable, 5m |
100G Options #
| Product Model | Description |
|---|---|
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 package, 100m range with multi-mode fiber |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 package, 2Km range with single-mode fiber |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 package, 10Km range with single-mode fiber |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 package, 40Km range with single-mode fiber |
| 100G-AOC-5M | 100G AOC cable, QSFP28 package, length 5m |
| 100G-AOC-10M | 100G AOC cable, QSFP28 package, length 10m |
