Product Overview #
The RG-S6930-2C switch is a next-generation high-density 200G/100G port switch designed specifically for data centers. It supports large routing caches and offers flexible port configurations, enabling a maximum of 144 concurrent 100G ports or 72 200G ports on a single unit. This adaptability makes the RG-S6930-2C ideal for deployment in data center gateway areas, metropolitan area networks (MAN), and data center interconnect (DCI) scenarios.
Product Appearance #
Front View #

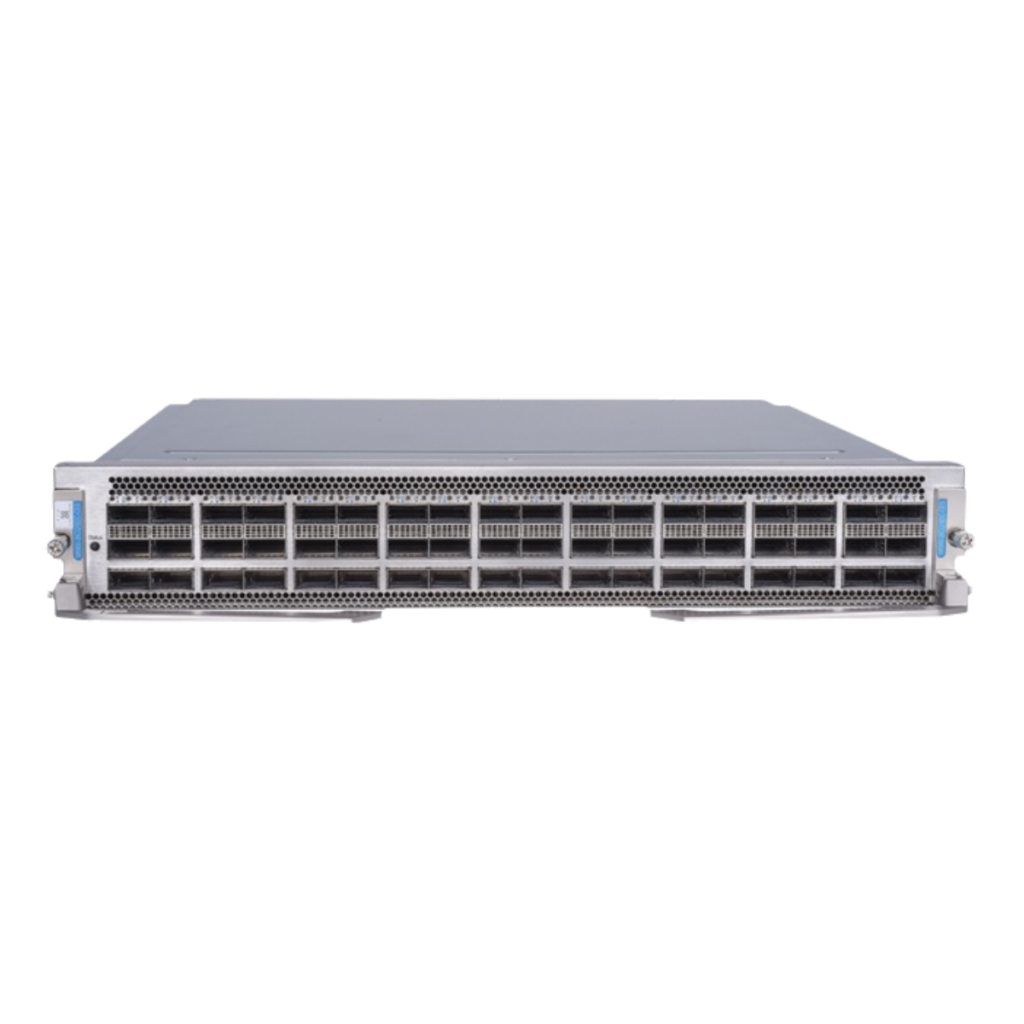

RG-S6930-2C

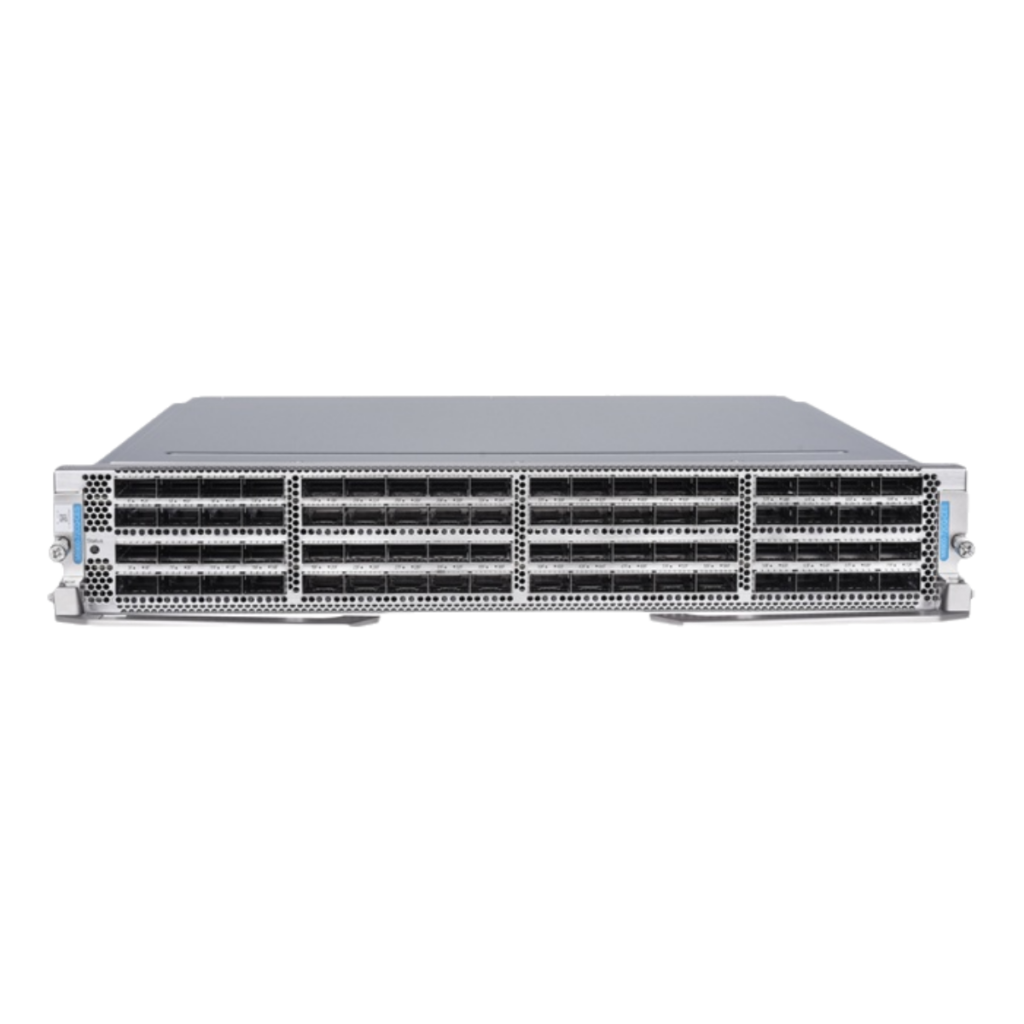

M6900-72CQ-CES
Back View #

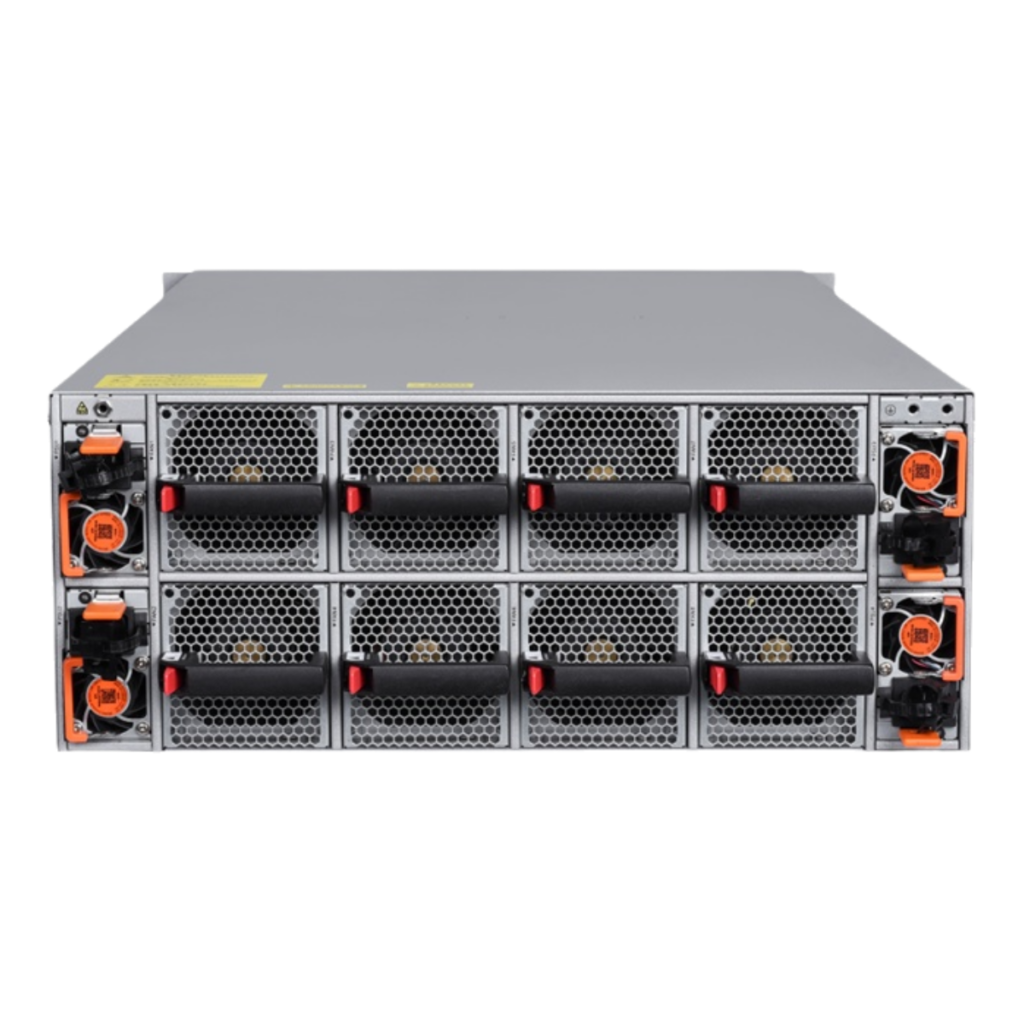

RG-S6930-2C
Key Features #
Building the Next Generation Data Center Network #
The RG-S6930-2C facilitates the development of data centers equipped with operable traffic management capabilities. It supports high-precision traffic collection and enhances features like ERSPAN, telemetry, and silent packet loss alerts, proactively notifying administrators of potential issues.
DCI Interconnect Capabilities #
This switch is engineered to handle extensive buffering and supports MPLS SR/SRv6, enabling customers to establish cost-effective DCI interconnections and MANs while enhancing data security through MACSec.
Rapid Fault Detection #
Equipped with high-capacity BGP linked to precision hardware BFD, the RG-S6930-2C swiftly identifies faults and executes traffic switching, minimizing data loss. Its kernel and SDK technologies allow for seamless fault recovery, reducing service interruptions during maintenance.
Telecommunications-Level Reliability Design #
The RG-S6930-2C boasts 2+2 power redundancy and 7+1 fan redundancy. All power and fan modules are hot-swappable, allowing maintenance without disrupting operations. The switch features fault detection for both power and fans, automatically adjusting fan speeds based on temperature, ensuring optimal performance.
Segment Routing (SR) Features #
Supporting MPLS-SR, the RG-S6930-2C offers enhanced routing flexibility, enabling traffic path specification at the ingress node to meet user requirements for efficient traffic management.
SRv6 Features #
With compatibility for SRv6, the switch provides seamless integration with IPv6 networks, offering vast address space access and defining traffic paths via Segment Lists for improved routing flexibility.
IPv4/IPv6 Dual-Stack Protocol Multilayer Switching #
The RG-S6930-2C supports dual-stack multilayer switching, effectively distinguishing and processing IPv4 and IPv6 packets while accommodating various tunnel technologies. This versatility enables flexible communication solutions tailored to current IPv6 needs.
Rich support for routing protocols includes static routing, RIP, OSPF, IS-IS, and BGP4 for IPv4, as well as RIPng, OSPFv3, IS-ISv6, and BGP4+ for IPv6, allowing users to select appropriate routing methods for their networks.
Comprehensive Management Capabilities #
The RG-S6930-2C features various management interfaces, including Console, MGMT, and USB ports, along with support for SNMP v1/v2c/v3. The device can be managed through a command line interface (CLI), Telnet, and cluster management, with enhanced security measures via SSH2.0 and SSL.
The switch also supports SPAN/RSPAN/ERSPAN mirroring and multiple monitoring ports for effective traffic analysis and maintenance, providing visibility into previously opaque network application traffic.
Hardware-Level Data Encryption with MACSec #
With support for MACSec, the RG-S6930-2C delivers hardware-level data encryption, ensuring data integrity, authenticity, and confidentiality throughout the network.
Product Specifications #
Hardware Specifications #
| Specification | RG-S6930-2C |
|---|---|
| Switching Capacity | 28.8T |
| Packet Forwarding Rate | 5400Mpps |
| Port Configuration | Supports 100G/200G ports |
| Expansion Slots | 2 slots (max 72 x 100G or 36 x 200G) |
| Power Module Slots | 4 (2+2 redundancy) |
| Fan Module Slots | 8 (7+1 redundancy) |
| Management Ports | 1 MGMT, 1 Console, 1 USB |
| Dimension (W × D × H) | 442mm × 760mm × 175mm (4RU) |
| Weight | Approximately 33.55KG |
| Input Voltage | AC: 100V ~ 127V (12A), 200V ~ 240V (9.5A) |
| High Voltage DC | 240V DC (8.5A) |
| Maximum Power | 2934W |
| Typical Power | 1338W |
| Static Power | 600W |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 10%RH ~ 90%RH (non-condensing) |
Software Specifications #
| Feature | Description |
|---|---|
| VLAN Support | 4K |
| L2 Protocols | IEEE802.3ad, IEEE802.1p, IEEE802.1Q, IEEE802.1D, IEEE802.1w, IEEE802.1s, IGMP Snooping, MLD Snooping, Jumbo Frame (9Kbytes), IEEE802.1ad, GVRP |
| L3 Protocols (IPv4) | BGP4, OSPFv2, IS-IS, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Route policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP |
| IPv6 Base Protocols | ND, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping /Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, VRRP for IPv6, IPv6 QoS |
| IPv6 Features | Static routing, BGP4+, OSPFv3, IS-ISv6, RIPng, manual tunnels, automatic tunnels, IPv4 over IPv6 tunnels |
| Visualization | Supports GRPC, sFlow, IPFIX |
| QoS | Supports various priority mapping and queue scheduling mechanisms |
| High Reliability Design | Supports GR, BFD, dual link fast switching, power redundancy, and hot-swappable components |
| Security Features | Supports MACSec, NFPP, CPP, RADIUS/TACACS, various ACL filtering mechanisms, and protection against DDoS attacks |
| Management Methods | SNMP, Telnet, Console, MGMT, RMON, SSH, FTP/TFTP, NTP, Syslog, SPAN/RSPAN/ERSPAN |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, Syslog |
| MPLS | Supports MPLS L3VPN, SR, SRv6 |
Typical Applications #
The RG-S6930-2C is ideally suited for large-scale data center DCI interconnects, where high reliability and performance are essential for maintaining seamless operations.
Selection Guide #
When configuring the RG-S6930-2C series, follow these steps:
- Select the RG-S6930-2C chassis (complete with power supplies and fans).
- Choose 1-2 line cards based on specific business requirements.
Ordering Information #
Main Chassis and Management Engine #
| Product Model | Description |
|---|---|
| RG-S6930-2C | Chassis with 2 expansion slots; 4 power slots, 8 fan slots; fully equipped with 4 RG-PA1600II-F power supplies and 8 M2EFAN II-F fans |
Power Supply #
| Product Model | Description |
|---|---|
| RG-PA1600II-F | 1600W AC power module |
Fan Modules #
| Product Model | Description |
|---|---|
| M2EFAN II-F | Fan module for switch (front-side intake) |
Line Cards #
| Product Model | Description |
|---|---|
| M6900-36CQ18DC-CES | 36 x 100G (QSFP28) + 18 x 200G (QSFP56) Ethernet interface card |
| M6900-72CQ-CES | 72 x 100G (QSFP28) Ethernet interface card |
40G Optical Modules #
| Product Model | Description |
|---|---|
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 optical module, QSFP+ package, |
