ASR1001-HX

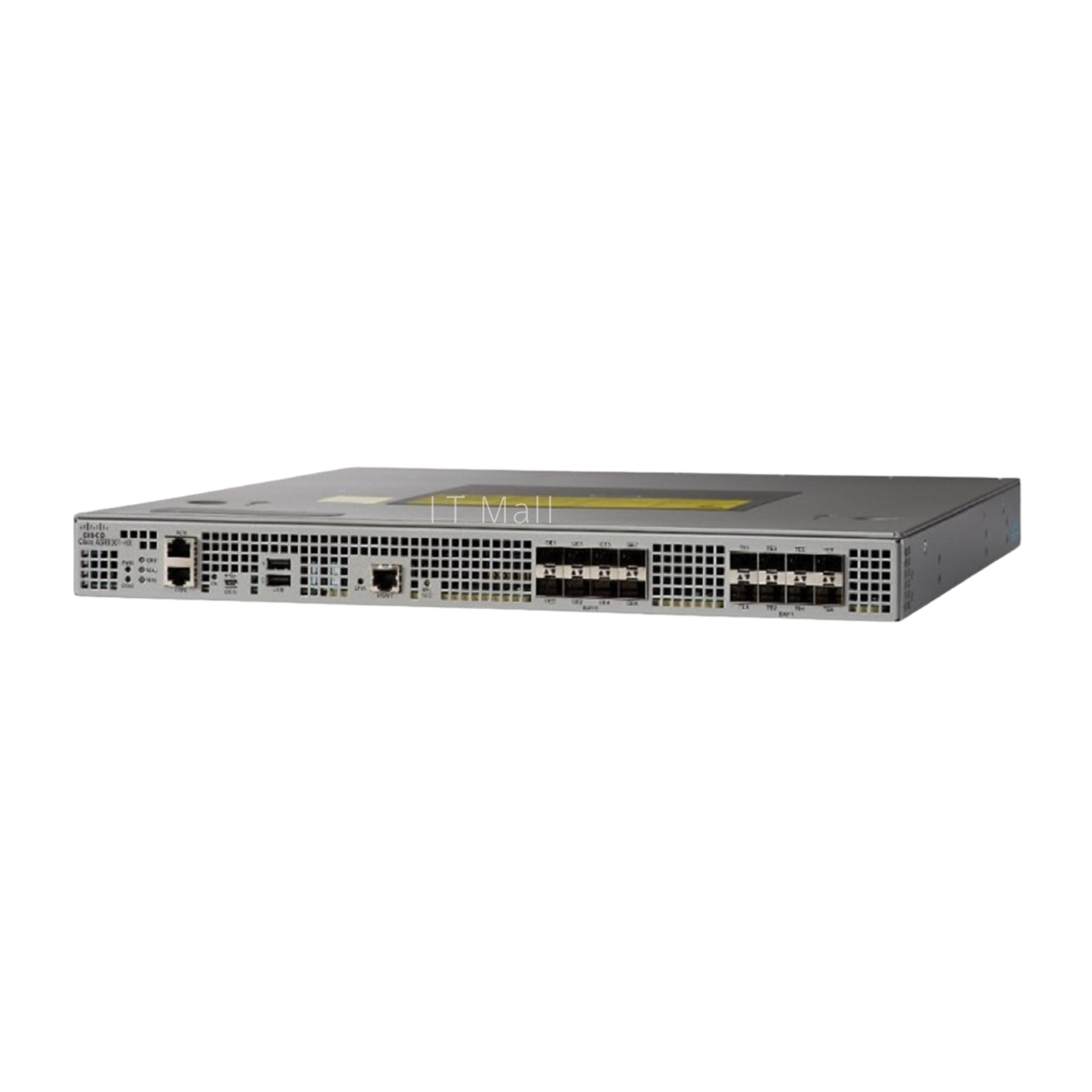

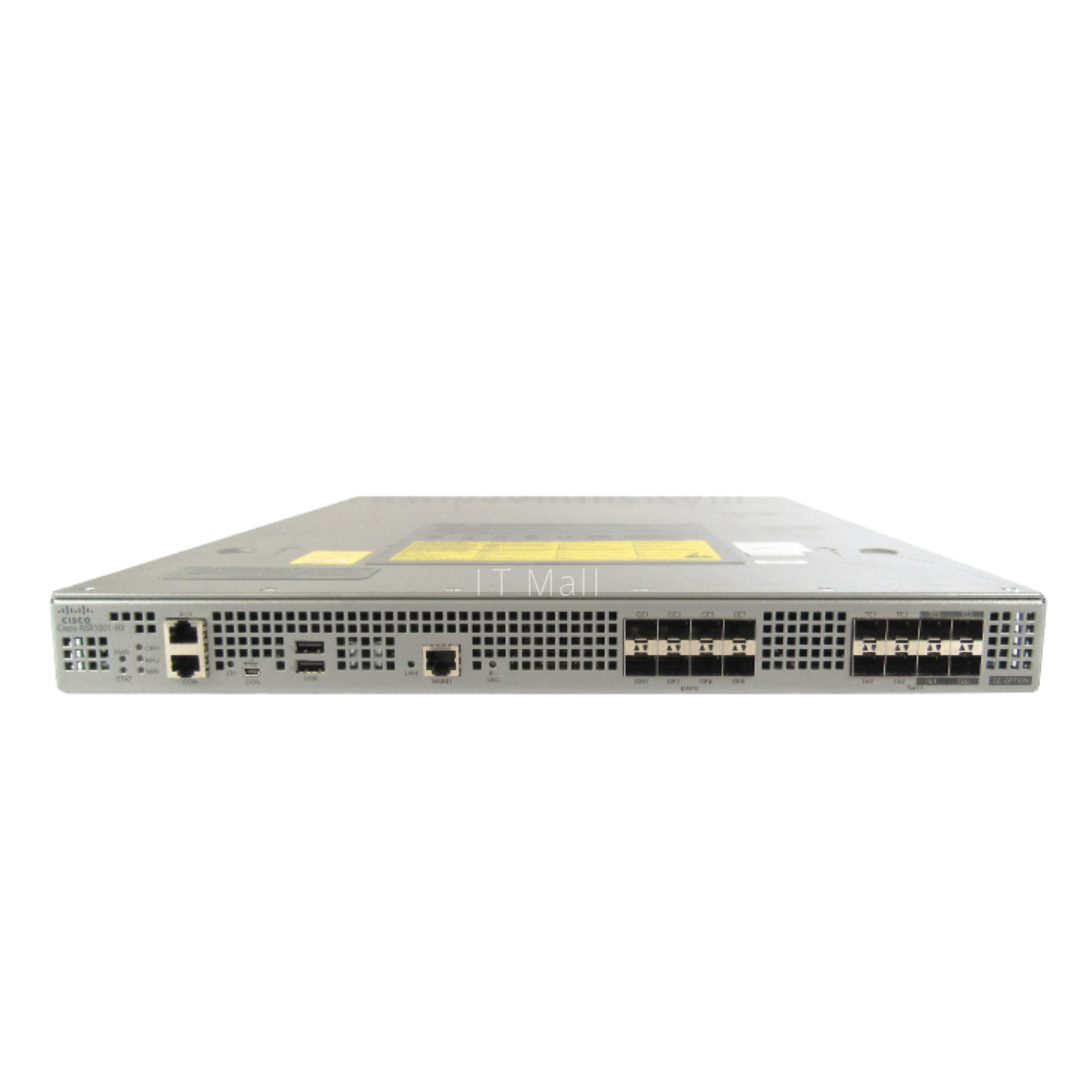

The Cisco ASR1001-HX is a compact, high-performance Aggregation Services Router in the Cisco ASR 1000 Series, featuring 4x10GE + 4x1GE fixed ports, dual power supplies, and optional crypto capabilities. Designed for enterprise WAN edge deployments, it provides robust Ethernet connectivity with full-duplex traffic forwarding, rich Layer 2 and Layer 3 processing, IP, IPv6, and MPLS support.

Key Features and Capabilities

• Fixed-port Ethernet design for greater density and cost efficiency per port.
• Supports Small Form-Factor Pluggable (SFP) and 10-Gbps SFP+ modules for flexible copper or fiber media types, including single-mode and multimode fiber.
• LED indicators: one power LED, one line-card status LED, and port/link-status LEDs.
• Rich Quality-of-Service (QoS) functions including ingress and egress QoS, egress queuing, and high/low-priority lanes for low-latency forwarding to Embedded Services Processors.
• Hardware-ready MACsec on select port adapters like 18-port 1GE, 10-port 10GE, 2-port 40GE, and 1-port 40GE.
• Compatibility with Cisco ASR 1000 Series chassis, Route Processors, and Embedded Services Processors for scalable deployments.

Interface and Processing

The ASR1001-HX integrates seamlessly with the ASR 1000 Series ecosystem, offering feature parity with SPA interface processors. It supports advanced packet processing previously available on ASR 1000 platforms, including Ethernet Layer 2, Layer 3, IP, IPv6, and MPLS. Unlike Shared Port Adapters (SPAs), these fixed Ethernet configurations provide built-in ports without requiring modular adapters, optimizing for high Ethernet density.

Modular and Fixed Configurations

• Fixed Ethernet Line Cards: ASR1000-2T+20X1GE (twenty 1GE + two 10GE) and ASR1000-6TGE (six 10GE), capable of 40-Gbps full-duplex forwarding.
• Modular Interface Processor (ASR1000-MIP100): Full-duplex 100-Gbps, hosts up to two Ethernet Port Adapters (EPAs) for 40GE and 100GE connectivity.
• EPAs include: 1-port 100GE QSFP, 1-port 100GE, 2-port 40GE (Native QSFP and breakout), 1-port 40GE (with optional license for second port), 10-port 10GE, 18-port 1GE.

Software and Security Support

Minimum Cisco IOS XE versions ensure compatibility: For built-in 1GE and 10GE ports on ASR1001-HX, MACsec requires XE 16.4.1. Various EPAs have specific release requirements across platforms like ASR1002-HX and ASR1000-MIP100. MACsec licenses available per port speed (1GE, 10GE, 40GE, 100GE). IPsec/MACsec license for ASR1001-X models.

Environmental and Sustainability

Cisco ASR 1000 Series products adhere to environmental sustainability policies, with details on material content laws, WEEE compliance for electronic waste, batteries, and packaging available in Cisco’s Corporate Social Responsibility Report.
