The RG-RSR77-X series core service routers are designed by Ruijie Networks to meet the demands of cloud architecture and services for enterprise networks. They are an upgrade of the widely-used RG-RSR77 series, offering high performance and ample redundancy for future service growth over the next 5-10 years.
Key Features:
Separation of Routing, Switching, and Service Planes: Utilizes a distributed architecture with independent routing engines, switch boards, and service boards.
Dual Data Plane: Enhances performance and ensures uninterrupted service.
High Availability: Supports high-performance, multi-service, high-security networks.
Backward Compatibility: Fully compatible with the existing RG-RSR77 series service cards, protecting user investments.
RGOS Operating System: Supports multi-service features such as NAT, IPFIX, IPv6, BGP, IPSec, MPLS VPN, H-QoS, and multicast.
Model Options:
RG-RSR7716-X
RG-RSR7708-X
Application Scenarios:
Government, finance, telecoms, education, large enterprise WAN core, aggregation points, and data center edge aggregation.
2. Product Appearance

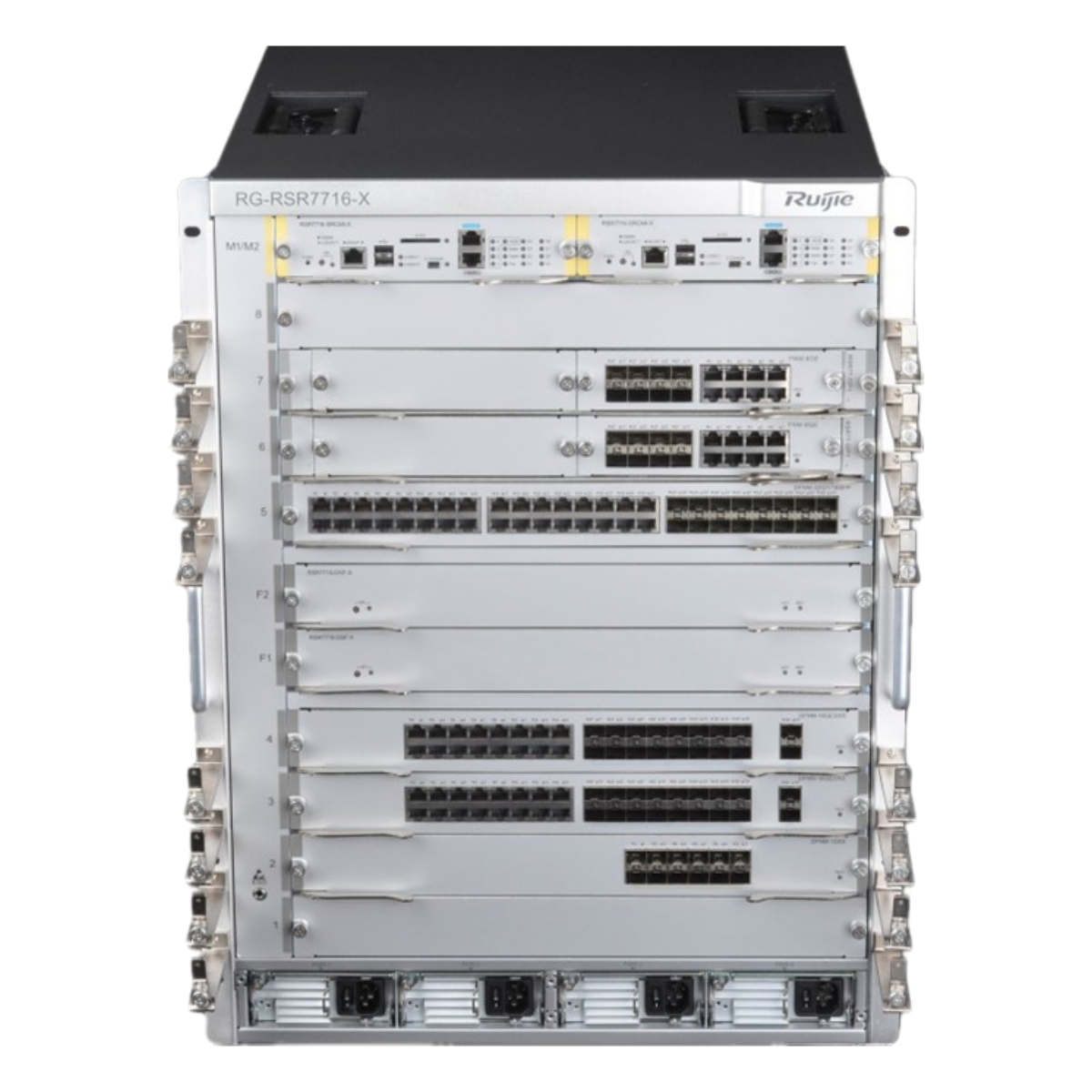

RG-RSR7716-X: Top view of the RG-RSR7716-X series core router.
RG-RSR7708-X: Top view of the RG-RSR7708-X series core router.
3. Product Features
Architecture Upgrade
Based on a scalable, elastic platform.
CLOS non-blocking switching and a distributed multi-service processing architecture supporting 100GE and 40GE interfaces.
Innovative dual-plane switching architecture for high availability.
Modular Compatibility
Modular design with two models (RG-RSR7716-X and RG-RSR7708-X).
Fully compatible with all existing RG-RSR77 series service cards.
Green Energy Efficiency
Modular power supply and intelligent fan design for independent power and heat management.
Energy-saving features reduce energy consumption in data centers.
Built-in High-Performance Services
Supports full service integration, including NAT, IPv6, BGP, IPSec, MPLS VPN, and multicast.
Distributed NAT and IPFIX functionality for campus networks.
Flow monitoring and anomaly detection with IPFIX technology.
Security
Hardware-level attack defense with stateful firewall, URL filtering, SSL VPN, and national-standard encryption algorithms (SM1/SM2/SM3/SM4).
Comprehensive support for MPLS VPN with multicast VPN and MPLS TE FRR.
IPv6 Full Support
Seamless IPv6 integration with full support for static routing, OSPFv3, BGP4+, IS-ISv6, and NAT64 transition technologies.
4. Technical Specifications
Specification
RG-RSR7708-X
RG-RSR7716-X
Main Control Slots
2
2
Switch Capacity
150 Tbps
150 Tbps
Forwarding Rate
24000 Mpps
30000 Mpps
Line Card Slots
4
8
Service Card Slots
16
32
Dimensions
442mm × 460mm × 352.8mm (8U)
442mm × 460mm × 619.5mm (14U)
Weight
≤55KG
≤90KG
Power
2 modules (1+1 redundancy)
4 modules (N+N redundancy)
MTBF
>200,000 hours
>200,000 hours
Operating Temp
0℃ to 45℃
0℃ to 45℃
Storage Temp
-40℃ to 70℃
-40℃ to 70℃
Operating Humidity
10% to 90%
10% to 90%
5. Typical Applications
National IP Backbone Network Solution
Government Backbone Network Solution
Financial Backbone Network Solution
IPv6 Transition Solution
Simplified Campus Network Export Solution
6. Configuration Guide
The configuration process for the RG-RSR77-X series devices is as follows:
Chassis, Management Engine, and Switch Fabric Board: Start by selecting the chassis, management engine, and switch fabric board. To ensure redundancy, it’s recommended to choose two management engines and two switch fabric boards.
Power Modules: Choose the power modules according to the power requirements of the device. At least one power module is required.
Service and Interface Cards: Select the service and interface cards based on specific business requirements.
Note: Products marked with an asterisk (*) are either supported later or require consultation with our product Sale.
7. Ordering Information
Chassis and Components
Product Code
Description
RG-RSR7716-X
RSR7716-X Chassis
RSR7716-SRCMI-X
RSR7716-X Routing and Switching Engine
RSR7716-DSF-X
RSR7716-X Switch Fabric Board
RG-RSR7708-X
RSR7708-X Chassis
RSR7708-SRCMI-X
RSR7708-X Routing and Switching Engine
RSR7708-DSF-X
RSR7708-X Switch Fabric Board
Power Modules
Product Code
Description
RG-PA600-RI
AC Power Module for RSR77-X series
RG-PA1600-RI
High-Power AC Power Module for RSR77-X
RG-PD600-RI
DC Power Module for RSR77-X series
RG-PD1600-RI
High-Power DC Power Module for RSR77-X
DFNM Business Modules
Product Code
Description
DFNM-16GE/2XS
16-port GE optical/electrical combo + 2-port 10GE optical interface module
DFNM-16GE
16-port GE optical/electrical combo module
DFNM-48SFP
48-port GE optical interface module
DFNM-32GT/16SFP
32-port GE electrical + 16-port GE optical interface module
FNM Service Boards and Modules
Product Code
Description
RSR77-SIP1-X
FNM Service Board Slot
FNM-1CPOS-STM16/4CPOS-STM4
1-port OC-48c/STM-16c or 4-port OC-12c/STM-4c POS interface module
