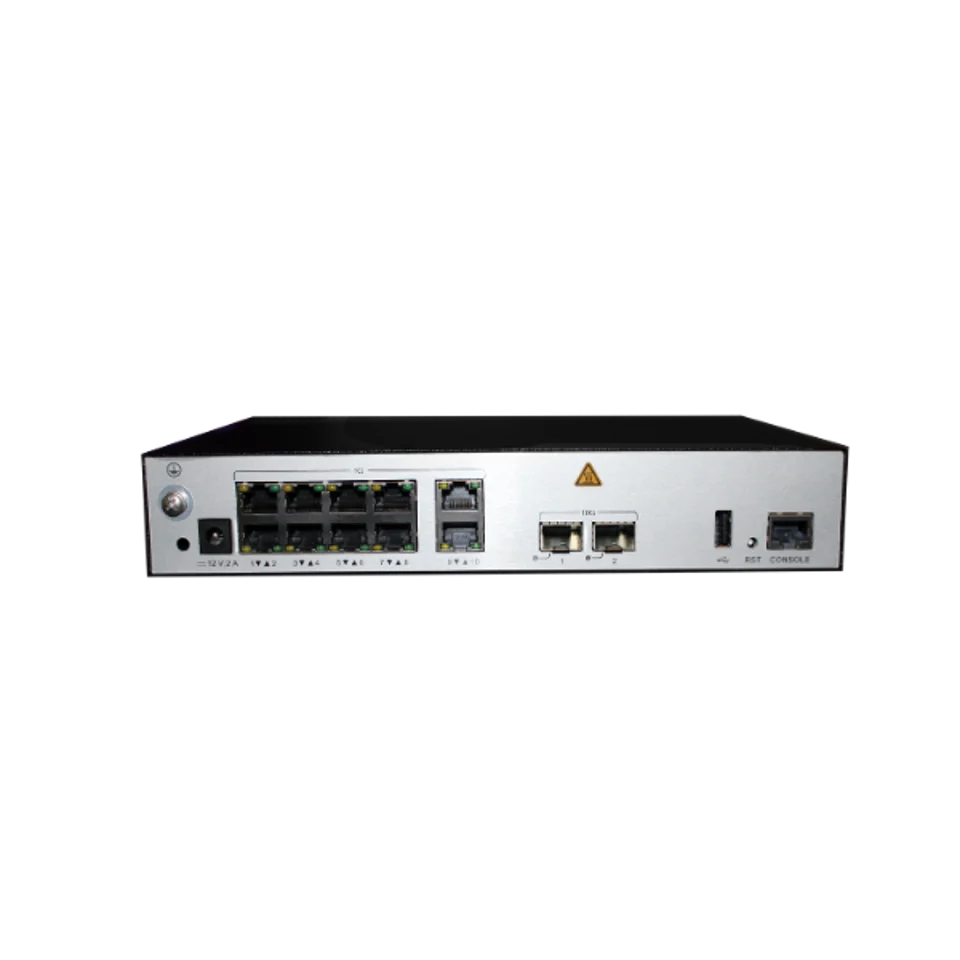

AC6507S_02351YTW

Description

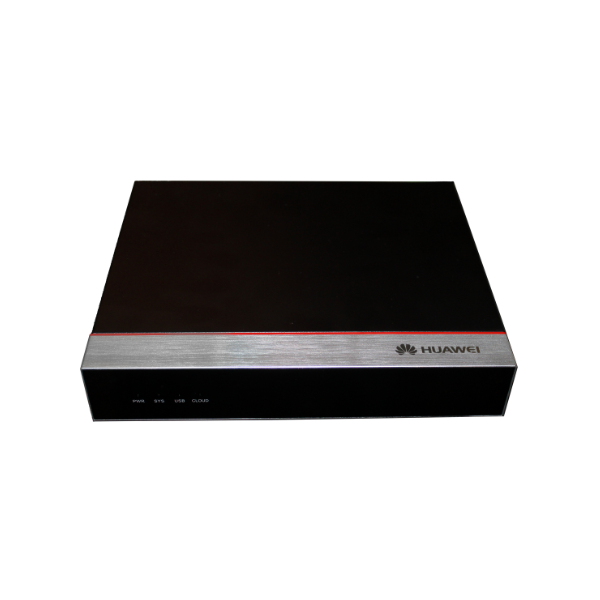

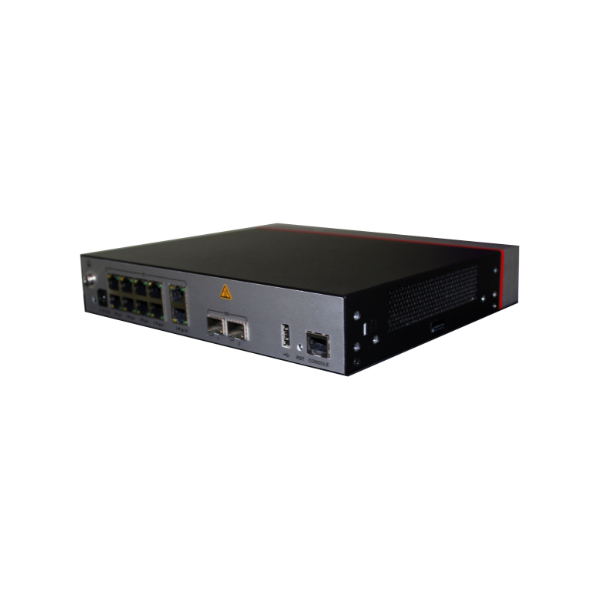

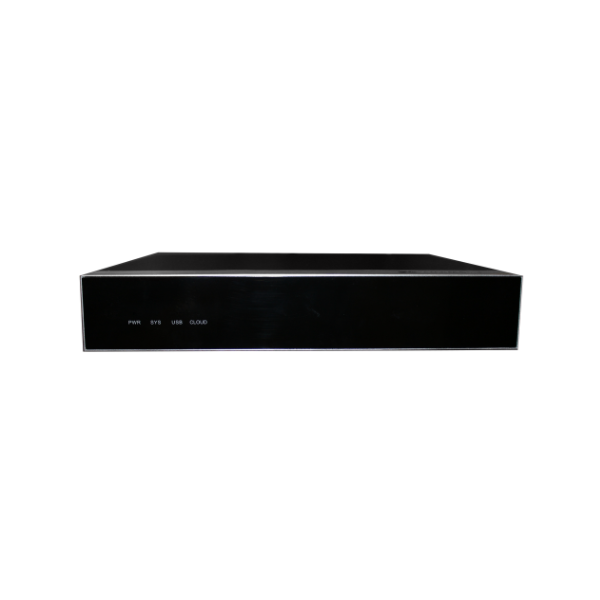

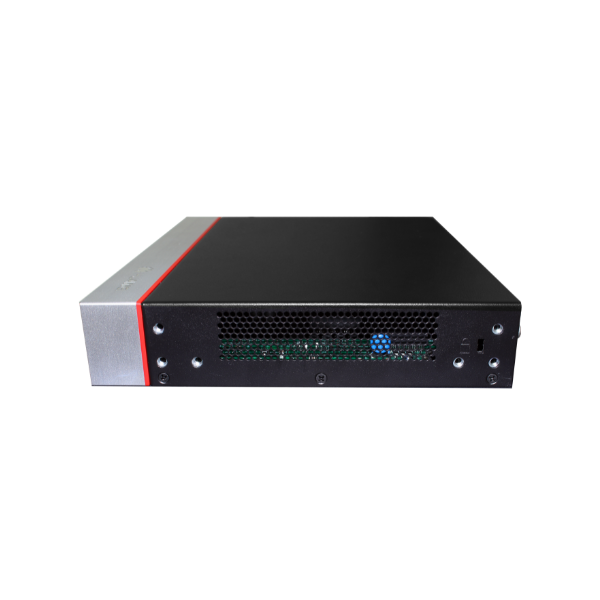

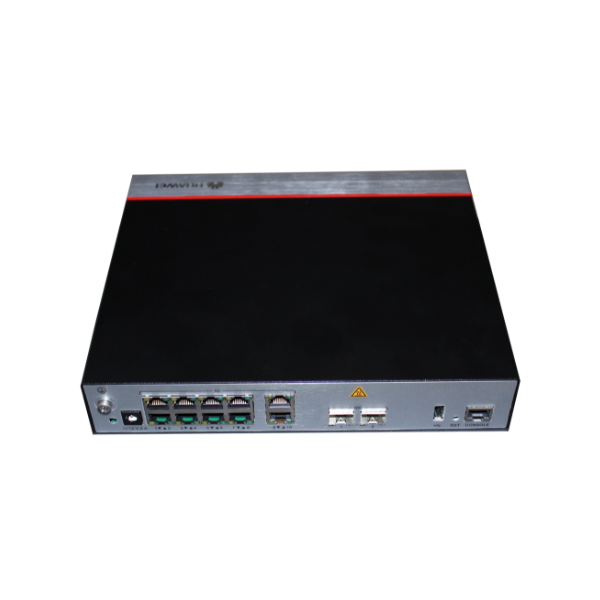

The AC6507S is a small box wireless Access controller launched by Huawei for small and medium-sized enterprises. It can manage a maximum of 256 aps and integrates the dry Gigabit Ethernet switch function to achieve integrated wired and wireless access. The management number of wireless access points can be flexibly configured, and it has good scalability. Cooperate with huawei full range 802.11 802.11 n/ac / 802.11 ax wireless access points, can form a small and medium-sized campus networks, corporate office network, wireless metropolitan area network, such as hot cover application environment.

Main features of product
High capacity, high performance design
The AC6507S can manage up to 256 aps to meet the management needs of small and medium-sized parks. Provides 2 10GE optical ports,10 GE electrical ports, can forward 10Gbps data SmartRadio air port optimization
Intelligent roaming load balancing technology: The intelligent roaming load balancing algorithm is used to detect the load balancing of aps after users roam and adjust the user loads of each AP to improve network stability.
Intelligent frequency band dynamic adjustment technology: using DFA algorithm (DynamicFrequency Assignment) to automatically detect signal interference of adjacent frequency and same frequency, identify 2.4G redundant radio frequency, and automatically switch (double 5G model) or turn off redundant radio frequency through automatic negotiation between aps. Reduce 2.4G same frequency interference and increase system capacity. Intelligent conflict optimization technology: Dynamic EDCA and Airtime scheduling algorithms are used to schedule each user’s wireless channel occupation time and service priority, ensuring orderly scheduling of each user’s services and relatively fair occupation of wireless channels, improving service processing efficiency and user experience. Diverse roles
Built-in PortaI/AAA server to provide Portal authentication /802.1X services for users, reducing user investment costs. Flexible networking
WLAN AC supports direct-connected, off-line, and bridge /Mesh networking modes, and supports both centralized and local data forwarding modes.
Supports cross-layer 2 and Layer 3 AP/WLAN AC networking, and supports NAT traversal deployment of aps on private networks and WLAN acs on public networks.
Compatible management Huawei’s full range of 802.11n, 802.11ac, and 802.11ax aps provide hybrid networking and protection for 802.11n, 802.11ac, and 802.11ax aps
User investment.
Built-in application identification server
Support 4~7 layer application identification, can identify more than 6000 applications. This includes common office applications such as LYNC/Face time/ouTube/facebook and P2P download applications.
Supports application-based policy control technologies, including traffic limiting, traffic blocking, and priority adjustment policies.
