Cisco Catalyst C9400 series 1200x1200 1

C9407R  7-slot chassis: 5 line cards, 2 supervisors, 8 PSUs

Condition: NOB

RMA Warranty

support team Girl Avatar

Expert Consultant Support

Solution Support ,More Discount.
Live Chat   |   Email
7*24h Online
Global Discount

Description

Product Brief

Cisco Catalyst 9400 Series is the leading modular enterprise switching platform within the Catalyst 9000 family. Built for security, IoT, mobility, and cloud, it forms the foundation of Cisco’s intent-based networking.

C9407R is a modular enterprise switch built for scalability, high availability, and performance. With up to seven slots for line cards, it supports a broad mix of port types including Gigabit, Multigigabit, and high-speed 10G/25G/40G/100G Ethernet. Ideal for core and distribution layers, the C9407R offers advanced features like UPOE, POE+, and comprehensive security, making it a future-ready solution for large, evolving network environments.

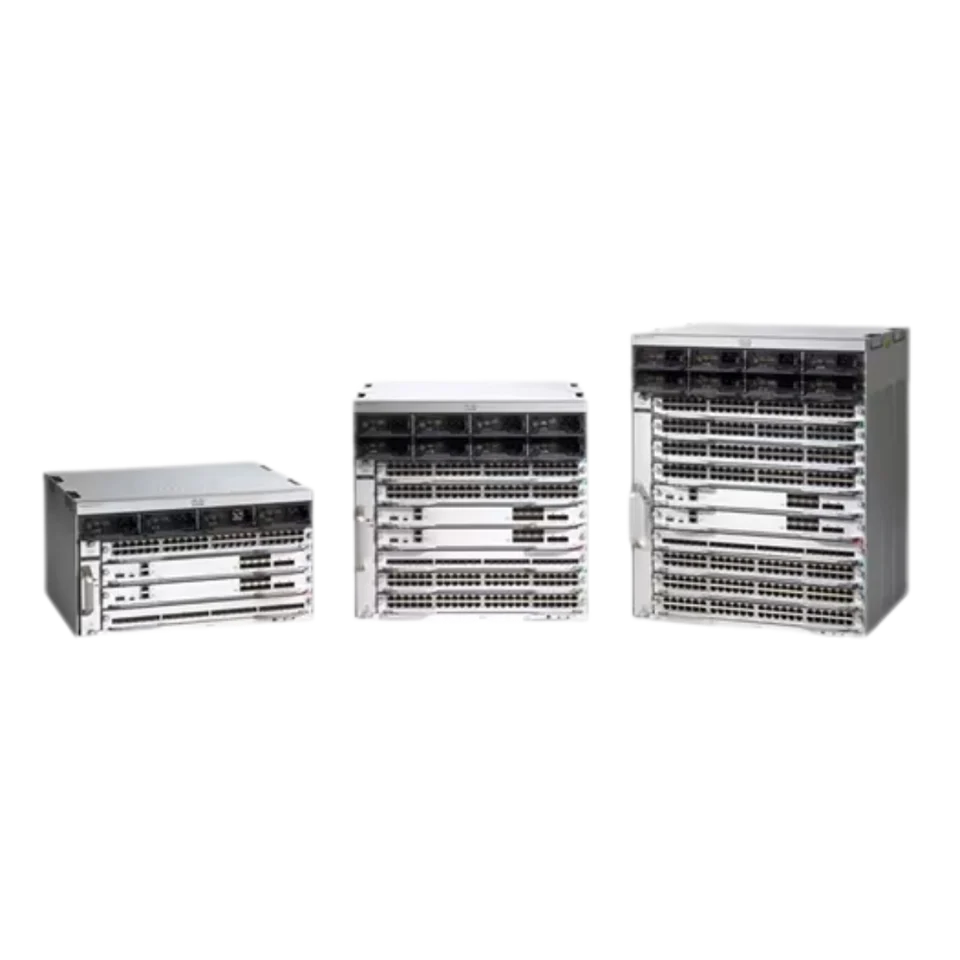

Figure 1  C9407R

  Cisco Catalyst C9400 series 1200x1200 2

Features

Platform Benefits

  • Chassis-based modular design with investment protection
  • Cisco StackWise® Virtual with SSO and ISSU
  • Built-in UHF RFID tag and Blue Beacon LED for easy identification
  • Side-to-side airflow and shallow depth (~16″) for closet installations
  • Flexible automation via RESTCONF, NETCONF, gNMI APIs
  • Full visibility with model-driven telemetry
  • Embedded WebUI for CLI-free configuration

Security

  • Encrypted Traffic Analytics (ETA)
  • MACsec AES-256/128 on all ports
  • IPsec Hardware Encryption (up to 100G)
  • Trust Anchor Technologies
  • Secure Boot
  • Image Signing
  • Cisco Trust Anchor Module

High Availability

  • Redundant Supervisors (1+1)
  • N+1/N+N Redundant Power Supplies
  • Front/rear hot-swappable fan trays
  • NSF/SSO for nonstop packet forwarding
  • ISSU for in-service software upgrades

Specifications

Hardware Specifications

Component Specification
Chassis Models C9404R (4-slot), C9407R (7-slot), C9410R (10-slot)
Supervisor Modules C9400-SUP-1, 1XL, 1XL-Y, SUP-2, 2XL
Line Card Slots Up to 8 (C9410R)
Fan Trays C9404-FAN (8 fans), C9407-FAN (12 fans), C9410-FAN (16 fans)
Power Supplies 2100W AC, 3200W AC, 3200W ACT, 3200W DC
System Bandwidth Up to 9 Tbps
PoE Support 60W (UPOE), 90W (UPOE+), 30W (PoE+)
Ports Up to 384 RJ-45 or SFP ports, including 100G uplinks
RFID Embedded UHF tag
Bluetooth Dongle support for management

Supervisor Engine Maximum Bandwidth per Slot

Chassis / Supervisor Engine C9400-SUP-1 C9400-SUP-1XL C9400-SUP-1XL-Y C9400X-SUP-2 C9400X-SUP-2XL
C9404R Chassis 80 Gbps/slot 240 Gbps/slot 240 Gbps/slot 240 Gbps/slot 480 Gbps/slot
C9407R Chassis 80 Gbps/slot 120 Gbps/slot 120 Gbps/slot 240 Gbps/slot 480 Gbps/slot
C9410R Chassis 80 Gbps/slot 80 Gbps/slot 80 Gbps/slot 240 Gbps/slot 480 Gbps/slot

Catalyst 9400 Series Maximum Port Densities

Cisco Catalyst 9400 Series Switching Modules Cisco Catalyst C9404R Cisco Catalyst C9407R Cisco Catalyst C9410R
10/100/1000BASE-T Gigabit (RJ-45) ports 96 240 384
10/100/1000BASE-T Gigabit (RJ-45) with POE+ ports 96 240 384
10/100/1000BASE-T Gigabit (RJ-45) with UPOE ports 96 240 384
802.3 BT Type 4 (90W) Ports 96 240 3841
5G Multigigabit Ethernet ports 96 240 384
10G Multigigabit Ethernet ports 96 240 384
1 Gigabit Ethernet ports (SFP) 96 240 384
10 Gigabit Ethernet ports (SFP+) 96 240 384
25 Gigabit Ethernet ports (SFP28) 48 108 168
40 Gigabit Ethernet ports (QSFP+) 24 60 96
100 Gigabit Ethernet ports (QSFP28) 8 20 32

Software Specifications

Feature Specification
OS Cisco IOS XE
Routing IPv4, IPv6, RIP, OSPF, EIGRP, BGP, IS-IS
Multicast PIM-SM, SSM
Virtualization MPLS, VPLS, EoMPLS, VXLAN w/ BGP-EVPN
Telemetry Model-driven via gRPC/gNMI
SD-Access Full support via DNA Center
Automation ZTP, PXE, Plug & Play
Security MACsec, ETA, IPsec, Trust Anchor, Secure Boot
QoS DSCP, CoS, 8 queues, SRR, CIR
NetFlow Up to 384,000 flows line-rate FNF

Box Shipment Contents

Each Cisco Catalyst 9400 Series Switch chassis typically includes the following components:

Item Description
Chassis Cisco Catalyst 9404R / 9407R / 9410R modular chassis
Fan Tray C9404-FAN / C9407-FAN / C9410-FAN (pre-installed or shipped separately)
Power Supply Modules Up to 4 or 8 power supplies depending on model (AC or DC)
Supervisor Module(s) One active and one standby supervisor (optional redundancy)
Line Cards Varies by configuration – up to 2 (C9404R), 5 (C9407R), 8 (C9410R)
Accessory Kit Includes rack-mount kit, cable guide, grounding lugs, screws
Console Cable RJ-45-to-DB9 console cable and/or USB console cable
Documentation Quick Start Guide and Regulatory Compliance and Safety Info
ESD Strap For safe handling during installation

Ordering Information

Chassis Models

Product ID Description
C9404R 4-slot chassis: 2 line cards, 2 supervisors, 4 PSUs
C9407R 7-slot chassis: 5 line cards, 2 supervisors, 8 PSUs
C9410R 10-slot chassis: 8 line cards, 2 supervisors, 8 PSUs

Supervisor Engines

Product ID Description
C9400-SUP-1 Supervisor 1
C9400-SUP-1XL Supervisor 1XL
C9400-SUP-1XL-Y Supervisor 1XL-Y (25G uplinks)
C9400X-SUP-2 Supervisor 2
C9400X-SUP-2XL Supervisor 2XL (100G uplinks)

Power Supplies

Product ID Description
C9400-PWR-2100AC 2100W AC power supply
C9400-PWR-3200AC 3200W AC power supply
C9400-PWR-3200ACT 3200W AC with single fan
C9400-PWR-3200DC 3200W DC power supply

Line Cards

Product Number Description
C9400-LC-48U Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45)
C9400-LC-48T Cisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45)
C9400-LC-48UX Cisco Catalyst 9400 Series 48-Port UPOE w/ 24p mGig, 24p RJ-45
C9400-LC-24XS Cisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+)
C9400-LC-48P Cisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)
C9400-LC-24S Cisco Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP)
C9400-LC-48S Cisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP)
C9400-LC-48H Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)
C9400-LC-48HN Cisco Catalyst 9400 Series 48-Port 5G multigigabit w/ full 90W UPOE+
C9400-LC-48HX Cisco Catalyst 9400 Series 48-Port 10G multigigabit w/ full 90W UPOE+
C9400-LC-48XS Cisco Catalyst 9400 Series 48-Port 10 Gigabit (SFP+)
C9400-LC-24XY Cisco Catalyst 9400 Series 20-Port 25G (SFP28), 4-Port 10G (SFP+)
C9400-LC-12QC Cisco Catalyst 9400 Series 12-Port 40G (QSFP+) or 4-Port 100G (QSFP28), 4-Port 40G (QSFP+)
C9400-LC-48TX Cisco Catalyst 9400 Series 48-Port 10G multigigabit, data only (RJ-45)
