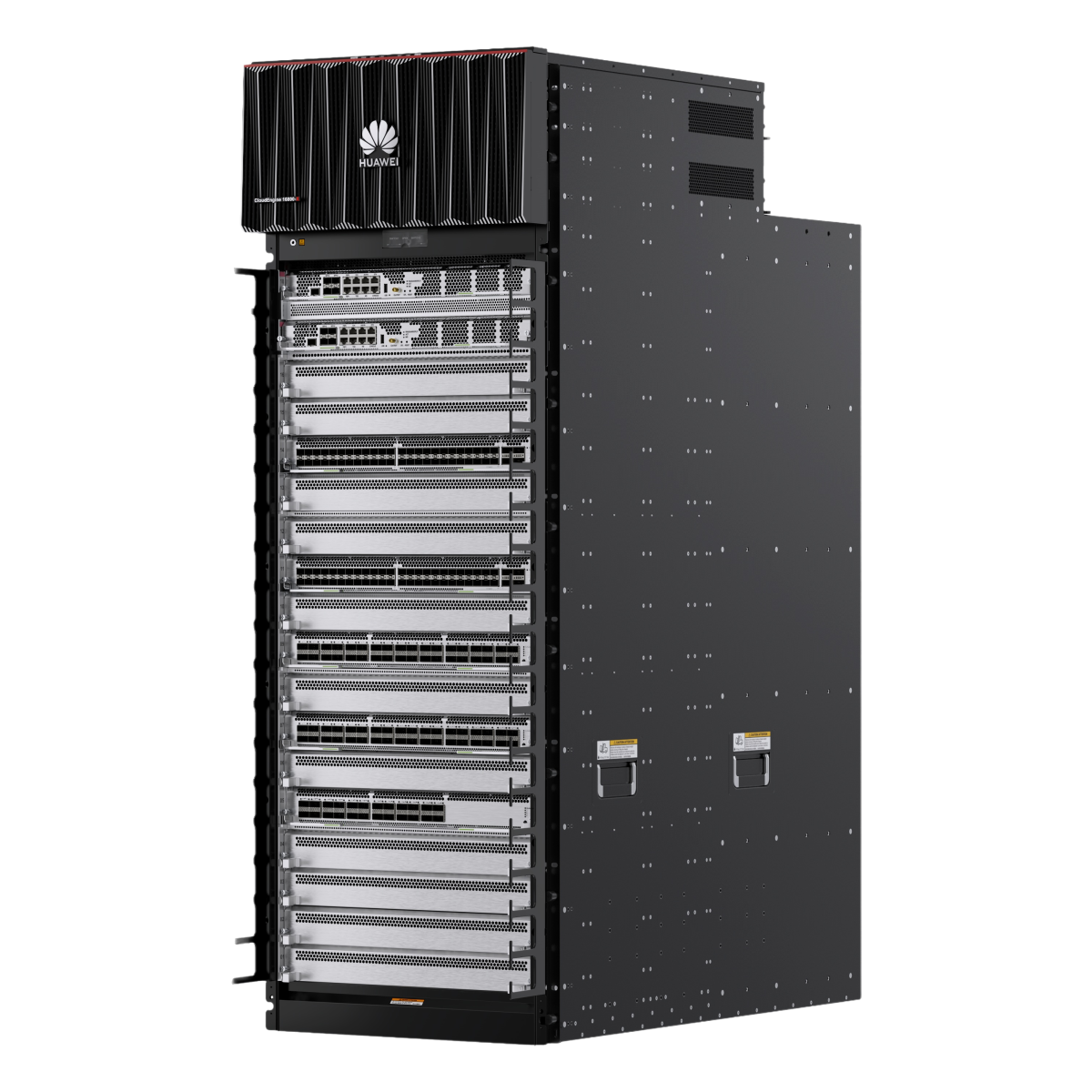

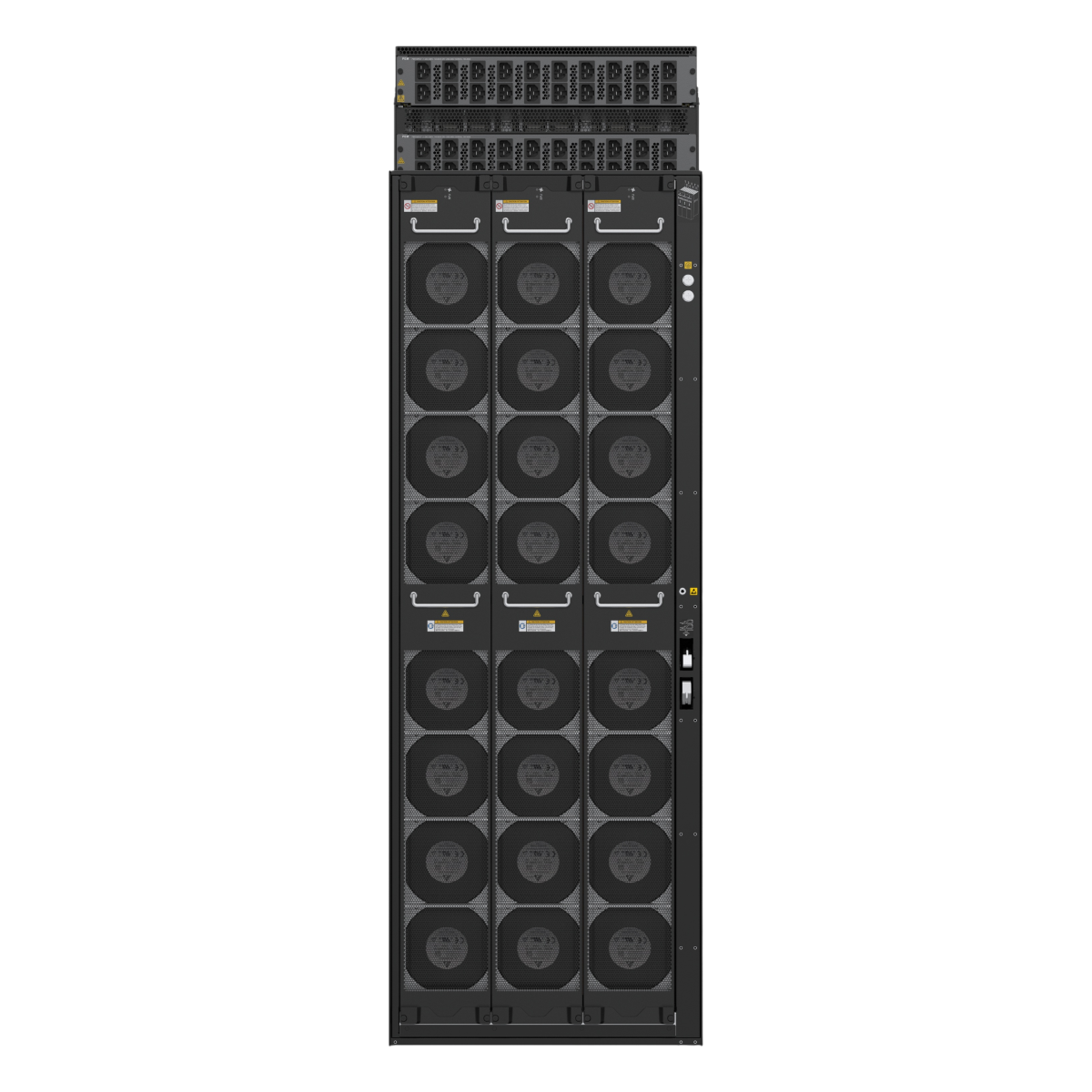

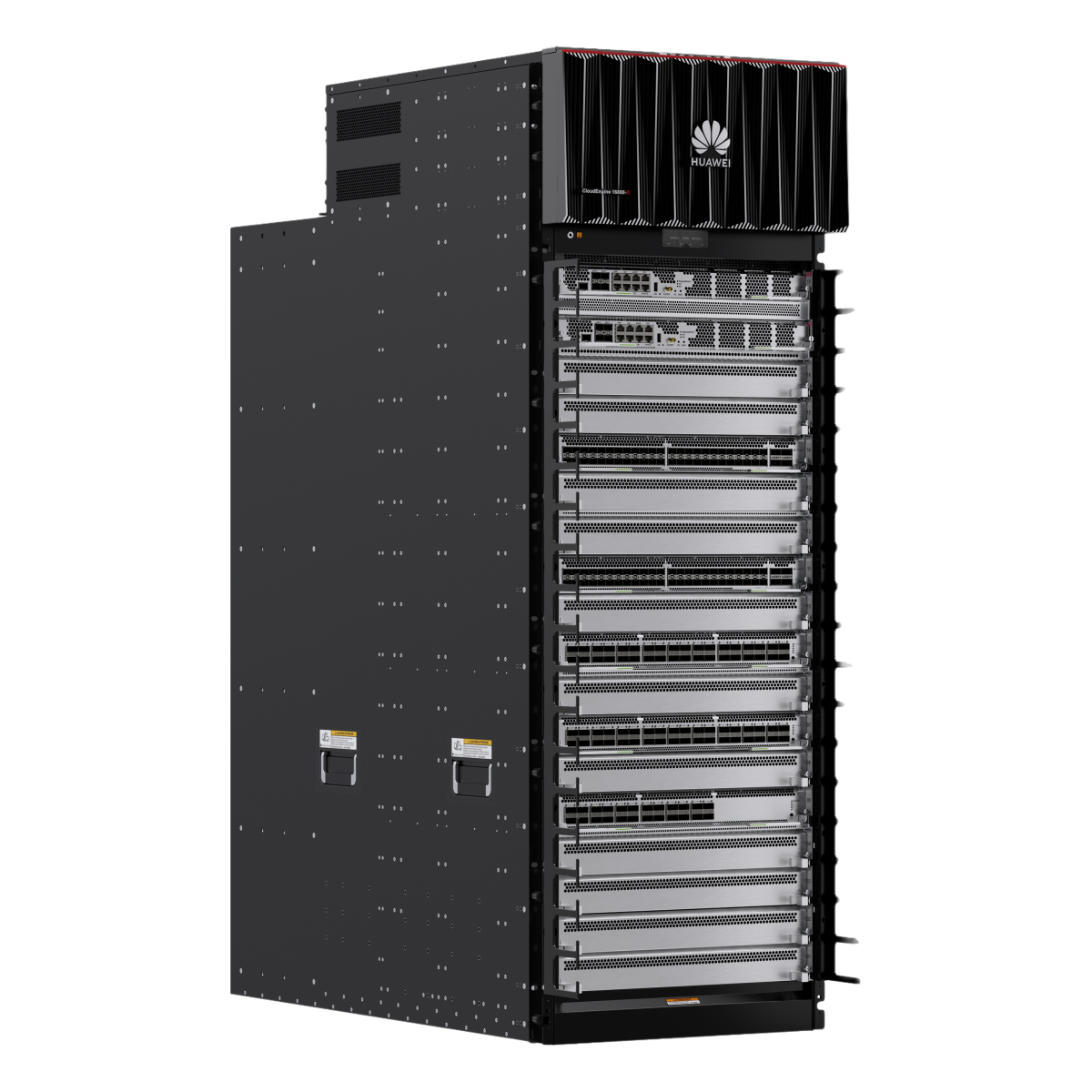

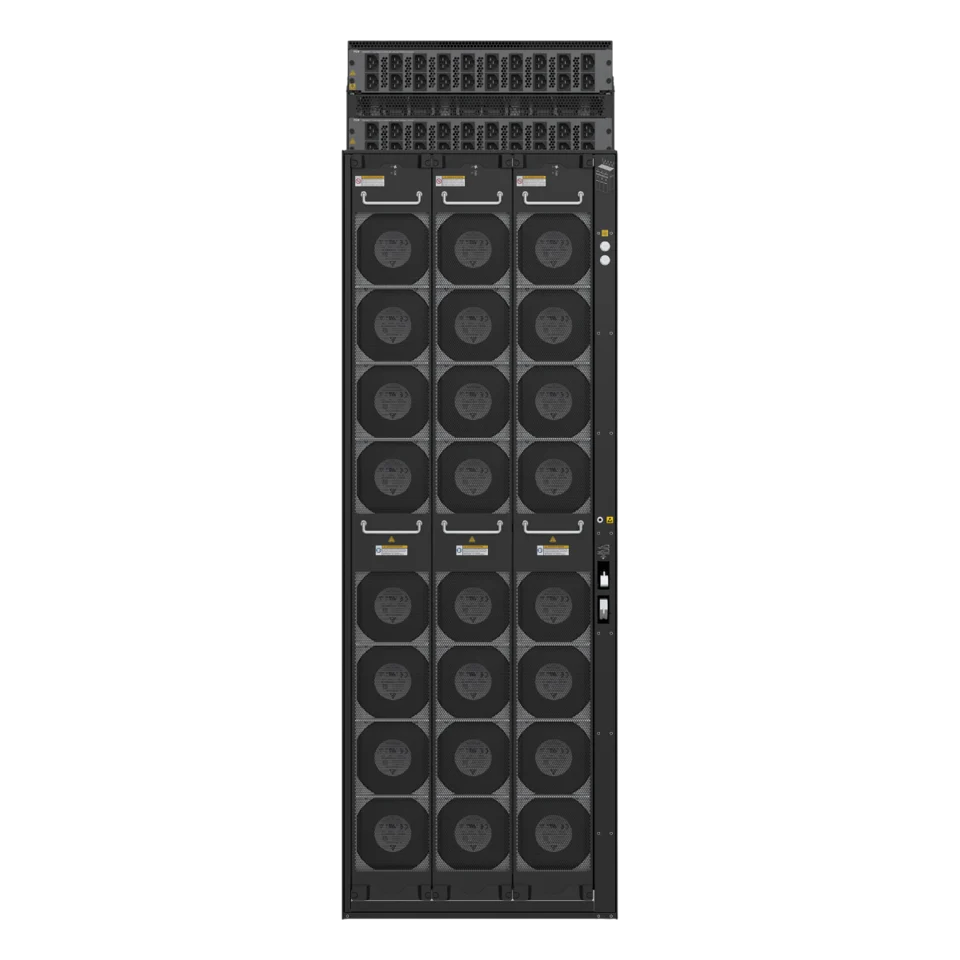

CE16800-X16 AC&high-voltage DC assembly chassis
Condition: NOB
RMA Warranty
Description
A data center switch built for the intelligent era, powered by a unique iLossless algorithm that learns and trains network-wide traffic in real-time, achieving zero packet loss and E2E μs latency and maximizing throughput.
| Basic Information | |
| Description |
CE16800-X16 AC&high-voltage DC assembly chassis |
|---|---|
| Part Number |
02355MYE |
| Model |
CE16800-X16-AH |
| First supported version |
V300R023C00 |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] |
1695 x 770 x 1350 (66.73 x 30.31 x 53.15) |
| Dimensions without packaging (H x W x D) [mm (in.)] |
- 1436 mm x 442 mm x 1033 mm (56.54 in. x 17.40 in. x 40.67 in.), dimensions of the chassis body - 1436 mm x 483 mm x 1144 mm (56.54 in. x 19.02 in. x 45.04 in.), including mounting brackets and cable management frames |
| Weight without packaging [kg (lb)] |
262.8 kg (579.47 lb) (including two MPUs and filler panels) |
| Weight without packaging (full configuration) [kg (lb)] |
742 kg (1635.81 lb), fully configured with CEX-L36DQ2CQJ2 cards and including optical modules |
| Weight with packaging [kg (lb)] |
335 kg (738.54 lb) |
| Cabinet installation standards |
- A812 - A612 |
| Chassis height [U] |
32.3 |
| Switching capacity |
To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Redundant MPUs |
1:1 |
| Redundant Switch fabrics |
N+M |
| Power supply mode |
AC,HVDC |
| Number of power modules |
20 |
| Redundant power supply |
- Dual-input power supply system: N+1 backup is recommended. - Single-input power supply system: N+1 backup Dual-input power supply is recommended to ensure reliability. |
| Rated input voltage [V] |
- AC: 220 V; 50 Hz/60 Hz - High-voltage DC (HVDC): 240 V/380 V |
| Input voltage range [V] |
- AC: 176–290 V; 45–65 Hz - High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V |
| Maximum input current [A] |
- AC: 16 A @ 200 V; 18.5 A @ 176 V - High-voltage DC (HVDC): 18 A @ 188 V; 13 A @ 260 V |
| Maximum output power [W] |
- In 19+1 backup mode: 3000 W x 19 = 57000 W - In 20+0 backup mode: 3000 W x 20 = 60000 W |
| Certification |
- Compliance with safety standards - Compliance with EMC standards - Compliance with environment and environmental protection standards |
| Redundant fans |
Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode |
Heat dissipation using fans |
| Airflow direction |
Front-to-back airflow |
| Availability |
0.9999970745 |
| MTBF [year] |
32.68 years |
| MTTR [hour] |
1 hour |
| Number of LPU slots |
16 |
| Number of MPU slots |
2 |
| Number of SFU slots |
9 |
| Number of slots |
27 |
| Long-term operating altitude [m (ft.)] |
≤ 5000 m (16404 ft.) When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] |
5% RH to 85% RH, noncondensing |
| Long-term operating temperature [°C (°F)] |
0°C to 40°C (32°F to 104°F) |
| Storage altitude [m (ft.)] |
≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] |
5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] |
-40ºC to +70ºC (-40°F to +158°F) |
