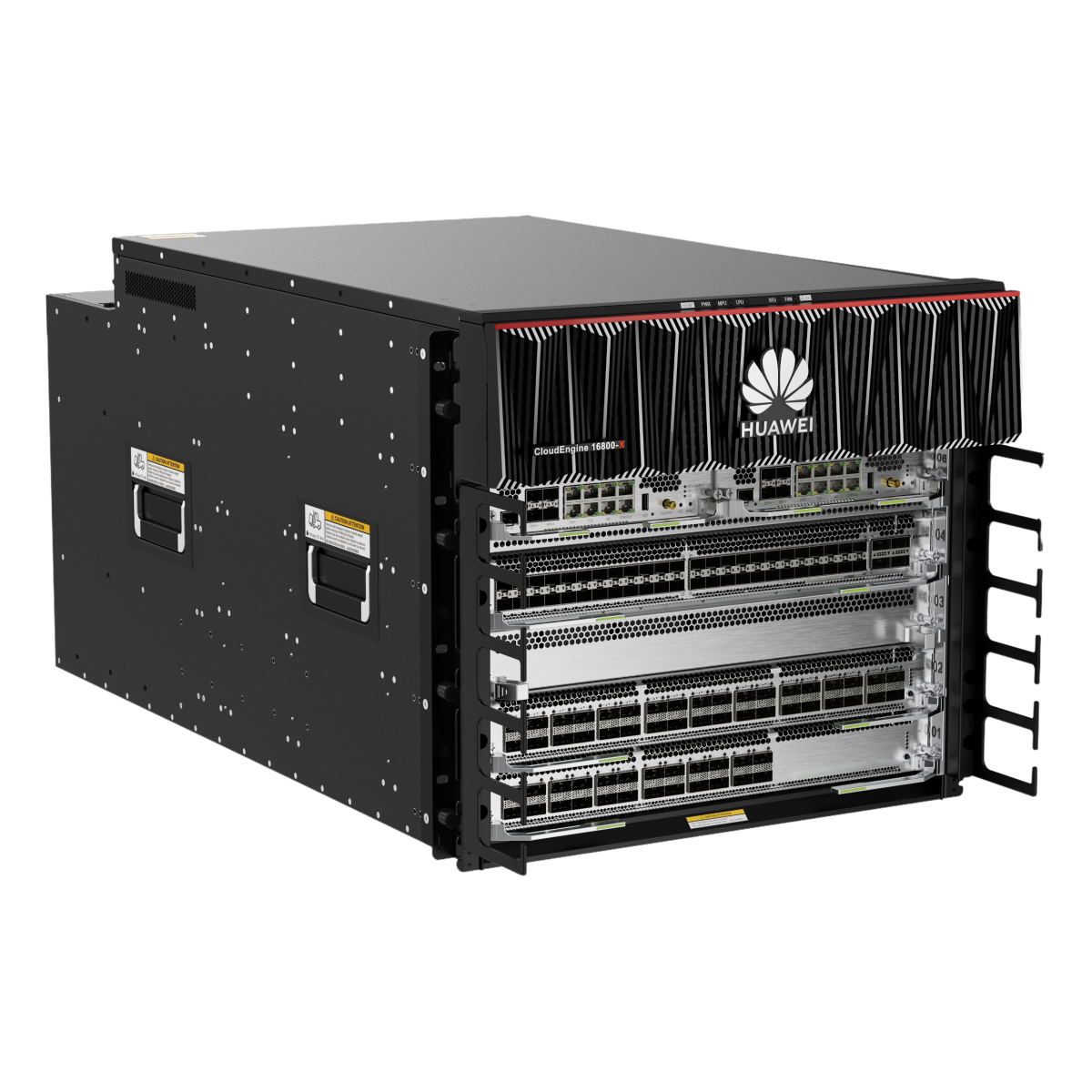

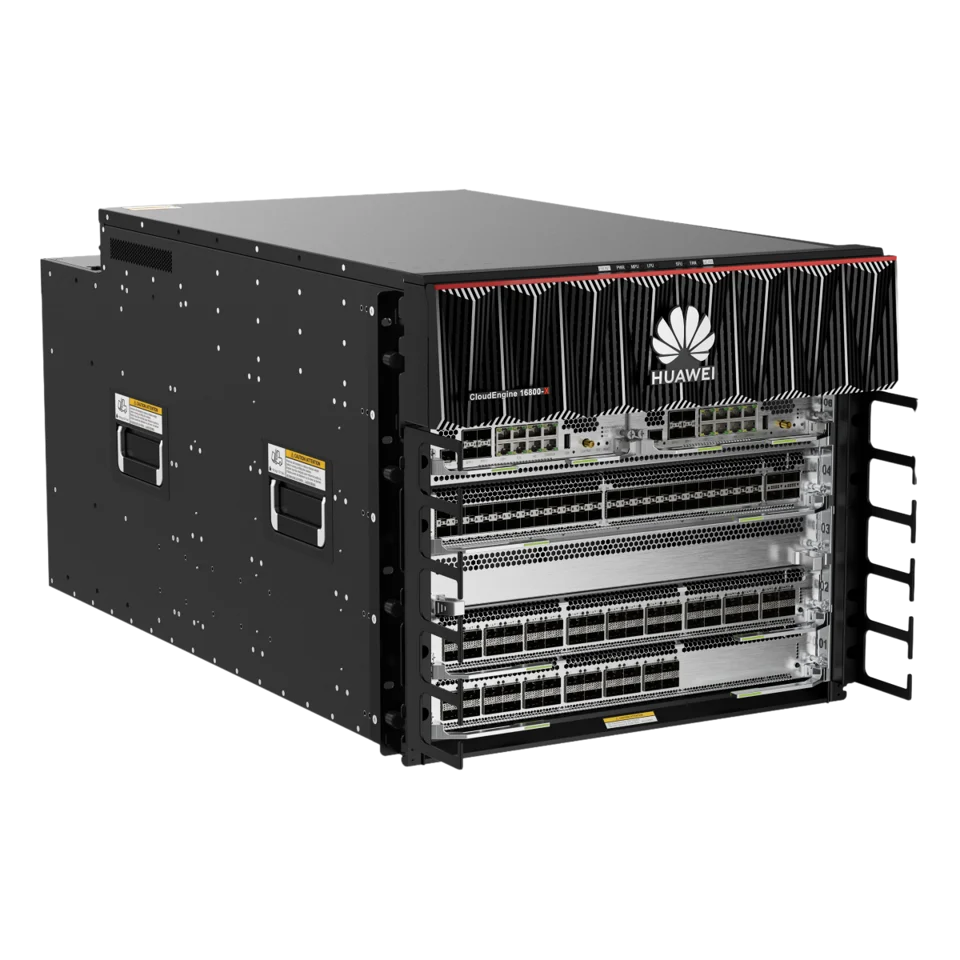

CE16800-X4 AC&high-voltage DC assembly chassis
Condition: NOB
RMA Warranty
Description
A data center switch built for the intelligent era, powered by a unique iLossless algorithm that learns and trains network-wide traffic in real-time, achieving zero packet loss and E2E μs latency and maximizing throughput.
| Basic Information | |
| Description | CE16800-X4 AC&high-voltage DC assembly chassis |
| Part Number | 02355MYA |
| Model | CE16800-X4-AH |
| First supported version | V300R023C00 |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 730 x 770 x 1150 (28.74 x 30.31 x 45.28) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – 438 mm x 442 mm x 874 mm (17.24 in. x 17.40 in. x 34.41 in.), dimensions of the chassis body – 438 mm x 483 mm x 985 mm (17.24 in. x 19.02 in. x 38.78 in.), including mounting brackets and cable management frames |
| Weight without packaging [kg (lb)] | 94.1 kg (207.49 lb) (including two MPUs and filler panels) |
| Weight without packaging (full configuration) [kg (lb)] | 223 kg (491.63 lb), fully configured with CEX-L36DQ2CQJ2 cards and including optical modules |
| Weight with packaging [kg (lb)] | 138 kg (304.23 lb) |
| Cabinet installation standards | – A812 – A612 |
| Chassis height [U] | 9.8 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | N+M |
| Power supply mode | AC,HVDC |
| Number of power modules | 6 |
| Redundant power supply | – Dual-input power supply system: N+1 backup is recommended. – Single-input power supply system: N+1 backup Dual-input power supply is recommended to ensure reliability. |
| Rated input voltage [V] | – AC: 220 V; 50 Hz/60 Hz – High-voltage DC (HVDC): 240 V/380 V |
| Input voltage range [V] | – AC: 176–290 V; 45–65 Hz – High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V |
| Maximum input current [A] | – AC: 16 A @ 200 V; 18.5 A @ 176 V – High-voltage DC (HVDC): 18 A @ 188 V; 13 A @ 260 V |
| Maximum output power [W] | – In 5+1 backup mode: 3000 W x 5 = 15000 W – In 6+0 backup mode: 3000 W x 6 = 18000 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Redundant fans | Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Heat dissipation using fans |
| Airflow direction | Front-to-back airflow |
| Availability | 0.9999971695 |
| MTBF [year] | 34.93 years |
| MTTR [hour] | 1 hour |
| Number of LPU slots | 4 |
| Number of MPU slots | 2 |
| Number of SFU slots | 9 |
| Number of slots | 15 |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, noncondensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| System Management>Hardware management>Device Management>Board management>Device restart | |
| Device restart | Y |
