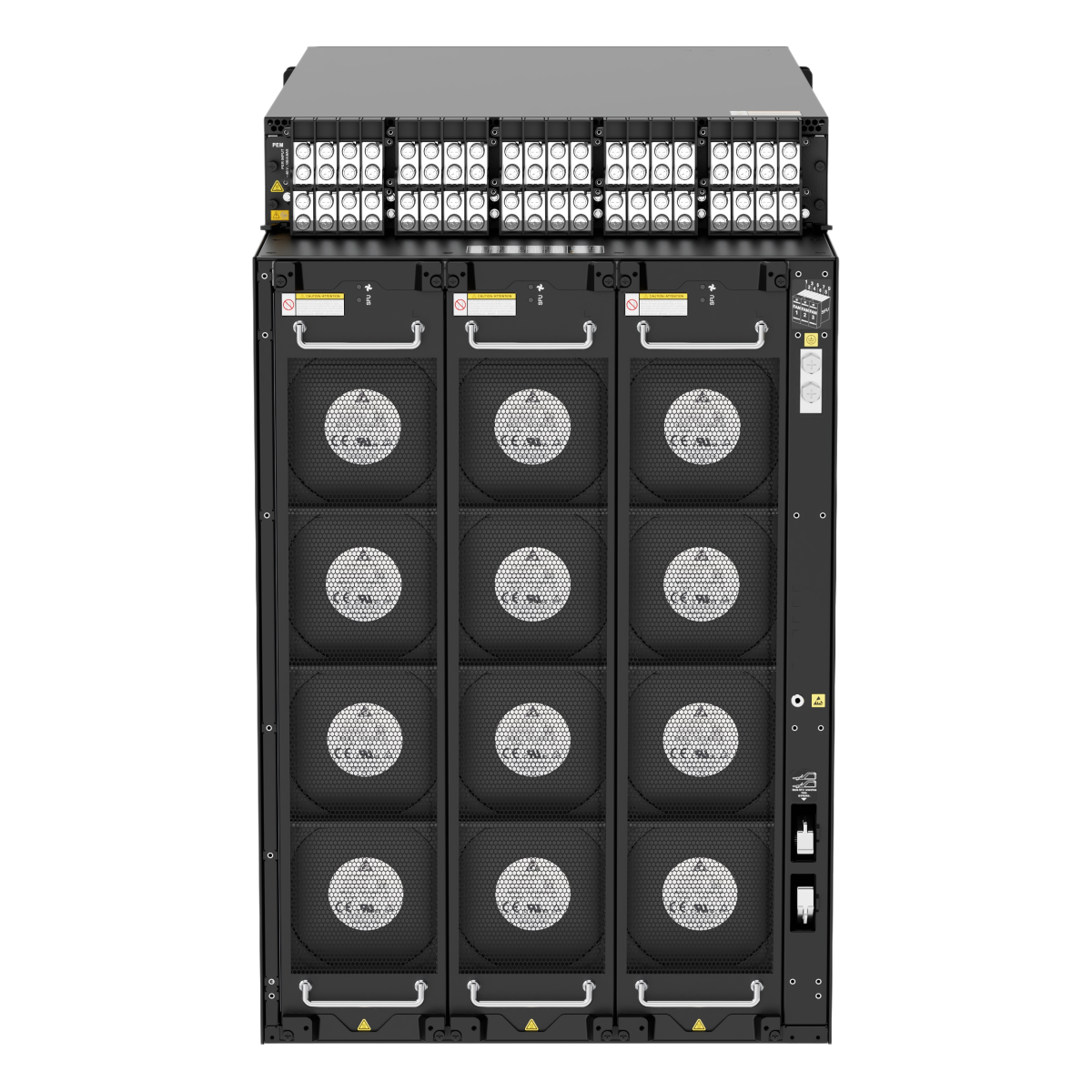

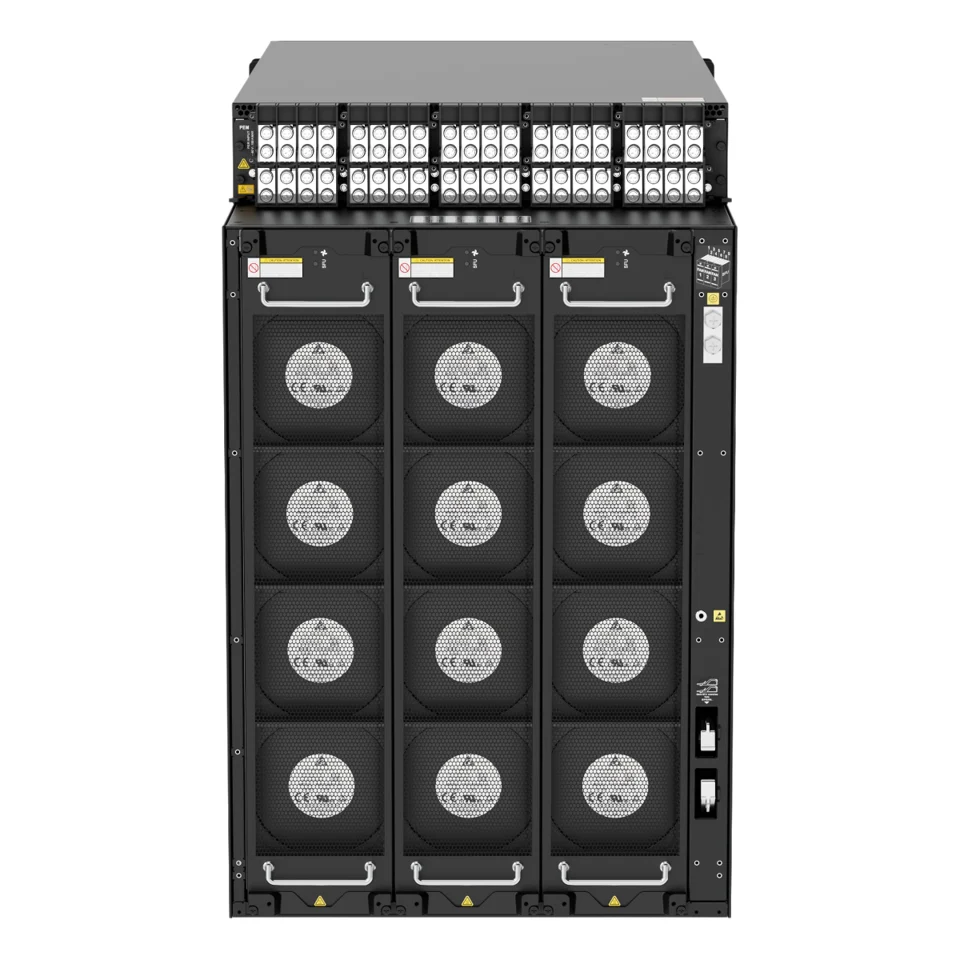

CE16808 DC assembly chassis
Condition: NOB
RMA Warranty
Description
A data center switch built for the intelligent era, powered by a unique iLossless algorithm that learns and trains network-wide traffic in real-time, achieving zero packet loss and E2E μs latency and maximizing throughput.
| Basic Information | |
| Description | CE16808 DC assembly chassis |
| Part Number | 02352RCS |
| Model | CE16808-DC |
| First supported version | V200: V200R005C20 V300: V300R020C00 |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 990 mm x 770 mm x 1150 mm (38.98 in. x 30.31 in. x 45.28 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – 703 mm x 442 mm x 874 mm (27.68 in. x 17.40 in. x 34.41 in.), dimensions of the chassis body – 703 mm x 483 mm x 985 mm (27.68 in. x 19.02 in. x 38.78 in.), including mounting brackets and cable management frames |
| Weight without packaging [kg (lb)] | 135.8 kg (299.44 lb) (including two MPUs and filler panels) |
| Weight without packaging (full configuration) [kg (lb)] | V200: 283.9 kg (625.89 lb), fully configured with CEL36CQFD-G cards and including optical modules V300: 283.9 kg (625.89 lb), fully configured with CEL36CQFD-E cards and including optical modules |
| Weight with packaging [kg (lb)] | 183 kg (403.44 lb) |
| Cabinet installation standards | – A812 – A612 – A610 |
| Chassis height [U] | 15.8 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | N+M |
| Power supply mode | DC |
| Number of power modules | 10 |
| Redundant power supply | – Dual-input power supply system: N+1 backup is recommended. – Single-input power supply system: N+1 backup Dual-input power supply is recommended to ensure reliability. |
| Rated input voltage [V] | –48 V DC/–60 V DC |
| Input voltage range [V] | -40 V DC to -72 V DC |
| Maximum input current [A] | 58.5 A for the voltage of -40 V |
| Maximum output power [W] | – In 9+1 backup mode: 2200 W x 9 = 19800 W – In 10+0 backup mode: 2200 W x 10 = 22000 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Redundant fans | Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Heat dissipation using fans |
| Airflow direction | Front-to-back airflow |
| Availability | 0.9999971582 |
| MTBF [year] | 34.55 years |
| MTTR [hour] | 1 hour |
| Number of LPU slots | 8 |
| Number of MPU slots | 2 |
| Number of SFU slots | 9 |
| Number of slots | 19 |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, noncondensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| System Management>Hardware management>Device Management>Board management>Device restart | |
| Device restart | Y |
