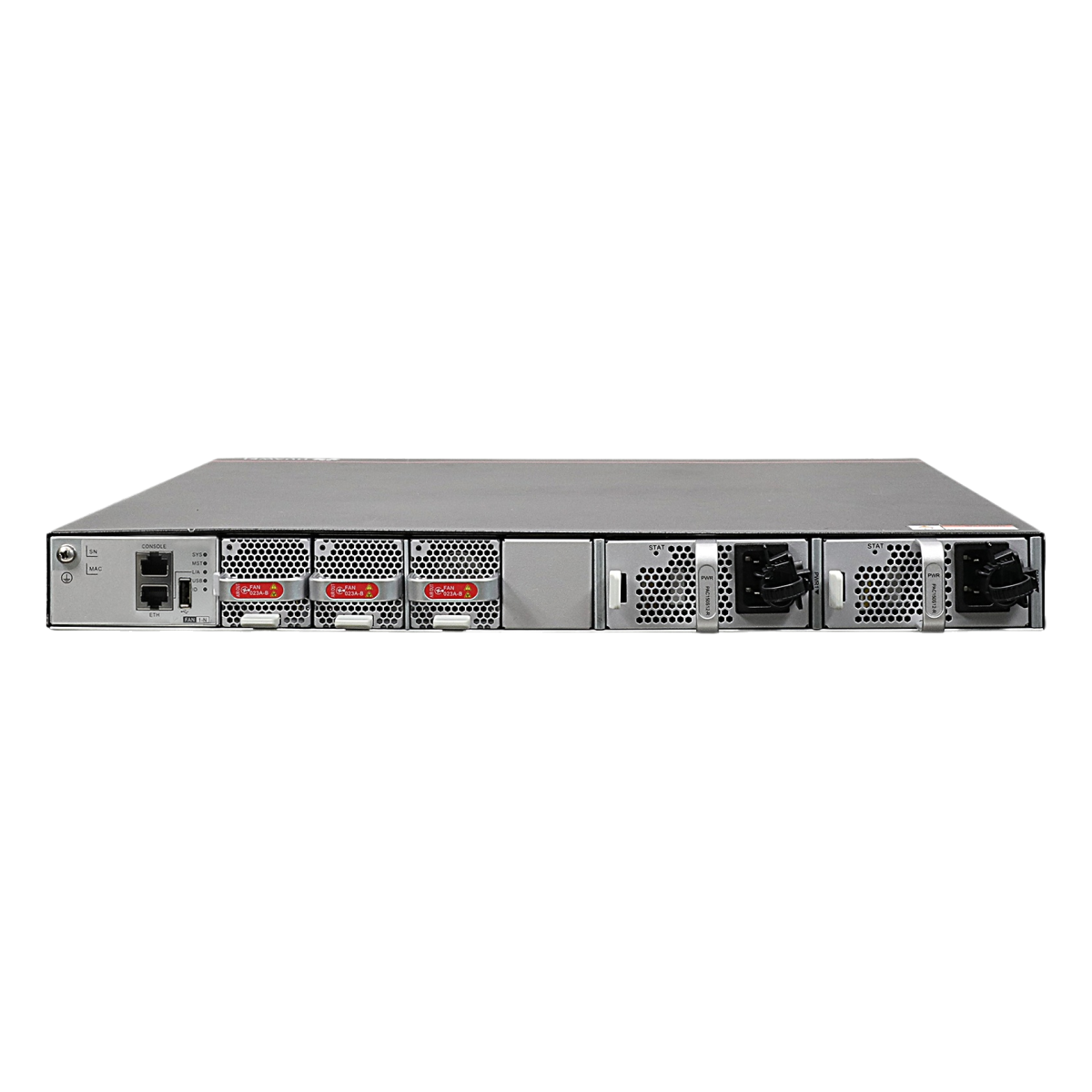

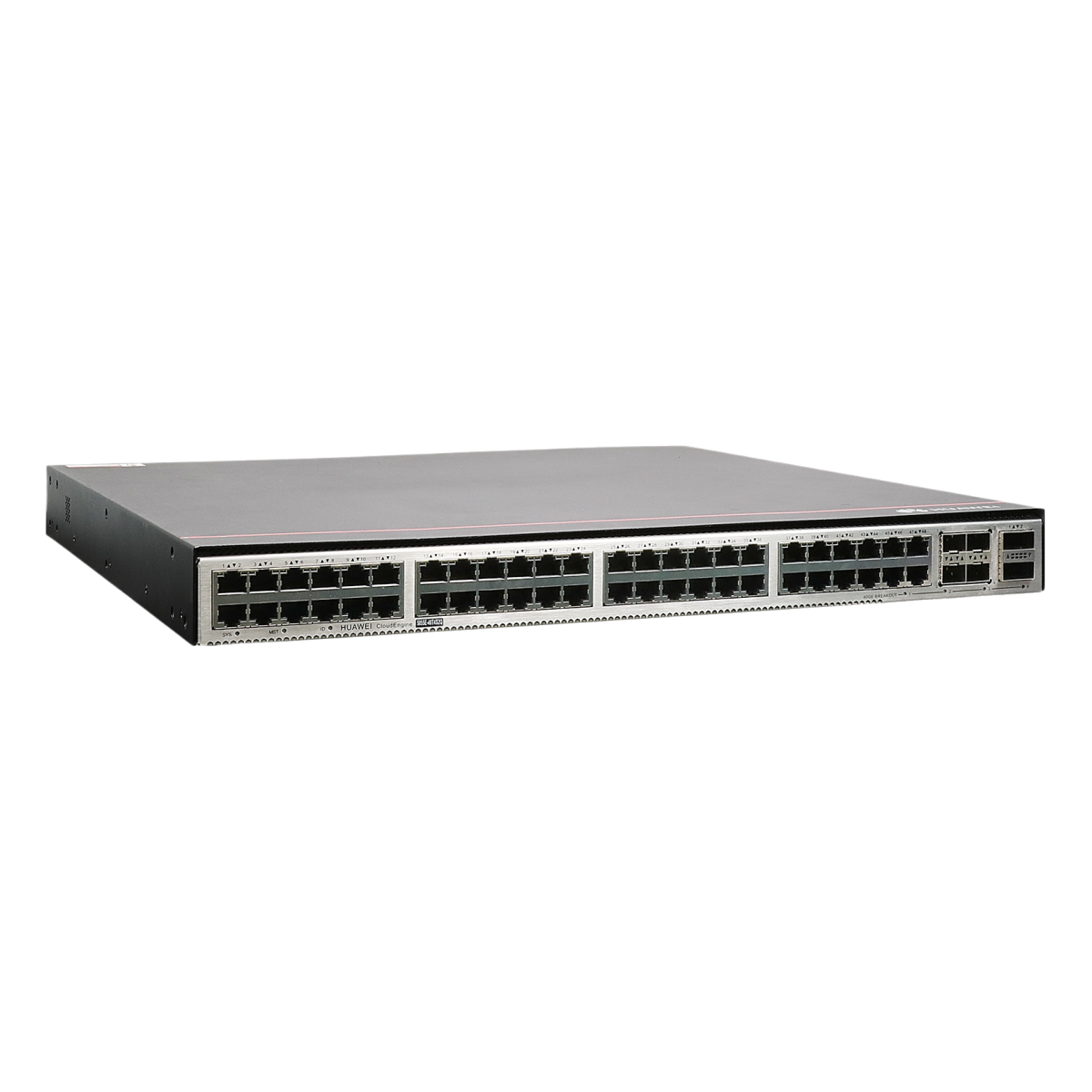

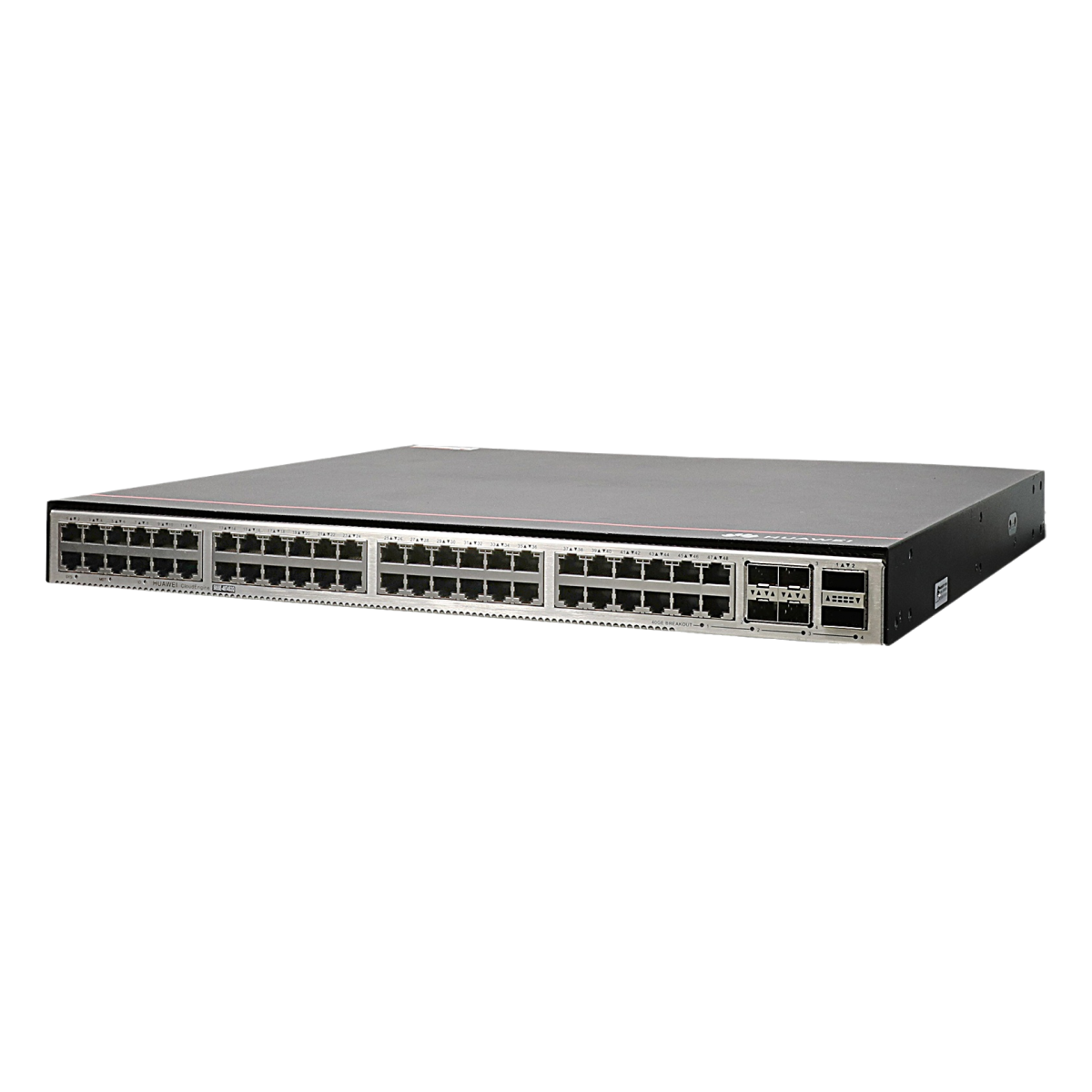

CE5855E-48T4S2Q switch (48*GE RJ45, 4*10GE SFP+, 2*40GE QSFP+, without fan and power modules)
Condition: NOB
RMA Warranty
Description
CloudEngine 5800 series switches deliver high gigabit access, enabling enterprises and carriers to build cloud-oriented data center networks. Featuring 40 GE uplink ports and flexible airflow capabilities, the switches are capable of forming a 9-member stack system and are well-suited for either the aggregation or the access layer. Coupled with CloudEngine 16800 or 12800 series switches, CloudEngine 5800 enables enterprises to build networks that are scalable, simplified, open — and secure.
| Basic Information | |
| Description | CE5855E-48T4S2Q switch (48*GE RJ45, 4*10GE SFP+, 2*40GE QSFP+, without fan and power modules) |
| Part Number | 02353VWG |
| Model | CE5855E-48T4S2Q |
| First supported version | V200R020C10 |
| Other part numbers | 02353VWJ (CE5855E-48T4S2Q switch (48*GE RJ45, 4*10GE SFP+, 2*40GE QSFP+, 2*AC power modules, 3*fan modules, port-side intake)) 02353VWN (CE5855E-48T4S2Q switch (48*GE RJ45, 4*10GE SFP+, 2*40GE QSFP+, 2*AC power modules, 3*fan modules, port-side exhaust)) |
| Short Name | CE5855E |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Weight without packaging [kg (lb)] | 5.1 kg (11.2 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 7.5 kg (16.5 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 8.6 kg (19.0 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 11 kg (24.3 lb) |
| Chassis height [U] | 1 |
| Installation Type | Cabinet Installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.2 GHz |
| Memory | DRAM: 2 GB |
| NOR Flash | 128 MB |
| NAND Flash | 1 GB |
| USB | Supported |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Downlink Service interface | 48*10/100/1000BASE-T |
| Uplink Service interface | 4*10G SFP+, 2*40G QSFP+ |
| Service port supporting the stack function | 10GE optical ports and 40GE optical ports |
| RTC | Supported |
| Typical power consumption [W] | – 92 W (50% throughput, 3 m Ethernet cables on 48 ports and high-speed cables on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules) – 96 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] | – 314 BTU/hour (50% throughput, 3 m Ethernet cables on 48 ports and high-speed cables on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules) – 327 BTU/hour (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 4 x 10G and 2 x 40G ports, normal temperature, dual AC power modules) |
| Static power consumption [W] | 68 W |
| Static heat dissipation [BTU/hour] | 232 BTU/hour |
| Maximum power consumption [W] | 137 W |
| Maximum heat dissipation [BTU/hour] | 467 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | – 150 W AC power module: 100 V AC to 240 V AC, 50/60 Hz – 180 W DC power module: –48 V DC to –60 V DC – 1200 W high-voltage DC power module: 240 V DC to 380 V DC |
| Input voltage range [V] | – 150 W AC power module: 90 V AC to 290 V AC; 45 Hz to 65 Hz – 180 W DC power module: –38.4 V DC to –72 V DC – 1200 W high-voltage DC power module: 190 V DC to 400 V DC |
| Maximum input current [A] | – 150 W AC power module: 3 A (100 V AC to 240 V AC) – 180 W DC power module: 6 A (–48 V DC to –60 V DC) – 1200 W high-voltage DC power module: 8 A |
| Rated output power [W] | – 150 W AC power module: 150 W – 180 W DC power module: 180 W – 1200 W high-voltage DC power module: 1200 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | – AC: 6 kV in common mode and 6 kV in differential mode – DC: 4 kV in common mode and 2 kV in differential mode – HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 3 |
| Redundant fans | The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front, depending on the fan modules and power modules. |
| Availability | 0.99999643061 |
| MTBF [year] | 57.57 years |
| MTTR [hour] | 1.8 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | – Front-to-back airflow: 45.58 dB(A) on average (maximum: 49.2 dB(A)) – Back-to-front airflow: 44.48 dB(A) on average (maximum: 47.6 dB(A)) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | – Front-to-back airflow: 56.91 dB(A) on average (maximum: 59.6 dB(A)) – Back-to-front airflow: 56.94 dB(A) on average (maximum: 61.8 dB(A)) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | < 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40°C to +70°C (-40°F to +158°F) |
