CloudEngine 5800 series switches deliver high gigabit access, enabling enterprises and carriers to build cloud-oriented data center networks. Featuring 40 GE uplink ports and flexible airflow capabilities, the switches are capable of forming a 9-member stack system and are well-suited for either the aggregation or the access layer. Coupled with CloudEngine 16800 or 12800 series switches, CloudEngine 5800 enables enterprises to build networks that are scalable, simplified, open — and secure.
| Basic Information | |

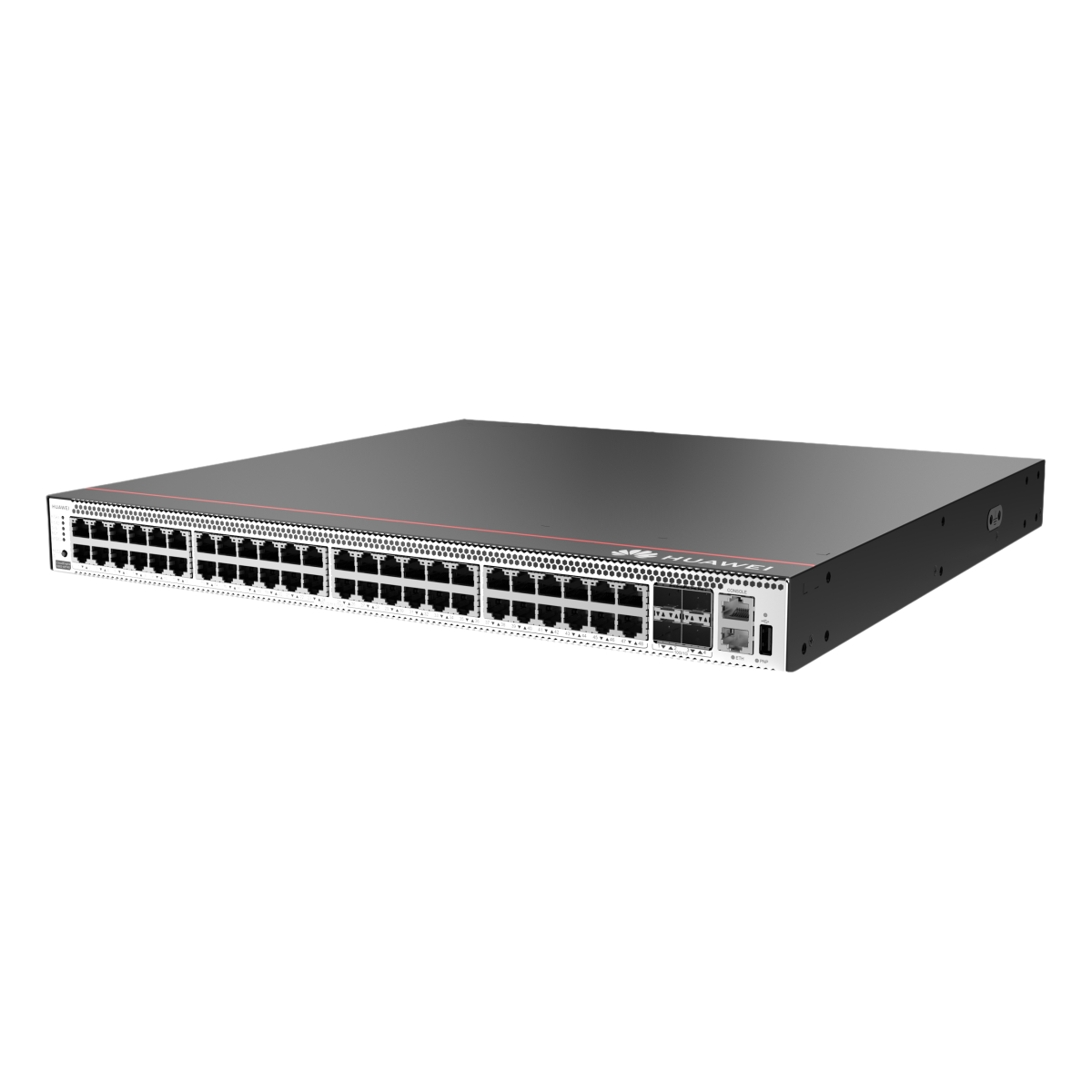

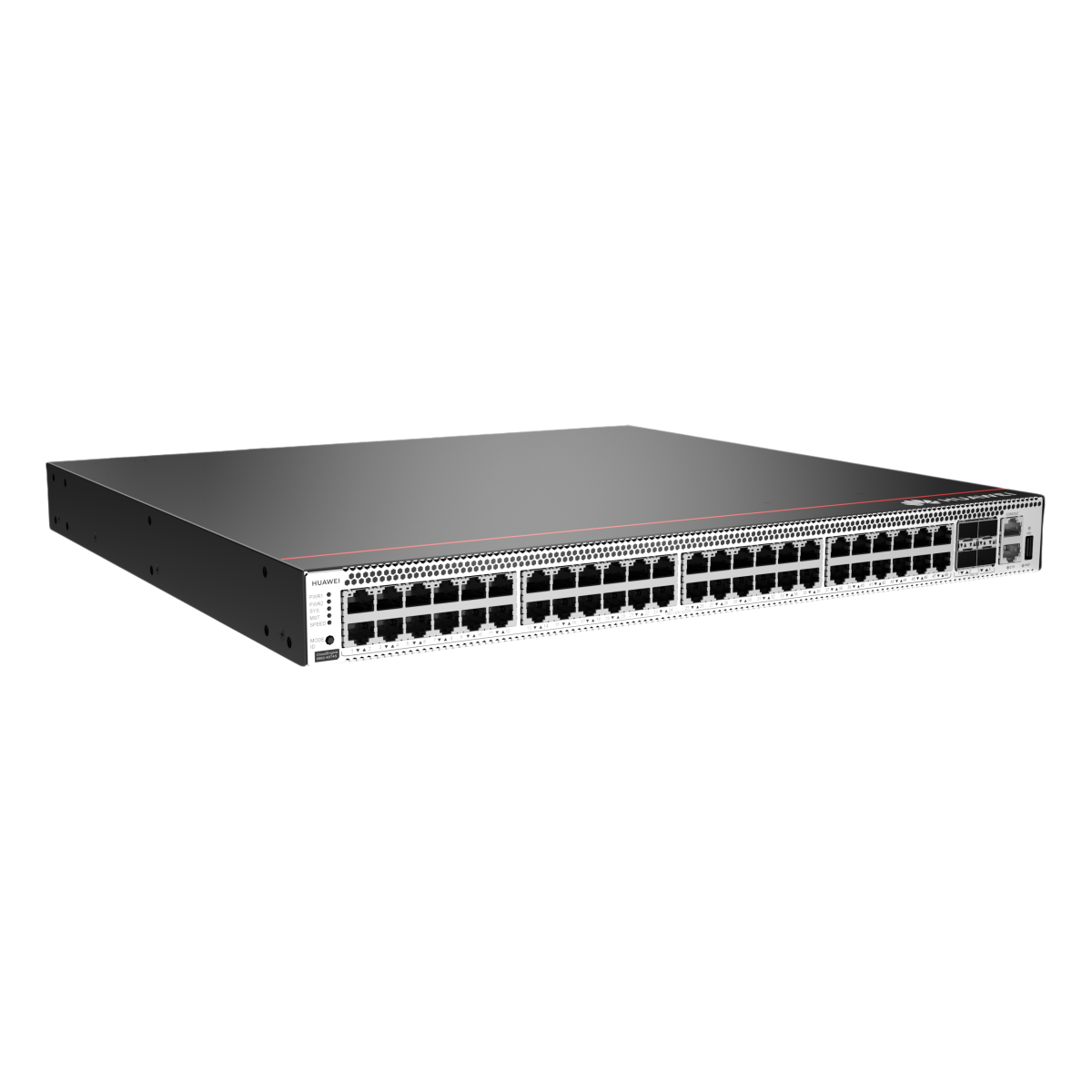

| Description | CE5882-48T4S Switch (48*GE RJ45, 4*10GE SFP+, 2*AC power modules, 2*fan modules, port-side intake) |
| Part Number | 02354FWF |
| Model | CE5882-48T4S |
| First supported version | V200R020C10SPC800 |
| Other part numbers | 02354FWH (CE5882-48T4S Switch (48*GE RJ45, 4*10GE SFP+, without power and fan modules)) 02354HPB (CE5882-48T4S Switch (48*GE RJ45, 4*10GE SFP+,2*AC power modules, 2*fan modules, port-side exhaust)) |
| Short Name | CE5882 |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.1 mm (1.72 in. x 17.40 in. x 17.48 in.) |
| Weight without packaging [kg (lb)] | 5.44 kg (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 7.52 kg (including AC power modules and fan modules, but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.) |
| Weight with packaging [kg (lb)] | 8.55 kg |
| Weight with packaging (full configuration) [kg (lb)] | 10.61 kg |
| Chassis height [U] | 1 |
| Installation Type | Cabinet Installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 1 GB |
| USB | Supported |
| Power supply mode | AC,DC |
| Console port | RJ45 |
| Downlink Service interface | 48*10/100/1000BASE-T |
| Uplink Service interface | 4*10GE SFP+ (Such ports can be used as GE SFP optical/electrical ports, and do not support 10GE LRM/80 km linear optical modules. The switch can only be connected to the CE5882 rather than other switch models or servers through 10GE 1 m/3 m/5 m passive copper cables and 10 m active copper cables.) |
| Service port supporting the stack function | 10GE optical ports |
| RTC | Supported |
| Typical power consumption [W] | Port-side air intake: 101 W (50% traffic load, 3 m Ethernet cable + short-distance optical module, normal temperature, dual power modules) Port-side air exhaust: 108 W (50% traffic load, 3 m Ethernet cable + short-distance optical module, normal temperature, dual power modules) |
| Typical heat dissipation [BTU/hour] | Port-side air intake: 345 BTU/hour (50% traffic load, 3 m Ethernet cable + short-distance optical module, normal temperature, dual power modules) Port-side air exhaust: 369 BTU/hour (50% traffic load, 3 m Ethernet cable + short-distance optical module, normal temperature, dual power modules) |
| Static power consumption [W] | Port-side air intake: 77 W Port-side air exhaust: 86 W |
| Static heat dissipation [BTU/hour] | Port-side air intake: 263 BTU/hour Port-side air exhaust: 293 BTU/hour |
| Maximum power consumption [W] | Port-side air intake: 124 W Port-side air exhaust: 132 W |
| Maximum heat dissipation [BTU/hour] | Port-side air intake: 423 BTU/hour Port-side air exhaust: 450 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | – 150 W AC power module : 100 V AC to 240 V AC, 50/60 Hz – 180 W DC power module : -48 V DC to -60 V DC |
| Input voltage range [V] | – 150 W AC power module : 90 V AC to 290 V AC, 45 Hz to 65 Hz – 180 W DC power module : -38.4 V DC to -72 V DC |
| Maximum input current [A] | – 150 W AC power module : 3 A (100 V AC to 240 V AC) – 180 W DC power module : 6 A (-48 V DC to -60 V DC) |
| Rated output power [W] | – 150 W AC power module : 150 W – 180 W DC power module : 180 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | – AC: 6 kV in common mode and 6 kV in differential mode. – DC: 4 kV in common mode and 2 kV in differential mode. |
| Types of fans | Pluggable |
| Number of fans | 2 |
| Redundant fans | Not supported Note: front-to-rear airflow: air from the fan side to the port side, mapping the FAN-031A-F fan module (part number: 02352CAA) Rear-to-front airflow: air from the port side to the fan side, mapping the FAN-023A-B fan module (part number: 02312DKW) |
| Heat dissipation mode | Heat dissipation through air cooling |
| Airflow direction | Front-to-rear or rear-to-front airflow, which is determined by the fan modules and power modules used in the chassis. |
| Availability | 0.999996073 |
| MTBF [year] | 55.31 years |
| MTTR [hour] | 2.06 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | – Front-to-rear airflow: 49.48 dBA on average (maximum: 53.60 dBA) – Rear-to-front airflow: 47.50 dBA on average (maximum: 50.51 dBA) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | – Front-to-rear airflow: 62.30 dBA on average (maximum: 66.80 dBA) – Rear-to-front airflow: 60.70 dBA on average (maximum: 64.6 dBA) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0 to 1800 m (0 to 5906 ft.) Note: When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | < 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40°C to +70°C (-40°F to +158°F) |
