CE6857F-48S6CQ-F switch (48 * 10Ge SFP +, 6 * 100GE QSFP28, 2 * AC power supply, 4 * fan box, port side outlet).
Condition: NOB
RMA Warranty
Description
CE6857F-48S6CQ-F

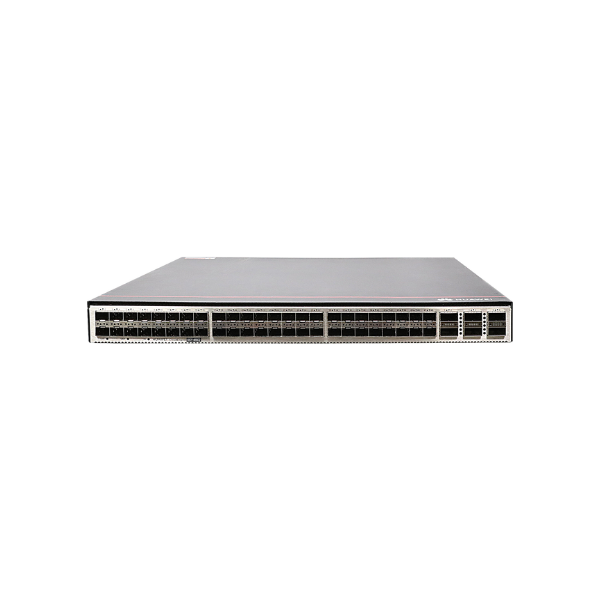

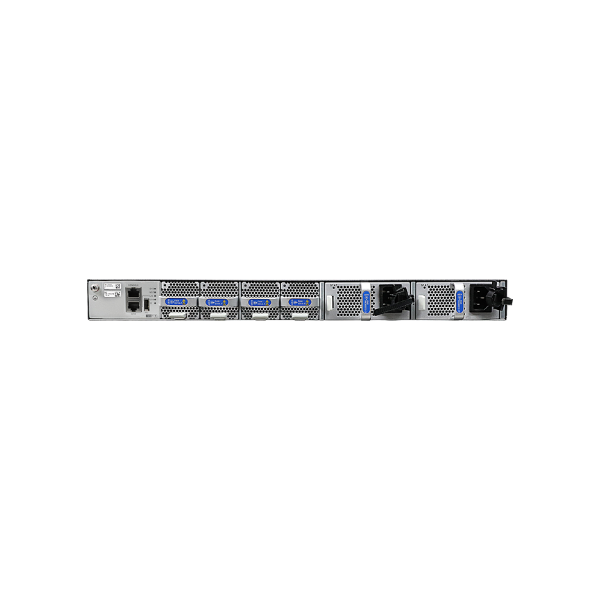

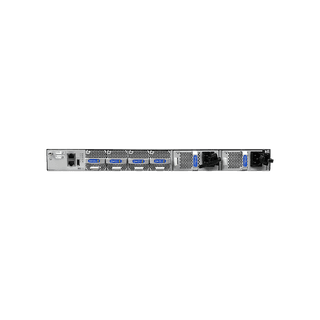

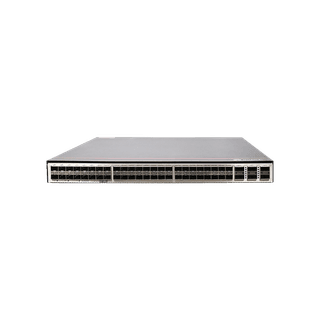

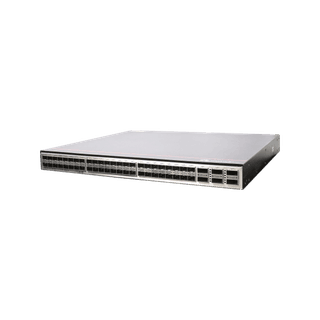

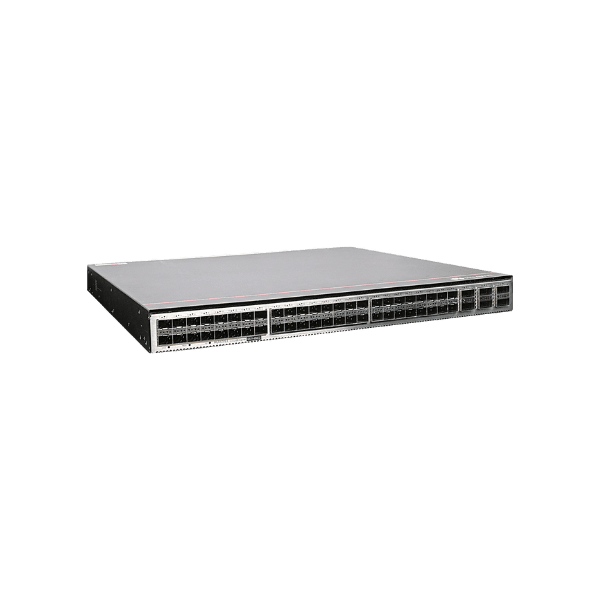

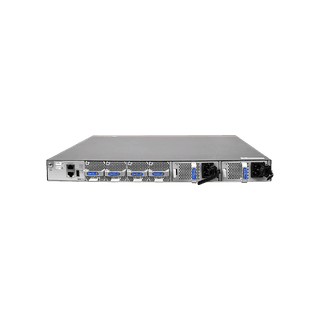

Huawei CE6857F-48S6CQ-F switch (48 * 10Ge SFP +, 6 * 100GE QSFP28, 2 * AC power supply, 4 * fan box, port side air supply).
CloudEngine 6800 series switches are next-generation switches designed for data center and high-end campus networks, with high performance, high interface density, and low latency. They boast an advanced hardware design with high-density 10 GE/25 GE access interfaces, 40 GE/100 GE uplink interfaces, advanced data center features, high-performance stacking technologies, and flexible airflow capabilities.
Quick Spec
Table 1 shows the quick spec.
| Model | CE6857F-48S6CQ-F |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64MB |
| USB | Supported |
| Console port | RJ45 |
| Downlink Service interface | 48*10GE SFP+ (Note: The 10GE LRM/80KM linear optical module and 1000base-X auto-negotiation are not supported. 1GE optical modules can be used for interconnection only when auto-negotiation is disabled on the peer port.) |
| Uplink Service interface | 6*100GE QSFP28 (Note: 1. 100GE interfaces are compatible with 40GE; 2. 100GE interfaces do not support splitting into 4x25GE and 4x10GE.) |
| Service port supporting the stack function | 10GE optical ports and 100GE optical ports |
| RTC | Supported |
CE6857F-48S6CQ Specification
| CE6857F-48S6CQ-B Specification | |
| Model | CE6857F-48S6CQ-F |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64MB |
| USB | Supported |
| Console port | RJ45 |
| Downlink Service interface | 48*10GE SFP+ (Note: The 10GE LRM/80KM linear optical module and 1000base-X auto-negotiation are not supported. 1GE optical modules can be used for interconnection only when auto-negotiation is disabled on the peer port.) |
| Uplink Service interface | 6*100GE QSFP28 (Note: 1. 100GE interfaces are compatible with 40GE; 2. 100GE interfaces do not support splitting into 4x25GE and 4x10GE.) |
| Service port supporting the stack function | 10GE optical ports and 100GE optical ports |
| RTC | Supported |
