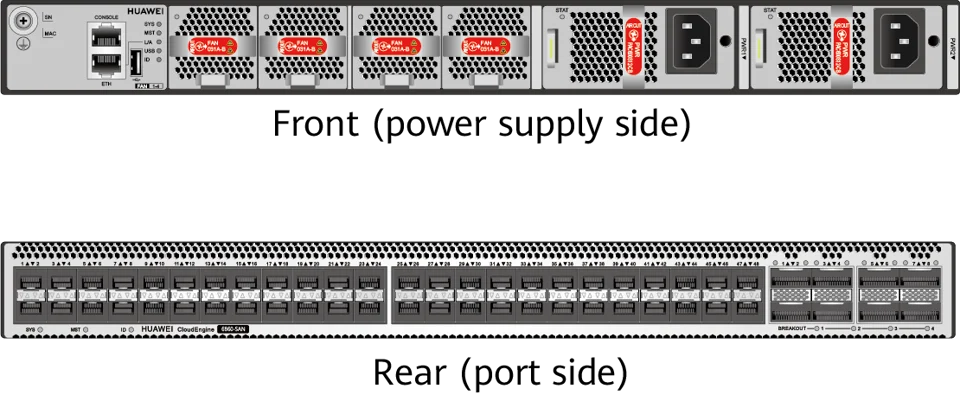

CE6860 SAN

CE6860-SAN switches contain RTU combination package 0 (48 * 25GE SFP28, 8 * 100GE QSFP28, including 24 * 25GE port RTU, no power fan).

Condition: NOB

RMA Warranty

support team Girl Avatar

Expert Consultant Support

Solution Support ,More Discount.
Live Chat   |   Email
7*24h Online

Description



Basic information about the CE6860-SAN
Item Details
Description CE6860-SAN switch (48*25GE SFP28, 8*100GE QSFP28, without fan and power modules)
Part Number 02354FPM
Model CE6860-SAN
First supported version V300R020C10SPC200
Other part numbers 02354FPN (CE6860-SAN Switch (48*25GE SFP28, 8*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake))

02354FPP (CE6860-SAN Switch (48*25GE SFP28, 8*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust))
Short Name CE6860-SAN
Technical specifications of the CE6860-SAN
Item Specification
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 860 mm x 650 mm (8.86 in. x 33.86 in. x 25.59 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 445 mm (1.72 in. x 17.40 in. x 17.52 in.)
Weight without packaging [kg (lb)] 6.7 kg (14.8 lb), excluding optical modules, power modules, and fan modules
Weight without packaging (full configuration) [kg (lb)] 8.7 kg (19.2 lb) (including AC power modules and fan modules, excluding optical modules)
Weight with packaging [kg (lb)] 11.9 kg (26.24 lb)
Weight with packaging (full configuration) [kg (lb)] 13.9 kg (30.64 lb)
Chassis height [U] 1 U
Installation Type Cabinet Installation
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 4-core, 1.4 GHz
Memory DRAM: 8 GB
NOR Flash 64 MB
NAND Flash 4 GB
USB It can be used for log backup and USB-based deployment.

This function is reserved.
Power supply mode
  • AC
  • DC
  • HVDC
Console port RJ45
Downlink Service interface 48 x 25GE SFP28/48 x 50GE SFP56

1. 25GE ports can be used as 10GE ports. 50GE ports can be used as 25GE ports but not 10GE or GE ports.

2. When 25GE ports are upgraded to 50GE ports, eight ports form a group.

NOTE:

1. Support for optical modules:

(1) In the case of port-side air intake, downlink ports support 10G-AOC/SR/LR/ER/ZR and 25G-AOC/SR/LR.

(2) In the case of port-side air exhaust, downlink ports support 10G-AOC/SR/LR and 25G-AOC/SR/LR.

2. Support for copper cables:

When 50GE copper cables are used, contact Huawei engineers for interconnection verification.
Uplink Service interface 8 x 100GE QSFP28/8 x 200GE QSFP56

1. Each 100GE port can be configured as a 40GE port, and each 200GE port can be configured as a 100GE/40GE port.

2. When 100GE ports are upgraded to 200GE, four such ports form a group.

3. 100GE ports are divided into groups 1 to 4 and 5 to 8. Four ports in each group are split together. Ports 2, 4, 6, and 8 can be split into four 25GE ports (whose speeds can be set to 10 Gbit/s). After the split, ports 1, 3, 5, and 7 cannot be used. A 100GE port cannot be split into 2 x 50GE (50GE: 2 x 25GE) ports.

4. 200GE ports cannot be split.

NOTE:

1. Support for optical modules:

(1) In the case of port-side air intake, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4/4WDM.

(2) In the case of port-side air exhaust, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4 optical modules, but do not support 50GE and 200GE optical modules.

2. Support for copper cables:

When 200GE copper cables are used, contact Huawei engineers for interconnection verification.
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W]
  • 48 x 50G + 8 x 200G: 374 W (50% throughput, copper cables on all ports, normal temperature, dual power modules)
  • 48 x 25G + 8 x 100G: 360 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 407 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]
  • 48 x 50G + 8 x 200G: 1277 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules)
  • 48 x 25G + 8 x 100G: 1229 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules), 1389 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)
Static power consumption [W] 322 W
Static heat dissipation [BTU/hour] 1100 BTU/hour
Maximum power consumption [W]
  • 48 x 50G + 8 x 200G: 619 W (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules)
  • 48 x 25G + 8 x 100G: 544 W (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)
Maximum heat dissipation [BTU/hour]
  • 48 x 50G + 8 x 200G: 2110 BTU/hour (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules)
  • 48 x 25G + 8 x 100G: 1858 BTU/hour (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1000 W DC power module: –48 V DC to –60 V DC
  • 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
  • 1000 W DC power module: –38.4 V DC to –72 V DC
  • 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
  • 1000 W DC power module: 30 A (–48 V DC to –60 V DC)
  • 1200 W high-voltage DC power module: 8 A
Rated output power [W]
  • 600 W AC&240 V DC power module: 600 W
  • 1000 W DC power module: 1000 W
  • 1200 W high-voltage DC power module: 1200 W
Certification
  • Complies with safety standards.
  • Complies with EMC standards.
  • Complies with environmental protection standards.
Power supply surge protection [kV]
  • AC power supply protection: 6 kV in common mode and 6 kV in differential mode
  • 240 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode
  • –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode
  • 380 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability 0.9999943515
MTBF [year] 30.32 years
MTTR [hour] 1.5 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A))
  • Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A))
  • Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:

When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
RTU License Supported Yes.

By default, only 24 of the 48 x 25GE ports are enabled and can work only at 25 Gbit/s, and the eight 100GE ports can work only at 100 Gbit/s. The following RTU licenses can be used:

88036XTL: 24 x 25GE ports are added.

88036YCK: The speed of 24 x 25GE ports is upgraded to 50 Gbit/s.

88036YCL: The speed of eight 100GE ports is upgraded to 200 Gbit/s.
