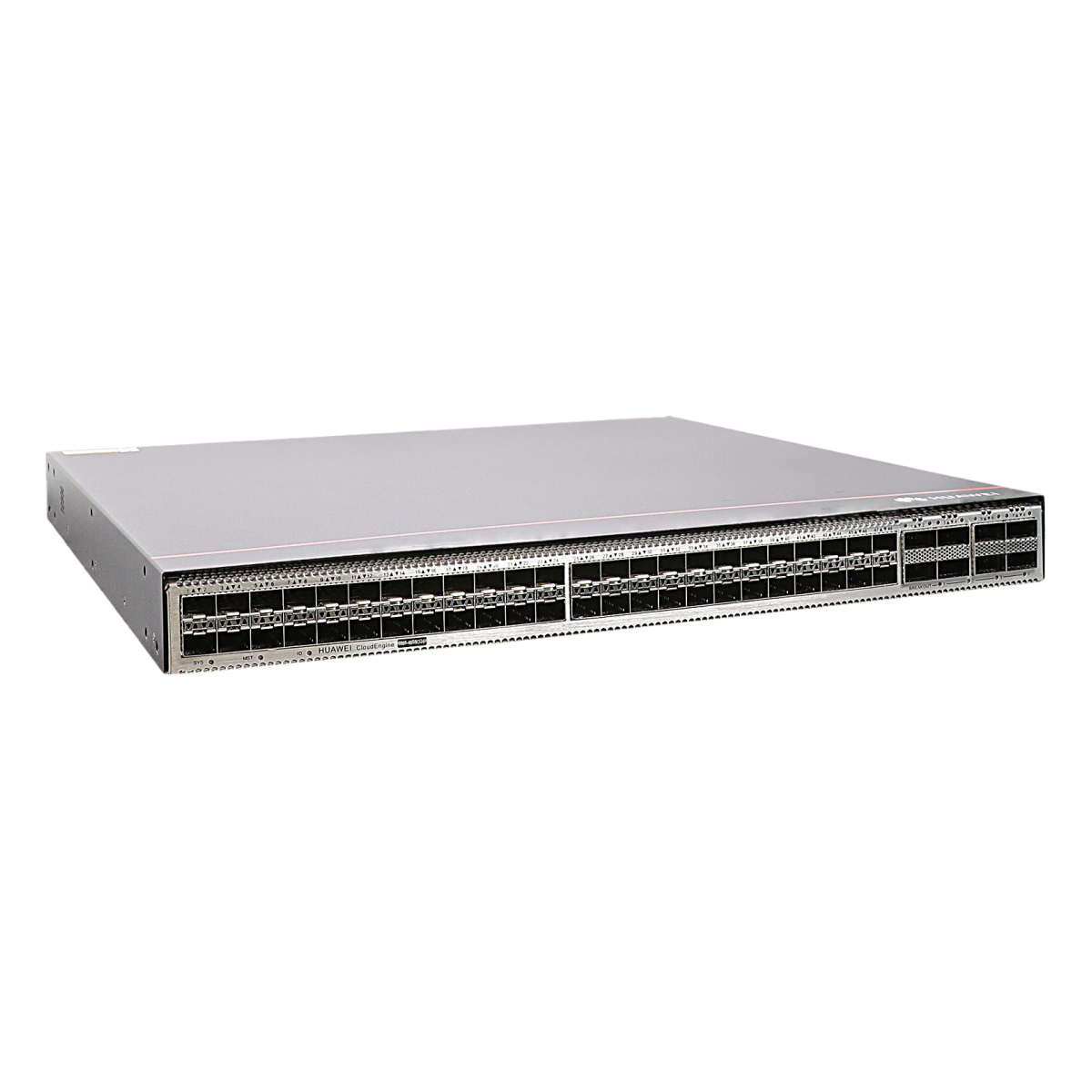

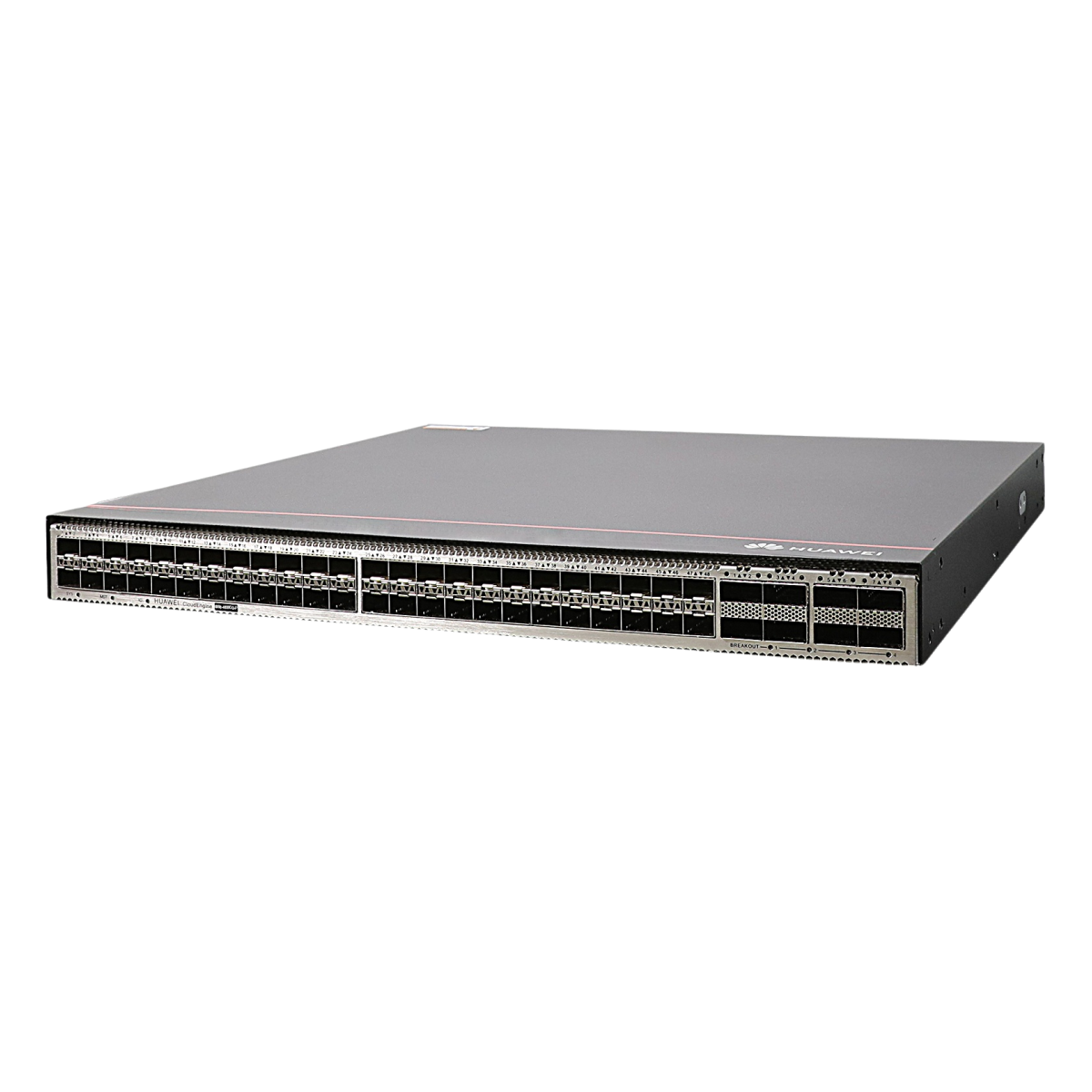

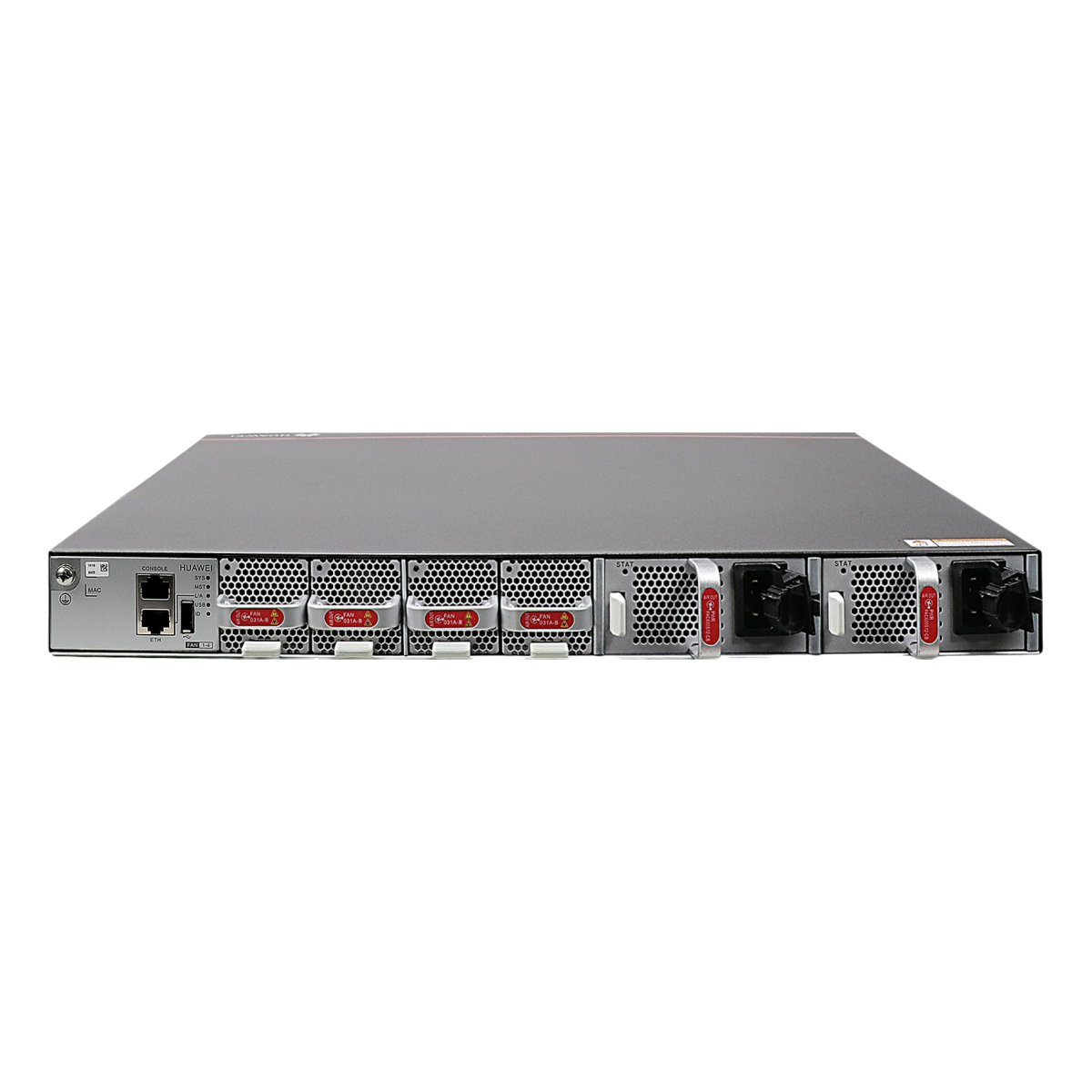

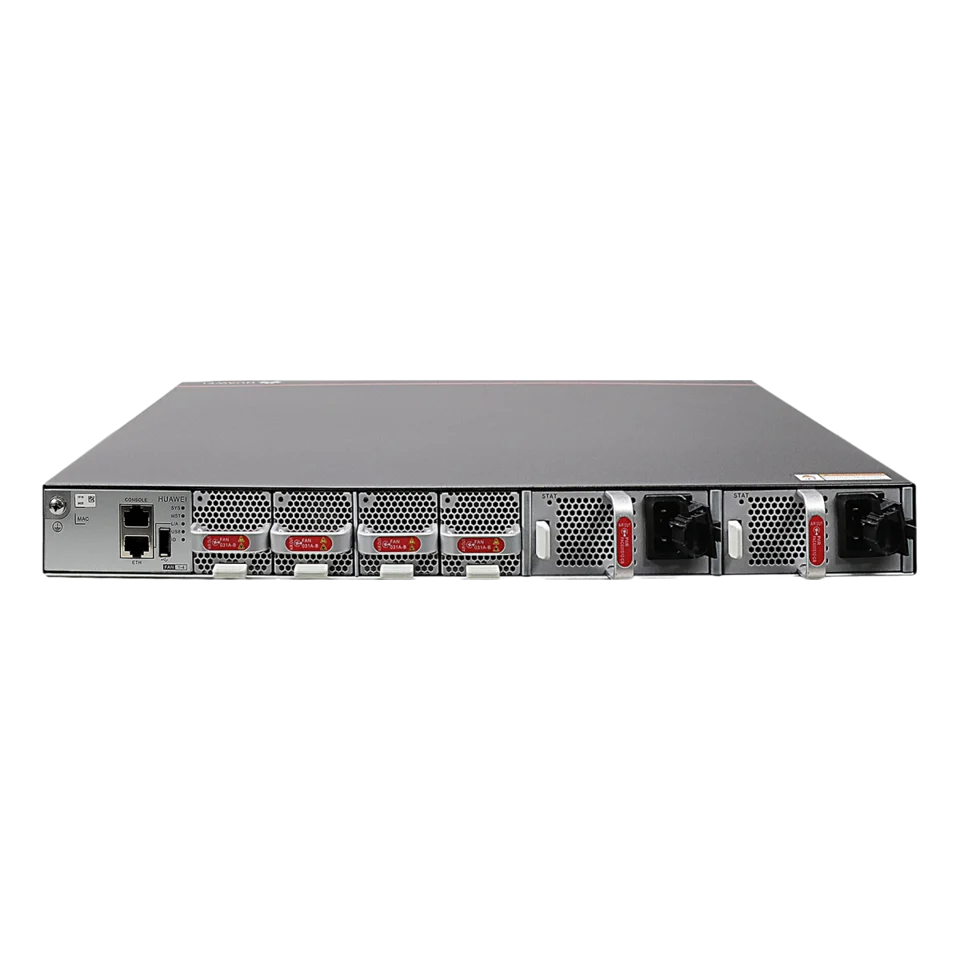

CE6866-48S8CQ-P switch (48*25G SFP28, 8*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust)
Condition: NOB
RMA Warranty
Description
Offering high-performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. The series features an advanced hardware design combined with either 10 GE, 25 GE, or 50 GE access ports, and 40 GE, 100 GE, or 200 GE uplink ports. Advanced data center features, high-performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well-suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.
| Basic Information | |
| Description | CE6866-48S8CQ-P switch (48*25G SFP28, 8*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust) |
| Part Number | 02353EGL |
| Model | CE6866-48S8CQ-P |
| First supported version | V300R020C00 |
| Other part numbers | 02353EGN (CE6866-48S8CQ-P switch (48*25G SFP28, 8*100G QSFP28, without fan and power modules)) 02353EGM (CE6866-48S8CQ-P switch (48*25G SFP28, 8*100G QSFP28, 2*AC power modules, 4*fan modules, port-side intake)) |
| Short Name | CE6866 |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 860 mm x 650 mm (8.86 in. x 33.86 in. x 25.59 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 445 mm (1.72 in. x 17.40 in. x 17.52 in.) |
| Weight without packaging [kg (lb)] | 6.7 kg (14.8 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 8.7 kg (19.2 lb) (including AC power modules and fan modules, excluding optical modules) |
| Weight with packaging [kg (lb)] | 11.9 kg (26.24 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 13.9 kg (30.64 lb) |
| Chassis height [U] | 1 |
| Installation Type | Cabinet Installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Downlink Service interface | 48 x 25GE SFP28/48 x 50GE SFP56 1. 25GE ports can be used as 10GE ports. 50GE ports can be used as 25GE ports but not 10GE or GE ports. 2. When 25GE ports are upgraded to 50GE ports, eight ports form a group. Note: 1. Support for optical modules: (1) In the case of port-side air intake, downlink ports support 10G-AOC/SR/LR/ER/ZR and 25G-AOC/SR/LR. (2) In the case of port-side air exhaust, downlink ports support 10G-AOC/SR/LR and 25G-AOC/SR/LR. 2. Support for copper cables: When 50GE copper cables are used, contact Huawei engineers for interconnection verification. |
| Uplink Service interface | 8 x 100GE QSFP28/8 x 200GE QSFP56 1. Each 100GE port can be configured as a 40GE port, and each 200GE port can be configured as a 100GE/40GE port. 2. When a 100GE port is upgraded to a 200GE port, four such ports form a group. 3. 100GE ports are divided into groups 1 to 4 and 5 to 8. Four ports in each group are split together. Ports 2, 4, 6, and 8 can be split into four 25GE ports (whose speed can be set to 10 Gbit/s). After the split, ports 1, 3, 5, and 7 cannot be used. A 100GE port cannot be split into two 50GE (50GE: 2 x 25GE) ports. 4. 200GE ports cannot be split. Note: 1. Support for optical modules: (1) In the case of port-side air intake, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4/4WDM optical modules. (2) In the case of port-side air exhaust, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4 optical modules, but do not support 50GE and 200GE optical modules. 2. Support for copper cables: In V300R020C10 and later versions, 40GE, 40GE 1-to-4 4x10GE, 100GE 1-to-4 4x25GE, and 200GE copper cables are supported. When 200GE copper cables are used, contact Huawei engineers for interconnection verification. |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | – 48 x 50G + 8 x 200G: 374 W (50% throughput, copper cables on all ports, normal temperature, dual power modules) – 48 x 25G + 8 x 100G: 360 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 407 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules) |
| Typical heat dissipation [BTU/hour] | – 48 x 50G + 8 x 200G: 1277 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules) – 48 x 25G + 8 x 100G: 1229 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules), 1389 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules) |
| Static power consumption [W] | 322 W |
| Static heat dissipation [BTU/hour] | 1100 BTU/hour |
| Maximum power consumption [W] | – 48 x 50G + 8 x 200G: 619 W (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) – 48 x 25G + 8 x 100G: 544 W (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules) |
| Maximum heat dissipation [BTU/hour] | – 48 x 50G + 8 x 200G: 2110 BTU/hour (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) – 48 x 25G + 8 x 100G: 1858 BTU/hour (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | – 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC – 1000 W DC power module: –48 V DC to –60 V DC – 1200 W high-voltage DC power module: 240 V DC to 380 V DC |
| Input voltage range [V] | – 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC – 1000 W DC power module: –38.4 V DC to –72 V DC – 1200 W high-voltage DC power module: 190 V DC to 400 V DC |
| Maximum input current [A] | – 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) – 1000 W DC power module: 30 A (–48 V DC to –60 V DC) – 1200 W high-voltage DC power module: 8 A |
| Rated output power [W] | – 600 W AC&240 V DC power module: 600 W – 1000 W DC power module: 1000 W – 1200 W high-voltage DC power module: 1200 W |
| Certification | – Complies with safety standards. – Complies with EMC standards. – Complies with environmental protection standards. |
| Power supply surge protection [kV] | – AC power supply protection: 6 kV in common mode and 6 kV in differential mode – 240 V HVDC power protection: 4 kV in common mode and 2 kV in differential mode – –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode – 380 V HVDC power protection: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction. |
| Availability | 0.9999943515 |
| MTBF [year] | 30.32 years |
| MTTR [hour] | 1.5 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A)) Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A)) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A)) Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A)) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Long-term operating temperature [°C (°F)] | 0°C–40°C, 32°F–104°F (0–1800 m, 0–5905.44 ft.) Note: When the altitude is between 1800 m (5905.44 ft.) and 5000 m (16404.00 ft.), the highest operating temperature decreases by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| RTU License Supported | Yes. By default, 48 x 25GE ports can only work at the rate of 25 Gbit/s, and eight 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (BOM number: 88036EUQ) to increase the rate of 25GE ports to 50 Gbit/s and the rate of 100GE ports to 200 Gbit/s. |
| System Management>Hardware management>Device Management>Board management>Device restart | |
| Device restart | Y |
