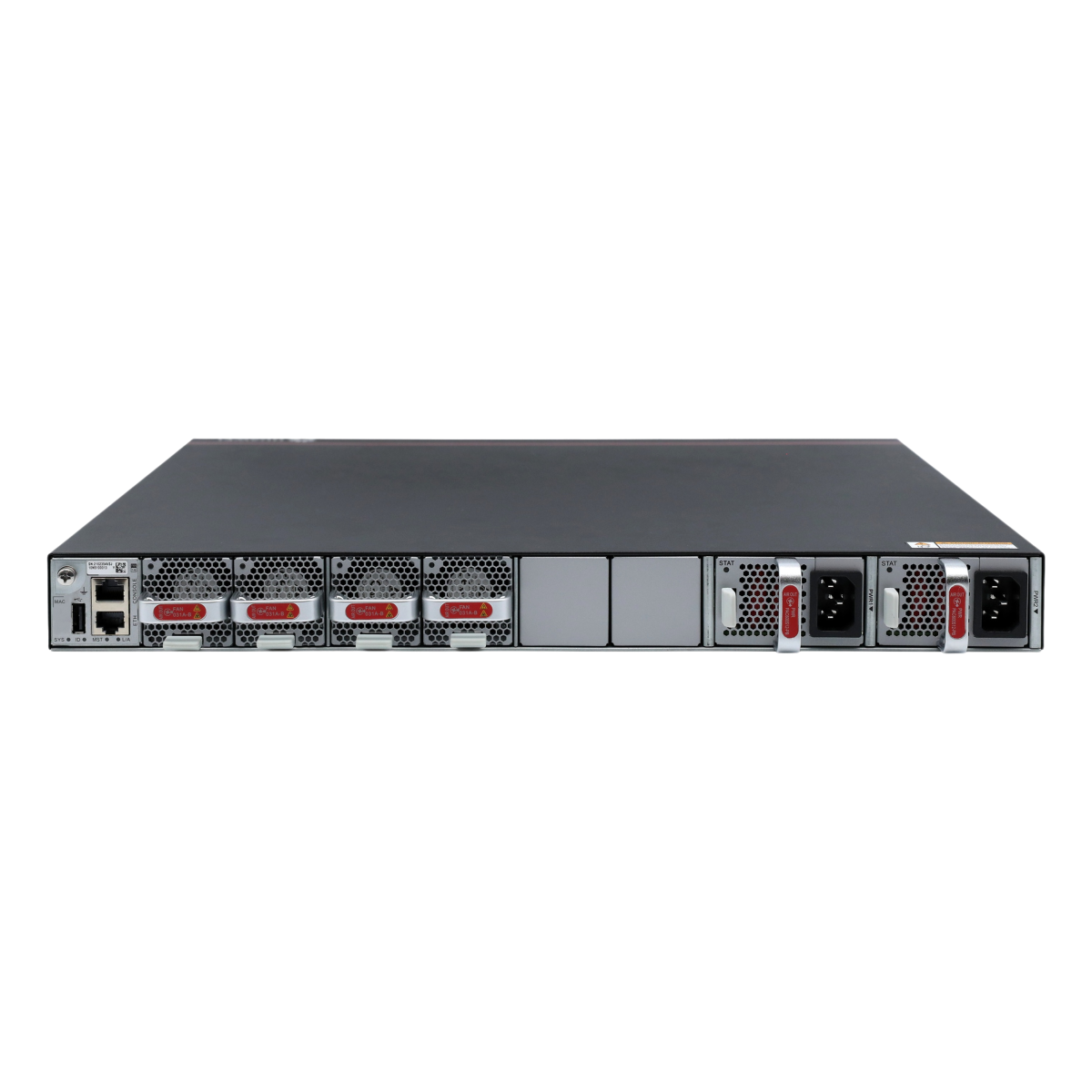

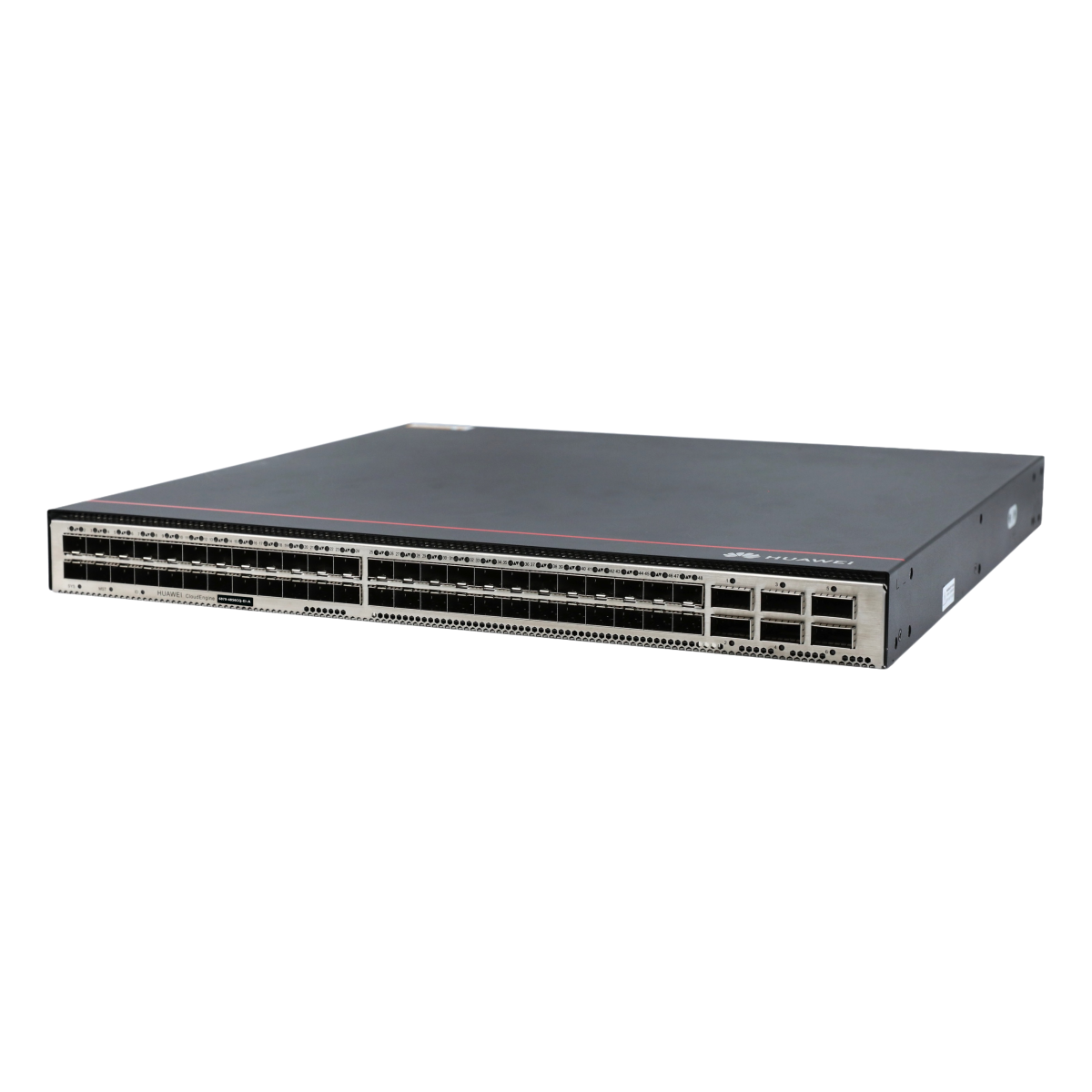

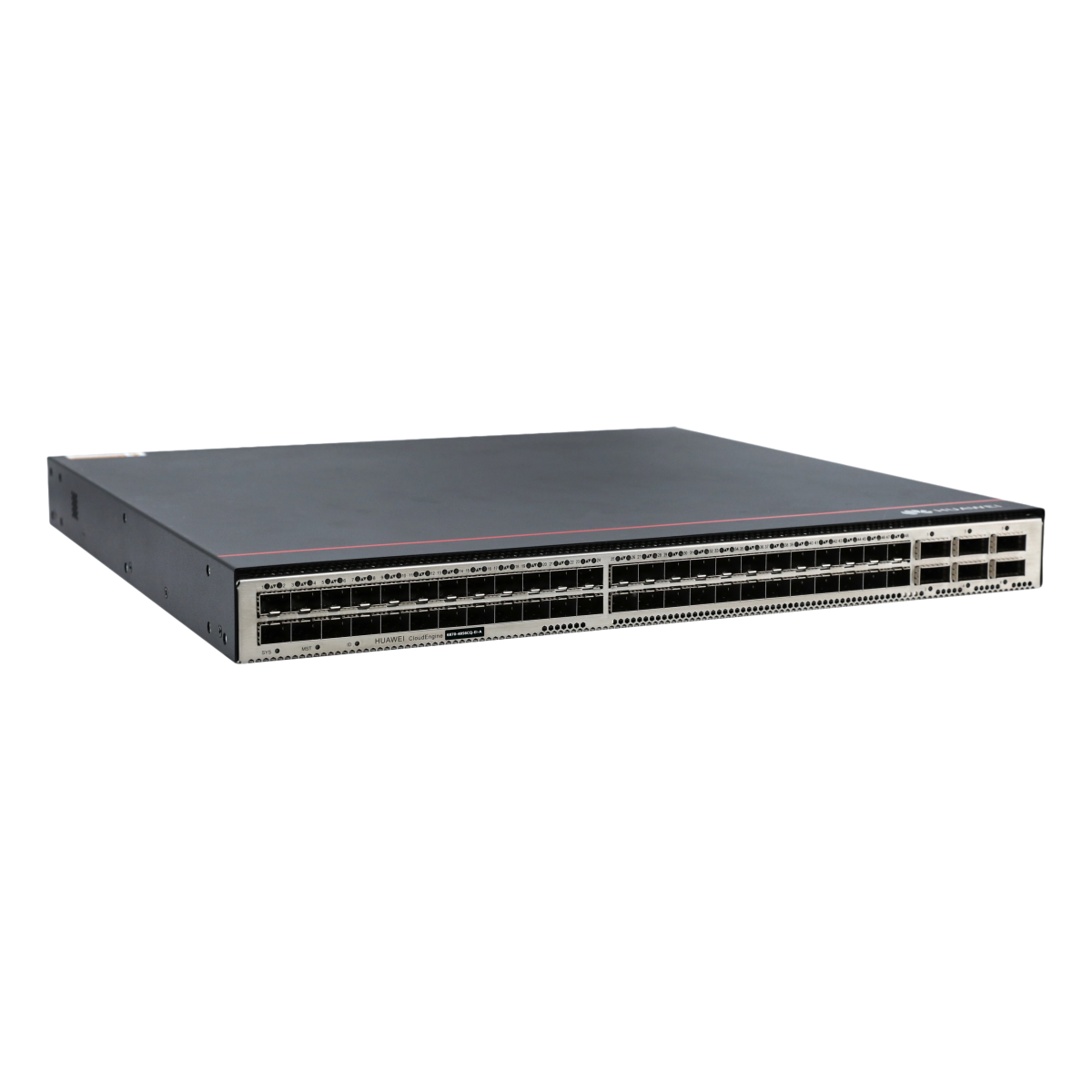

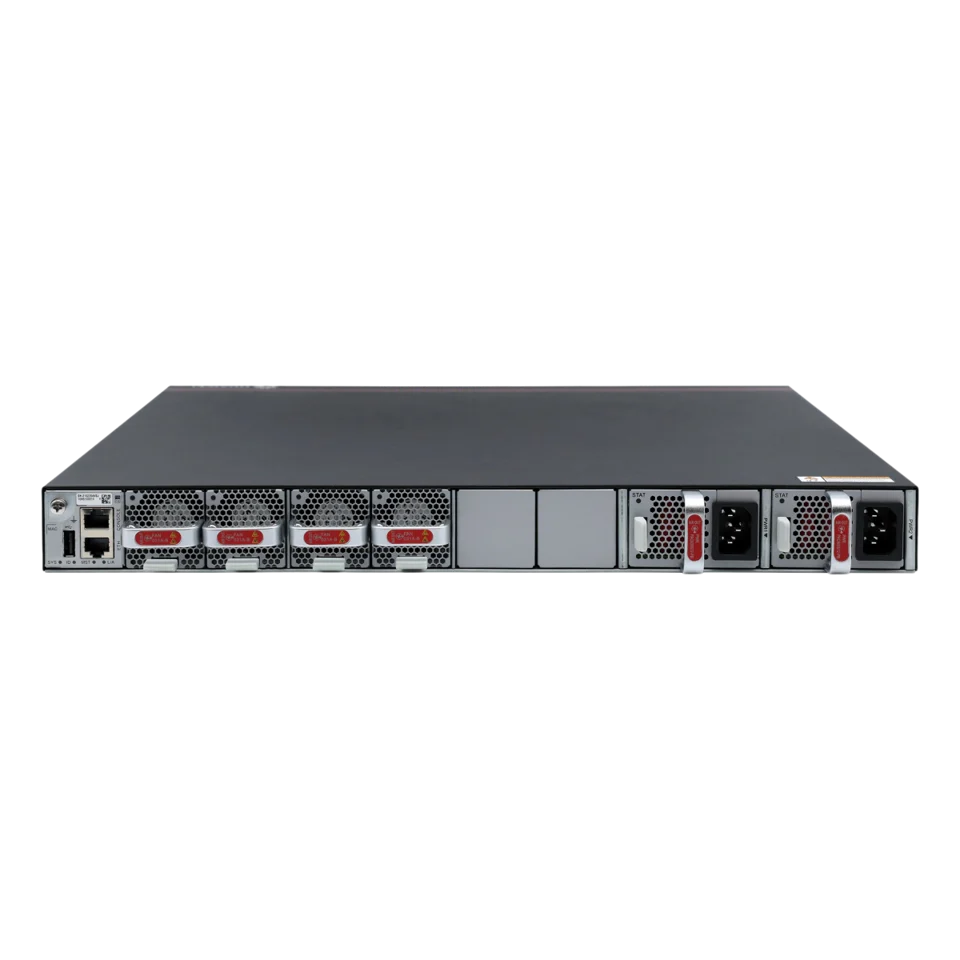

CE6870-48S6CQ-EI-A Switch(48-Port 10GE SFP+,6-Port 100GE QSFP28,Without Fan and Power Module)
Condition: NOB
RMA Warranty
Description
Offering high-performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. The series features an advanced hardware design combined with either 10 GE, 25 GE, or 50 GE access ports, and 40 GE, 100 GE, or 200 GE uplink ports. Advanced data center features, high-performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well-suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.
| Basic Information | |
| Description | CE6870-48S6CQ-EI-A Switch(48-Port 10GE SFP+,6-Port 100GE QSFP28,Without Fan and Power Module) |
| Part Number | 02354VSH |
| Model | CE6870-48S6CQ-EI-A |
| First supported version | V200R022C00 |
| Other part numbers | 02354VSJ (CE6870-48S6CQ-EI-A Switch(48-Port 10GE SFP+,6-Port 100GE QSFP28,2*AC Power Module,4*FAN Box,Port-side Intake)) 02354VSK (CE6870-48S6CQ-EI-A Switch(48-Port 10GE SFP+,6-Port 100GE QSFP28,2*AC Power Module,4*FAN Box,Port-side Exhaust)) |
| Short Name | CE6870EI |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Weight without packaging [kg (lb)] | 6.2 kg (13.67 lb), excluding optical modules, power modules, and fan modules |
| Weight without packaging (full configuration) [kg (lb)] | 8.3 kg (18.30 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.) |
| Weight with packaging [kg (lb)] | 9.1 kg (20.06 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 11.1 kg (24.5 lb) |
| Chassis height [U] | 1 |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | Quad-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Downlink Service interface | 48*10GE SFP+ (Such ports can be used as GE SFP optical/electrical ports, and do not support 10GE LRM/80 km linear optical modules. GE copper modules cannot be installed in ports directly above or below another GE copper module.) |
| Uplink Service interface | 6*100GE QSFP28 (Each 100G QSFP28 port can be configured to work at 40 Gbit/s, and can be split into four 10GE or 25GE ports. After split, they cannot be used as GE ports. Auto-negotiation of 25GE copper cables is not supported.) |
| Service port supporting the stack function | 10GE and 100GE optical ports |
| RTC | Supported |
| Typical power consumption [W] | 142 W (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 159 W (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] | 485 BTU/hour (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 543 BTU/hour (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules) |
| Static power consumption [W] | 117 W |
| Static heat dissipation [BTU/hour] | 399 BTU/hour |
| Maximum power consumption [W] | 209 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 323 W (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules) |
| Maximum heat dissipation [BTU/hour] | 713 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1102 BTU/hour (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | – 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC – 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC |
| Input voltage range [V] | – 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC – 1200 W DC power module: -38.4 V DC to -72 V DC; +40 V DC to +57 V DC |
| Maximum input current [A] | – 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) – 1200 W DC power module: 38 A (-48 V DC to -60 V DC); 38 A (+48 V DC) |
| Rated output power [W] | – 600 W AC&240 V DC power module: 600 W – 1200 W DC power module: 1200 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | – AC: 6 kV in common mode and 6 kV in differential mode – DC: 4 kV in common mode and 2 kV in differential mode – HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules |
| Availability | 0.9999936017 |
| MTBF [year] | 34.43 years |
| MTTR [hour] | 1.93 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Port-side air intake: < 50.8 dB(A) Port-side air exhaust: < 50.5 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Port-side air intake: < 66.8 dB(A) Port-side air exhaust: < 66.7 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | < 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| Software Specifications>Device Software>Functions>DHCP | |
| DHCP relay | Y |
| DHCP snooping | Y |
| DHCP server | Y |
| DHCP Option82 | Y |
| Software Specifications>Device Software>Functions>FCoE | |
| FCF | Y |
| Software Specifications>Device Software>Functions>L2 | |
| Port QinQ | Y |
| Link aggregation | Y |
| ERPS | Y |
| Smart Link | Y |
| Super-VLAN | Y |
| MUX-VLAN | Y |
| Selective QinQ | Y |
| VLAN mapping | Y |
| MSTP | Y |
| Monitor Link | Y |
| VBST | Y |
| Loopback detection | Y |
| GVRP | Y |
| LLDP | Y |
| DLDP | Y |
| 802.1ag | Y |
| L2PT | Y |
| 802.3ah | Y |
| Software Specifications>Device Software>Functions>L3 | |
| OSPF | Y |
| IS-IS | Y |
| RIP | Y |
| BGP | Y |
| IPv6 routing protocol | Y |
| Software Specifications>Device Software>Functions>MPLS | |
| MPLS/BGP IPv6 VPN | Y |
| MPLS/BGP IPv4 VPN | Y |
| MPLS VPLS | Y |
| Software Specifications>Device Software>Functions>Management and maintenance | |
| Telnet | Y |
| NTP | Y |
| Syslog | Y |
| FTP | Y |
| SFTP | Y |
| SSH | Y |
| NETCONF | Y |
| TFTP | Y |
| SNMP | Y |
| Software Specifications>Device Software>Functions>Multicast | |
| IGMP | Y |
| Multicast VLAN | Y |
| IPv4 multicast over VXLAN | Y |
| IGMP snooping | Y |
| MLD snooping | Y |
| Software Specifications>Device Software>Functions>O&M monitoring | |
| NetStream | Y |
| ERSPAN | Y |
| 1:N mirroring | Y |
| SPAN (port mirroring) | Y |
| RSPAN | Y |
| sFlow | Y |
| Software Specifications>Device Software>Functions>QoS | |
| DCB | Y |
| Queue scheduling algorithms | Y |
| DiffServ | Y |
| Software Specifications>Device Software>Functions>Security | |
| DAI | Y |
| MFF | Y |
| 802.1X | Y |
| Software Specifications>Device Software>Functions>VXLAN | |
| VXLAN | Y |
| Software Specifications>Device Software>Performance>DHCP | |
| DHCP snooping binding table | 32K |
| Number of DHCP snooping users allowed by CAR | 5K |
