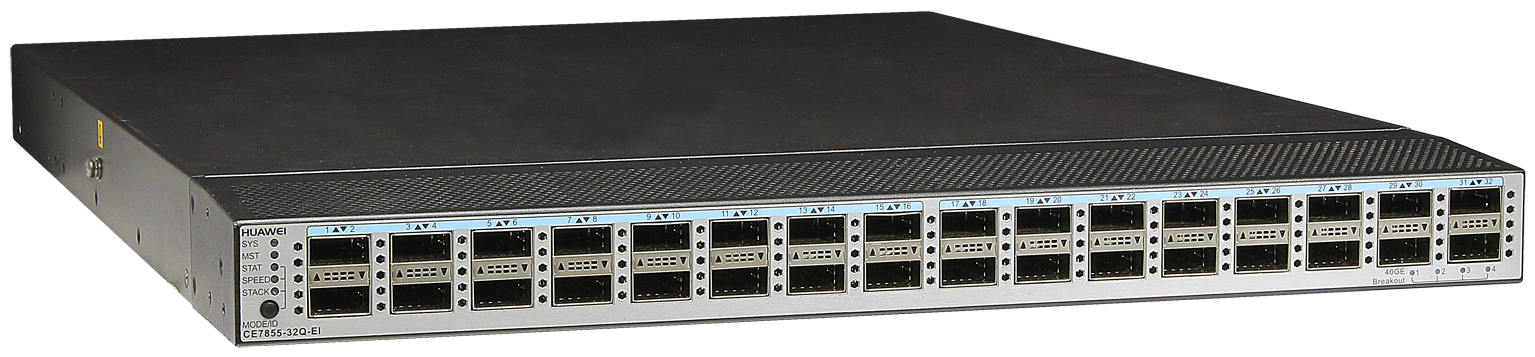

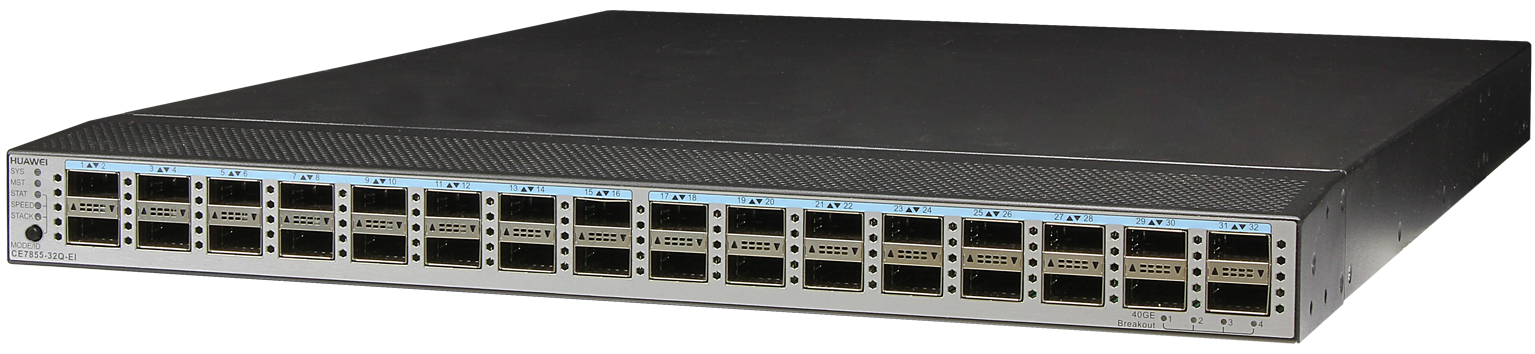

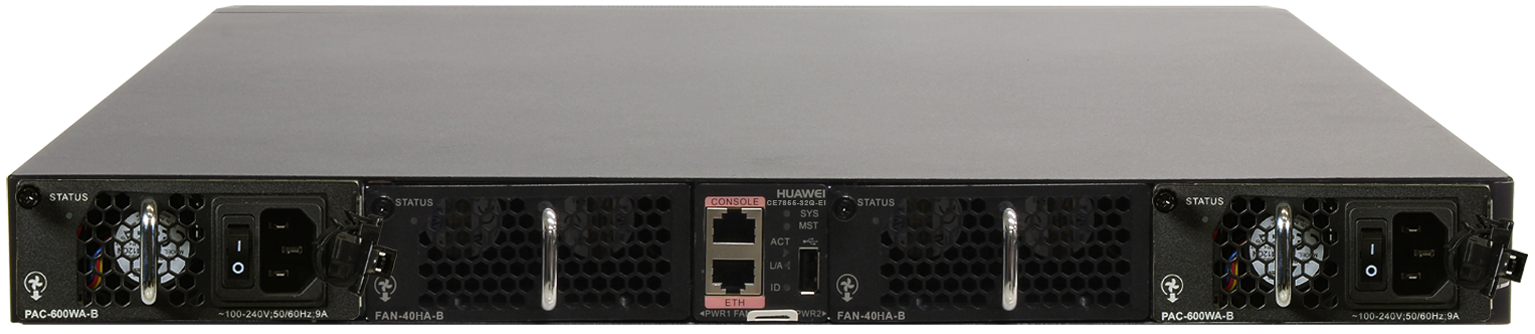

CE7855-32Q-EI Switch (32-Port 40GE QSFP+, Without Fan Box and Power Module)
Condition: NOB
RMA Warranty
Description
Huawei CloudEngine 7800 series switches are next-generation 40GE Ethernet switches designed for DCNs and high-end campus networks, providing high performance, high interface density, and low latency. The CloudEngine 7800 provides high-density 40GE QSFP+ ports, and supports an extensive range of DC features and high-performance stacking, helping enterprises and carriers build DCNs in the cloud computing era. The CloudEngine 7800 can work with CloudEngine 16800, CloudEngine 12800, CloudEngine 8800, CloudEngine 6800, and CloudEngine 5800 series switches to build an elastic, simple, open, and secure cloud DCN. The CloudEngine 7800 series switches can function as core or aggregation switches on both DCNs and campus networks.
| Hardware Specifications>Fixed Switches (TOR Switches)>Environment specifications>Temperature, humidity, and altitude | |
| Altitude |
Up to 5000 m
|
| Operating temperature |
Altitude between 0 m and 1800 m: 0°C to 40°C Altitude between 1800 m and 5000 m: The temperature decreases by 1°C each time the altitude increases by 220 m.
|
| Storage temperature |
-40°C to +70°C
|
| Humidity |
5% to 95%
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Noise (ISO3744 and ETS300753 standards) | |
| Sound pressure at 27°C (dBA) |
Front-to-back airflow: 50 dBA in average (maximum: 54 dBA) Back-to-front airflow: 51 dBA in average (maximum: 55 dBA)
|
| Sound power at 27°C (dBA) |
Front-to-back airflow: < 64 dBA Back-to-front airflow: < 65 dBA
|
| Sound pressure at 40°C (dBA) |
Front-to-back airflow: 70 dBA in average (maximum: 75 dBA) Back-to-front airflow: 69 dBA in average (maximum: 74 dBA)
|
| Sound power at 40°C (dBA) |
Front-to-back airflow: < 84 dBA Back-to-front airflow: < 83 dBA
|
| Surge protection |
AC: 6 kV in common mode and 6 kV in differential mode
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Reliability | |
| Availability |
0.999996474
|
| MTBF (year) |
49.81
|
| MTTR (hour) |
1.54
|
| MTTF (year) |
49.81
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Power supply>System power supply | |
| Maximum output power |
600 W AC
|
| Fans on power modules |
√
|
| Power module protection |
The system power modules support: 1. Reversed connection protection, which prevents the power module from being burnt when reversely connected. 2. Protection against input overcurrent, output overvoltage, output overcurrent, output short circuit, and overtemperature conditions. 3. Current sharing and hot swapping. 4. Fault isolation when the switch is configured with dual power modules. That is, when one power module fails, the other power module is not affected.
|
| Load balancing |
Supported
|
| Hot swapping |
Supported
|
| Input voltage range |
AC rated voltage range：～100-240V AC,50/60Hz, Maximum AC voltage range：～90-290V AC,47Hz-63Hz
|
| Input current range |
600 W AC power module: 100 V to 240 V, 9 A |
| Power supply input |
AC
|
| Power module redundancy |
1+1 power module backup
|
| Supported power modules |
600 W AC power module Note: 1. The 600 W 220 V AC power module can work with 240 V HVDC power input, but has not passed the 240 V HVDC safety regulation certification. If 240 V HVDC needs to be supported, contact Huawei R&D engineers. 2. The 600 W 220 V AC power module and 600 W 240 V HVDC power module can be installed on the same switch. If the mixed use is required, contact Huawei R&D engineers.
|
| Power module type |
Pluggable
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Heat dissipation of the switch | |
| Maximum heat dissipation (BTU/hr) |
1515 BTU/hr
|
| Typical heat dissipation (BTU/hr) |
895 BTU/hr (100% traffic load, copper cables on all ports, normal temperature, dual power modules) 1084 BTU/hr (100% traffic load, all ports connected to short-distance optical modules, normal temperature, dual power modules)
|
| Static heat dissipation (BTU/hr) |
701 BTU/hr
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Power consumption of the switch | |
| Typical power consumption (W) |
262 W (100% traffic load, copper cables on all ports, normal temperature, dual power modules) 318 W (100% traffic load, all ports connected to short-distance optical modules, normal temperature, dual power modules)
|
| Static power consumption (W) |
205 W
|
| Maximum power consumption (W) |
444 W
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Physical specifications>Other functions | |
| Dying Gasp |
AC power modules supported
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Heat dissipation | |
| Number of fan trays |
2 (Each fan tray contains two fans.)
|
| Number of fans on power modules |
1 (AC power module)
|
| Fan module installation mode |
Fan modules are pluggable and hot-swappable.
|
| Heat dissipation mode |
Air cooling
|
| Heat dissipation airflow |
Front-to-back/Back-to-front airflow
|
| Fan speed adjustment |
Intelligent fan speed adjustment according to the environment temperature
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Physical specifications>Management interface | |
| Out-of-band management interface |
GE management interface
|
| USB interface |
√ (one)
|
| Console interface |
RJ45 serial interface
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Physical specifications>Service interface | |
| Downlink interface |
There are thirty-two 40GE QSFP+ interfaces in total. Uplink and downlink interfaces are not distinguished. Note: Four configuration modes are available for splitting a 40GE interface into four 10GE interfaces: Mode 1: Among the first 16 interfaces, the first 12 interfaces can be dynamically split, and the last 4 interfaces cannot. Among the last 16 interfaces, the first 12 interfaces can be dynamically split, and the last 4 interfaces cannot. Mode 2: Among the first 16 interfaces, the last 12 interfaces can be dynamically split, and the first 4 interfaces cannot. Among the last 16 interfaces, the first 12 interfaces can be dynamically split, and the last 4 interfaces cannot. Mode 3: Among the first 16 interfaces, the first 12 interfaces can be dynamically split, and the last 4 interfaces cannot. Among the last 16 interfaces, the last 12 interfaces can be dynamically split, and the first 4 interfaces cannot. Mode 4: Among the first 16 interfaces, the first 13 interfaces can be split into 10GE interfaces, and the last 3 interfaces are unavailable. Among the last 16 interfaces, the first 13 interfaces can be split into 10GE interfaces, and the last 3 interfaces are unavailable. That is, if mode 4 is configured, a total of one hundred and four 10GE interfaces are provided, and no split command needs to be configured. A new configuration mode takes effect only after a reboot.
unfold
|
| Uplink interface |
NA
|
| Hardware Specifications>Fixed Switches (TOR Switches)>Physical specifications>Physical structure | |
| Dimensions (W x D x H), in millimeters |
442*607*43.6
|
| Weight (maximum, excluding optical modules, power modules, and fan modules) |
8.6 kg
|
| Weight (maximum, including AC power modules and fan modules, excluding optical modules) |
11.2 kg
|
