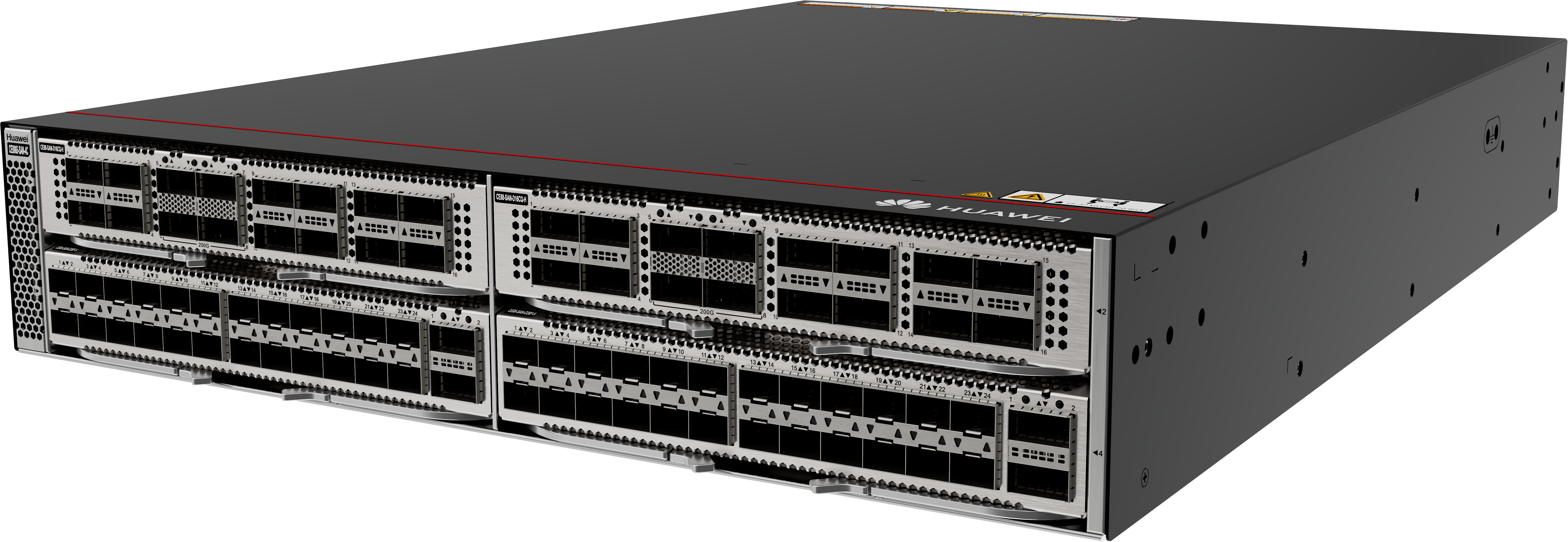

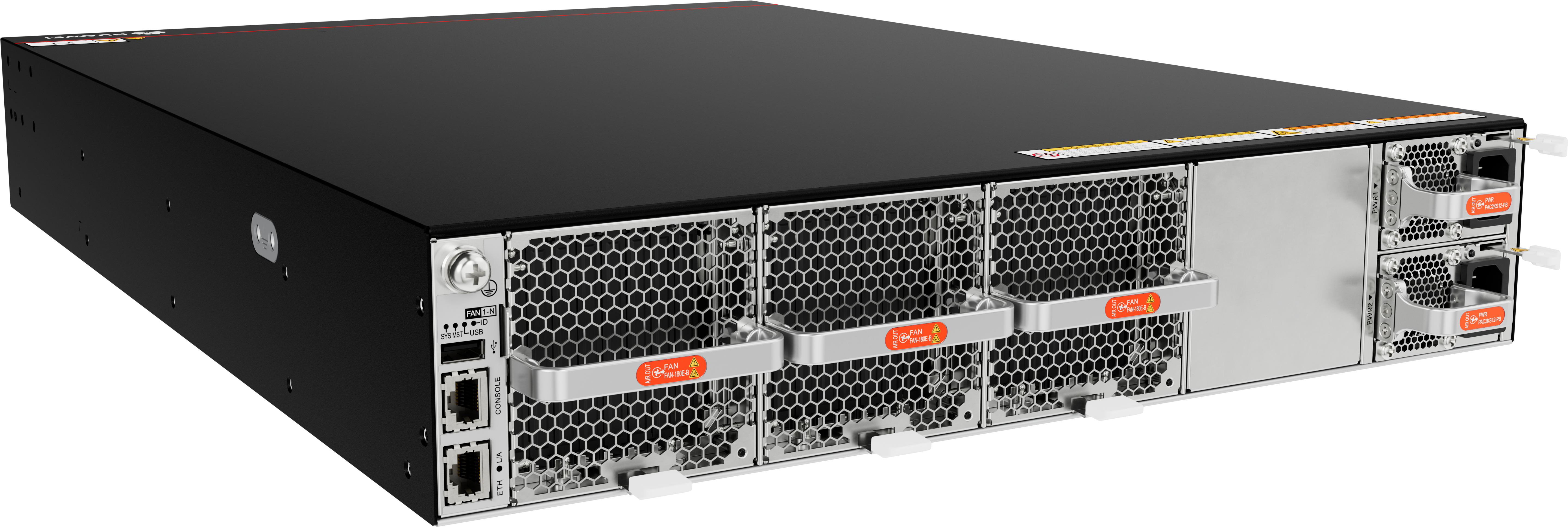

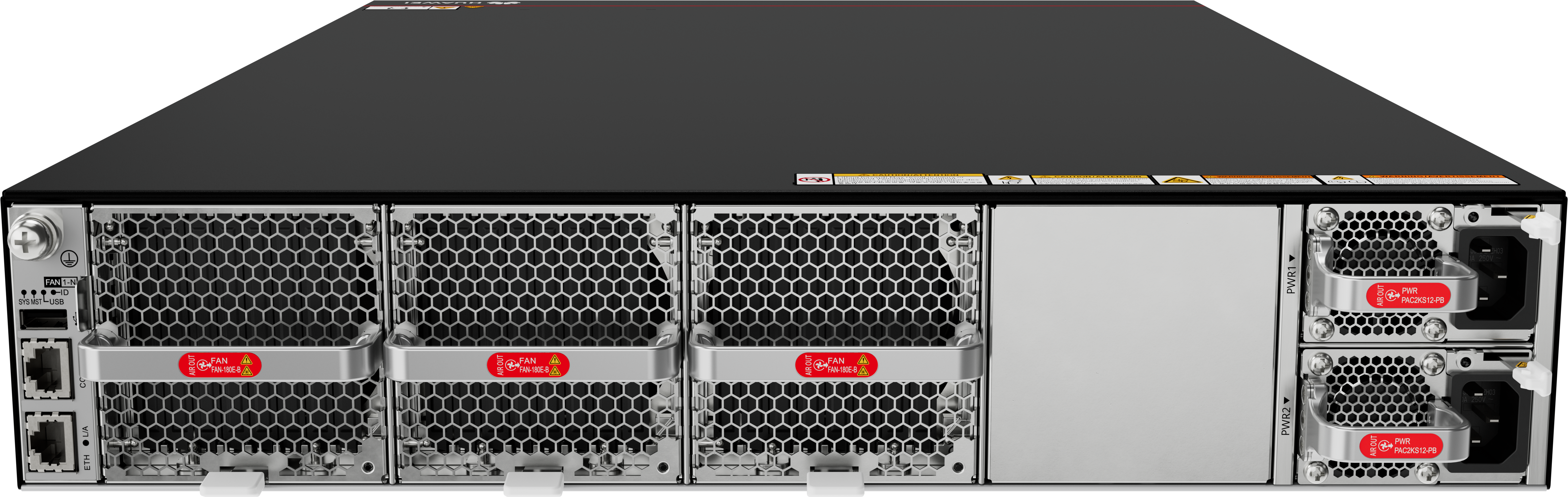

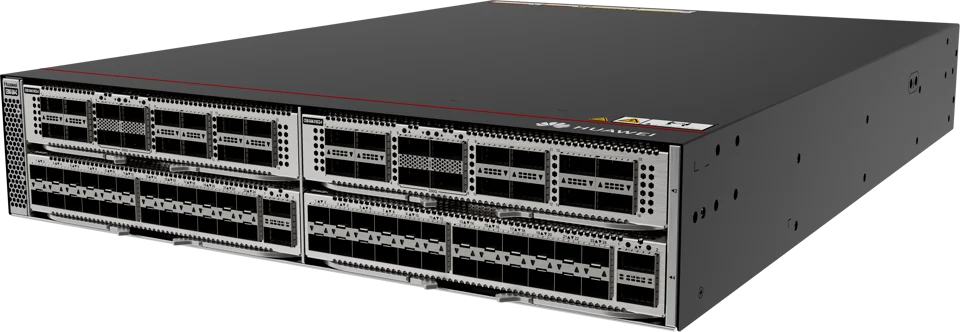

CE8865-SAN-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules)
Condition: NOB
RMA Warranty
Description
A series of high port density switches, CloudEngine 8800 brings a combination of both high performance and low latency to cloud-oriented data center networks and high-end campus networks alike. Additionally, the series supports an extensive range of data center features, Software-Defined Networking (SDN) capabilities, and high performance stacking technologies. With 10, 25, 40, 100, 200, and 400 GE ports, as well as flexible plug-in cards, CloudEngine 8800 is well suited for both the core and aggregation layers. The series is also compatible with CloudEngine 16800, 12800, 6800, and 5800 series switches, helping enterprises build networks that are scalable, simplified, open — and secure.
| Basic Information | |
| Description | CE8865-SAN-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules) |
| Part Number | 02355SDP |
| Model | CE8865-SAN-4C |
| First supported version | V300R023C10 |
| Other part numbers | 02355SDQ (CE8865-SAN-4C Mainframe (With 4 Subcard Slots, 2*AC Power Module, 3*Fans, Port-side Intake)) 02355SDR (CE8865-SAN-4C Mainframe (With 4 Subcard Slots, 2*AC Power Module, 3*Fans, Port-side Exhaust)) |
| Short Name | CE8865-SAN |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 280 mm x 875 mm x 665 mm (11.02 in. x 34.45 in. x 26.18 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (the depth excludes the parts protruding from the body): 88.1 mm x 442.0 mm x 600.0 mm (3.47 in. x 17.40 in. x 23.62 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 88.1 mm x 442.0 mm x 640.0 mm (3.47 in. x 17.40 in. x 25.20 in.) |
| Weight without packaging [kg (lb)] | 12.76 kg (28.13 lb) (with two power module filler panels and three fan module filler panels but no power modules, fan modules, cards, and card filler panels) 15.48 kg (34.13 lb) (with four card filler panels, two power module filler panels, and three fan module filler panels but no power modules, fan modules, and cards) |
| Weight without packaging (full configuration) [kg (lb)] | 16.54 kg (36.46 lb) (with two power modules and three fan modules, but no cards and card filler panels) 19.26 kg (42.46 lb) (with two power modules, three fan modules, and four card filler panels, but no cards) |
| Weight with packaging [kg (lb)] | 21.3 kg (46.96 lb) (with two power module filler panels and three fan module filler panels but no power modules, fan modules, cards, and card filler panels) 24.02 kg (52.96 lb) (with four card filler panels, two power module filler panels, and three fan module filler panels but no power modules, fan modules, and cards) |
| Weight with packaging (full configuration) [kg (lb)] | 25.08 kg (55.29 lb) (with two power modules and three fan modules, but no cards and card filler panels) 27.8 kg (61.29 lb) (with two power modules, three fan modules, and four card filler panels, but no cards) |
| Chassis height [U] | 2 |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 16-core, 2 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB x 2 |
| SSD Flash | 4GB SSD |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Downlink Service interface | For details, see the port description of each card. |
| Uplink Service interface | For details, see the port description of each card. |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | Configured with four CE88-SAN-D16CQ-H cards: – 650 W (100% traffic load, copper cables on 32 x 100GE ports, normal temperature, dual AC power modules) – 728 W (100% traffic load, short-distance optical modules on 32 x 100GE ports, normal temperature, dual AC power modules) Configured with four CE88-SAN-D26F-H cards: – 305 W (100% traffic load, copper cables on 48 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) – 338 W (100% traffic load, short-distance optical modules on 48 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] | Configured with four CE88-SAN-D16CQ-H cards: – 2217.8 BTU/hour (100% traffic load, copper cables on 32 x 100GE ports, normal temperature, dual AC power modules) – 2483.9 BTU/hour (100% traffic load, short-distance optical modules on 32 x 100GE ports, normal temperature, dual AC power modules) Configured with four CE88-SAN-D26F-H cards: – 1040.7 BTU/hour (100% traffic load, copper cables on 48 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) – 1153.3 BTU/hour (100% traffic load, short-distance optical modules on 48 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) |
| Static power consumption [W] | Configured with four CE88-SAN-D16CQ-H cards: 569 W Configured with four CE88-SAN-D26F-H cards: 276 W |
| Static heat dissipation [BTU/hour] | Configured with four CE88-SAN-D16CQ-H cards: 1941.4 BTU/hour Configured with four CE88-SAN-D26F-H cards: 941.7 BTU/hour |
| Maximum power consumption [W] | Configured with four CE88-SAN-D16CQ-H cards: – 888 W (100% traffic load, short-distance optical modules on 64 x 100GE ports, normal temperature, dual AC power modules) – 1318 W (100% traffic load, long-distance optical modules on 64 x 100GE ports, high temperature, dual AC power modules) – 1376 W (100% traffic load, long-distance optical modules on 48 x 100GE + 16 x 200GE ports, high temperature, dual AC power modules) Configured with four CE88-SAN-D26F-H cards: – 410 W (100% traffic load, short-distance optical modules on 96 x 25GE + 8 x 100GE ports, normal temperature, dual AC power modules) – 718 W (100% traffic load, long-distance optical modules on 96 x 25GE + 8 x 100GE ports, high temperature, dual AC power modules) |
| Maximum heat dissipation [BTU/hour] | Configured with four CE88-SAN-D16CQ-H cards: – 3029.9 BTU/hour (100% traffic load, short-distance optical modules on 64 x 100GE ports, normal temperature, dual AC power modules) – 4497 BTU/hour (100% traffic load, long-distance optical modules on 64 x 100GE ports, high temperature, dual AC power modules) – 4694.9 BTU/hour (100% traffic load, long-distance optical modules on 48 x 100GE + 16 x 200GE ports, high temperature, dual AC power modules) Configured with four CE88-SAN-D26F-H cards: – 1398.9 BTU/hour (100% traffic load, short-distance optical modules on 96 x 25GE + 8 x 100GE ports, normal temperature, dual AC power modules) – 2449.8 BTU/hour (100% traffic load, long-distance optical modules on 96 x 25GE + 8 x 100GE ports, high temperature, dual AC power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | – 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC – 1800 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC – 2000 W high-voltage DC power module: 336 V DC – 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC |
| Input voltage range [V] | – 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 66 Hz; DC: 190 V DC to 290 V DC – 1800 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 66 Hz; DC: 190 V DC to 290 V DC – 2000 W high-voltage DC power module: 260 V DC to 400 V DC – 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC |
| Maximum input current [A] | – 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC) – 1800 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC) – 2000 W high-voltage DC power module: 10 A (336 V DC) – 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC) |
| Rated output power [W] | – 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC) – 1800 W AC&240 V DC power module: 1800 W (200 V AC to 240 V AC&240 V DC), 900 W (100 V AC to 130 V AC) – 2000 W high-voltage DC power module: 2000 W – 2200 W DC power module: 2200 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | – AC: 6 kV in common mode and 6 kV in differential mode – HVDC: 4 kV in common mode and 2 kV in differential mode – DC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 3 |
| Redundant fans | The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction. |
| Availability | 0.9999964621 |
| MTBF [year] | 48.4 years |
| MTTR [hour] | 1.86 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Port-side air intake: < 64.3 dB(A) Port-side air exhaust: < 65.2 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Port-side air intake: < 86.1 dB(A) Port-side air exhaust: < 87.9 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| System Management>Hardware management>Device Management>Board management>Device restart | |
| Device restart | Y |
