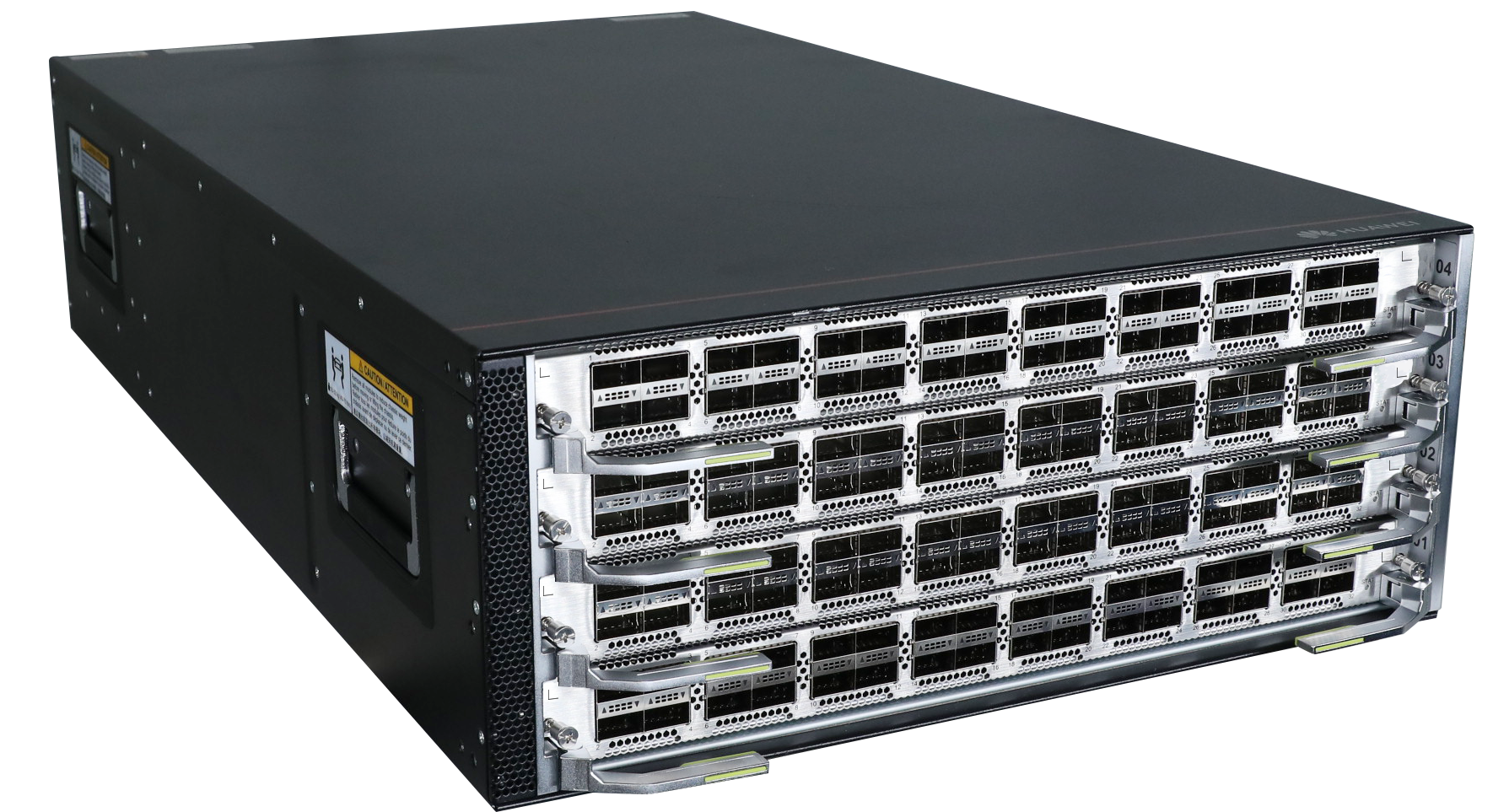

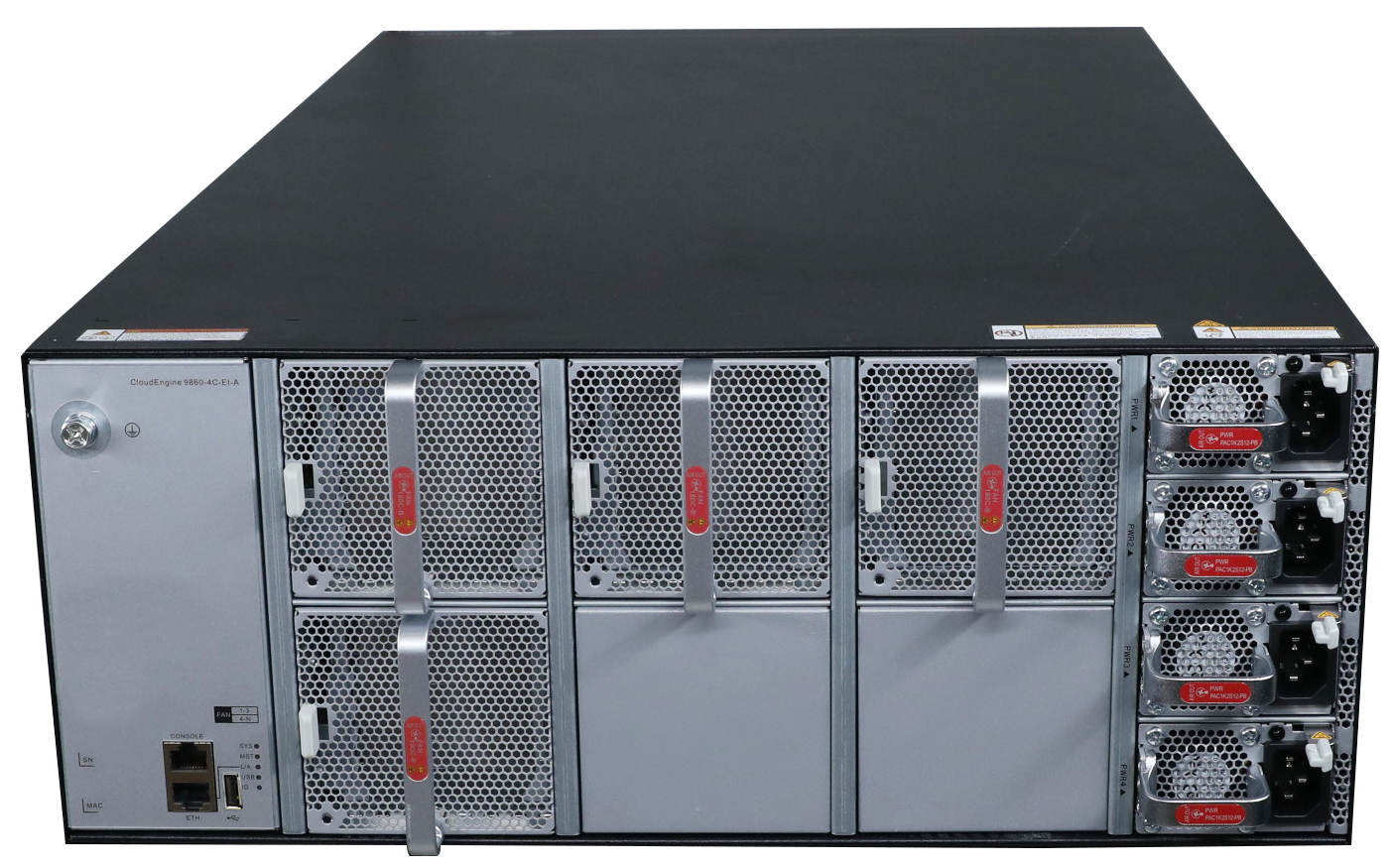

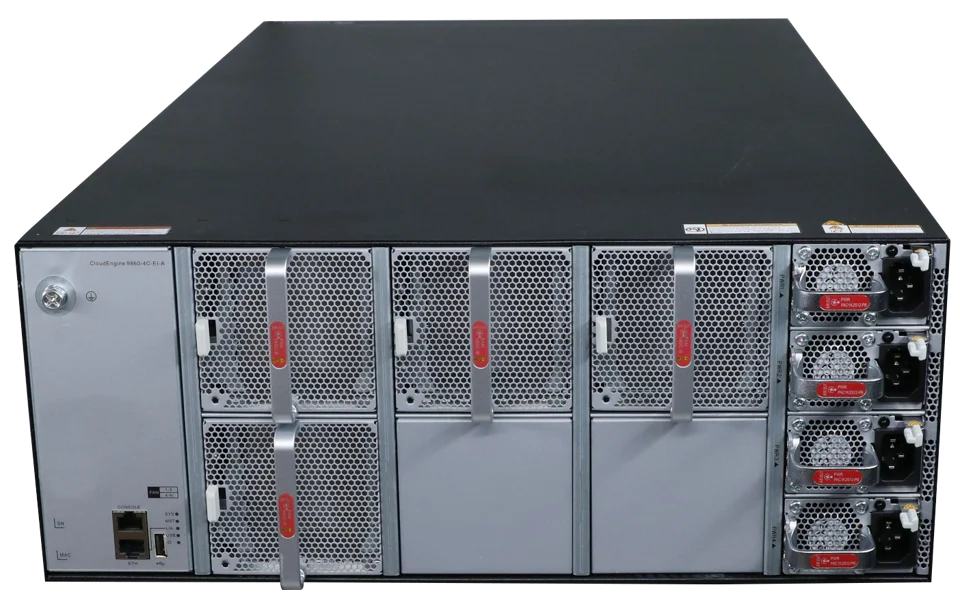

CE9860-4C-EI-A mainframe (4*subcard slots, without fan and power modules)
Condition: NOB
RMA Warranty
Description
CloudEngine 9800 series switches are high-performance 100G Ethernet switches designed for data center networks, featuring high-density 100 GE ports and low latency. Compatible with a range of other CloudEngine series switches (CE 16800, 12800, 8800, 6800, and 5800), the CloudEngine 9800 series can be used to build an elastic, virtualized, high-quality fabric that meets the demanding requirements of cloud-computing data centers. Using an advanced hardware structure, the switches provide high-density 100 GE/40 GE ports to support various data center features, and can function as core or aggregation switches on data center networks.
| Basic Information | |
| Description | CE9860-4C-EI-A mainframe (4*subcard slots, without fan and power modules) |
| Part Number | 02355FEA |
| Model | CE9860-4C-EI-A |
| First supported version | V200R022C10 |
| Other part numbers | 02355FEB (CE9860-4C-EI-A mainframe, 4*subcard slots, 4*AC power modules, 4*fan modules, port-side intake) 02355FUM (CE9860-4C-EI-A mainframe, 4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card, port-side intake) 02355MRU (CE9860-4C-EI-A mainframe, 4*subcard slots, without fan and power modules) 02355MRV (CE9860-4C-EI-A mainframe, 4*subcard slots, 4*AC power modules, 4*fan modules, port-side intake) 02355MRW (CE9860-4C-EI-A mainframe, 4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card, port-side intake) 02356ECL (CE9860-4C-EI-A mainframe, 4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card, port-side intake) 02356FCD (CE9860-4C-EI-A mainframe, 4*subcard slots, 4*AC power modules, 4*fan modules, 4*8 Port 400GE QSFP-DD Interface card, port-side intake) 02356JXX (CE9860-4C-EI-A mainframe, 4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card, port-side intake) 02356JXY (CE9860-4C-EI-A mainframe, 4*subcard slots, 4*AC power modules, 4*fan modules, 4*8 Port 400GE QSFP-DD Interface card, port-side intake) |
| Short Name | CE9860EI |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 370 mm x 635 mm x 1025 mm (14.57 in. x 25.00 in. x 40.35 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (the depth excludes the parts protruding from the body): 175 mm x 442 mm x 765 mm (6.89 in. x 17.40 in. x 30.12 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 175 mm x 442 mm x 817.5 mm (6.89 in. x 17.40 in. x 32.19 in.) |
| Weight without packaging [kg (lb)] | 26.9 kg (59.30 lb) (excluding fan modules, power modules, and cards) |
| Weight without packaging (full configuration) [kg (lb)] | 43.2 kg (95.24 lb) (with four power modules, four fan modules, and four cards) 33.04 kg (72.84 lb) (with four power modules and four fan modules) |
| Weight with packaging [kg (lb)] | 51.9 kg (114.42 lb) (excluding fan modules, power modules, and cards) |
| Weight with packaging (full configuration) [kg (lb)] | 68.2 kg (150.36 lb) (with four power modules, four fan modules, and four cards) 58.04 kg (127.96 lb) (with four power modules and four fan modules) |
| Chassis height [U] | 4 |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 16-core, 2 GHz |
| Memory | DRAM: 16 GB |
| NOR Flash | 64 MB x 2 |
| SSD Flash | 8 GB |
| USB | Supported |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Downlink Service interface | The device does not have fixed ports and provides four card slots. Currently, the device supports the following cards: CE98-D32CQ-A: 32 x 100GE QSFP28 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports. 3. In versions earlier than V200R023C00, a 100GE QSFP28 port cannot be split. In V200R023C00 and later versions, a 100GE QSFP28 port can be split into 4 x 25GE and 4 x 10GE ports. Ports 1, 5, 9, 13, 17, 21, 25, and 29 on each card can be split into 4 x 25GE ports and 4 x 10GE ports. After the split, the three ports after each of the following ports are deleted: 1, 5, 9, 13, 17, 21, 25, and 29. (For example, if port 1 is split, ports 2, 3, and 4 are deleted.) Only ports with optical modules can be split, and ports with copper cables cannot be split. If a 100GE port is split into 4 x 25GE ports, the rate of the ports is 25 Gbit/s after the split and cannot be auto-negotiated to 10 Gbit/s, and the port mode 10g and port mode ge commands cannot be configured. If a 40GE port is split, the rate of the ports is 10 Gbit/s after the split. CE98-D8DQ: 8 x 400GE QSFP-DD In V200R021C00, such ports can only work at 400 Gbit/s, cannot be used as 200GE, 100GE, or 40GE ports, and cannot be split (for example, 4 x 100GE/2 x 200GE/2 x 100GE/2 x 40GE/8 x 50GE/8 x 25GE/8 x 10GE/4 x 50GE/4 x 25GE/4 x 10GE ports). Auto-negotiation of 400GE copper cables is not supported and such cables can be used only for peer-link. In V200R021C10 and later versions, 400GE ports can be dynamically split into 2 x 200GE ports through 2 x 200GE AOCs and 2.5 m copper cables. By default, negotiation is disabled and cannot be enabled for copper cables. If an unsupported module is inserted into such a port, the system displays a message indicating a medium mismatch. In V200R023C00 and later versions, 400GE ports can be dynamically split into 2 x 200GE ports by using 400G-SR8 optical modules. In V200R023C10 and later versions, the CE9860-4C-EI-A supports the CE98-D32CQ-F and CE98-D8DQ-F cards. CE98-D32CQ-F: 32 x 100GE QSFP28 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports. 3. A 100GE QSFP28 port can be split into 4 x 25GE and 4 x 10GE ports. Ports 1, 5, 9, 13, 17, 21, 25, and 29 on each card can be split into 4 x 25GE ports and 4 x 10GE ports. After the split, the three ports after each of the following ports are deleted: 1, 5, 9, 13, 17, 21, 25, and 29. (For example, if port 1 is split, ports 2, 3, and 4 are deleted.) Only ports with optical modules can be split, and ports with copper cables cannot be split. If a 100GE port is split into 4 x 25GE ports, the rate of the ports is 25 Gbit/s after the split and cannot be auto-negotiated to 10 Gbit/s, and the port mode 10g and port mode ge commands cannot be configured. If a 40GE port is split, the rate of the ports is 10 Gbit/s after the split. CE98-D8DQ-F: 8 x 400GE QSFP-DD 1. Such ports can only work at the rate of 400 Gbit/s and cannot be configured as 200GE/100GE/40GE ports. Auto-negotiation of 400GE copper cables is not supported and such cables can be used only for peer-link. 2. A 400GE port can be dynamically split into 2 x 200GE ports through 2 x 200GE AOCs and 2.5 m copper cables but cannot be split into 4 x 100GE, 2 x 100GE, 2 x 40GE, 8 x 50GE, 8 x 25GE, 8 x 10GE, 4 x 50GE, 4 x 25GE, or 4 x 10GE ports. By default, negotiation is disabled and cannot be enabled for copper cables. If an unsupported module is inserted into such a port, the system displays a message indicating a medium mismatch. 400G-SR8 optical modules can be used to dynamically split a 400GE port into 2 x 200GE ports. |
| RTC | Supported |
| Typical power consumption [W] | Configured with four CE98-D32CQ-A cards: 1291 W (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 953 W (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 1313 W (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 961 W (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules) |
| Typical heat dissipation [BTU/hour] | Configured with four CE98-D32CQ-A cards: 4405 BTU/hour (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 3252 BTU/hour (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 4480 BTU/hour (100% traffic load, short-distance 100GE optical modules on 64 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 3279 BTU/hour (100% traffic load, short-distance 400GE optical modules on 16 ports, normal temperature, fully configured with AC power modules) |
| Static power consumption [W] | Configured with four CE98-D32CQ-A cards: 900 W Configured with four CE98-D8DQ cards: 621 W Configured with four CE98-D32CQ-F cards: 807 W Configured with four CE98-D8DQ-F cards: 712 W |
| Static heat dissipation [BTU/hour] | Configured with four CE98-D32CQ-A cards: 3071 BTU/hour Configured with four CE98-D8DQ cards: 2119 BTU/hour Configured with four CE98-D32CQ-F cards: 2754 BTU/hour Configured with four CE98-D8DQ-F cards: 2429 BTU/hour |
| Maximum power consumption [W] | Configured with four CE98-D32CQ-A cards: 1833 W (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 1261 W (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-A cards: 2253 W (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 1677 W (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 1838 W (100% traffic load, short-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1321 W (100% traffic load, short-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 2295 W (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 1753 W (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) |
| Maximum heat dissipation [BTU/hour] | Configured with four CE98-D32CQ-A cards: 6254 BTU/hour (100% traffic load, short-distance 100GE optical modules on 128 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 4303 BTU/hour (100% traffic load, short-distance 400GE optical modules on 32 ports, normal temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-A cards: 7688 BTU/hour (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ cards: 5722 BTU/hour (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 6272 BTU/hour (100% traffic load, short-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 4507 BTU/hour (100% traffic load, short-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D32CQ-F cards: 7831 BTU/hour (100% traffic load, long-distance 100GE optical modules on 128 ports, high temperature, fully configured with AC power modules) Configured with four CE98-D8DQ-F cards: 5981 BTU/hour (100% traffic load, long-distance 400GE optical modules on 32 ports, high temperature, fully configured with AC power modules) |
| Number of power modules | 4 |
| Redundant power supply | 2+2 backup |
| Rated input voltage [V] | – 1200 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC – 1200 W DC power module: –48 V DC: –48 V DC to –60 V DC; +48 V DC: +40 V DC to +57 V DC |
| Input voltage range [V] | – 1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC – 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC |
| Maximum input current [A] | – 1200 W AC&240 V DC power module: 10 A (100 V AC to 130 V AC); 8 A (200 V AC to 240 V AC); 8 A (240 V DC) – 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC) |
| Rated output power [W] | – 1200 W AC&240 V DC power module: 1200 W – 1200 W DC power module: 1200 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side. |
| Availability | 0.999997861 |
| MTBF [year] | 42.79 years |
| MTTR [hour] | 1.73 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Back-to-front airflow: < 66 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Back-to-front airflow: < 81 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
