P28947-B21 HPE DL360 Gen10 Plus 4 LFF NC CTO Server
Condition: NOB
RMA Warranty
Description
Overview
HPE ProLiant DL360 Gen10 Plus Server
Do you need to effectively scale or update your IT infrastructure to drive your business forward? The compact 1U HPE ProLiant DL360 Gen10 Plus Server adapts to different workloads and environments, delivering enhanced performance with the right balance of scalability and density. Designed for versatility and resiliency and backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus Server is ideal for physical, virtual, or containerized IT infrastructures.
The HPE ProLiant DL360 Gen10 Plus server supports 3rd Gen Intel® Xeon® Scalable processors (up to 40 cores) and 3200 MT/s HPE DDR4 Smart Memory (up to 4.0 TB per socket). The HPE ProLiant DL360 Gen10 Plus Server introduces PCIe Gen4 and Intel ® Software Guard Extensions (SGX) support in the dual-socket segment, complementing Gen10’s coverage by providing premium compute, memory, I/O, and security features for performance-conscious customers.

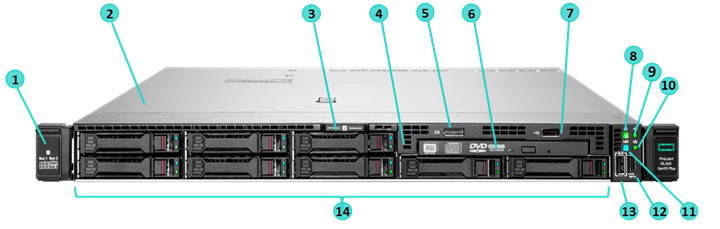

8 SFF Front View – 8 SFF + optional Universal Media Bay, optical drive, and SAS drives shown
| 1. | Drive support label | 8. | Power On/Standby button and system power LED |
| 2. | Quick removal access panel | 9. | Health LED |
| 3. | Serial number/iLO information pull tab | 10. | NIC status LED |
| 4. | Universal Media Bay (optional): | 11. | UID button/LED |
| – Option: Optical drive bay + Display port & USB 2.0 | 12. | USB 3.0 port | |
| – port kit (shown) | 13. | iLO Service Port | |
| – Option: 2 SFF 12G x1 SAS/SATA cage | 14. | Drive bays; optional backplanes:: | |
| – Option: 2 SFF 24G x4 Tri-Mode U.3 cage | – Option: 8 SFF 12G x1 SAS/SATA | ||
| – Option: 2 SFF 16G x4 NVMe U.2 cage | – Option: 8 SFF 24G x1 Tri-Mode U.3 | ||
| 5. | Display Port (optional) | – Option: 8 SFF 24G x4 Tri-Mode U.3 | |
| 6. | Optical drive (optional – shown) | – Option: 8 SFF 16G x4 NVMe U.2 | |
| 7. | USB 2.0 port (optional) |
Notes: Systems Insight Display (SID) module will include #8-12 above (will not include #13 – iLO Service Port).

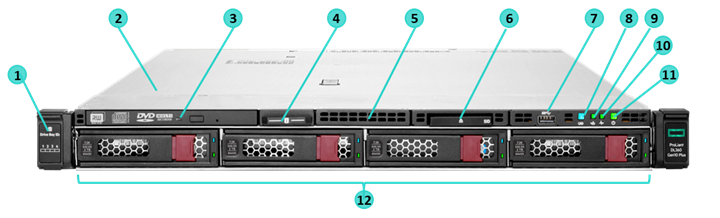

4 LFF Front View – 4 LFF + Optional Systems Insight Display (SID), optical drive and SAS drives shown
| 1. | Drive support label | 7 | USB 3.0 Port |
| 2. | Quick removal access panel | 8. | UID button/LED |
| 3. | Optical drive (optional – shown) | 9. | NIC status LED |
| 4. | Serial number/iLO information pull tab | 10. | Health LED |
| 5. | Option: Display port & USB 2.0 port Kit (blank shown) | 11. | Power On/Standby button and system power LED |
| 6. | Option: Systems Insight Display (SID)1 – Shown | 12. | SAS/SATA drive bays |
Notes: 1This option will lose iLO Service Port.

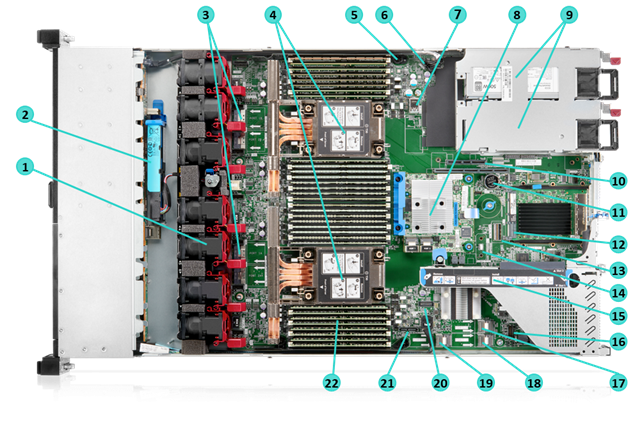

Internal View – Standard for all DL360 Gen10 Plus
| 1. | Hot plug fans (single rotor standard) | 12. | x16 OCP connector (supports various NICs up to 200GbE) |
| – 1 CPU – 5 fans | |||
| – 2 CPUs – 7 fans | 13. | Vertical slimline SAS connector (AROC lane recovery) | |
| Option: High Performance fans | 14. | TPM 2.0 (included on Pre-Configured Models) | |
| 2. | Option: HPE Smart Hybrid Capacitor or HPE Smart | 15. | Primary (CPU1) PCIe 4.0 riser |
| Storage Battery | – Standard: 2x 16 slots, AUX power block | ||
| 3. | 4 x8 NVMe ports (1A – 2B) | – Option: 1 x16 and 1 x8 slots + 2x PCIe M.2 | |
| 4. | Up to 2 processors | – connectors with HW RAID support | |
| (shown with high performance heat sinks) | – Option: (SFF only): 1 x16 and 1 x8 slots + 1 x8 | ||
| 5. | Optional Chassis Intrusion Detection connector | – NVMe connector | |
| 6. | Hard Drive backplane power connector | 16. | Optional front Display Port / USB 2.0 port connector |
| 7. | Dual internal USB 3.0 connector | 17. | x4 SATA port 1 |
| 8. | Storage Controller (Type -a shown) | 18. | x4 SATA port 2 |
| 9. | Up to 2 Power Supplies for redundant power | 19. | x4 SATA port 3 |
| 10. | Secondary (CPU2) PCIe 4.0 riser | 20. | Front Power USB 3.0 connector |
| – Option: Low Profile x16 | 21. | Optical/SATA port | |
| – Option: Full Height x16 (lose slot 2 on Primary riser) | 22. | DDR4 DIMM slots (Fully populated 32 DIMMs shown) | |
| 11. | System Battery |

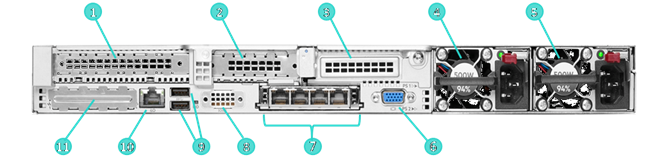

Rear View – Standard for all DL360 Gen10 Plus
| 1. | Slot 1 PCIe 4.0 – Full Height | 6. | Video (VGA) port |
| 2. | Slot 2 PCIe 4.0 – Low Profile | 7. | OCP 3.0 Adapter (if equipped)1 |
| 3. | Option: Slot 3 PCIe 4.0 (Requires 2nd processor) | 8. | Option: Serial port (knockout blank shown) |
| – Low Profile and Full Height options | 9. | USB 3.0 Ports | |
| 4. | Power Supply 2 | 10. | iLO Management Port |
| 5. | Power Supply 1 | 11. | Blank cover, not available for use |
Notes: 1 Supports various NICs, up to 200GbE.
Platform Information
Form Factor
- 1U rack
Chassis Types
- 8 SFF with options for aditional 2 SFF drive bays: 12G x1 SAS/SATA, 24G x4 Tri-Mode or 16G x4 NVMe
- 4 LFF
System Fans
Single rotor hot plug fans by default
Notes:
– Optional High Performance Fan Kit available (includes 7 fans).
– The DL360 Gen10 Plus will support up to 7 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown
Dimensions (Height x Width x Depth)
SFF Drives
- 4.29 x 43.46 x 74.19 cm
1.69 x 17.11 x 29.21 in
LFF Drives
- 4.29 x 43.46 x 77.31 cm
1.69 x 17.11 x 30.44 in
Weight (approximate)
- 13.29 kg (29.29 lb)
– SFF minimum: One drive, one processor, one power supply, two heatsinks, one Smart Array controller, and five fans.
- 18.11 kg (39.92 lb)
– SFF maximum: 10 drives, two processors, two power supplies, two heatsinks, one Smart Array controller and seven fans.
- 15.09 kg (33.27 lb)
– LFF minimum: one drive, one processor, one power supply, two heatsinks, one Smart Array controller and five fans.
- 19.45 kg (42.88 lb)
– LFF maximum: Four drives, two processors, two power supplies, two heatsinks, one Smart Array controller and seven fans.
Configuration Information
| CTO Server | HPE DL360 Gen10 Plus 4 LFF NC CTO Server | HPE DL360 Gen10 Plus 8 SFF NC CTO Server |
| SKU Number | P28947-B21 | P28948-B21 |
| TAA SKU* | P28947-B21#GTA | P28948-B21#GTA |
| Processor | Not included as standard | |
| DIMM Slots | 32-DIMM slots (Up to 8 per socket can be used for Intel Optane Persistent Memory 200 Series) | |
| Storage Controller | Embedded with 14 SATA ports.
AHCI, HPE Smart Storage SR100i and Intel VROC SW RAID capable. |
|
| PCIe | PCIe 4.0: 2 slots (1 x16 FH / 1 x16 LP) and 4 x8 front NVMe connectors
Optional: 1 x16 FH or LP slot |
|
| Drive Cage – included | 4 LFF – 12G x1 SAS/SATA (UBM2) backplane
Low Profile (LP) drive support |
8 SFF – Optional backplanes, must be selected
if internal drives needed Basic carrier (BC) drive support |
| Network Controller | Choice of OCP or stand up cards
Notes: No embedded networking. |
|
| Fans | 5 Standard Fans
Optional: High Performance Fans |
|
| Management | HPE iLO with Intelligent Provisioning (standard)
Optional: iLO Advanced and OneView |
|
| USB | Front: 1 USB 3.0 + iLO service port
Rear: 2 USB 3.0 Internal: 2 USB 3.0 Optional: 1 Front USB 2.0 (lose iLO serv. port on 4 LFF) |
|
| Security | Optional TPM (Trusted Platform Module)
Notes: Disabled on shipments to China |
|
| Rail Kit | Optional Easy Install rails and CMA
Notes: Server does not support shelf mounted rail kits (“L” brackets). |
|
| Form Factor | 1U Rack | |
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. | |
Notes:
– *HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country.
– Intel® Optane Persistent Memory 200 Series is only supported on Platinum, Gold or 4314 processors.
