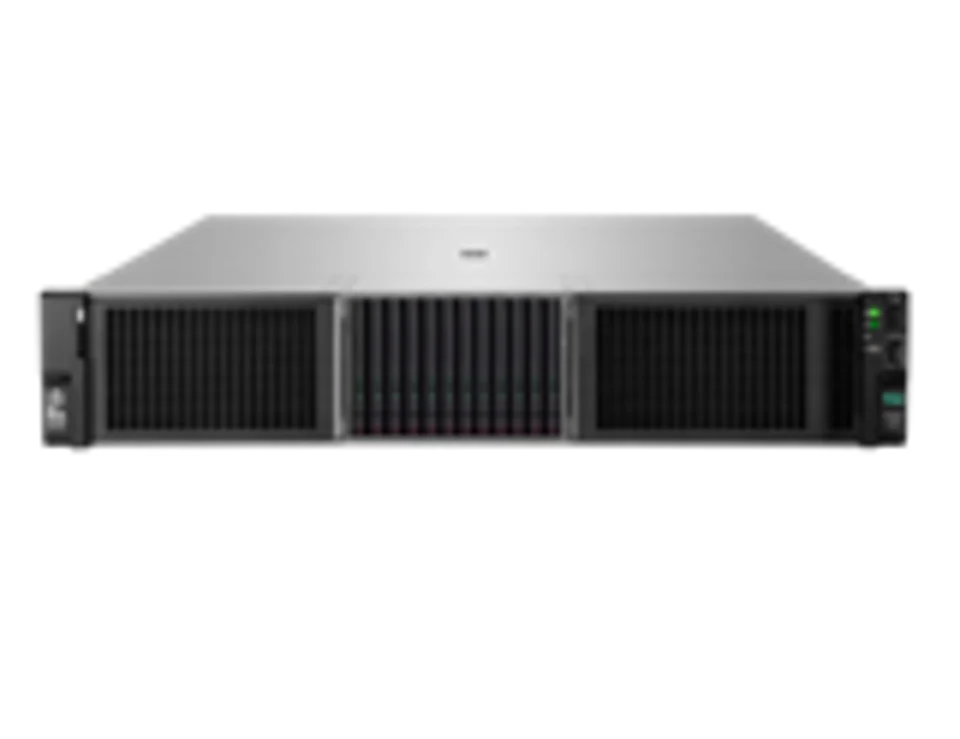

DL380 Gen11 Server

Description

Overview

HPE ProLiant DL380 Gen11

The secure 2P 2U HPE ProLiant DL380 Gen11 server adapts to different workloads and environments, delivering world-class performance with the right balance of scalability and extensibility. Designed for exceptional versatility and resiliency, and backed by a comprehensive warranty, making it ideal for a wide range of environments, from containers to cloud to big data. Standardize on the industry’s most trusted computing platform.

Front View – 8SFF chassis with optional Universal Media Bay shown

1.	Optional Front Display Port (via Universal Media Bay)	8.	Power On / Standby button / LED
2.	Box 1 (shown with optional Universal Media Bay installed)	9.	iLO Service Port
3.	Box 2 (Empty)	10.	USB 3.2 Gen1
4.	Quick removal access panel	11.	Box 3  (shown with 8SFF drives populated)
5.	Unit Identification button/LED	12.	Optional USB 2.0 port (via Universal Media Bay)
6.	NIC Status	13.	Drive Support Label
7.	Health LED	14.	Serial Number Label Pull Tab

Front View – 12LFF chassis shown

1.	Quick removal access panel	6.	iLO Service Port
2.	Unit Identification Button / LED	7.	USB 3.2 Gen1 Port
3.	NIC Status	8.	12 x LFF Media
4.	Health LED	9.	Drive support label
5.	Power On / Standby button / LED	10.	Serial Number Label Pull Tab

Front View –12EDSFF chassis shown

1	12EDSFF drive bays optical drive	7	iLO Service Port
2	Quick removal access panel	8	USB 3.2 Gne1
3	UID Button / LED	9	12x EDSFF Media
4	NIC Status	10	Drive support label
5	Health LED	11	Serial Number Label Pull Tab
6	Power On / Standby button and LED

Internal View 8SFF chassis

1.	Hot Plug Fans1	6.	Primary Riser
2.	Processors, heatsinks showing	7.	DIMM slots, shown fully populated in 32 slots2
3.	Optional NS204i-u Boot Device	8.	Drive Backplanes
4.	Hot Plug redundant HPE Flexible Slot Power Supplies	9.	Drive Cages
5.	Secondary Riser (Optional) (Requires second processor)

Notes:

– ¹High performance temperature fans optional

– ²Shown fully populated in 32 slots (16 per processor)

Rear View – Standard for all DL380 Gen11

1.	Primary Riser. PCIe 5.0 Slots (Slots 1-3)	6.	Power Supply
2.	OCP NIC 3.0 Slots, shown covered	7.	VGA Connector
3..	Secondary Riser. PCIe 5.0 Slots (Slots 4-6)	8.	Serial Port Optional
4.	Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed	9.	Dedicated iLO Management Port
5.	Optional NS204i-u Boot Device	10	USB 3.2 Gen1 Connectors (2)
		11	UID Indicator LED

Notes:  ¹ Supports various NICs, and Storage controllers.

Form Factor

• 2Urack

Chassis Types

• 8SFF (SAS/SATA/NVMe) with optional 6SFF Universal Media Bay (P50728-B21), and/or up to 6SFF rear drive bay options.
• 24SFF bay (SAS/SATA/NVMe) with up to 6SFF rear drive bay options for a total 30 SFF drives
• 8LFF supporting 2SFF front, and up to 4LFF rear or 2SFF rear drive bay options.
• 12LFF with optional 4LFF rear for a total of 16LFF drives.

Notes:

– The 8SFF chassis is upgraded to support up to 24SFF (front) with a variety of 8SFF Drive Cages to select from, including 8SFF U.3 x4/x2 Trimode, 8SFF U.3 (x1 Trimode), and 8SFF SAS/SATA. See “Drive Cages” section within this document for options.

– The 8SFF chassis comes with an 8SFF U.3 x1 Trimode drive bay by default in bay 3.

– The Universal Media Bay (P50728-B21) is only available as an option for the 8SFF chassis and can only be populated in Box 1.

– The 2LFF primary and 2LFF secondary rear cages will consume all PCIe slots for the primary and secondary riser, respectively

– The 8LFF chassis cannot be upgraded to 12LFF front in the field.

– The 2LFF primary and 2LFF secondary rear cages supported in LFF chassis only.

System Fans

• High Performance Fan Kit – required for all CPUs over 205W TDP.

Notes:

– On 8SFF CTO server models ship with 4 standard fans.

– The 12LFF and  8LFF CTO server models ship with 4 standard fans.

– The 24SFF CTO server model ships with 6 high performance fans.

– The High-Performance fan kit (P48820-B21) is available to meet ambient temperature requirements.

– In general, the Maximum Performance fan kit is required when rear drives, or >205W Processors SKUs, or High Performance NVMe drives, three drive cages, mid-tray, GPU card, or certain backplanes are populated. See notes under each option category or each individual option for specifics.

Dimensions

• SFFCTO servers:

8.75 x 44.8 x 72.7. cm / 3.44 x 17.64 x 28.62 in

• LFF CTO servers:

8.75 x 44.8 x 73.25 cm / 3.44 x 17.64 x 28.84 in

Weight (approximate)

Maximum:8 SFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x RAID controller, 2x Risers installed)

– Maximum: 33kg/72.75 lbs.

– Minimum: 16kg/35.27 lbs.

Maximum:12LFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x  RAID controller, 2x Risers installed)

– Maximum: 37kg/81.57 lbs.

– Minimum: 18kg/39.68 lbs.

---

Configuration Information

Networking Choice CTO Server Models	HPE ProLiant DL380 Gen11 8LFF NC CTO Server	HPE ProLiant DL380 Gen11 12LFF NC CTO Server	HPE ProLiant DL380 Gen11 8SFF NC CTO Server	HPE ProLiant DL380 Gen11 24SFF NC CTO Server
SKU Number	P52532-B21	P52533-B21	P52534-B21	P52535-B21
TAA SKU*	P52532-B21#GTA	P52533-B21#GTA	P52534-B21#GTA	P52535-B21#GTA
HPE Trusted Supply Chain	P36394-B21 – Optional
Processor	Not included as standard	Not included as standard	Not included as standard	Not included as standard
DIMM Slots	32-DIMM slots	32-DIMM slots	32-DIMM slots	32-DIMM slots
Storage Controller	Embedded SW RAID with 14 SATA ports (12-ports accessible), optional choice of HPE modular MegaRAID controller.
PCIe	Three standard in primary riser
Drive Cage – available	8LFF	12LFF	8 SFF (8SFF U.3 x1)	24SFF (3x 8SFF U.3 x1)
Network Controller	Choice of either OCP 3.0 or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters. Notes: No embedded networking
Fans	4-Standard	4-Standard	4-Standard	6-High Performance
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)
USB	4x 3.0 standard plus iLO front service port	4x 3.0 standard plus iLO front service port	4x 3.0 standard plus iLO front service port	4x 3.0 standard plus iLO front service port
Networking Choice CTO Server Models	HPE ProLiant DL380 Gen11 12EDSFF NC Configure-to-order Server
SKU Number	P52536-B21
TAA SKU*	P52536-B21#GTA
HPE Trusted Supply Chain	P36394-B21 – Optional
Processor	Not included as standard
DIMM Slots	32-DIMM slots
Storage Controller	Embedded SW RAID with 14 SATA ports (12-ports accessible), and optional choice of HPE modular MegaRAID controller.
PCIe	Three standard in primary riser
Drive Cage – available	12 EDSFF
Network Controller	Choice of either OCP 3.0 or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters Notes: No embedded networking
Fans	6 -Standard
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)
USB	4x 3.0 standard plus iLO front service port
