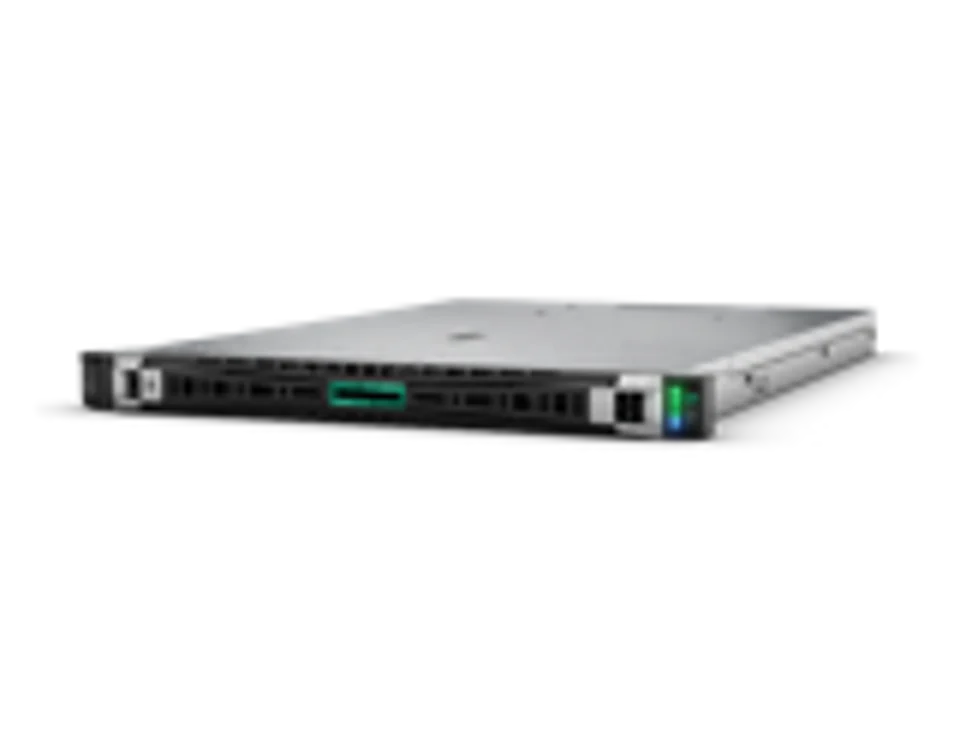

HPE ProLiant DL325 Gen10 Plus v2 8SFF CTO Server
Condition: NOB
RMA Warranty
Description
Overview
The HPE ProLiant DL325 Gen10 Plus v2 is a secure and versatile single-socket server for virtualisation, I/O-intensive and storage-intensive workloads. The HPE ProLiant DL325 Gen10 Plus v2 is powered by the third-generation AMD® EPYC® 7003 family of processors, which delivers more processing power. In addition, the chassis is smaller than the previous generation for better compatibility with your infrastructure. Triple-mode RAID controller support provides the flexibility to support SAS/SATA/NVMe type storage options. This 1P, 1U server delivers an excellent balance of processor, memory, and I/O for 2P performance with 1P TCO. Make the most of your virtualised environment with this versatile server.

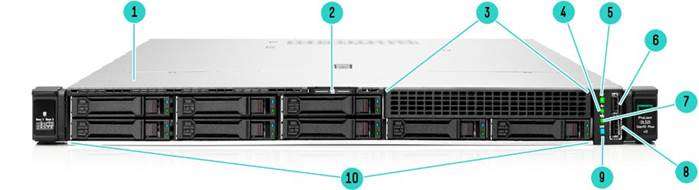

8SFF Front View
| 1. | Quick removal access panel | 6. | USB 3.1 Gen1 port |
| 2. | Serial no. label pull tab | 7. | NIC status LED |
| 3. | Optional Media Bay* | 8. | iLO Service Port |
| 4. | Health LED | 9. | UID button/LED |
| 5. | Power On/Standby button and system power LED | 10. | Standard 8 SAS/SATA/NVMe Hot Plug drive bays |
Notes:
– * Option Shown: No media
– * Optional: +2SFF U.3 SAS/SATA/NVMe drives (total max 10SFF)
– * Optional: +2SFF U.2 NVMe drives (total max 10SFF)
– * Optional: 9.5 mm SATA DVD-ROM/RW Optical Drive

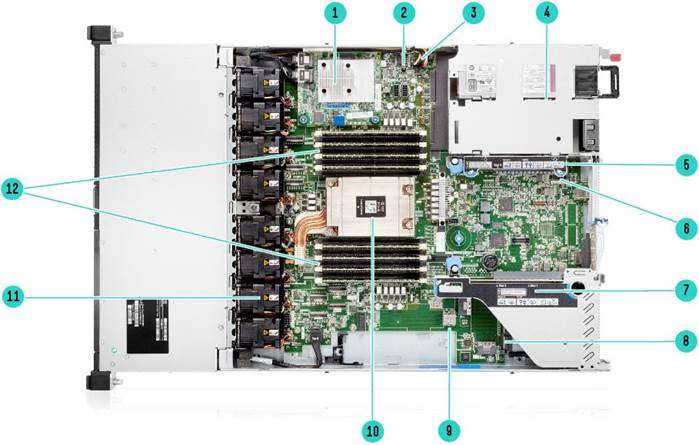

Internal View 8SFF chassis
| 1. | Optional HPE Flexible Smart Array Controller (Type -a shown) | 7. | Primary PCIe riser, standard |
| 2. | Chassis intrusion detection connector | 8. | (Under) OCP 3.0 Slot |
| 3. | Hard drive backplane power connector | 9. | Internal USB 3.1 Gen1 connector |
| 4. | Hot Plug redundant HPE Flexible Slot Power supplies | 10. | Processor (heatsinks shown) |
| 5. | Connection for (optional) secondary riser | 11. | Fan cage shown with 8 Performance Hot-swappable fans |
| 6. | Serial Port Connector | 12. | DDR4 DIMM slots. Only 8 slots are populated as shown. |

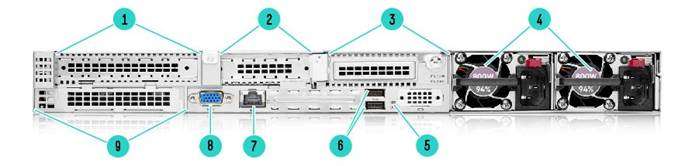

Rear View
| 1. | Slot 1 PCIe 4.0 | 6. | USB 3.1 Gen1 Ports (2) |
| 2. | Slot 2 PCIe 4.0 | 7. | iLO Management Port |
| 3. | Optional Slot 3 PCIe 4.0 | 8. | VGA port |
| 4. | Hot-plug Power Supply 1 and 2 (Optional) | 9. | Optional: OCP 3.0 Slot (not shown) |
| 5. | UID LED |
Form Factor
· 1U rack
Dimensions
4.29 X 43.46 X 64.43 cm
(1.69 X 17.11 X 25.37 In)
Weight(approximate)
– Minimum 8 SFF chassis with 8 HDD blanks, 1x processor including standard heatsink, 2x DIMMs, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above
12.19 kg
26.86 lb
– Maximum 10 SFF chassis with 10 SFF hard drives, 1x processors including standard heatsink, 16x DIMMs, 2x power supplies, 1x Smart Array, 2x Risers installed, cables for the above
16.19 kg
35.68 lb
Configuration Information
| CTO Server | HPE ProLiant DL325 Gen10 Plus v2 8SFF CTO Server | HPE ProLiant DL325 Gen10 Plus v2 4LFF CTO Server |
| SKU Number | P38471-B21 | P38474-B21 |
| Processor | Not included as standard | Not included as standard |
| DIMM Slots | 16-DIMM slots | 16-DIMM slots |
| Storage Controller | Choice of HPE modular Smart Array and PCIe plug-in controller | |
| PCIe | Two standard in primary riser | Two standard in primary riser |
| Drive Cage – included | 8 SFF (Backplane is not included) | 4 LFF (Backplane is not included) |
| Network Controller | Choice of OCP and stand up card | |
| Fans | Not included as standard | |
| Management | HPE iLO with Intelligent Provisioning (standard), iLO Advances and OneView (optional) | |
| USB | Front: 1 USB 3.1 Gen1 + iLO service port
Rear: 2 USB 3.1 Gen1 Internal: 1 USB 3.1 Gen1 |
Front: 1 USB 3.1 Gen1 + iLO service port
Rear: 2 USB 3.1 Gen1 Internal: 1 USB 3.1 Gen1 |
Notes:
– HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).
– All CTO servers are Energy Star 4.0 compliant.
– CTO servers do not ship with rail kits, they need to be ordered separately
