DL325 Gen10 Server

Description

Overview

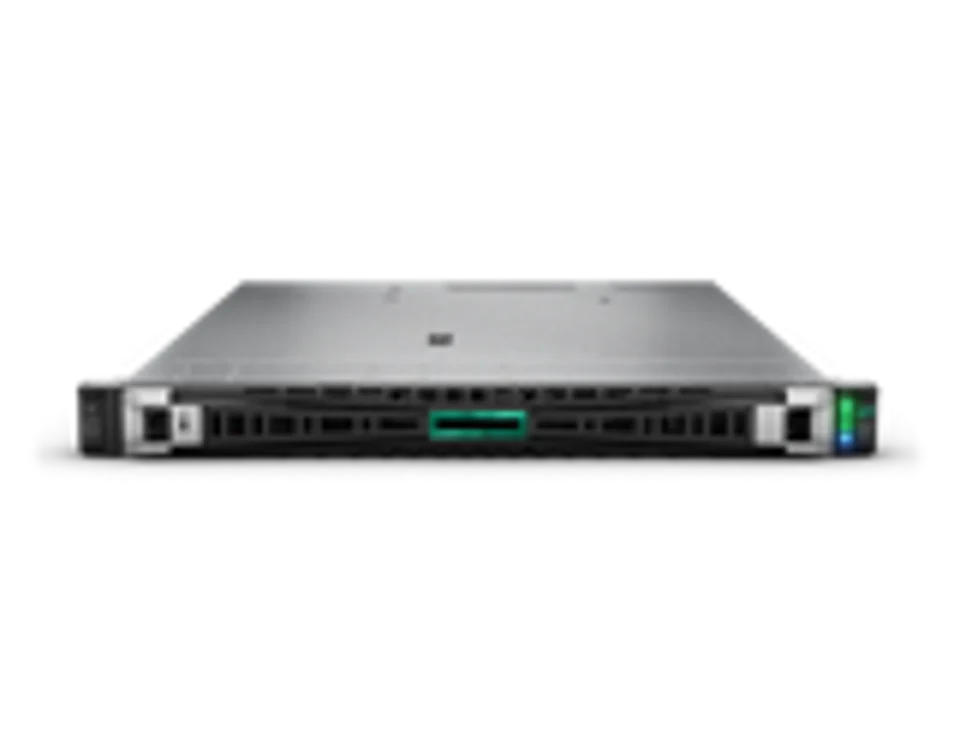

HPE ProLiant DL325 Gen10 Server

The HPE ProLiant DL325 Gen10 server is a secure and versatile single-socket server for virtualisation and I/O-intensive workloads. The HPE ProLiant DL325 Gen10 server is powered by the latest AMD® EPYC® 7xx2 family of processors, delivering more processing power and faster memory speeds of up to 2933 MT/s!

This 1P, 1U server delivers an outstanding balance of processor, memory and I/O, delivering 2P performance with 1P TCO. Get the most out of your virtualised environment with this versatile server!

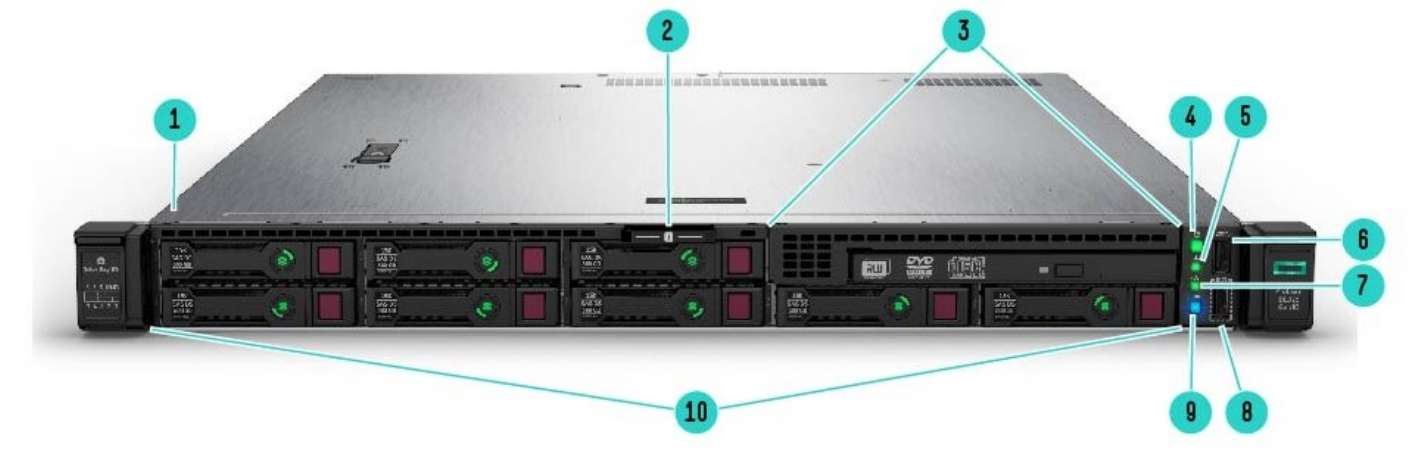

8SFF Front View – 8SFF + ODD Shown

1.	Quick removal access panel	6.	USB 3.0 port
2.	Serial no. label pull tab	7.	NIC status LED
3.	Optional Media Bay*	8.	iLO Service Port
4.	Power On/Standby button and system power LED	9.	UID button/LED
5.	Health LED	10.	Standard 8 SAS/SATA drive bays

Notes: *

− Option Shown: DVD-RW or DVD-ROM
− Option +2 SFF SAS/SATA (total 10 SFF)
− Option +2 SFF NVMe drives

NVMe SFF Front View – 10 SFF NVMe Shown

1.	Quick removal access panel	6.	USB 3.0 port
2.	Serial no. label pull tab	7.	NIC status LED
3.	Optional Media Bay*	8.	iLO Service Port
4.	Power On/Standby button and system power LED	9.	UID button/LED
5.	Health LED	10.	Standard 8 SAS/SATA drive bays

Notes: *

− Option Shown: +2 SFF NVMe drives (total 10SFF NVMe)
− Option: +2 SFF SAS/SATA
− Option: DVD-RW or DVD-ROM

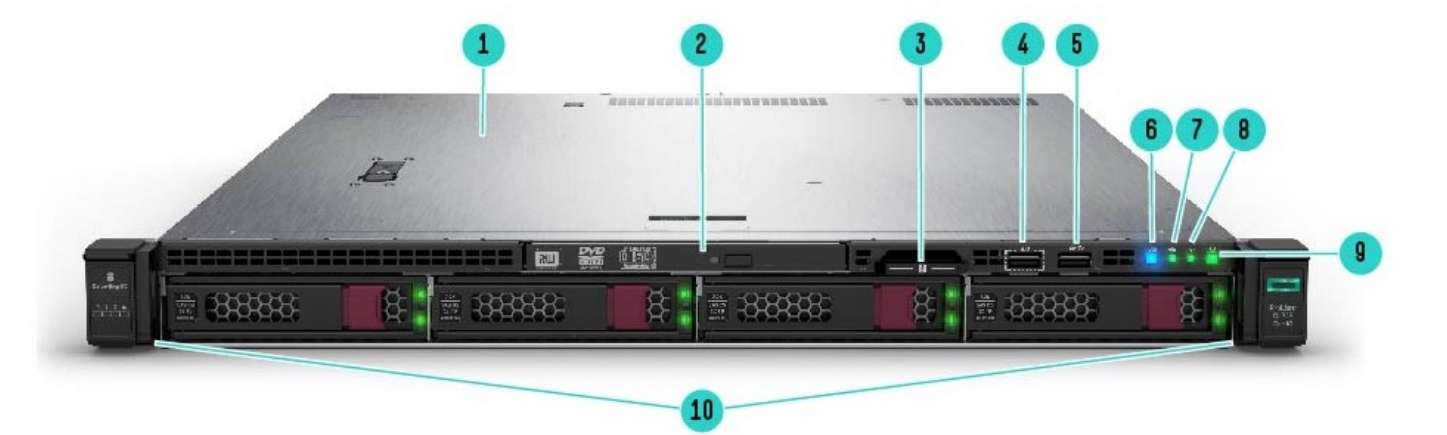

4LFF Front View – with Optional ODD shown

1.	Quick removal access panel	6.	UID button/LED
2.	Optional: DVD-RW or DVD-ROM shown	7.	NIC status LED
3.	Serial no. label pull tab	8.	Health LED
4.	iLO Service Port	9.	Power On/Standby button and system power LED
5.	USB 3.0 Port	10.	Standard 4 SAS/SATA drive bays

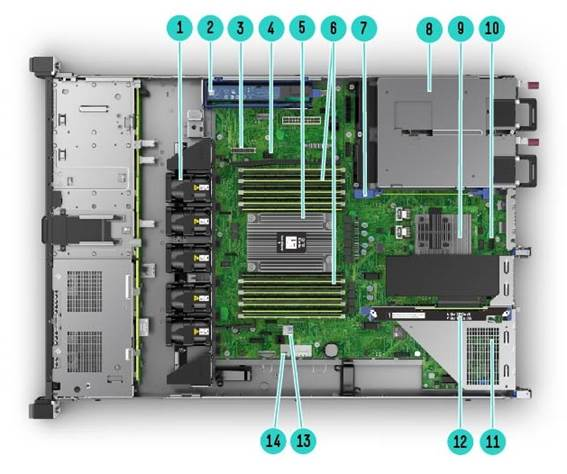

Internal View 8SFF chassis -with optional FlexLOM, Smart array shown

1	Fan cage shown with 5 Performance Hot-swappable fans	8	Hot Plug redundant HPE Flexible Slot Power supplies
2	Optional HPE Smart Storage Battery	9	Optional HPE Flexible Smart Array Controller (P408i-a shown)
3	Hard drive Backplane Power Connector	10	Serial Port Connector
4	Chassis intrusion detection connector	11	(Under) Optional Flexible LOM slot
5	Processor (heatsink shown)	12	Primary PCIe riser, standard
6	DDR4 DIMM slots. Shown fully populated in 16 slots	13	Internal USB 3.0 connector
7	Connection for second (optional) riser	14	MicroSD card slot

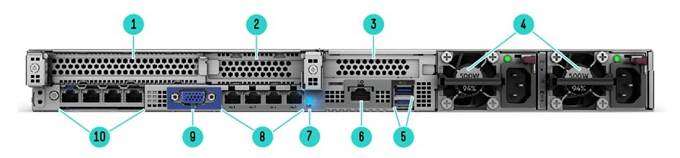

Rear View – With optional FlexLOM shown.

1.	Slot 1 PCIe 3.0	6	iLO Management Port
2.	Slot 2 PCIe 3.0	7	UID LED
3	Optional Slot 3 PCIe 3.0	8	**Embedded 4x 1GbE Adapter ( if equipped)
4.	HPE Flexible Slot Power Supply Bay	9	VGA Port
5	USB 3.0 Ports	10	**Option: FlexibleLOM (Shown: 4x 1GbE)

Notes:

– **Supports Various NICs up to 25GbE.

– **Embedded 4x 1GbE Adapter is not equipped on new boards for 7xx2 series processors.

Form Factor

• 1U rack

Chassis Types

• 8 SFF with optional Optical Drive, 2 SFF SAS/SATA or 2 NVMe drive bay options
• 8 SFF NVMe with optional Optical Drive 2 SFF SAS/SATA or 2 NVMe drive bay options
• 4 LFF with an optional Optical Drive bay

Notes:

– The 8 SFF can be upgraded with either an additional 2SFF SAS/SATA kit for a total 10 SAS/SATA drives or 2SFF NVMe Kit for a total of 8 SAS/SATA + 2 NVMe drives.

– The NVMe chassis can be upgraded with either an additional 2SFF NVMe kit for a total of 10 NVMe drives or 2SFF SAS/SATA kit for a total of 8NVMe + 2 SAS/SATA drives.

System Fans

• 4LFF Chassis includes 5 Single Rotor Hot Swappable cable fans
• 8SFF Chassis includes 5 Dual Rotor Hot Swappable cable fans
• NVMe Chassis includes 7 Dual Rotor Hot Swappable cable fans

Dimensions

4.29 x 43.46 x 61.49 cm

1.69 x 17.11 x 24.21 in

Weight (approximate)

• Minimum:8 SFF chassis with 8 HDD blanks, 2x Drive Bay blanks,  1x processor including standard heatsink, 2x DIMMs, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)

– 10 kg

22.05 lb

• Maximum:10 SFF hard drives, 1x processors, 2x power supplies, 1x Smart Array, 2x Risers installed, 16x DIMMs, 2x power supply, cables for the above)

– 15.60 kg

35.27 lb

---

Configuration Information

CTO Server	HPE ProLiant DL325 Gen10 4 LFF CTO Server	HPE ProLiant DL325 Gen10 8 SFF CTO Server	HPE ProLiant DL325 Gen10 NVMe SFF CTO Server
SKU Number	P04653-B21	P04654-B21	P04662-B21
TAA SKU	P04652-B21	P04848-B21	P05046-B21
Processor	Not included as standard	Not included as standard	Not included as standard
DIMM Slots	16-DIMM slots	16-DIMM slots	16-DIMM slots
Storage Controller	Choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	Two standard in primary riser
Drive Cage – included	4 LFF	8 SFF	8 SFF NVMe
Network Controller	HPE 1Gb Ethernet 4-Port 331i Adapter (if equipped) and /or optional HPE FlexibleLOM or stand up card
Fans	5-Standard	5-Performance	7-Performance
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advances and OneView (optional)
USB	Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 1 USB 3.0	Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 1 USB 3.0	Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 1 USB 3.0

Notes:

– HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

– TAA chassis are only orderable in North America and Canada.

– The HPE ProLiant DL325 Gen10 NVMe SFF CTO Server ships with the cable required for 8 NVMe drives installation.

– All CTO servers are Energy Star 2.1 compliant.

– CTO servers do not ship with Rail Kits ,they need to be ordered separately.

– Embedded 4x 1GbE Adapter is not equipped on new boards for 7xx2 series processors.
