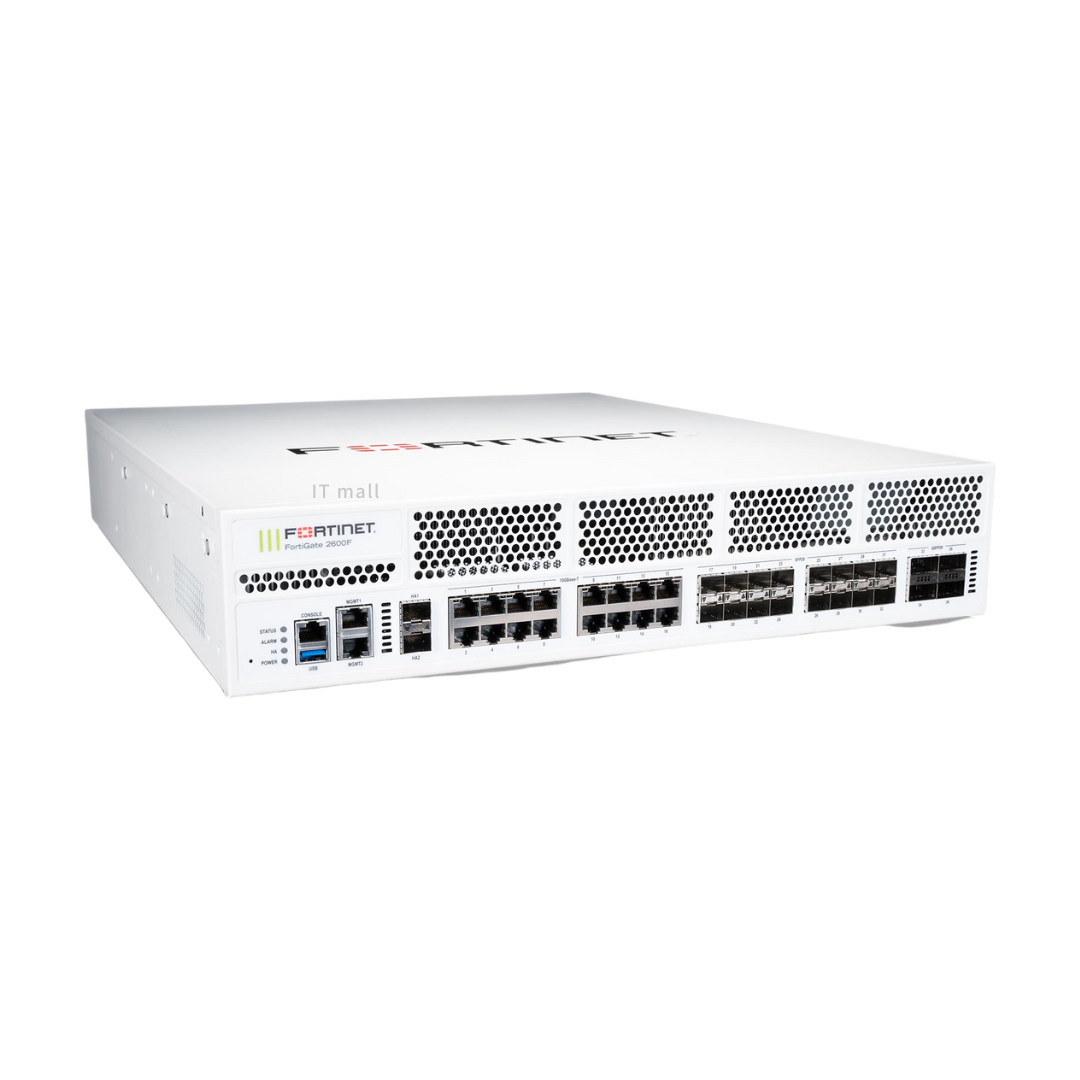

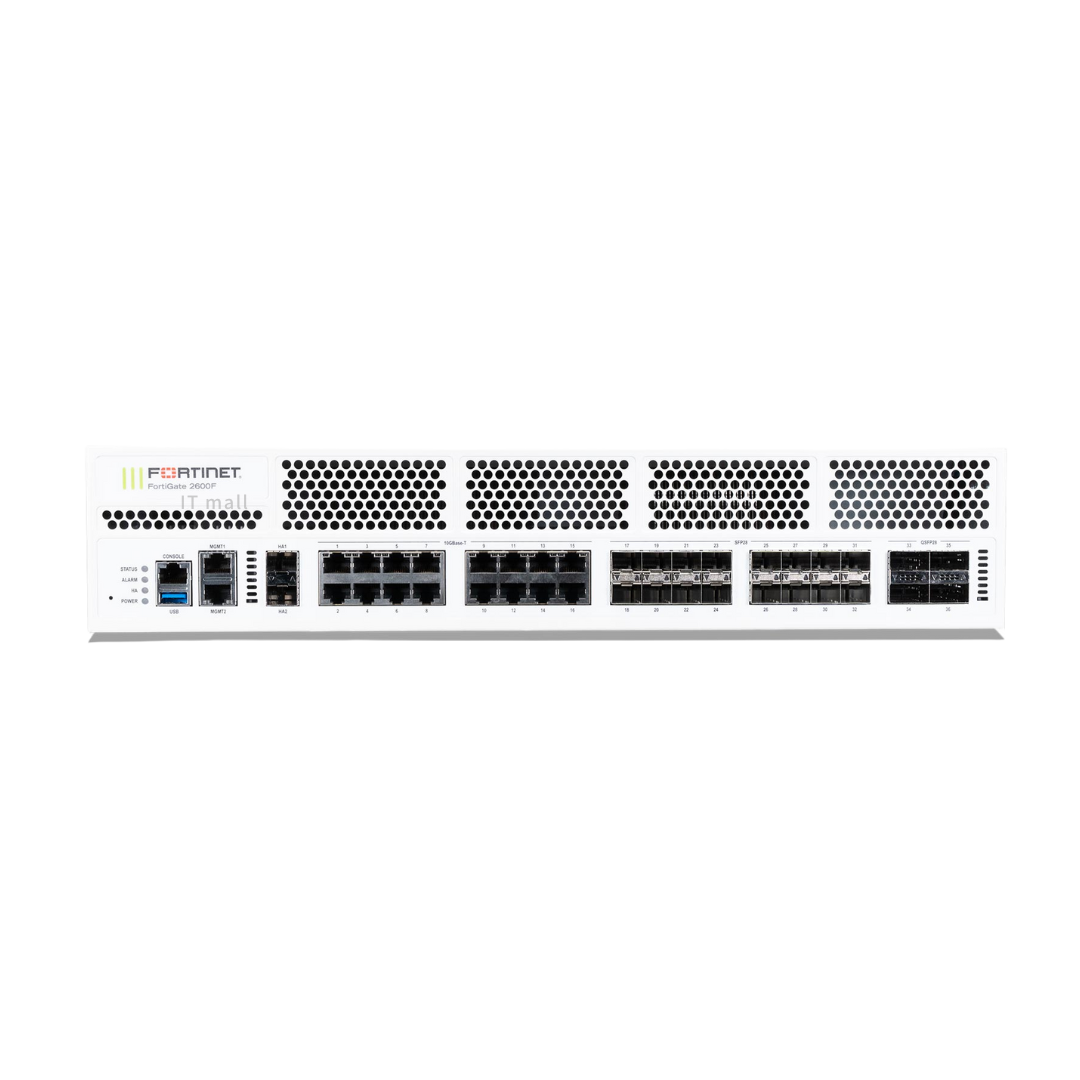

Hardware Firewall with 10-GbE-SFP+, 25-GbE-SFP28, 100-GbE-QSFP28 and 2 TB internal storage for corporate datacenters an distributed enterprise
- For networks in the range of 250-1,000 users/devices
- 18x 1-GbE-RJ45, 2x 10-GbE-SFP+, 16x 25-GbE-SFP28, 4x 100-GbE-QSFP28
- 198 Gbps Firewall Throughput
- 17.0 Gbps Threat Protection Throughput
- 2 TB Storage
Condition: NOB
RMA Warranty
Description
FortiGuard Value Bundles for your Fortinet FortiGate 2601F Firewall
FortiGuard Labs provides a variety of security services to enhance the protection capabilities of your . License individual security services as needed or easily optimize your network security by choosing one of these FortiGuard bundles.
| Bundles | 360 Protection | Enterprise Protection | Unified Threat Protection | Threat Protection | |
|---|---|---|---|---|---|
| FortiCare | ASE1 | 24×7 | 24×7 | 24×7 | |
| FortiGuard App Control Service | √ | √ | √ | √ | |
| FortiGuard IPS Service | √ | √ | √ | √ | |
| FortiGuard Advanced Malware Protection | √ | √ | √ | √ | |
| FortiGuard Web Filtering Service | √ | √ | √ | ||
| FortiGuard Antispam Service | √ | √ | √ | ||
| FortiGuard Security Rating Service | √ | √ | |||
| FortiGuard Industrial Service | √ | √ | |||
| FortiCASB SaaS-only Service | √ | √ | |||
| FortiConverter Service | √ | ||||
| SD-WAN Cloud Assisted Monitoring2 | √ | ||||
| SD-WAN Overlay Controller VPN Service2 | √ | ||||
| FortiAnalyzer Cloud2 | √ | ||||
| FortiManager Cloud2 | √ |
Data Sheet
| General | |
|---|---|
| Manufacturer | Fortinet |
| In assortment since | 08.12.2020 |
| Product Generation | Fortinet F |
| Application Area | |
| Typical application area | corporate datacenters an distributed enterprise |
| Network Size Class | 250-1,000 users/devices |
| Interfaces | |
| 1-GbE-RJ45 Ports | 18x (including 2x MGMT) |
| 10-GbE-SFP+ Ports | 2x (for HA) |
| 25-GE-SFP28 Ports | 16x |
| 100-GbE-QSFP28 Ports | 4x |
| Data Storage | |
| Storage Capacity | 2 TB |
| Network | |
| Packets per second (Mpps) | 180 |
| Concurrent sessions | 24,000,000 |
| Concurrent Sessions (SSL) | 2,700,000 |
| New Sessions per second | 1,000,000 |
| Network latency | 3µs |
| Maximum supported switches (external) | 196 |
| Firewall | |
| Firewall Throughput | 198 Gbps |
| Firewall Throughput (IMIX) | 120 Gbps |
| Threat Protection Throughput | 17.0 Gbps |
| IPS Throughput | 24.0 Gbps |
| Application Control Throughput | 64.0 Gbps |
| SSL Inspection Throughput | 20.0 Gbps |
| VPN | |
| IPSec VPN Throughput | 55.0 Gbps |
| SSL VPN throughput | 16.0 Gbps |
| Site-2-Site IPSec VPN Tunnels | 20,000 |
| Client VPN Tunnels | 130,000 (Max. 100.000 IPSec, 30.000 concurrent SSL-VPN User) |
| SSL VPN Client Licenses included | Unlimited |
| IPSec VPN Client Licenses included | Unlimited |
| Wireless | |
| Maximum supported Access Points | 4,096 (4096 / 2048 (Total/Tunnel)) |
| Dimensions | |
| Form Factor | 19-inch rack mount (2U) |
| Dimensions (WxDxH) | 438mm x 536mm x 88.4mm |
| Weight | 14.00 kg |
| Power Supply | |
| Power Supply | Internal Power Supply Unit, Hot Swappable |
| Number of Power Supply Units included / maximum | 2 / 2 |
