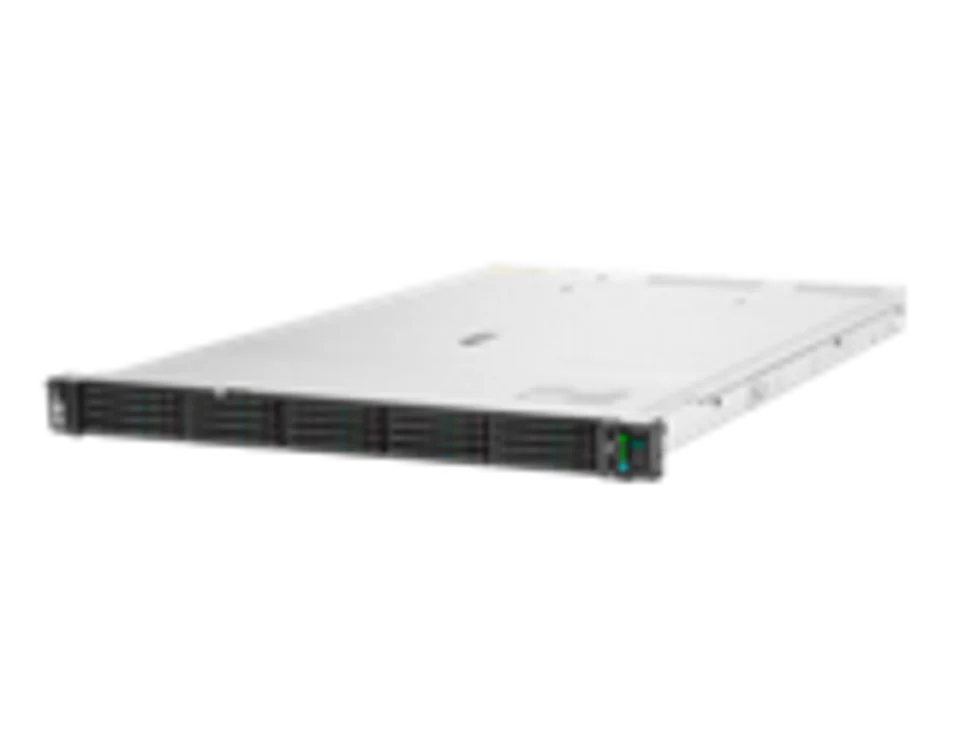

HPE Alletra Storage Server 4110 20SFF Configure-to-order System
Condition: NOB
RMA Warranty
Description
Overview
Are you looking for a server-based data infrastructure with superior performance to accelerate data-driven initiatives? The HPE Alletra Storage Server 4110, designed to run the most performance-demanding data storage-intensive workloads, can help your data-driven initiatives succeed. From data storage for machine learning (ML) and analytics to distributed and NoSQL databases, performance-sensitive software-defined storage, and data-intensive hyper-converged infrastructures, it delivers the functionality you need at the ideal economics, with trusted security and a cloud operating experience. This includes the option to consume it as a service-as-a-service through HPE GreenLake, enabling you to shift from owning and maintaining it to simply using it. HPE Alletra Storage Server 4000 systems provide the data infrastructure for any successful data-driven organisation.
HPE Alletra Storage Server 4110 20EDSFF Configure-to-order System
HPE Alletra Storage Server 4110 20SFF Configure-to-order System
HPE Alletra Storage Server 4110 Configure-to-order System Front View (20EDSFF SKU shown)
| 1. | Serial number/iLO information pull tab | 5. | NIC status LED |
| 2. | iLO service port | 6. | UID button/LED |
| 3. | Power On/Standby button and
system power LED |
7. | USB 3.0 port |
| 4. | Health LED |
HPE Alletra Storage Server 4110 Configure-to-order System Internal View (20EDSFF SKU shown)
| 1. | Up to 2 processors (2 processors installed with performance heat sink shown) | 11. | Primary riser connector |
| 2. | Energy pack connector | 12. | Front I/O connector |
| 3. | Drive cage 2 power connector | 13. | PCIe Gen3 connector |
| 4. | Drive cage 1 power connector | 14. | OCP1 connector |
| 5. | Secondary riser connector | 15. | System battery |
| 6. | Processor Smart Cooling Module connector | 16. | DDR5 DIMM slots (Fully populated 24 DIMMs shown) |
| 7. | System maintenance switch | 17. | MCIO Connectors |
| 8. | OCP2 A & B connector | 18. | System fans |
| 9. | Serial port connector | 19. | Drive Cage 1 |
| 10. | Internal USB connector |
HPE Alletra Storage Server 4110 Configure-to-order System Rear View – Standard for all HPE Alletra Storage Server 4110
| 1. | PCIe slot 1 & 2 | 6. | Serial port (optional) |
| 2. | Power supply LED (bay 1 & 2) | 7. | iLO management port |
| 3. | Hot-plug power supply bay 1 (standard) & 2 (optional) | 8. | USB 3.0 ports |
| 4. | Video port | 9. | UID LED |
| 5. | OCP slot (OCP2) | 10. | OCP slot (OCP1) |
Form Factor
- 1U rack
Chassis Types
- 20 EDSFF E3.S 1T PCIe Gen5 x4 connected
- 20 SFF NVMe PCIe Gen4 x4 connected
System Fans
- 7 hot-pluggable system fan modules shipped as standard
Notes: Choice of High Performance Fan Kit or Smart Cooling Fan Kit based on the processor selection
Dimensions (Height x Width x Depth)
20 SFF Drives SKU
- 4.29 x 43.46 x 84.22 cm
- 1.69 x 17.11 x 33.16 in
20 EDSFF Drives SKU
- 4.29 x 43.46 x 73.27 cm
- 1.69 x 17.11 x 28.85 in
Weight (approximate)
20 SFF Drives SKU
- Minimum: 11.62 kg (25.62 lb)
- Maximum: 24.01 kg (52.93 lb)
20 EDSFF Drives SKU
- Minimum: 8.84 kg (19.49 lb)
- Maximum: 19.94 kg (43.96 lb)
Configuration Information
| CTO Server | HPE Alletra Storage Server 4110 20EDSFF Configure-to-order System | HPE Alletra Storage Server 4110 20SFF Configure-to-order System |
| SKU Number | P51168-B21 | P64587-B21 |
| TAA SKU* | P51168-B21#GTA | P64587-B21#GTA |
| Processor | Not included as standard | |
| DIMM Slots | 24-DIMM slots | |
| PCIe | PCIe 5.0: 2 slots (2 x16 FHHL) | |
| Drive Cage – included | 20 EDSFF E3.S 1T NVMe PCIe x5 connected
|
20 SFF NVMe PCIe x4 connected
Basic carrier (BC) drive support |
| Network Controller | Choice of OCP or stand up cards
Notes: No embedded networking. |
|
| Fans** | 7 Standard Fans
Choice of High Performance Fans or Smart Cooling Fan Kit based on the processor selection |
|
| Management | Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download), HPE GreenLake for Compute Ops Management (subscription included) | |
| USB | Front: 1 USB 3.0 + iLO service port
Rear: 2 USB 3.0 Internal: 1 USB 3.0 |
|
| Form Factor | 1U Rack | |
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. | |
