HPE Alletra Storage Server 4140 68 LFF Configure-to-order System
Condition: NOB
RMA Warranty
Description
Overview
Are you looking for a server-based data infrastructure with the highest storage capacity density and balanced performance for volume data-driven initiatives?
The HPE Alletra Storage Server 4140 is designed to deliver high throughput to handle the largest storage-centric workloads to support your data-driven initiatives. From deep archiving and data protection to active analytics data lakes, file and object software-defined storage, and more, these two chassis deliver the features you need at ideal economics with trusted security and a cloud operating experience. Designed for high-density hybrid bulk storage, the HPE Alletra Storage Server 4140 supports up to 1.8 PB of storage in 4U. It includes the option to use bulk storage as a service through HPE GreenLake, enabling you to move from owning and maintaining it to simply using it. HPE Alletra Storage Server 4000 Series storage servers provide the data infrastructure for any successful data-driven organisation.
HPE Alletra Storage Server 4140 (68 LFF system shown)

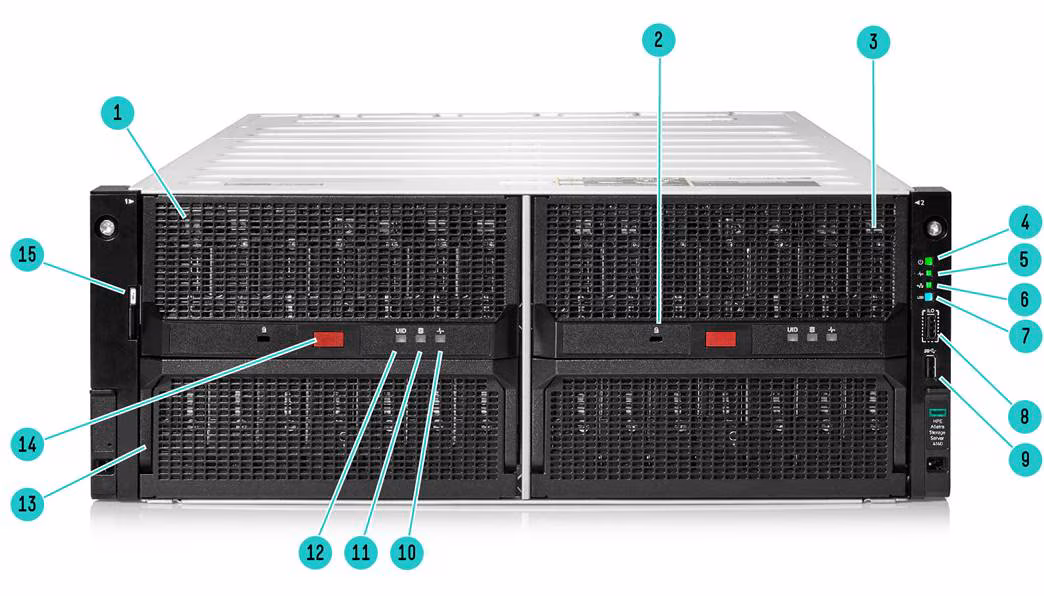

HPE Alletra Storage Server 4140 Configure-to-order System Front View
| 1. | Drive Drawer 1 | 9. | USB 3.0 Port |
| 2. | Drive Drawer Lock slot | 10 | Backplane Health LED |
| 3. | Drive Drawer 2 | 11. | Drive Health LED |
| 4. | Power On/Standby button and system power LED | 12. | Drive Drawer UID LED |
| 5. | System Health LED | 13. | Drawer handle |
| 6. | NIC Status LED | 14. | Drawer Handle Release Button |
| 7. | System UID LED | 15. | System information pull tab |
| 8. | iLO Service Port |

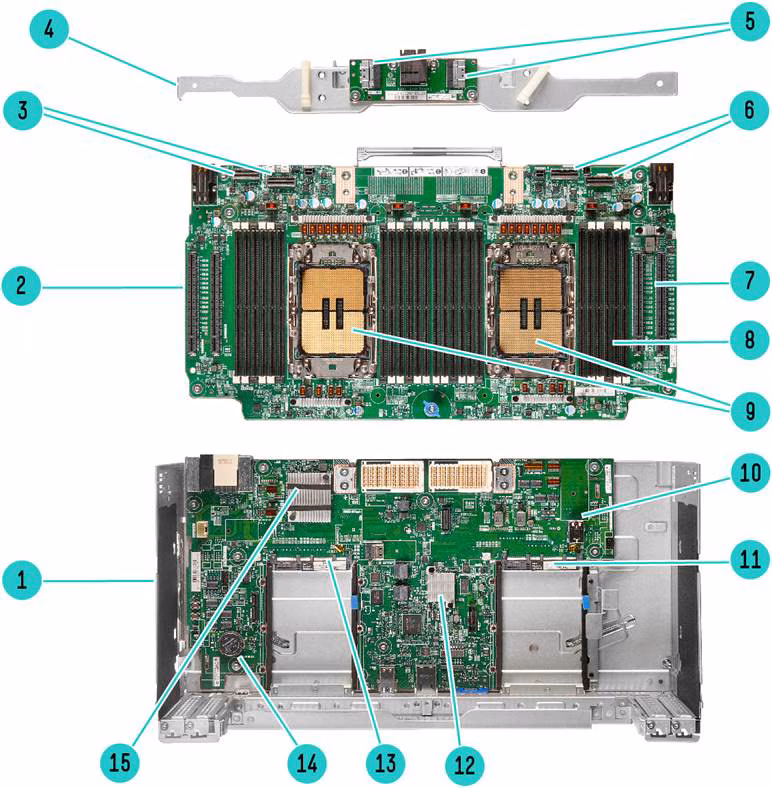

HPE Alletra Storage Server 4140 Configure-to-order System Exploded Server Node View
| 1. | Management Board | 9. | Up to 2 processors |
| 2. | CPU Board | 10. | Internal USB connector |
| 3. | MCIO connectors left | 11. | OCP 3.0 connector |
| 4. | SAS Interposer Board | 12. | iLO |
| 5. | SAS connectors | 13. | OCP 3.0 connector |
| 6. | MCIO connectors right | 14. | System battery |
| 7. | PCIe x16 slots | 15. | Platform Control Hub |
| 8. | Up to 24 DDR5 DIMM slots |
HPE Alletra Storage Server 4140 Configure-to-order System Rear View
| 1. | Flex Slot power supply bays 1 through 4 | 9. | USB 3.0 ports |
| 2. | Power Supply LEDs | 10. | UID LED |
| 3. | PCIe FHHL slots 3 and 4 | 11. | OCP 3.0 slot 1 (Slot ID 14) |
| 4. | Location for NS204i-u or M.2 boot devices | 12. | Location for serial port option |
| 5. | Server node release handles 1 | 13. | Server node release handles 2 |
| 6. | OCP 3.0 slot 2 (Slot ID 15) | 14. | Rear drive numbering label |
| 7. | Video port | 15. | 8 EDSFF rear drive cage option |
| 8. | iLO NIC port | 16. | PCIe FHHL slots 1 and 2 |
Form Factor
- 4U rack
Chassis Types
- Base model with 60 or 68 LFF SAS 24Gb/SATA 6Gb slots, depending on whether a rear drive cage is installed
- Extended model with 84 or 92 LFF SAS 24Gb/SATA 6Gb slots, depending on whether a rear drive cage is installed
System Fans
- 6 system quad-fan modules shipped as standard
| CTO Model | 68 LFF Standard Rack Depth | 92 LFF Extended Rack Depth |
| Dimensions
(Height x Width x Depth) |
175.80 x 448.00 x 860.94 mm
6.92 x 17.64 x 33.90 in |
175.80 x 448.00 x 1076.94 mm
6.92 x 17.64 x 42.40 in |
| Shipping Container Dimensions (including pallet) | 611 x 625 x 1100 mm
24 x 25 x 43 in |
594 x 625 x 1350 mm
23 x 25 x 53 in |
| Weight (approximate) | ||
| System Maximum | 117.53 kg
259.11 lb |
147.47 kg
325.42 lb |
| Shipping Maximum: | 139 kg
306 lb |
181 kg
399 lb |
Configuration Information
| CTO Models | HPE Alletra Storage Server 4140 68 LFF Configure-to-order System | HPE Alletra Storage Server 4140 92 LFF Configure-to-order System |
| SKU Number | P63103-B21 | P63253-B21 |
| TAA SKU* | P63103-B21#GTA | P63253-B21#GTA |
| Processor | Not included as standard | |
| DIMM Slots | 24-DIMM slots | |
| Storage Controller | One or two SR 32-Port PCIe FIO Storage Controllers are required | One or Two SR 32-Port PCIe FIO Storage Controllers are required |
| PCIe | Up to 4 PCIe slots | |
| Rear Drive Cage Options | P63129-B21 – HPE Alletra Storage Server 4140 8EDSFF E3.S Thin Carrier Rear Drive Cage FIO Kit
P63131-B21 – HPE Alletra Storage Server 4140 4SFF PCIe x4 U.3 BC Rear Drive Cage FIO Enablement Kit |
|
| Network Controller | Choice of OCP or stand-up PCIe cards
Notes: No embedded networking. |
|
| Fans | 6 quad-rotor fan modules | |
| Management | Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download), HPE GreenLake for Compute Ops Management (subscription included) | |
| USB | Front: 1 USB 3.0 + iLO service port
Rear: 2 USB 3.0 Internal: 2 USB 3.0 |
|
| Form Factor | 4U Rack | |
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. | |
