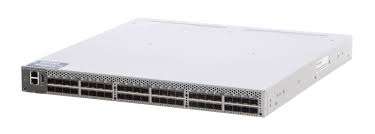

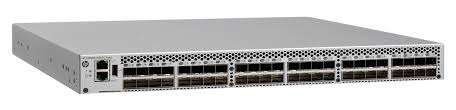

HPE SN6000B 16Gb 48-port/24-port Active Fibre Channel Switch
Condition: NOB
RMA Warranty
Description
Overview
To remain competitive, IT organisations must keep up with increasing workloads without increasing budgets or resources. While virtualisation takes some of the pressure off by enabling faster deployment and consolidation benefits, it also tends to put additional pressure on data centre networks. In addition, the shift to cloud computing, which promises greater efficiencies and the adoption of more service-oriented business models, means that these networks will face greater demands.
The HPE SN6000B Fibre Channel switch delivers market-leading 16 Gb Fibre Channel technology and support for highly virtualised environments to meet the needs of hyperscale private cloud storage environments. Designed for maximum flexibility and investment protection, the SN6000B switch can be configured with 24, 36 or 48 ports and supports 4, 8, 10 or 16 Gbps speeds in an efficiently designed 1U package. It also offers a simplified deployment process and point-and-click user interface, making it powerful and easy to use. The SN6000B switch provides cost-effective access to industry-leading storage area network (SAN) technology while offering “buy-as-you-go” scalability to meet the needs of evolving storage environments.
The SN6000B is available in six models:
- HPE SN6000B 16Gb 48-port/48-port Active Power Pack+ Fibre Channel Switch
- HPE SN6000B 16Gb 48-port/24-port Active Power Pack+ Fibre Channel Switch
- HPE SN6000B 16Gb 48-port/48-port Active Fibre Channel Switch
- HPE SN6000B 16Gb 48-port/24-port Active Fibre Channel Switch
- HPE SN6000B 16Gb 48-port/24-port Active Port Side Air Intake Fibre Channel Switch
- HPE SN6000B 16Gb Bundled Fibre Channel switch
Power Pack+ includes add-on software: Fabric Vision, ISL Trunking, and Extended Fabric. Power Pack+ software gives SAN administrators the tools they need to monitor the health and performance of their networks while ensuring the highest levels of security, scalability, and manageability.

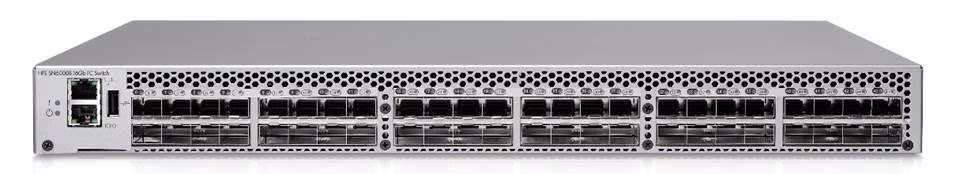

HPE SN6000B Fibre Channel Switch
SN6000B 16Gb FC Switch
- Simplifies enterprise SAN deployment by combining higher edge switch port density with exceptional scalability, performance and reliability
- Delivers 24, 36, or 48-ports in a 1U enclosure
- Provides 4 Gb/s, 8 Gb/s, 10 Gb/s, 16 Gb/s* performance
Notes: * 16 Gb/s performance can be obtained between two 16 Gb/s capable devices.
- Employs optional Inter-Switch Link (ISL) Trunking to provide a high-speed data path between switches which enables a high speed data path between 16 Gb/s switches up to 128 Gb/s
| Family Information
|
| Features | 8/8 SAN Switch Base and 8/8 SAN Switch | 8/24 SAN Switch Base | SN3000B 16Gb FC Switch | SN3600B 32Gb FC Switch and SN3600B 32Gb FC Power Pack+ |
| Targeted Environment | Workgroups, Departments | Workgroups, Departments | Workgroups, Departments | Workgroups, Departments |
| Fibre Channel Port Bandwidth | 8Gbps | 8Gbps | 16Gbps | 32Gbps |
| Aggregate device bandwidth |
64-192 Gbps | 128-192 Gbps | 192-384 Gbps | 768 Gbps |
| OS Support | Notes: Please Refer to SPOCK | |||
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | |||
| FC Ports | 8 Enabled
24 Max |
16 Enabled
24 Max |
12 or 24 Enabled
24 Max |
8 or 24 Enabled
24 Max |
| SFP | B-series | B-series | B-series | B-series |
| Advanced Trunking |
Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ Upgrade | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included | Included | Included |
| Form factor | 1U | 1U | 1U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant
power supplies |
No | No | Optional | No |
| Hot plug fans | No | No | Yes (integrated with power supply) | Yes (integrated with power supply) |
| Features | SN6000B 16 Gb FC Switch and SN6000B 16 Gb FC Power Pack+ | SN6600B 32 Gb FC Switch |
| Targeted Environment | Workgroups, Departments | Workgroups, Departments |
| Fibre Channel Port Bandwidth | 16 Gbps | 32 Gbps |
| Aggregate device bandwidth |
384- 768 Gbps | 2 Tbps |
| OS Support | Notes: Please Refer to SPOCK | |
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | |
| FC Ports | 24 or 48 Enabled
48 Max |
24 or 48 enabled
64 Max |
| SFP | B-series | B-series Optics (16 Gb or 32 Gb) |
| Advanced
Trunking |
Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included |
| Form factor | 1U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) |
| Hot plug, redundant
power supplies |
Yes | Yes |
| Hot plug fans | Yes (integrated with power supply) | Yes (integrated with power supply) |
| Features | SN6500B 16Gb FC Switch and SN6500B 16Gb FC Power Pack+ | SN4000B Power Pack+ SAN Extension Switch | 1606 Extension SAN Switch |
| Targeted Environment | Workgroups, Departments | Data Centers; long distance replication, multiprotocol SAN Fabrics | Data Centers |
| Fibre Channel Port Bandwidth | 16Gbps | 16Gbps | 8Gbps |
| Ethernet | 1/10/40 Gbps Ethernet | 1Gbps Ethernet | |
| Aggregate device bandwidth |
768-1536 Gbps | ||
| OS Support | Notes: Please Refer to SPOCK | ||
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | ||
| FC Ports | 48 or 96 Enabled
96 Max |
24 FC Ports Enabled
24 Max |
4 or 16 Enabled
16 Max |
| Ethernet Ports | N/A | 16 Enabled | 2 or 6 Enabled 6 Max |
| SFP | B-series | B-series | B-series |
| Advanced
Trunking |
Included with Power Pack+ or Optional Upgrade | Included | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included | Included |
| Form factor | 2U | 2U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant
power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | SN8000B 8-Slot SAN Director Power Pack+ | SN8600B 8-Slot SAN Director Power Pack+ | |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers | |
| Port Bandwidth | Up to 16Gbps | Up to 32 Gbps | |
| Aggregate device
bandwidth |
10.2Tbps | 20.48 Tbps | |
| OS Support | Notes: Please Refer to SPOCK | ||
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | ||
| Ports | Up to 512 SFP | 512 32 Gbps ports or a 640-port equivalent with 128 Gbps (32 Gbps×4 QSFP ports) | |
| SFP | B-series | B-series | |
| Advanced Trunking |
Included with Power Pack | Included with Power Pack | |
| Adaptive Networking | Included | Included | |
| Form factor | 14U | 14U | |
| Zoning Software | Yes (included) | Yes (included) | |
| Hot plug, redundant
power supplies |
Yes | Yes | |
| Hot plug fans | Yes | Yes | |
| Features | SN8000B 4-Slot SAN Director and 4-Slot SAN Director Power Pack+ | SN8600B 4-slot SAN Director Power Pack+ |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers |
| Port Bandwidth | Up to 16Gbps | Up to 32Gbps |
| Aggregate device bandwidth |
5.1 Tbps | 10.24 Tbps |
| OS Support | Notes: Please Refer to SPOCK | |
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | |
| Ports | Up to 256 SFP | Up to 256 32 Gbps ports or a 320-port equivalent with 16 ICL ports. |
| SFP | B-series | B-Series |
| Advanced Trunking |
Included with Power Pack or Optional Upgrade | Included with Power Pack |
| Adaptive Networking | Included | Included |
| Form factor | 9U | 9U |
| Zoning Software | Yes (included) | Yes (Included) |
| Hot plug, redundant power supplies |
Yes | Yes |
| Hot plug fans | Yes | Yes |
| Features | Brocade 16Gb SAN Switch for HPE c-Class BladeSystem | Brocade 16Gb Fibre Channel SAN Switch Module for HPE Synergy | Brocade 32Gb Fibre Channel SAN Switch Module for HPE Synergy |
| Targeted Environment | Enterprise, Datacenters, Workgroups, Departments | Enterprise, Datacenters, Workgroups, Departments | Enterprise, Datacenters, Workgroups, Departments |
| Port Bandwidth | 16 Gbps | 16 Gbps | 32 Gbps |
| Aggregate device bandwidth | 448 Gbps | 576 Gbps
(36 ports X 16 Gbps) |
896 Gbps
(28 ports x 32Gbps |
| OS Support | Notes: Please Refer to SPOCK | ||
| Storage system Support |
3PAR StoreServ, Nimble. StoreVirtual 4000, P9000/XP7, MSA 2050/1050 | ||
| Ports | 12 external /16 internal | 8 SFP+ external, 4 QSFP external /12 internal | 8 SFP+ external, 2 QSFP external /12
internal |
| SFP | B-series | B-series | B-series |
| Advanced Trunking | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included | Included |
| Form factor | Embedded | Embedded | Embedded |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies | Yes, in BladeSystem Enclosure | Yes, in Synergy Frame | Yes, in Synergy Frame |
| Hot plug fans | Yes, in BladeSystem Enclosure | Yes, in Synergy Frame | Yes, in Synergy Frame |
Mechanicals
- Enclosure
Port side Intake and Port side Exhaust airflow models available; power from back; 1U
- Size
Width: 438 mm (17.23 in.)
Height: 43 mm (1.7 in.)
Depth: 443 mm (17.45 in.)
- SystemWeight
9.16 kg (20.20 lb) with two power supply FRUs, without transceivers
Configuration Information
| Step 1: Base Configuration | ||||||||||||||||||
| Select one: | ||||||||||||||||||
| Step 2: Options | ||||||||||||||||||
| Fibre Channel Transceivers | ||||||||||||||||||
| Description | SKU | |||||||||||||||||
| HPE B-series 8Gb Shortwave Fibre Channel 1 Pack SFP+ Transceiver | AJ716B | |||||||||||||||||
| Notes: AJ716A is not supported with the SN6000B 16Gb FC Switch. | ||||||||||||||||||
| HPE B-series 16Gb SFP+ Short Wave Transceiver | QK724A | |||||||||||||||||
|
||||||||||||||||||
| HPE B-series 8Gb Long Wave 10km Fibre Channel 1 Pack SFP+ Transceiver | AJ717A | |||||||||||||||||
| HPE B-series 16Gb SFP+ Short Wave 1-pack Secure Transceiver | R6B10A | |||||||||||||||||
| HPE B-series 16Gb SFP+ Short Wave 8-pack Secure Transceiver | R6W28A | |||||||||||||||||
| HPE B-series 16Gb SFP+ Long Wave 10km 1-pack Secure Transceiver | R6B11A | |||||||||||||||||
| HPE B-series 16Gb SFP+ Extended Long Wave 25km 1-pack Secure Transceiver | R6B21A | |||||||||||||||||
| HPE SN6000B supports the following HPE Complete SmartOptics 16Gb Tranceivers–16G FC embedded DWDM Solution
Notes: For more information regarding Smartoptics SKUs/Accessories/Cables and ordering rules please refer HPE Complete Smartoptics QuickSpecs. https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=c05205226 |
||||||||||||||||||
| Accessories | ||||||||||||||||||
| HPE B-series 4G USB Drive | N9Y63A | |||||||||||||||||
| Optical Cables | ||||||||||||||||||
| HPE PremierFlex OM4+ Fiber Optic Cables | ||||||||||||||||||
| HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable | QK732A | |||||||||||||||||
| HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable | QK733A | |||||||||||||||||
| HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable | QK734A | |||||||||||||||||
| HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable | QK735A | |||||||||||||||||
| HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable | QK736A | |||||||||||||||||
| HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable | QK737A | |||||||||||||||||
| HPE OM3 LC-LC Optical Cables | ||||||||||||||||||
| HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable | AJ833A | |||||||||||||||||
| HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable | AJ834A | |||||||||||||||||
| HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable | AJ835A | |||||||||||||||||
| HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable | AJ836A | |||||||||||||||||
| HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable | AJ837A | |||||||||||||||||
| HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable | AJ838A | |||||||||||||||||
| HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable | AJ839A | |||||||||||||||||
| Step 3: Optional Software
Notes: For Fabric OS (FOS) minimum requirements, please refer to: https://h20272.www2.hpe.com/spock/ |
||||||||||||||||||
| Software for SN6000B 16Gb FC Switch
SANnav Software Licenses:
Notes: For users purchasing SANnav licenses for the first time, one of the following SKUs should be purchased. For users wanted to renew a SANnav license, a renewal license should be selected from the SANnav Renewal Software License in the next section. |
||||||||||||||||||
| Description | SKU | |||||||||||||||||
| HPE SANnav Management Portal Base 1yr E-LTU | R3P45AAE | |||||||||||||||||
| HPE SANnav Management Portal Enterprise 1yr E-LTU | R3P46AAE | |||||||||||||||||
| HPE SANnav Global View 1yr E-LTU | R3P47AAE | |||||||||||||||||
| HPE SANnav Management Portal Base 3yr E-LTU | R3P48AAE | |||||||||||||||||
| HPE SANnav Management Portal Enterprise 3yr E-LTU | R3P49AAE | |||||||||||||||||
| HPE SANnav Global View 3yr E-LTU | R3P50AAE | |||||||||||||||||
| HPE SANnav Management Portal Base 5yr E-LTU | R4P29AAE | |||||||||||||||||
| HPE SANnav Management Portal Enterprise 5yr E-LTU | R4P30AAE | |||||||||||||||||
| HPE SANnav Global View 5yr E-LTU | R4P31AAE | |||||||||||||||||
|
Notes: – The Base edition of HPE SANnav Management Portal does not support management of director class switches. – HPE SANnav Management Software License-to-Use (LTU/E-LTU) includes maintenance and support for the duration of the license. At the end of the license period, customers have the option to renew the license, maintaining the same license key, by selecting from the SANnav Renewal Software License section below Software renewal via HPE Services is not allowed/supported. – Trial Licenses: depending on the version of SANnav license, the trial period is different. o 90-day trial license available with all SANnav releases through v2.2.0 o 30-day trial license available with SANnav v2.2.1 and v2.2.2 o No trial license available with SANnav v2.3.0
|
||||||||||||||||||
| SANnav Renewal Software Licenses | ||||||||||||||||||
| Notes: For users who currently have a SANnav license and want to renew their software license, one of the following licenses should be selected. The SANnav license must align with the current type of software license i.e. in order to renew a Base license, the Base renewal licenses will need to be selected. | ||||||||||||||||||
| HPE SANnav Management Portal Base 1-year Renewal E-LTU | S1S52AAE | |||||||||||||||||
| HPE SANnav Management Portal Enterprise 1-year Renewal E-LTU | S1S55AAE | |||||||||||||||||
| HPE SANnav Global View 1-year Renewal E-LTU | S1S58AAE | |||||||||||||||||
|
Notes: – The Base edition of HPE SANnav Management Portal does not support management of director class switches. – HPE SANnav Management Software License-to-Use (LTU/E-LTU) includes maintenance and support for the duration of the license. – Trial Licenses – depending on the version of SANnav license, the trial period is different. o 90-day trial license available with all SANnav releases through v2.2.0 o 30-day trial license available with SANnav v2.2.1 and v2.2.2 o No trial license available with SANnav v2.3.0
|
||||||||||||||||||
| Description | SKU |
| HPE B-series Mid/High End Extended Fabric E-LTU | J4V63AAE |
| · Physical License J4V63A | |
| HPE B-series Mid/High End SAN Switch ISL Trunking E-LTU | J4V61AAE |
| · Physical License – 313452-B21 | |
| HPE B-series Integrated Routing E-LTU | T5528BAE |
| · Physical License – T5528A | |
| HPE 8/40 and 1606 Extension SAN Switch FICON CUP E-LTU | TA748BAE |
