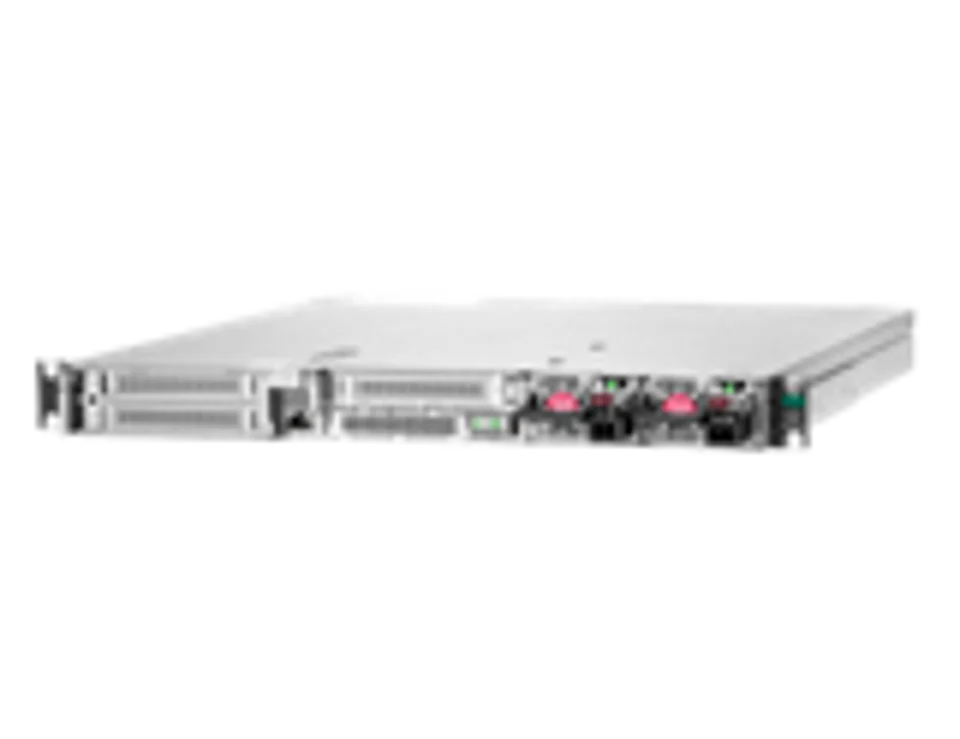

HPE ProLiant DL110 Gen11 Front Cabled Configure-to-order Server
Condition: NOB
RMA Warranty
Description
Overview
Are you ready for 5G? Tailored for edge applications that require high bandwidth and low latency, such as 5G cellular processing (vRAN), the HPE ProLiant DL110 Gen11 delivers dense I/O functionality based on an open, standards-compliant infrastructure with PCIe Gen5 speed, acceleration, and powerful compute capabilities powered by fourth-generation Intel® Xeon® Scalable processors and fourth-generation Intel® Xeon® Scalable processors driven with Intel® vRAN Boost. The HPE ProLiant DL110 Gen11 has a small footprint in a compact, short-depth, 1U/1P front-accessible chassis that is ruggedised and NEBS Level 3 compliant* for harsh environments. The HPE ProLiant DL110 Gen11 delivers embedded HPE Integrated Lights-Out (iLO) management and security through the HPE Silicon Root of Trust, delivering a trusted HPE ProLiant experience that is ready for 5G deployments by communications service providers.
Note: *Typical NEBS certification is conducted within 90 days of manufacturing.

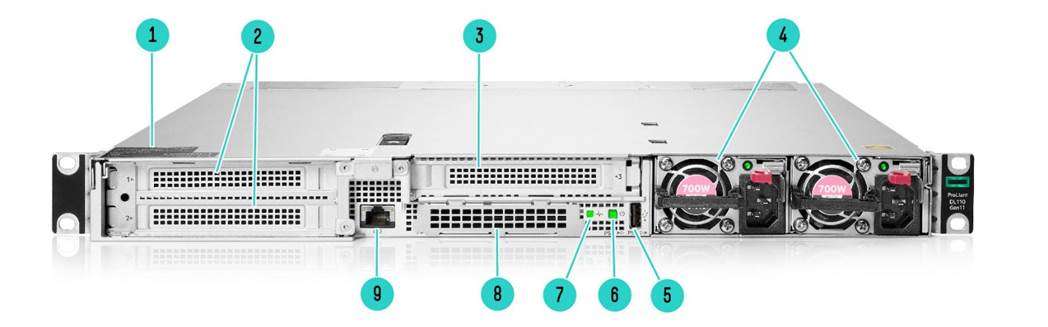

Front View
| 1 | Quick removal access panel | 6. | Power On/Standby button and system power LED |
| 2 | Slot 1 and 2 PCIe 5.0 x16 FHHL | 7. | Health LED |
| 3 | Slot 3 PCIe 5.0 x16 FHHL (optional)1 | 8. | OCP 3.0 slot |
| 4 | Flex Slot Power Supply 1 and 2 | 9 | iLO Management Port |
| 5. | iLO Service Port |
Notes:
– 1Enabled with x16 FHHL Secondary Riser (P54288-B21)
– Default “L” shaped bracket ears shown. Optional HPE DL110 Gen11 Rail Compatible Ear Kit (P58197-B21) available for use with HPE 1U Short Friction Rail Kit (775612-B21)

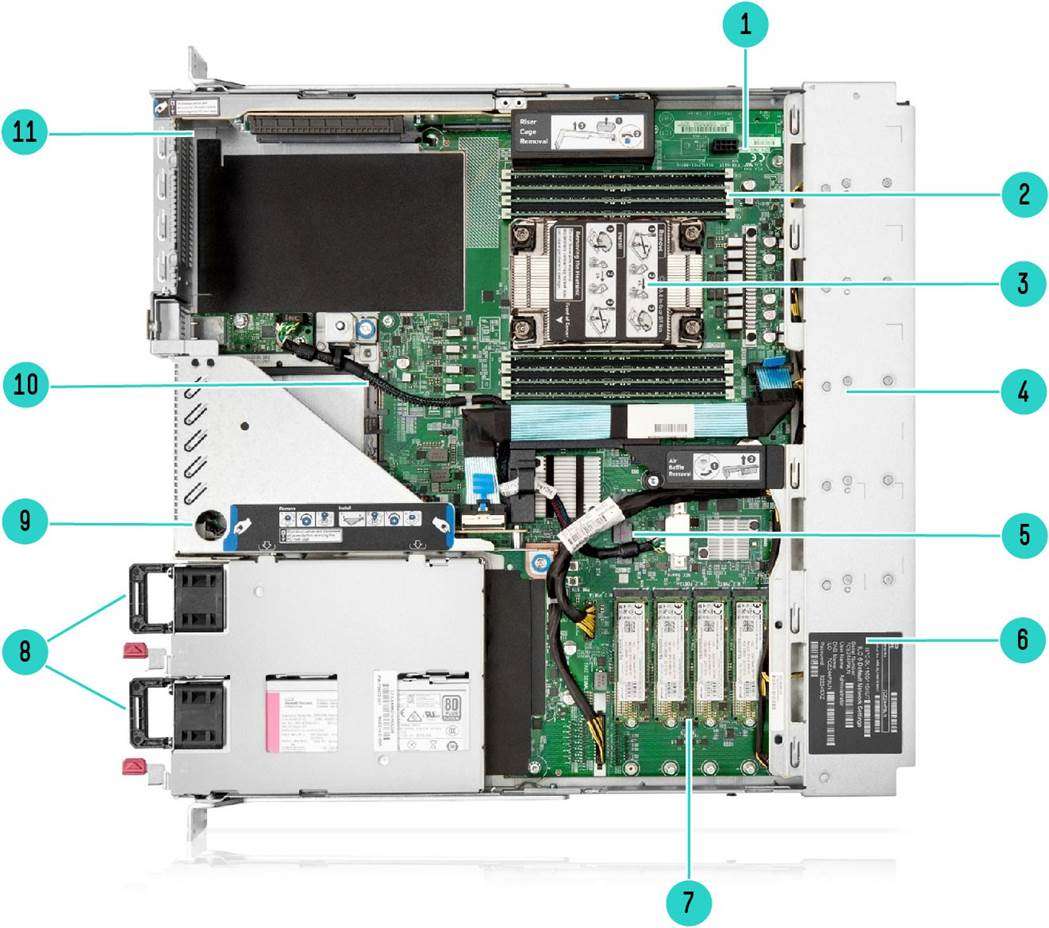

Internal View
| 1. | GPU auxiliary power connector | 7. | M.2 SSD slots (4)1 |
| 2. | DDR5 DIMM slots (Fully populated 8 DIMMs shown) | 8. | Power Supplies2 |
| 3. | Processor (4Th Gen Intel Xeon Scalable) | 9. | Secondary x16 FHHL PCIe 5.0 riser (optional) |
| 4. | Hot plug dual rotor fans (7) | 10. | x16 OCP connector3 |
| 5. | Embedded TPM 2.0 | 11. | Primary x16/x16 FHHL PCIe 5.0 riser (standard) |
| 6. | Serial number label |
Notes:
– 1Supports 2280 and 22110 form factor
– 2Up to 2 for redundant power
– 3Supports various NICs up to 200GbE

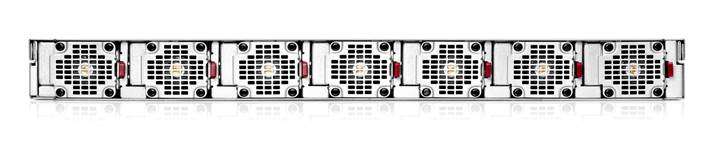

Rear View
(7 fans, dual rotor hot plug)
Form Factor
- 1U rack
Chassis Types
- Front cabled chassis
System Fans
- 7 dual rotor, hot plug fans included
Dimensions (Height x Width x Depth)
– 4.29 x 44.16 x 43.18 cm
– 1.69 x 17.39 x 17 in
Weight (approximate)
- Minimum:CTO server with 1x processor, 1x primary riser, 1x Memory DIMM, 1x M.2 SSD, and 1x Power Supply
9.62 kg / 21.21 lbs
- Maximum:CTO server with all components installed: 1x processor, 2x risers, 8x Memory DIMMs, 4x M.2 SSDs, and 2x Power Supplies
11.4 kg / 25.4 lbs
Configuration Information
| CTO Server | HPE ProLiant DL110 Gen11 Front Cabled Configure-to-order Server |
| SKU Number | P54277-B21 |
| Processor | Not included as standard; 1 supported |
| Heatsink | Included |
| DIMM Slots | 8-DIMM slots |
| Storage Controller | Embedded SW RAID with Intel VROC SATA for HPE, choice of Intel VROC NVMe for HPE |
| PCIe | X16/x16 FHHL riser included |
| Fans | 7- dual rotor hot plug |
| Management | HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional) |
| USB | iLO Front Service Port |
| Mounting | Default: “L” shaped bracket ears- recommended for 2-post rack mounting (includes cage nuts for mounting in square-hole rack
Optional: Short Friction Rail Kit- recommended for 4-post rack mounting |
