HPE ProLiant DL160 Gen10 Server

Description

Overview

The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the perfect balance of performance, storage, reliability, manageability and efficiency in a dense, compact chassis that meets the growing business needs of a diverse set of customers, from SMBs to service providers running a wide range of workloads, at an attractive price point.

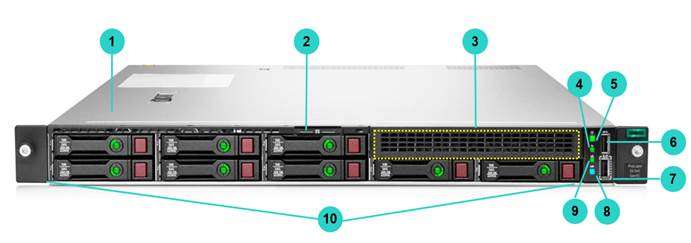

8 SFF chassis – Front View

1.	Quick removal access panel	6.	USB 3.0 port
2.	Serial no. label pull tab	7.	iLO Service Port
3	Media Bay (blank shown)*	8.	UID button/LED
4.	Health LED	9	NIC Status LED
5	Power On/Standby button and system power LED	10.	Standard 8 SFF SAS/SATA drive bays

Notes:

– *Option a: +2SFF SAS/SATA (total max 10SFF)

– *Option b: DVD-RW or DVD-ROM

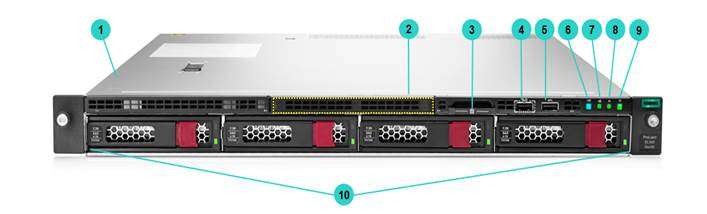

4 LFF chassis – Front View

1.	Quick removal access panel	6.	UID button/LED
2.	DVD-RW or DVD-ROM (blank shown)*	7.	NIC status LED
3.	Serial no. label pull tab	8.	Health LED
4.	iLO Service Port	9.	Power On/Standby button and system power LED
5.	USB 3.0 Port	10.	4 LFF SAS/SATA drive bays

Notes: *Optional

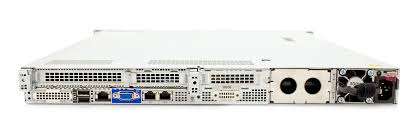

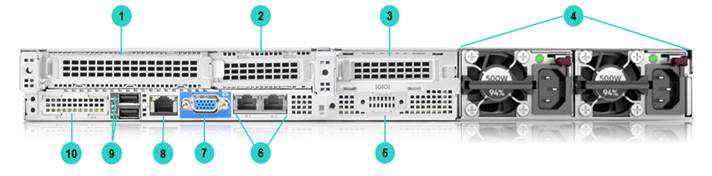

Rear View

1.	Slot 1 PCIe 3.0	6.	Embedded 2x 1GbE Adapter
2.	Slot 2 PCIe 3.0	7.	VGA Port
3.	Slot 3 PCIe 3.0 (Requires 2nd processor)*	8.	iLO Management Port
4.	Power Supply (Redundant hot-plug shown)	9.	2x USB 3.0 Ports
5.	Serial Port *	10.	Media Module *

Notes: *Optional

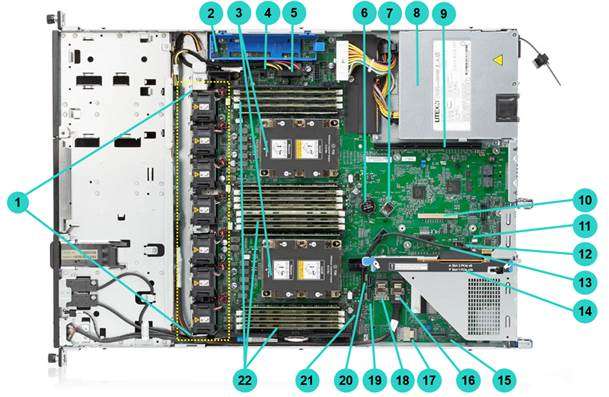

8SFF chassis – with optional 2^nd CPU – Internal View

1.	Standard single rotor hot swap fans 1 CPU – 3 standard fans 2 CPUs – 6 standard fans (1 redundant fan shown) *	12.	MicroSD card slot
2.	Smart Storage Battery (No battery shown) *	13	iLO Service Port Connector
3.	Up to 2 processors (shown with standard heat sinks)	14.	Standard: 1×16 and 1×8 FlexibleLOM (1X8 FlexibleLOM, 1X8 Low Profile) *
4.	Chassis Intrusion Detection connector *	15.	Media Module Connector
5.	Hard Drive backplane power connector	16.	Mini-SAS port 1
6.	System Battery	17.	Mini-SAS port 2
7.	Internal USB 3.0 connector	18.	Mini-SAS port 3
8.	Power supply (non-redundant power supply shown)	19.	SATA port 4
9.	Secondary (CPU2) PCIe 3.0 riser	20.	SATA port 5
10.	Flexible Smart Array Controller Connector	21.	Front Power USB 3.0 connector
11.	TPM 2.0*	22.	DDR4 DIMM slots (Fully populated 16 DIMMs shown)

Notes: *Optional



Form Factor

• 1U  rack

Chassis Types

· 8 SFF with optional support for additional 2 SFF SAS/SATA HDD/SSD

· 4 LFF

System Fans

· Single rotor hot plug fans will be included

For 4 LFF and 8 SFF chassis

· 1 CPU – Includes 3 standard fans, 4 fans with addition of redundant fan kit

· 2 CPUs – Includes 6 standard fans, 7 fans with addition of redundant fan kit

Notes: Optional redundant fan kit (866438-B21) includes 1 fan for redundancy

Dimensions

 (Height X Width X Depth)

• 4.29 x 43.46 x 61.49 cm
• 1.69 x 17.11 x 24.21 in

Weight (approximate)

• SFF Minimum

8 SFF chassis with 1x SFF HDD, 1 X Memory DIMM, 3 Fans, 1 Processor with heatsink, 1 power supply

– 24.19lb

10.97kg

• SFF Maximum

8SFF chassis with 8 SFF HDD, 1 X Memory DIMM, 6 Fans, 2 Processors with heatsink, 2 power supplies

– 30.69 lb

13.92 kg



• LFF Minimum

4 LFF chassis with 1X LFF Hard Drive, 1X Memory DIMM, 3 Fans, 1 Processor with heatsink, 1 power supply

– 25.69 lb

11.65 kg

• LFF Maximum

4 LFF chassis with 4X LFF Hard Drive, 1X Memory DIMM, 6 Fans, 2 Processors with heatsink, 2 power supplies

– 34.69 lb

15.74kg

---

Configuration Information

CTO Server	HPE ProLiant DL160 Gen10 4 LFF CTO Server		HPE ProLiant DL160 Gen10 8 SFF CTO Server
SKU Number	878972-B21		878973-B21
Processor	Not included as standard
DIMM Slots	16-DIMM slots
Storage Controller	Embedded SW RAID with 14 SATA ports, choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	None standard. Risers need to be added
Drive Cage – included	4 LFF SAS/SATA	8 SFF SAS/SATA
Network Controller	Embedded 2x1GbE with optional, Media Module, HPE FlexibleLOM on riser and optional Standup card
Fans	1 CPU- 3 Standard Fans 2 CPU- 6 Standard Fans
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)
USB	Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 1 USB 3.0
