HPE ProLiant DL345 Gen10 Plus server

Description

Overview

HPE ProLiant DL345 Gen10 Plus servers redefine price/performance with a new approach to computing through virtualised computing. HPE ProLiant DL345 Gen10 Plus servers are powered by the latest AMD® EPYC® 7003 family of processors, delivering more processing power, faster memory speeds up to 3200 MT/s and increased data transfer rates through PCIe Gen4 capabilities. speeds, and increased data transfer rates with PCIe Gen4 capabilities.

This 1P, 2U server is designed to be flexible while offering high core counts and large memory footprints. Choose this purpose-built platform for virtualisation, high-performance computing and memory-centric workloads.



HPE ProLiant DL345 Gen10 Plus 8 SFF  Server- Front View

1.	Quick removal access panel	7.	USB 3.1 Gen1
2.	Power On/Standby button and system power LED button	8.	Serial label pull tag
3.	Health LED	9.	Drive Bay 3. 8SFF SAS/SATA shown (Box 3)
4.	NIC status	10.	Drive Bay 2. Blank shown(Box 2)
5.	Unit ID button	11.	Drive Bay 1. Blank shown (Box 1)
6.	iLO front service port

Notes:

– 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional

– 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional

– 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional

HPE ProLiant DL345 Gen10 Plus server – Rear View

1.	Primary Riser.1	8.	Optional serial port (not shown)
2.	Rear Drive Cage (2SFF SAS/SATA/NVMe optional)	9.	UID LED
3.	Secondary Riser.2	10.	USB connectors 3.1 Gen1 (2)
4.	Power supply power LED	11.	Dedicated iLO management port
5	Power supply power connection	12.	VGA Connector
6.	HPE Flexible Slot Power Supply bay 1	13.	OCP 3.0 Slot
7.	HPE Flexible Slot Power Supply bay 2

Notes:

– ¹ PCIe Slots 1-2 top to bottom, riser shipped standard, not shown.

– ² PCIe Slots 3-4 top to bottom, not shown.

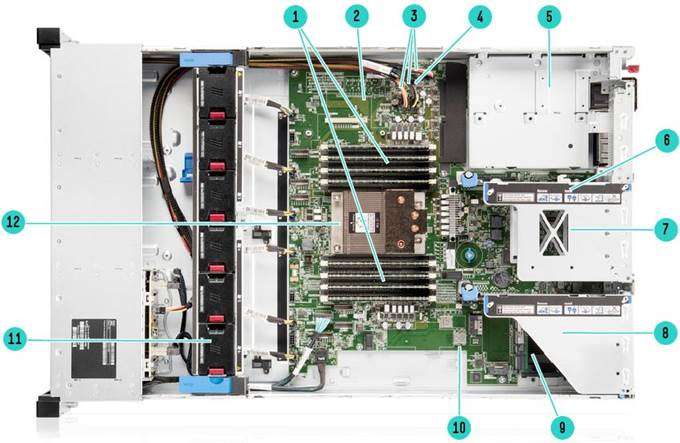

HPE ProLiant DL345 Gen10 Plus server – Internal View

8SFF chassis

1	DDR4 DIMM slots	7	(Under) Serial Port Connector
2	Optional HPE Flexible Smart Array Controller (Not shown)	8	Primary PCIe riser, standard
3	Hard drive backplane power connectors	9	(Under) OCP 3.0 Slot
4	Chassis intrusion detection connector	10	Internal USB 3.1 Gen1 connector
5	Hot Plug redundant HPE Flexible Slot Power supplies	11	Fan cage shown with 6 Performance Hot-plug fans
6	Connection for (optional) secondary riser	12	Processor (heatsink shown)

Form Factor

• 2U rack

Chassis Types

• 8 SFF with optional SFF or NVMe drive bay options
• 24 SFF bay with and 2 SFF rear drive bay option to total 26 SFF drives
• 8 LFF/12LFF chassis supporting SAS/SATA

System Fans

Standard – fan types included

• The 8 LFF and 8 SFF without standard fans included.
• The 24 SFF chassis ships with 6 high performance fans as standard.
• Max performance fan kits are required for >280w Processors SKUs, 12LFF/24SFF configurations, NVMe drives, 2SFF rear drives, some 100GbE & 200GbE networking cards, graphics cards, InfiniBand cards or if PCIe accelerators are being used.

Dimensions

• SFF Drives

8.75 x 44.54 x 71.1 cm

3.44 x 17.54 x 28 in

• LFF Drives:

8.75 x 44.54 x 74.9 cm

3.44 x 17.54 x 29.5 in

Weight (approximate)



• SFF configuration

– Minimum: 16.33 kg / 36.00 lbs with 2 hard drives

(8 SFF chassis with 6x HDD blanks, 2x Drive Bay blanks, 1x processor including standard heatsink, 1x DIMM , 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)



– Maximum: 23.1 kg / 50.93 lbs with 24 hard drives

(24 SFF hard drives, 1x processor including standard heatsink,16x DIMMs, 2x power supplies, 1x Smart Array, 2x Risers installed, cables for the above)



• LFF Configuration

– Minimum 22.1 kg / 48.72 lbs with 2 hard drives

(8 LFF chassis with 6x HDD blanks, 4x LFF HDD Bay blanks, 1x processor including standard heatsink, 1x DIMM, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)



– Maximum 26.12 kg / 57.58 lbs with 12 hard drives

(12 LFF hard drives(no rear drives), 1x processor including standard heatsink, 16x DIMMs, 2x power supplies, 1x Smart Array, 2x Risers installed, cables for the above)

---

Configuration Information

CTO Server	HPE ProLiant DL345 Gen10 Plus 8 LFF CTO Server	HPE ProLiant DL345 Gen10 Plus 8 SFF CTO Server	HPE ProLiant DL345 Gen10 Plus 24 SFF CTO Server
SKU Number	P38664-B21	P38665-B21	P38666-B21
Processor	Not included as standard	Not included as standard	Not included as standard
DIMM Slots	16-DIMM slots	16-DIMM slots	16-DIMM slots
Storage Controller	Choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	Two standard in primary riser, up to four slots with a secondary riser
Drive Cage – included	8 LFF	8 SFF	24 SFF
Network Controller	Choice of OCP or stand up card
Fans	Not included as standard	Not included as standard	6-Performance
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)
USB	1x 3.0 standard plus iLo front service port
