HPE ProLiant DL365 Gen11 Server

Description

Overview

The new HPE ProLiant DL365 Gen11 server is a rack-optimised, 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rates and memory depth at 2P compute capacity. Featuring fourth-generation AMD EPYC™ processors with up to 128 cores, increased memory bandwidth (up to 6 TB), and high-speed PCIe Gen5 I/O, the HPE ProLiant DL365 Gen11 server is an excellent rack-optimised 1U 2P intensive solution. Silicon Root of Trust anchors the server firmware to an HPE-exclusive ASIC that creates an immutable fingerprint for the AMD secure processor that must be matched precisely before the server can boot.
HPE ProLiant DL365 Gen11 servers are an excellent choice for users who need increased compute density with built-in security and flexibility. Scalable, compute-intensive solution for high-performance workloads such as general-purpose virtualisation, virtual desktop infrastructure (VDI), electronic design automation (EAD) or computationally assisted design (CAD).

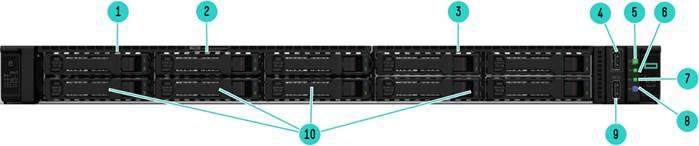

8 SFF Front View – 8 SFF & No Media Option Shown

1.	Quick removal access panel	6.	Health LED
2.	Serial no. label pull tab	7.	NIC status LED
3.	Optional Media Bay: Option Shown: no media Optional: +2 SFF U.3 Tri-mode drive cage (total max 10 SFF) Optional: 9.5mm SATA DVD-ROM/RW Optical Drive	8.	UID button LED
4.	USB 3.2 Gen1 port	9.	iLO service port
5.	Power On/Standby button and system power LED	10.	8 SAS/SATA/NVMe drive bays

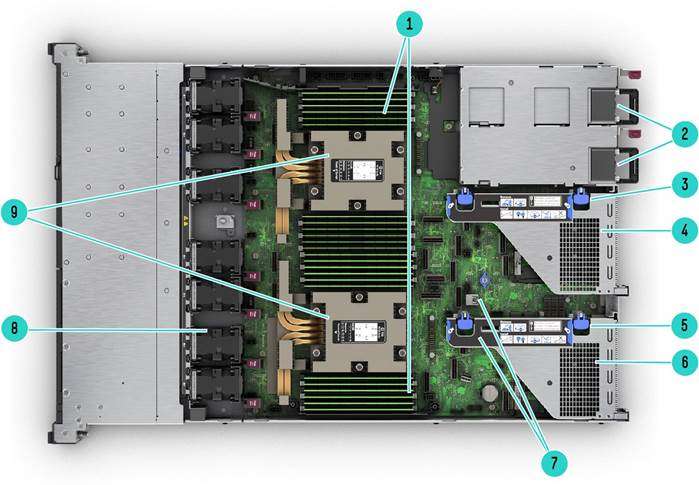

Internal View

1.	DDR5 DIMM slots. Shown populated in 24 slots	6.	(Under) OCP 3.0 Slot 1
2.	Hot Plug redundant HPE Flexible Slot Power supplies	7.	2x USB 3.2 Gen1 ports
3.	Secondary Riser connector cage, optional	8.	Fan cage shown with 7 High Performance Fans
4.	(Under) OCP 3.0 Slot 2	9.	2 Processors (heatsinks shown)
5.	Primary PCIe riser cage, standard

Rear View – Standard for all DL365 Gen11

1.	Slot 1 PCIe 5.0	6.	VGA port
2.	OCP 3.0 Slots	7.	Serial port (optional)
3.	Slot 2 PCIe 5.0	8.	Dedicated iLO management port
4.	Hot-plug Power Supply 2	9.	USB 3.2 Gen1 ports
5.	Hot-plug Power Supply 1	10.	UID LED

Form Factor

• 1U rack

Chassis Types

• 8 SFF with optional optical drive kit, and optional SFF or NVMe drive bay options
• 20 EDSFFdrive bay.
• 2 Single Width or 2 Double Width GPUs with 8 EDSFFor 4SFF U.3 NVMe drive bay.

System Fans

• Choice of Standard Fan Kit and Performance Fan Kit. One fan per kit.
• 2 CPUs

– Standard fan kits should be supported when the processors are equal to or lower than cTDP 240W

– Performance fan kits should be supported when the processors are higher than cTDP 240W

– Performance fan kits should be required when drive is NVMe or SAS4 drives.

– Performance fan kits should be required when 10 SFF SAS/SATA/NVMe is configured

– Performance fan kits should be required when EDSFF or GPU CTO Servers are configured



• Dimensions (Height x Width x Depth)

4.29 X 44.89 X 64.94 cm

1.69 X 17.67 X 25.57 in

• Packaging

91.6 X 60 X 24.2 cm

36.06 X 23.63 X 9.53 in

• Weight (approximate)

12.70 kg

27.94 lb

– SFF Minimum: 8 SFF chassis with 8 HDD blanks, 2x Drive Bay blanks, 1x processor including standard heat sink, 2x DIMMs, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)

 12.70 kg

 27.94 lb

• Packaged weight

 24.36 kg

 53.7 lb

– SFF Maximum: 10x SFF hard drives, 2x processors, 2 heat sinks, 2x power supplies, 1x Smart Array, 2x Risers installed, 16x DIMMs, 2x power supply, cables for the above

 18.39 kg

 40.46 lb

• Packaged weight

 29.36 kg

 64.73 lb

---

Configuration Information

CTO Server	HPE ProLiant DL365 Gen11 EDSFF Configure-to-order Server
SKU Number	P53934-B21
Processor	Not included as standard
DIMM Slots	24-DIMM slots*
Storage Controller	Choice of HPE OCP or PCIe plug-in controller
PCIe	1 PCIe x16 Primary Riser
Drive Cage – included	20 EDSFF
Network Controller	Choice of OCP and stand up card
Fans	Not included as standard**
Management	Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download), HPE GreenLake for Compute Ops Management (subscription included)
USB	Front: 1x USB 3.2 Gen1 + 1x iLO service port Rear: 2x USB 3.2 Gen1 Internal: 2x USB 3.2 Gen1
