HPE ProLiant DL365Gen10 Plus server

Description

Overview

HPE ProLiant DL365 Gen10 Plus servers redefine price/performance with a new approach to computing through virtualised computing. HPE ProLiant DL365 Gen10 Plus servers are powered by the latest AMD® EPYC® 7003 family of processors, delivering increased processing power, memory speeds of up to 3200 MT/s and PCIe Gen4-enabled data transfer rates.

This 2P, 1U server is designed to be flexible while offering a high core count and large memory footprint. Choose this purpose-built platform for virtualisation, high-performance computing and memory-centric workloads.

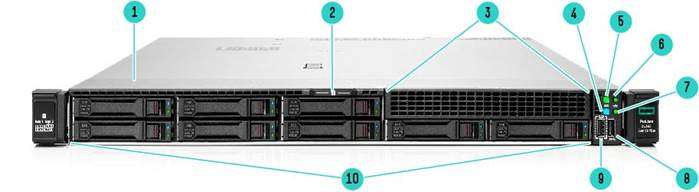

8 SFF Front View – 8 SFF & No Media Option Shown

1.	Quick removal access panel	6.	Health LED
2.	Serial no. label pull tab	7.	NIC status LED
3.	Optional Media Bay: Option Shown: no media Optional: +2SFF U.3 SAS/SATA/NVMe drives (total max 10SFF) Optional: +2FF U.2 NVMe drives (total max 10SFF) Optional: 9.5mm SATA DVD-ROM/RW Optial Drive	8.	USB 3.1 Gen1 port
4.	UID button/LED	9.	iLO Service Port
5.	Power On/Standby button and sytem power LED	10.	8 SAS/STA/NVMe drive bays

Notes: System Insight Display (SID) module will include #4-9 above

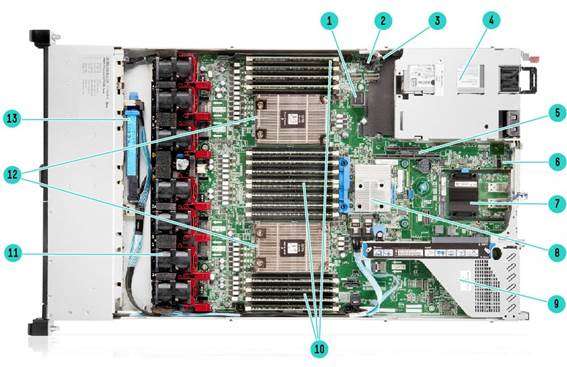

Internal View – Standard for all DL365 Gen10 Plus

1.	Internal USB 3.1 Gen1 connector	8.	Optional HPE Flexible Smart Array Controller (Type-a shown)
2.	Hard drive backplane power connector	9.	Primary PCIe riser, standard
3.	Chassis intrusion detection connector	10.	DDR4 DIMM slots, shown fully populated in 32 slots
4.	Hot Plug redundant HPE Flexible Slot Power supplies	11.	Fan cage shown with 7 High Performance Fans
5.	Secondary Riser connector (Using tertiary connector). Requires a second processor.	12.	2 processores (heat sinks shown)
6.	Serial Port Connector	13.	Optional: Smart Storage Battery
7.	(Under) OCP 3.0 Slot

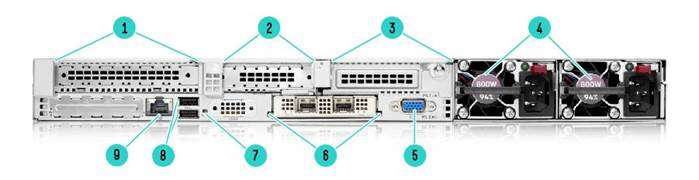

Rear View – Standard for all DL365 Gen10 Plus

1.	Slot 1 PCIe 4.0	6.	OCP 3.0 Slot
2.	Slot 2 PCIe 4.0	7.	UID LED
3.	Optional: Slot 3 PCIe 4.0 (Requires 2nd processor)	8.	USB 3.1 Gen1 Ports
4.	Hot-plug Power Supply 1 and 2	9.	iLO Management Port
5.	VGA port

Form Factor

• 1U rack

Chassis Types

• 8 SFF with optional optical drive kit, and optional SFF or NVMe drive bay options

System Fans

• Standard or perfomance fans are not included in the CTO chassis.

Dimensions (Height x Width x Depth)

4.28 X 43.46 X 74.19 cm

1.69 X 17.11 X 29.21 in



Weight (approximate)

13.39kg

29.51 lb

– SFF Minimum: 8 SFF chassis with 8 HDD blanks, 2x Drive Bay blanks, 1x processor including standard heat sink, 2x DIMMs, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)

 13.39kg

 29.51 lb



– SFF Maximum: 10x SFF hard drives, 2x processors, 2 heat sinks, 2x power supplies, 1x Smart Array, 2x Risers installed, 16x DIMMs, 2x power supply, cables for the above

 18.21kg

 40.14 lb

---

Configuration Information

CTO Server	DL365 Gen10 Plus 8SFF CTO Server
SKU Number	P38578-B21
TAA SKU*	P43251-B21
Processor	Not included as standard
DIMM Slots	32-DIMM slots*
Storage Controller	Choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	Two standard in primary riser, up to three slots with 2 processors
Drive Cage – included	8 SFF
Network Controller	Choice of OCP or stand up card
Fans	1 CPU – 5 Standard Fans 2 CPU – 7 Standard Fans
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)
USB	Front: 1 USB 3.1 Gen1 + iLO service port Rear: 2 USB 3.1 Gen1 + 1 VGA port

Notes:

– *32 DIMM slots require selection of 2 processors

– HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

– TAA compliant configuration requires TAA versions of the CTO Server SKUs.

– All CTO servers are Energy Star 3.0 compliant
