HPE ProLiant DL385 Gen10 Plus Server

Description

Overview

HPE ProLiant DL385 Gen10 Plus servers redefine price/performance with the new maths of virtualised computing. HPE ProLiant DL385 Gen10 Plus servers are powered by the latest AMD® EPYC® 7002 family of processors, delivering more processing power, faster memory speeds up to 3200 MT/s and increased data transfer rates with PCIe Gen4 capabilities. and increased data transfer rates with PCIe Gen4 capabilities.

This 2P, 2U server is designed to be flexible while offering high core counts and large memory footprints. Choose this purpose-built platform to handle virtualisation, high-performance computing and memory-centric workloads.

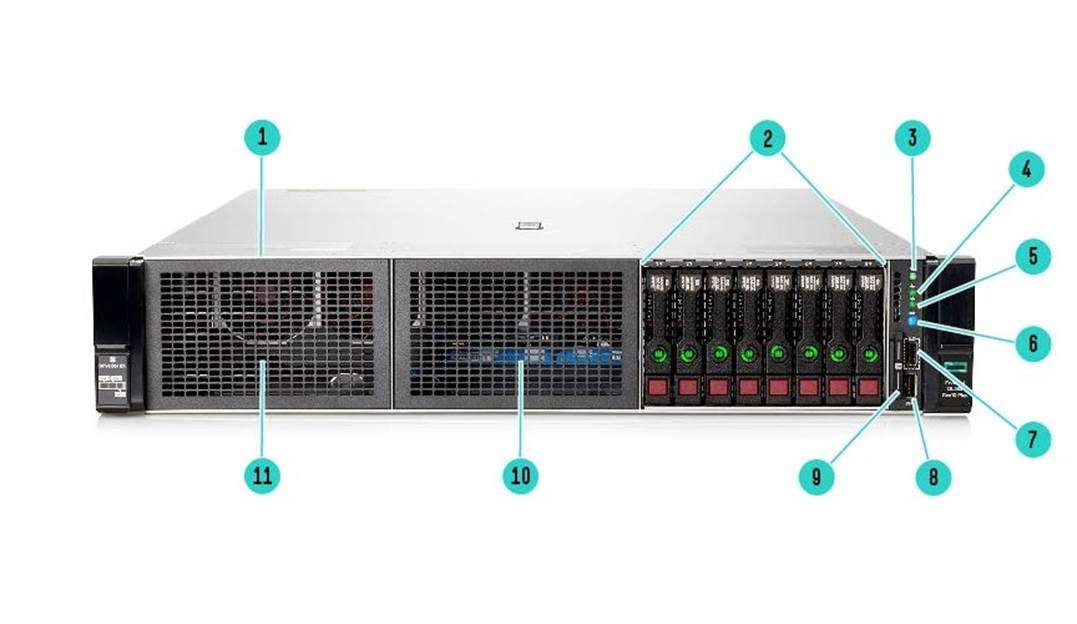

HPE ProLiant DL385 Gen10 Plus 8 SFF  Server- Front View

1	Quick removal access panel	7	iLO Front Service Port
2	Box3: 8SFF SAS/SATA shown	8	USB 3.1 Gen1
3	Power On/Standby button and system power LED button	9	Serial label pull tag
4	Health LED	10	Box2: Optional 8SFF SAS/SATA or 8 NVMe (not populated)
5	NIC Status	11	Box1: Optional 8SFF SAS/SATA or 8 NVMe (not populated)
6	UID Button/LED

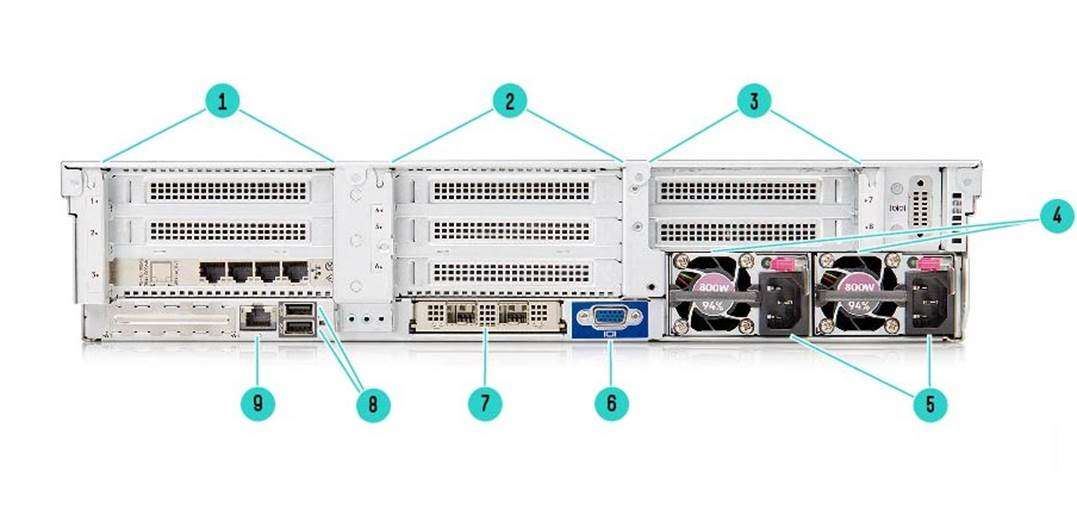

HPE ProLiant DL385 Gen10 Plus Server – Rear View

1.	Primary Riser. PCIe Slots1	6.	VGA Connector
2.	Optional Secondary Riser. PCIe Slots2	7.	OCP 3.0 Slot
3.	Optional Tertiary Riser, PCIe Slots (Slots 7-8 top to bottom)	8.	USB 3.1 Gen1 connectors (2)
4.	HPE Flexible Slot Power Supply Bay 1 & 2	9.	Dedicated iLO management port
5.	Power supply power connection.  Bay 1 & 2

Notes:

– ¹ Slots 1-3 top to bottom, Slot 3 populated with 4 Port 10 GB NIC) Optional 2SFF rear drives

– ² Slots 4-6 top to bottom, requires second riser card, and second processor). Optional 2 SFF rear drives

HPE ProLiant DL385 Gen10 Plus Server – Internal View

8SFF chassis with optional 2^nd CPU

1	Primary & Secondary Processors	6	OCP x16 Uprgrade Connector
2	Dual USB Port	7	Primary PCIe riser, standard
3	Chassis intrusion detection connector	8	Flexible Smart Array Connector
4	Hot Plug redundant HPE Flexible Slot Power supplies	9	DDR4 DIMM slots1
5	Optional Secondary & Tertiary Risers	10	Fan cage shown with 6 standard Hot-plug fans2

Notes:

– ¹ Shown half populated in 1 DPC

– ² Max Performance fans optional

Form Factor

• 2U rack

Chassis Types

• 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options
• 24 SFF bay with 8 SFF mid tray drives and 6 SFF rear drive bay option to total 38 SFF drives
• 8 LFF with Universal Media Bay, and optional SFF or NVMe drive bay options
• 12 LFF with optional 4 LFF mid-plane and optional 4 LFF to total 20 LFF drives

System Fans

Standard – fan types included

• On SFF Chassis only, 1P models ship with 4 standard fans. The second processor option kit contains 2 additional fans.
• The 12 LFF and 24 SFF chassis ship with 6 Max performance fans as standard.
• The 8 LFF chassis ships with 6 standard fans as standard.
• Max performance fan kit is available to meet ambient temperature environments.
• Max performance fan kits are required for rear drives, or >180w Processors SKUs, or if High Performance NVMe drive being used

Dimensions

• SFF Drives:

8.75 x 44.54 x 71.1 cm

3.44 x 17.54 x 28 in

• LFF Drives:

8.75 x 44.54 x 74.9 cm

3.44 x 17.54 x 29.5 in

Weight (approximate)



• Minimum:

15.1 kg / 33.25 lbs with 1 hard drive

– Maximum: 19.7 kg / 43.50 lbs with 24 hard drives

– Minimum: 8 SFF chassis with 1x SFF HDD and 7 HDD blanks, 2x Drive Bay blanks,  1x processor including standard heatsink, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)

• Maximum:

24.7 kg / 54.5 lbs with 12 hard drives

– Minimum: 17.3 kg / 38.25 lbs with 1 hard drive

– Maximum: 12 LFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x Smart Array, 2x Risers installed)

---

Configuration Information

CTO Server	HPE ProLiant DL385 Gen10 Plus 8 SFF CTO Server	HPE ProLiant DL385 Gen10 Plus 12 LFF CTO Server	HPE ProLiant DL385 Gen10 Plus 8LFF CTO Server	HPE ProLiant DL385 Gen10 Plus 24 SFF CTO Server
SKU Number	P14278-B21	P14280-B21	P14281-B21	P14279-B21
Processor	Not included as standard	Not included as standard	Not included as standard	Not included as standard
DIMM Slots	32-DIMM slots**	32-DIMM slots**	32-DIMM slots**	32-DIMM slots**
Storage Controller	Choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	Three standard in primary riser, upto Eight slots with 2 processors
Drive Cage – included	8 SFF	12 LFF	8LFF	24 SFF
Network Controller	Choice of OCP or stand up card
Fans	4-Standard	6 Performance	6-Standard	6-Performance
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)
USB	1x 3.0 standard plus iLo front service port	1x 3.0 standard plus iLo front service port	1x 3.0 standard plus iLo front service port	1x 3.0 standard plus iLo front service port

Notes:

– ** 32 DIMM slots require selection of 2 processors

– HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

– TAA compliant configuration requires HPE DL385 Gen10 Plus TAA FIO Enablement Kit  (P14282-B21)

– All CTO servers are Energy Star 3.0 compliant.
