HPE SN8700C 4-slot 16/32/64Gb Fibre Channel Director Switch
Condition: NOB
RMA Warranty
Description
Overview
HPE Storage Director Switch C-series SN8700C (MDS 9700 “V2” & “V3” Directors), HPE C-series Family
Today’s mission-critical storage environments require greater consistency, predictability and performance to meet growing business demands. In the face of explosive data growth, data centres need more IO capacity to accommodate massive amounts of data, applications and workloads. In addition to the data surge, collective expectations for availability continue to rise. Users expect applications to be available and accessible on any device, anytime, anywhere. To meet these dynamic and growing business demands, organisations need to deploy and scale applications quickly. As a result, many are turning to higher virtual machine (VM) densities to enable rapid deployment of new applications and deploying flash storage to help these applications scale to support thousands of users.
The development of next-generation, more powerful servers, enhancements to server virtualisation, and the adoption of emerging technologies such as flash-based storage and NVMe may lead to bottlenecks in the existing network infrastructure.
To increase agility, reduce expenses and take full advantage of flash-based architectures, organisations need networks that deliver the performance required by today’s server and storage environments. In addition, storage networks are becoming increasingly important for application performance, which means they must also become easier to manage and administer. By considering networking as a strategic part of a highly virtualised environment, organisations can improve optimisation and efficiency while rapidly scaling their environments.
Data centre modernisation requires faster fabric infrastructure. We now have 64Gb guides.
The HPE Storage Controller Switch C-Series SN8700C is the next-generation MDS 9700 V2/V3 controller that offers a number of unique innovations for building powerful, large-scale storage networks. These innovations enable users to build high-performance storage networking solutions that are highly scalable, always available, with comprehensive security and unified management. The HPE Storage Director Switch C-Series SN8700C supports 4/8/16/32/64 Gb FC and delivers industry-leading scalability and performance (up to 48 Tbps front-panel FC switching bandwidth), and high port density (up to 768 ports). ports in the SN8700C 16-slot guide) and high availability to reduce TCO and support integrated SAN infrastructures. HPE offers the C-Series SN8700C 16-slot FC guides with high-availability features inherent in the design. All major components, Supervisor-4, Fabric-3, and power supplies are redundant.
The HPE Storage Controller Switch C-Series SN8700C provides redundancy for all major hardware components, including the management engine and switching matrix modules, as well as power supplies. The 16-slot chassis features two hot-swappable redundant Supervisor-4 modules, eight hot-swappable redundant 3000W power supplies, and six hot-swappable Fabric-3 modules. 8-slot chassis with 2 hot-swappable redundant Supervisor-4 modules, 4 hot-swappable redundant 3000W power supplies, and 3 hot-swappable Fabric-3 modules. 4-slot chassis with 2 hot-swappable redundant Supervisor-4 modules, 4 hot-swappable redundant 3000W power supplies, and 3 hot-swappable fabric-3 modules. The open expansion slots of the HPE Storage Controller Switch C-Series SN8700C can be populated with HPE C-Series FC modules, including 48-port 32Gb or 64Gb FC modules.

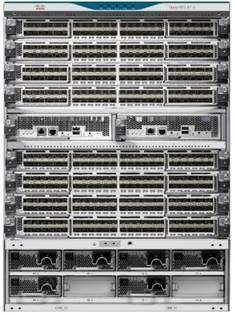

HPE Storage Director Switch C-series SN8700C
| Product Family Models
· HPE SN8700C 16-slot 16/32/64Gb FC Director (MDS 9718) – Intelligent, multi-protocol 16-slot Director with up to 768 64/32/16/8/4 Gb Fibre Channel ports in a single chassis. Also, the HPE SN8700C 48-port 32Gb FC Module or 64G FC Module provides up to 768 ports of full 16/32/64Gbps line-rate performance across all ports in a single chassis. Notes: – Base unit includes a 26U, (16) slot chassis with two hot swappable redundant Supervisor-4 Modules, six hot swappable Fabric-3 Modules, eight hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to sixteen optional expansion port modules. The 6 Fabric 3 modules provide full line rate 32Gb or 64Gb performance. – For help configuring your C-series SN8700C Director, please visit How to Configure your C-series Director · HPE SN8700C 8-slot 16/32/64Gb FC Director (MDS 9710) – Intelligent, multi-protocol 8-slot Director with up to 384 64/32/16/8/4 Gb Fibre Channel ports in a single chassis. Also, the HPE SN8700C 48-port 32Gb FC Module or 64G FC Module provides up to 384 ports of full 16/32/64Gbps line-rate performance across all ports. The appropriate number of Fabric 3 modules must be configured to support full line rate across all ports. Notes: – Base unit includes a 13U, (8) slot chassis with two hot swappable redundant Supervisor-4 Modules, three hot swappable Fabric-3 Modules, four hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to eight optional expansion port modules. The 3 Fabric 3 Modules included provide full line rate 32Gb performance. For full line rate 64Gb, 6 Fabric 3 modules are required. – For help configuring your C-series SN8700C Director, please visit How to Configure your C-series Director · HPE SN8700C 4-slot 16/32/64Gb FC Director (MDS 9706) – Intelligent, multi-protocol 4-slot Director with up to 192 64/32/16/8/4 Gb Fibre Channel ports in a single chassis. Also, the HPE SN8500C 48-port 32Gb FC Module or 64Gb FC Module provide up to 192 ports of full 16/32/64 Gbps line-rate performance across all ports. The appropriate number of Fabric 3 modules must be configured to support full line rate across all ports. Notes: – Base unit includes a 9U, (4) slot chassis with two hot swappable redundant Supervisor-4 Modules, three hot swappable Fabric-3 Modules, two hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to four optional expansion port modules. The 3 Fabric 3 Modules included provide full line rate 32Gb performance. For full line rate 64Gb, 6 Fabric 3 modules are required. – For help configuring your C-series SN8700C Director, please visit How to Configure your C-series Director · HPE SN6010C 16Gb Fabric Switch (MDS 9148S) – With up to 48 autosensing 16/8/4/2 Gb Fibre Channel ports – “Pay as you grow” scalability starting at 12 ports · HPE SN6610C 32Gb Fabric Switch (MDS 9132T) – With up to 32 Auto-Sensing 32/16/8/4 Gb Fibre Channel ports – “Pay as you grow” scalability starting at 8 ports |
| · HPE SN6620C 32Gb Fabric Switch (MDS 9148T)
– With up to 48 Auto-Sensing 32/16/8/4 Gb Fibre Channel ports – “Pay as you grow” scalability starting at 24 ports · HPE SN6630C 32Gb Fabric Switch (MDS 9396T) – With up to 96 autosensing 32/16/8/4 Gb Fibre Channel ports – “Pay as you grow” scalability starting at 48 ports · HPE SN6640C 32Gb Fabric Switch (MDS 9220i) – Intelligent multi-protocol Fabric Switch with twelve 32-Gbps Fibre Channel ports, four 1/10-, two 25-, and one 40- Ethernet IP storage services ports, in a fixed One-Rack Unit (1RU) form factor. · HPE SN6720C 64Gb Fabric Switch (MDS 9148V) – With 48 Auto-Sensing 64/32/16/8 Gb Fibre Channel ports · HPE SN6710C 64Gb Fabric Switch (MDS 9124V) – With 24 Auto-Sensing 64/32/16/8 Gb Fibre Channel ports · HPE SN6730C 64Gb Fabric Switch (MDS 9396V) – With 96 Auto-Sensing 64/32/16/8 Gb Fibre Channel ports |
| Family Information
|
||||||||||||||||||||||||||||||||||||||||
|
| HPE Storage Director Switch C-series SN8700C FC Weights, Dimensions, Environmental, Power and Packaging | |||
| Diagnostics | Cisco GOLD (Generic Online Diagnostics) is a suite of diagnostic facilities to verify that hardware and internal data paths are operating as designed.
Boot-time diagnostics, continuous monitoring, standby fabric loopback tests, and on-demand and scheduled tests are part of the Cisco GOLD feature set. This industry-leading diagnostics subsystem enables rapid fault isolation and continuous system monitoring critical in today’s continuously operating environments. |
||
| Compatibility | Fibre Channel protocols | See table above | |
| Classes of service | Class 2, Class 3, Class F | ||
| Port types | Fibre Channel: E, F, FL, B, Enhanced SD, ST, TE; VE, VF | ||
| Internet standards | RFC 2625, RFC 4338, IEEE 802.1Qbb-2011, IEEE 802.3db-2011, EEE 802.1Qaz-2011, Extensive IETF-standards-based TCP/IP, SNMPv3, and remote monitoring (RMON) MIBs | ||
| O/S Support | MDS NX-OS Release 8.4(1)- Min. Revision; | ||
| Performance | Transfer Rate | · 8/16/32/64 Gb FC port | |
| Devices/Ports | · 768 FC ports | ||
| Interface | · 4/8/16/32/64 Gb FC ports
· 10/100/1000 Mb Ethernet port (management) · RS-232 RJ-45 console port |
||
| Connectors/Cables | Connectors | · RJ-45 Interface Cable Connector
· LC-type-fiber optic SFP |
|
| Cables | · RJ-45 to RJ-45 rollover cable
· RJ-45 to DB-25 female DTE adapter (labeled “Terminal “) · RJ-45 to DB-25 male DCE adapter (labeled “Modem”) · LC-type cable |
||
| Dimensions | Description | Out-of-box | Shipping |
| 16-Slot Base unit w/o ports(26U) | 45.25 x 17.3 x 35 in.
(114.9 x 43.9 x 88.9 cm) |
60.75 x 43.5 x 48 in (154.30 x 110.49 x 121.92 cm) |
|
| 8-Slot Base unit w/o ports(14U) | 24.35 x 17.3 x 34.0 in. (61.9 x 43.9 x 86.4 cm) |
353 x 30 x 42 in
(134.6 x 76.2 x 106.7 cm) |
|
| 4-Slot Base unit w/o ports(9U) | 15.6 x 17.3 x 32.0 in. (39.62 x 43.9 x 81.3 cm) | 45 x 30 x 40 in
(114.3 x 76.2 x 101.6 cm) |
|
| 3000W AC | 22.04 x 3.95 x 1.6 in. (55.98 x 10.03 x 4.06 cm) |
N/A | |
| Environment | Non-operating temp | -40° to 158° F (-40° to 70° C), ambient non-operating and storage | |
| Non-operating Humidity | 10 to 95%, ambient (non-condensing) non-operating and storage | ||
| Operating temp | 32° to 104° F (0° to 40° C), ambient operating | ||
| Operating Humidity | 10 to 90%, ambient (non-condensing) operating | ||
| Electrical | Line Voltage | 3000W AC: 100 to 240 VAC ±10% | |
| Line Frequency | 3000W AC: 50 to 60 Hz (nominal) (±3% for full range) | ||
| Typical Input Current | 3000W AC:
|
||
| LED Indicators (On front panel) |
Switch System | · Power Supply Status
· Fan Status · Supervisor Module Status · Fabric Module Status · I/O Modules Status |
|
| Supervisor | · Supervisor ID
· Supervisor Status · System Status · Active/Standby · Power Management · Ethernet Activity (management) · USB Flash Activity · Slot 0 Activity |
||
| LED Indicators (On back) |
Power Supply | · Input Power
· Output Power · PSU Fault Indicator · PSU ID |
|
| Fan | · Fan Tray ID
· Fan status · Left Fabric Module Status · Right Fabric Module Status |
||
Configuration Information
| Description | SKU |
| HPE SN8700C 16-slot 16/32/64Gb Fibre Channel Director Switch | R7L00B |
| Notes: Base unit includes a 26U, (16) slot chassis with two hot swappable redundant Supervisor-4 Modules, six hot swappable Fabric-3 Modules, eight hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to sixteen optional expansion port modules. | |
| HPE SN8700C 8-slot 16/32/64Gb Fibre Channel Director Switch | R6M36B |
| Notes: Base unit includes a 14U, (8) slot chassis with 2 hot swappable redundant Supervisor-4 Modules, three hot swappable Fabric-3 Modules, 4 hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to eight optional expansion port modules. | |
| HPE SN8700C 4-slot 16/32/64Gb Fibre Channel Director Switch | R6M35B |
| Notes:
– Base unit includes a 9U, (4) slot chassis with 2 hot swappable redundant Supervisor-4 Modules, three hot swappable Fabric-3 Modules, 2 hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to four optional expansion port modules. – FICON support is available only on the SN8700C 4-slot and 8-slot chassis (MDS 9706/9710) |
|
