HPE SN6650B 32Gb 128/48 48-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch
Condition: NOB
RMA Warranty
Description
Overview
As organisations respond to digital transformation, data centres are under pressure to deliver higher performance, flexibility and operational efficiency to meet exponential data growth and dynamic business demands. To get the performance they need, organisations are transitioning their data centres to all-flash data storage, which requires a modern storage network that can keep pace with innovation in computing and storage resources. By modernising the SAN, organisations will be able to maximise productivity and increase the efficiency of their storage investments, while preparing for emerging protocols such as NVMe, as well as slower FC speeds, even as they rapidly expand their environments. In addition, adding automated 32Gb technology to Fibre Channel will transform SAN management by simplifying operations and freeing up resources to focus on business optimisation and revenue opportunities.
The HPE Storage Fibre Channel Switch B-Series SN6650B 32Gb FC Switch provides tools to optimise NVMe storage and automate SAN management tasks. It is a high port density building block with 128 Fibre Channel ports for increased scale, 33 percent better connectivity, and faster speeds with up to 4 Tbps of total system bandwidth for data centre consolidation and the most demanding all-flash workloads. New automation capabilities enable DevOps resources to increase productivity by automating operations through simple and open automation via open APIs and the Ansible automation engine. Organisations can automate repetitive tasks and deliver consistent performance by eliminating human error. NVMe-ready switches drive innovation by allowing organisations to seamlessly integrate next-generation flash storage without disruptive removal and replacement. The HPE Storage Fibre Channel Switch B-Series SN6650B provides new insights into NVMe storage fabrics with modern I/O traffic visibility to improve SAN efficiency.
The HPE Storage Fibre Channel Switch B-series SN6650B is available in the following models:
- HPE SN6650B 32Gb 128/96 Power Pack+ 96-port 32Gb Short Wave SFP+ Integrated FC Switch
- HPE SN6650B 32Gb 128/48 48-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch
- HPE SN6650B 32Gb 128/48 Fibre Channel Switch
HPE Power Pack+ software provides the SAN administrator with the necessary tools to monitor the health and performance of the network, while also ensuring the highest levels of security, scalability and manageability. HPE Power Pack+ software includes additional software: Fabric Vision, ISL Trunking, and Extended Fabric.

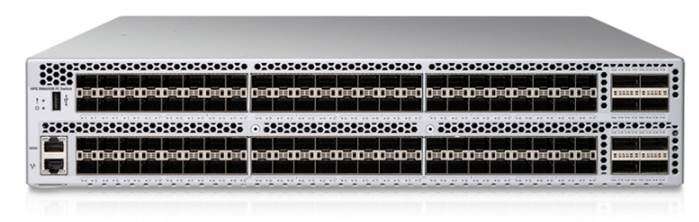

HPE Storage Fibre Channel Switch B-series SN6650B
SN6650B 32Gb FC Switch*
- Provides the tools to optimize NVMe storage and automate SAN management tasks
- It is a high port density building block with a management platform designed to support application, data, and storage growth with 33% more port capacity than the HPE SN6500B 16Gb FC switch
- Delivers 48, 72, 80, 96, 104 or 128-ports in a 2U enclosure
- As an NVMe-ready switch, the SN6650B allows organizations to seamlessly integrate HPE B-series 32GbFibre Channel networks with the next generation of flash storage
- Features Integrated network sensors for advanced monitoring of NVMe workloads, helping to ensure optimal performance.
- Delivers new automation capabilities that enable DevOps resources to automate and orchestrate SAN resources through open APIs and the Ansible automation engine
Notes: *32 Gbps performance can be obtained between two 32 Gbps capable devices.
| Family Information | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features | SN6600B 32Gb FC Switch and SN6600B 32Gb Power Pack+ | SN6700B 64Gb FC Switch | |
| Targeted Environment | Workgroups, Departments | Workgroups, Departments | |
| Fibre Channel Port Bandwidth | 32 Gbps | 64Gb | |
| Aggregate device bandwidth | 2 Tbps | 3.5 Tbps | |
| OS Support | Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | ||
| Storage system support | Primera, Nimble, 3PAR StoreServ, StoreVirtual , P9500/XP, MSA | ||
| FC Ports | 24 or 48 enabled
64 Max |
24 Enabled
56 Max |
|
| SFP | B-series Optics (16Gb or 32Gb) | B-series Secure
24 32Gb SFP28 or 64Gb SFP56 included |
|
| Advanced Trunking | Included with Power Pack+ or Optional Upgrade | Included in Power Pack+ on all switches | |
| Adaptive Networking | Included | Included | |
| Form factor | 1U | 1U | |
| Zoning Software | Yes (Included) | Yes (Included | |
| Hot plug, redundant power supplies | Yes | Yes | |
| Hot plug fans | Yes (integrated with power supply) | Yes (integrated with power supply) | |
| Features | 1606 Extension SAN Switch | SN4000B SAN Extension Switch |
| Targeted Environment | Data Centers | Data Centers |
| Fibre Channel Port Bandwidth | 8Gbps | 16Gbps |
| Ethernet | 1Gbps Ethernet | 1/10/40Gbps Ethernet |
| OS Support | Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | |
| Storage system support | Primera, Nimble, 3PAR StoreServ, StoreVirtual , P9500/XP, MSA | |
| FC Ports | 4 or 16 Enabled 16 Max |
24 Enabled 24 Max |
| Ethernet Ports | 2 or 6 Enabled 6 Max |
16 ports 1/10GbE Enabled 16 Max 2 – 40GbE ports |
| SFP | B-series | B-series |
| Advanced Trunking | Included with Power Pack+ or Optional Upgrade | Included |
| Adaptive Networking | Included | Included |
| Form factor | 1U | 2U |
| Zoning Software | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies |
Yes | Yes |
| Hot plug fans | Yes | Yes |
| SN8000B 8-Slot SAN Director Power Pack+ | SN8600B 8-Slot SAN Director Power Pack+ | SN8700B 8-Slot SAN Director Power Pack+ | |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers | Cloud Optimized Data Centers |
| Port Bandwidth | Up to 16Gbps | Up to 32 Gbps | Up to 64Gbps |
| Aggregate device bandwidth |
10.2Tbps | 20.48 Tbps | 31 Tbps |
| OS Support | Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | ||
| Storage system support | Primera, Nimble, 3PAR StoreServ, StoreVirtual , P9500/XP, MSA | ||
| Ports | Up to 512 SFP | 512 32 Gbps ports or a 640-port equivalent with 128 Gbps (32 Gbps×4 QSFP ports) | 512 ports – 384 device ports with a 64Gbps data rate plus 32 4x50Gbps ICLs or
640 ports – 512 device ports with a 32Gbps data rate plus 32 4x50Gbps ICLs |
| SFP | B-series | B-series | B-series Secure |
| Advanced Trunking |
Included with Power Pack | Included with Power Pack | Included with Power Pack |
| Adaptive Networking | Included | Included | Yes (included) |
| Form factor | 14U | 14U | 14U |
| Zoning Software | Yes (included) | Yes (included) | Yes (included) |
| Hot plug, redundant power supplies | Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | SN8000B 4-Slot SAN Director and 4-Slot SAN Director Power Pack+ | SN8600B 4-slot SAN Director Power Pack+ | SN8700B 4-Slot SAN Director Power Pack+ |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers | Cloud Optimized Data Centers |
| Port Bandwidth | Up to 16Gbps | Up to 32Gbps | Up to 64Gbps |
| Aggregate device bandwidth |
5.1 Tbps | 10.24 Tbps | 15.5 Tbps |
| OS Support | Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock
|
||
| Storage system support | Primera, Nimble, 3PAR StoreServ, StoreVirtual , P9500/XP, MSA | ||
| Ports | Up to 256 SFP | Up to 256 32 Gbps ports or a 320-port equivalent with 16 ICL ports. | 256 ports – 192 device ports with a 64Gbps data rate plus 16 4x50Gbps ICLs or
320 ports – 256 device ports with a 32Gbps data rate plus 16 4x50Gbps ICLs |
| SFP | B-series | B-Series | B-series Secure |
| Advanced Trunking | Included with Power Pack or Optional Upgrade | Included with Power Pack | Included with Power Pack |
| Adaptive Networking | Included | Included | Yes (included) |
| Form factor | 9U | 9U | 9U |
| Zoning Software | Yes (included) | Yes (Included) | Yes (included) |
| Hot plug, redundant power supplies | Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | Brocade 16Gb SAN Switch for HPE c-Class BladeSystem | Brocade 8Gb SAN Switch for HPE c-Class BladeSystem | Brocade 16Gb Fibre Channel SAN Switch Module for HPE Synergy |
| Targeted Environment | Enterprise, Datacenters, Workgroups, Departments | Workgroups, Departments | Enterprise, Datacenters, Workgroups, Departments |
| Port Bandwidth | 16 Gbps | 8 Gbps | 16 Gbps |
| Aggregate device bandwidth | 448 Gbps | 192 Gbps | 576 Gbps |
| OS Support | Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | ||
| Storage system Support | Primera, Nimble, 3PAR StoreServ, StoreVirtual , P9500/XP, MSA | ||
| Ports | 12 external /16 internal | 4 or 8 external / 8 or 16 internal | 8 SFP+ external, 4 QSFP external /12 internal |
| SFP | B-series | B-series | B-series |
| Advanced Trunking | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included | Included |
| Form factor | Embedded | Embedded | Embedded |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies | Yes, in BladeSystem Enclosure | Yes, in BladeSystem Enclosure | Yes, in Synergy Frame |
| Hot plug fans | Yes, in BladeSystem Enclosure | Yes, in BladeSystem Enclosure | Yes, in Synergy Frame |
| Fibre Channel ports | 96 SFP+ ports capable of operating at 4/8/10/16/32 Gbps Fibre Channel auto-sensing speeds; 8 QSFP ports capable of operating at 4×32 / 4×16 / 4×8 / 4×4 Gbps Fibre Channel speeds.
Offers a base configuration of 48 ports, two 24-port SFP+ PoD (Ports on Demand), and one 32-port QSFP PoD. The switch has a total of eight 32 Gbps QSPF ports. This allows users to grow from 48 ports to 128 ports. Supports F/E/EX_Port and D_Port types on the SFP+ ports and only F/E/EX_Port and D_Port types on the QSFP ports. |
| Scalability | Full fabric architecture with a maximum of 239 switches |
| Certified maximum | Single fabric: 56 domains, 7 hops
MPR fabric: 19 hops Refer to SAN Design Guide for current configuration information: |
| Interoperability |
|
| Performance | Fibre Channel: 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; 10.53 Gbps line speed, full duplex; 14.025 Gbps line speed, full duplex; 28.05 Gbps, full duplex; 112.2 Gbps, full duplex; auto-sensing of 4/8/10/16/32 Gbps port speeds and capable of supporting 128 Gbps speeds; 10 Gbps optionally programmable to fixed port speed. Auto-sensing of 4×32 / 4×16 / 4×8 / 4×4 Gbps speeds on the QSFP ports. |
| ISL Trunking | Frame-based trunking with up to eight 32 Gbps connections between a pair of switches combined to form a single logical ISL with a speed of up to 256 Gbps (512 Gbps full duplex) per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Fabric OS. On the QSFP ports 256 Gbps trunks are supported by trunking 2× (4×32 Gbps) QSFP ports. |
| Aggregate bandwidth | 4 Tbps |
| Maximum Fabric latency | Latency for locally switched ports is < 780 ns (including FEC); compression is 1 μs per node |
| Maximum frame size | 2112-byte payload |
| Frame buffers | 15K frame buffers with dynamic buffer sharing capability across ports |
| Classes of service | Class 2, Class 3, Class F (Inter-switch frames) |
| Port types | D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port, optional port-type control |
| Data traffic types | Fabric switches supporting unicast |
| Media types | Hot-pluggable, industry-standard Small Form-Factor Pluggable Plus (SFP+), LC connector; Short-Wave Laser (SWL), Long-Wave Laser (LWL); Extended Long-Wave Laser (ELWL); distance depends on fiber optic cable and port speed. Supports SFP+ (32/16/8 Gbps), SFP+ (16/8/4 Gbps), SFP+ 10 Gbps optical transceivers, 4×32 Gbps QSFP SWL and 4×16 Gbps QSFP SWL optical transceivers.
Notes: 32 Gbps ELWL is currently not supported with Fabric OS v8.2.0 but is planned for future support. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Fabric services | Monitoring and Alerting Policy Suite (MAPS); Flow Vision; Brocade Adaptive Networking (Ingress Rate Limiting, Traffic Isolation, QoS); Fabric Performance Impact (FPI) Monitoring; Slow Drain Device Quarantine (SDDQ); Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning, peer zoning, target-driven zoning); Dynamic Path Selection (DPS); Brocade Extended Fabrics; Enhanced BB Credit Recovery; FDMI; Frame Redirection; Frame-based Trunking; FSPF; Integrated Routing; Brocade ISL Trunking; Management Server; NPIV; Time Server; Registered State Change Notification (RSCN); Reliable Commit Service (RCS); Simple Name Server (SNS); Virtual Fabrics (Logical Switch, Logical Fabric); Read Diagnostics Parameter (RDP) |
| Extension | Fibre Channel, in-flight compression (Brocade LZO) and encryption (AES-GCM-256); integrated optional 10 Gbps Fibre Channel for DWDM MAN connectivity |
| Management | |
| Management software supported | HTTPS/HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools; Network Advisor SAN Enterprise ; HPE SANnav Management Software, Command Line Interface (CLI); SMI-S compliant; trial licenses for add-on capabilities |
| Security | DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IPsec, IP filtering, LDAP with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, user-defined Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, Secure Syslog, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch. , Secure Boot., TLS v1.2/v1.3 The SN6650B Switch provides up to 12 in-flight encryption and compression ports |
| Management access | 10/100/1000 Mbps Ethernet (RJ-45), serial port (RJ-45), and one USB port |
| Diagnostics | ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; flow mirroring; built-in flow generator; POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, optics health monitoring, power monitoring, RAStrace logging, and Rolling Reboot Detection (RRD) |
| Mechanicals | |
| Enclosure | Back-to-front airflow; non-port-side intake; port-side exhaust; 2U |
| Size | Width: 44.0 cm (17.32 in.)
Height: 8.67 cm (3.41 in.) Depth: 60.96 cm (24 in.) |
| System Weight | 21.31 kg (47.00 lb) with two power supply FRUs, and three fan FRUs without transceivers |
| Environment | |
| Operating environment | Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing) |
| Non-operating | Temperature: −25°C to 70°C/−13°F to 158°F
Humidity: 10% to 90% (non-condensing) |
| Operating Altitude | Up to 3,000 m (9,842 ft) |
| Storage altitude | Up to 12 km (39,370 ft) |
| Shock | Operating: Up to 20 G, 6 ms half-sine
Non-operating: Half-sine, 33 G 11 ms, 3/eg axis |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz
Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz |
| Heat dissipation | 128 ports at 3,512 BTU/hr |
| Power | |
| Power Supply | Two power supply FRUs with integrated power module, voltage range of 90 V to 264 V AC (for AC units) |
| Fans | Three fan FRUs |
| AC input | 100 V to 240 V nominal, 90 V to 264 V range, 12 A |
| AC Input line frequency | 50 Hz to 60 Hz nominal, 47 Hz to 63 Hz range |
| AC Power Consumption | Maximum 942 W with all 128 ports operating at 32 Gbps (96 ports populated with 32 Gbps SWL optics and 8
QSFP ports populated with 4×32 Gbps SWL optics) Maximum of 495 W for empty chassis with no optics in idle configuration |
Configuration Information
| Description | SKU | |
| HPE SN6650B 32Gb 128/48 48-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch | Q9V95C | |
| Notes:
– 32Gb 128-port FC Switch with 48 active ports bundled with 48 32Gb SFP+ Secure optics; accessory kit (rackmount kit, enterprise safety and regulatory information, installation guide with rack-mounting instructions), power cords, serial cable, base software of Fabric OS, Advanced Web Tools and Advanced Zoning – Requires the use of Secure optics |
||
| HPE SN6650B 32Gb 128/96 Power Pack+ 96-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch | Q9V96C | |
| Notes:
– 32Gb 128-port FC Switch with 96 active ports bundled with 96 32Gb SFP+ Secure optics; accessory kit (Rackmount kit, enterprise safety and regulatory information, installation guide with rack-mounting instructions), power cords, serial cable, base software of Fabric OS, Advanced Web Tools, Advanced Zoning, and HPE Power Pack+ software of Fabric Vision, ISL Trunking and Extended Fabric – HPE B-series software licenses are available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses are functionally equivalent to the corresponding physical licenses. The E-Delivery version (ending with AE) is listed first and the physical version is second. – Requires the use of Secure optics |
||
