HPE Storage Fibre Channel Switch C-Series SN6710C

Description

Overview

The HPE Storage Fibre Channel Switch C-Series SN6710C (MDS 9124V) is a next-generation, 24-port, 64Gbps Fibre Channel switch that provides high-speed Fibre Channel connectivity from the server rack to the SAN core. It supports small, medium and large enterprises that are rapidly deploying cloud-class applications, providing greater bandwidth, scale and consolidation benefits. The switch allows for a seamless transition to Fibre Channel Non-Volatile Memory Express Edition (FC-NVMe) workloads wherever available, without the need for any hardware upgrades in the SAN. The HPE Storage Fibre Channel Switch C-Series SN6710C offers 24 ports, partially or fully populated with 32Gb or 64Gb transceivers. For maximum flexibility, the HPE SN6710C switch is scalable from 8 to 24 ports.

The HPE Storage Fibre Channel Switch C-Series SN6710C can be configured, managed, monitored, and troubleshooted using the Nexus Dashboard Fabric Controller (NDFC), formerly known as Data Centre Network Manager (DCNM), which now manages the entire Cisco Data Centre product suite. It is powered by the C-Series MDS 9000 NX-OS software, which includes storage networking features and functionality, and works in conjunction with the C-Series SN8700C (MDS 9700) family of multilayer guides, the C-Series SN6010C (MDS 9148S) multilayer fabric switch, the C-Series SN6610C (MDS 9132T), the C-Series SN6620C (MDS 9148T) multilayer fabric switch, C-Series SN6630C (MDS 9396T) multilayer fabric switch, C-Series SN6720C (MDS 9148V) multilayer fabric switch, and C-Series SN6640C (MDS 9220i) multiservice fabric switch are compatible, providing transparent end-to-end service delivery in core edge deployments.

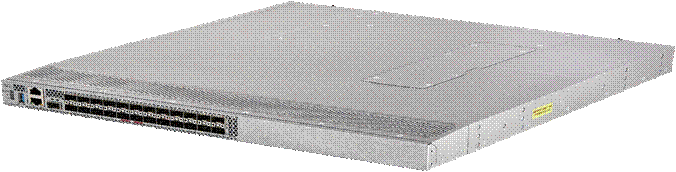

HPE Storage Fibre Channel Switch C-Series SN6710C

Environmental

• Physical dimensions (H x W x D) of 1RU: 1.72 x 17.3 x 18 in. [4.37 x 43.94 x 45.72 cm]) excluding Power Supply Unit (PSU) and fan-tray handles)
• Weight of fully configured chassis: 18.73 lb (8.5 kg)
• Ambient operating temperature: 32 to 104°F (0 to 40°C)
• Ambient non-operating temperature: -40 to 158°F (-40 to 70°C)
• Humidity (RH), ambient (noncondensing) operating: 10 to 90%
• Humidity (RH), ambient (noncondensing) non-operating and storage: 10 to 95%
• Operating altitude: -197 to 6500 ft (-60 to 2000 m)

Power and Cooling

• Power supplies (500W AC) (maximum of 2 per switch)
• AC Input: 100 to 240 VAC nominal (+/-10% for full range)
• Frequency: 50 to 60 Hz nominal (+/-3 Hz for full range)
• Typical power consumption:

– ◦ 286W for 24-Port switch with 24 64G SW optics modules under 50% line rate

– Airflow: Rear to front (toward ports)

• HPE recommends maintaining a minimum air space of 2.5 in. (6.4 cm) between walls and chassis air vents and a minimum horizontal separation of 6 in. (15.2 cm) between two chassis to prevent overheating
