HPE SN8700B 4-slot Power Pack+ Director Switch
Condition: NOB
RMA Warranty
Overview
Today’s organisations face a number of challenges, including unprecedented data growth, mission-critical workloads, increasing VM densities, and how to leverage investments in new technologies such as flash and non-volatile memory (NVMe) storage. As these platforms become faster and more cost-effective than ever before, data centres are rapidly transforming and need to deliver greater scale, higher availability and better reliability. To meet these challenges, storage networks are becoming even more critical and must deliver more value than ever before through performance, reliability and automation of common tasks.
As an integral part of the modern data centre, HPE B-Series Fibre Channel HPE Storage SAN Conductor Switches are industry-leading SAN infrastructure solutions that optimise storage, simplify operations and automate SAN management tasks. With industry-leading low latency, higher bandwidth and continuous availability, organisations can reliably access data and applications while ensuring modern workloads run smoothly.
Modern SANs must also be self-learning, self-healing and self-optimising, with advanced analytics that provide actionable insights in real time. B-Series Fibre Channel HPE Storage SAN Conductor Switches provide organisations with faster, smarter and more resilient data networks that maximise the performance of server and storage resources as they scale to meet changing business needs. In addition, HPE gives customers peace of mind and investment protection by allowing 32Gb HPE SN8600B guides to be upgraded to 64Gb HPE SN8700B guides via core blade upgrades without costly removal and replacement.
HPE SN8700B 64Gb 8-Slot and 4-Slot HPE Storage SAN Director Switch
HPE SN8700B 64Gb SAN Directors
The HPE SN8700B Conductor provides up to 512 64Gbps ports, enabling organisations to scale more devices, applications and workloads. With diverse deployment options, multi-protocol flexibility and hybrid blade capabilities, organisations can adapt and optimise their business to meet next-generation storage and server requirements. HPE SN8700B guides support the simultaneous use of legacy Fibre Channel and NVMe storage traffic, enabling organisations to seamlessly integrate HPE SN8700B Fibre Channel networks with next-generation NVMe-based storage without disruptive teardowns and replacements.
The HPE SN8700B Director modular design provides flexibility with two customisable chassis (available in two models: port-side inlet and port-side exhaust) that can be scaled to accommodate more devices, applications and workloads on demand. Both chassis use Brocade Ultra Scale ICL technology to extend the modular SAN while retaining blade ports for device connectivity and allowing for flexible SAN designs that support core edge or mesh topologies. This also provides our customers with the flexibility to install rack-ready data centre equipment based on hot/cold aisle network designs.
The 14U HPE SN8700B 8-slot PP+ Director Switch is built for large enterprise networks and has eight vertical blade slots to provide up to 512 ports for device connectivity. An additional 32 UltraScale InterChassis Link (ICL) connections provide 128 ports for chassis-to-chassis interconnect.
· The 8U HPE SN8700B 4-slot PP+ Director Switch is built for midsize networks and has four horizontal blade slots to provide up to 256 ports for device connectivity. An additional 16 UltraScale ICL connections provide 64 ports for chassis-to-chassis interconnect.
· Each blade slot within the SN8700B 4-slot and 8-slot PP+ Director Switch chassis can be populated with optional port or extension blades. For device connectivity, the following blades are available:
– HPE SN8700B 64Gb 48p SW SFP28 Blade Fibre Channel port blade provides 48 x 64Gbps Fibre Channel ports with backward-compatibility support for 8, 10, 16, and 32Gbps Fibre Channel connectivity.
– HPE SN8700B 32Gb 48p Fibre Channel port blade provides 48 x 32Gbps Fibre Channel ports with backward-compatibility support for 4, 8, 10, and 16Gbps Fibre Channel connectivity.
– HPE SN8700B 64Gb 64p Fibre Channel port blade provides 64 x 64Gbps Fibre Channel ports utilizing 32 Double Density ports with backward-compatibility support for 8, 10, 16, and 32Gbps Fibre Channel connectivity
– HPE SN8600B 32Gb 48p Fibre Channel port blade provides 48 x 32Gbps Fibre Channel ports with backward compatibility support for 4, 8, 10, and 16Gbps Fibre Channel connectivity in addition to supporting secure and non-secure optics.
– HPE SN8600B 32Gb 64-port Fibre Channel port blade provides 64 x 32Gbps Fibre Channel ports with backward-compatibility support for 4, 8, and 16Gbps Fibre Channel connectivity as well as support for 10, 25, and 40GbE FCoE connectivity.
HPE SN8600B 32Gb SAN Extension Blade providing 16-ports for 32 Gbps Fibre Channel connectivity, 16-ports for 1/10 Gigabit Ethernet (GbE) connectivity, and 2-ports for 40 GbE connectivity for Fibre Channel and IP replication traffic to support disaster recovery and data protection storage solutions over long distances
To create high-scale architectures, the new HPE SN8700B 64Gb 64p FC blade scales the SN8700B 8-slot guides to 512 x 64G ports and the SN8700B 4-slot guides to 256 x 64G ports. This blade increases total system bandwidth to 39.6Tb/s to handle more workloads, making it ideal for large enterprise infrastructures. The HPE SN8700B 64Gb 64p FC blade uses SFP-DD transceivers to enable more than 33% device connectivity in very dense spaces. Each SFP-DD port provides two ports for device or ISL connectivity with SN connectors, each with independently configurable port speeds. These ports are capable of 2 x 64G, 32G, or 16G using SFP-DD transceivers, or 64G, 32G, 16G, or 8G using SFP+ transceivers. with this highly efficient, high-density design of the blade, organisations can consolidate more device connectivity into a single fabric and reduce capital expenditures by consuming less rack space. By using fewer chassis, it reduces operating costs through lower power consumption, cooling and management. With industry-leading port densities and increased bandwidth, organisations can efficiently scale to meet data growth demands and increase efficiency by maximising space utilisation, leaving room for future expansion of demanding IT applications.
Chassis connectivity utilises fibre-optic inter-chassis links (ICLs), providing 128 Gbps bandwidth over QSFP links. These links can support distances of up to 2 kilometres and connect up to 9 SN8700B chassis in a full mesh topology and up to 12 SN8700B chassis in a core-edge topology, enabling a flatter, faster, and simpler architecture that improves consolidation while reducing network complexity and cost.
UltraScale ICLs are QSFP-based and support scalable core edge and mesh chassis topologies. These high-density chassis topologies can reduce inter-switch cabling by up to 75 percent. Because UltraScale ICL connectivity resides on the core routing blades rather than occupying ports on the port blades, up to 33 percent more device ports are available for server and storage connectivity. This maximises overall port density in minimal rack space while freeing up front device ports for server and storage connectivity.
The SN8700B 8-slot guide supports 32 4X50Gb ICL ports, equivalent to 128 ports, while the SN8700B 4-slot guide supports 16 4X50Gb ICL ports, equivalent to 64 ports. The SN87000B ICL is backward compatible to the SN8600B ICL ports, including 2 km of QSFP connections at 32 Gbps (4×32) or 16 Gbps (4×16) to the SN8000B.
The HPE Power Pack+ toolset provides breakthrough hardware and software solutions that help simplify fabric monitoring, improve operational stability, and dramatically reduce costs by continuously monitoring fabric health and performance, providing practical insights to quickly resolve network issues. Each SN8700B 8-slot guide and SN8700B 4-slot guide comes pre-configured with Power Pack+.
Fabric Vision technology (included in HPE PowerPack+ software) is the cornerstone of on-demand data centre autonomous SANs, simplifying monitoring while maximising network availability and significantly reducing costs.
The new Fabric Vision enhancements leverage IO Insight and VM Insight, which are included in Fabric Vision, to provide organisations with deeper visibility into the performance of their environments across the storage fabric or at the VM level. This enhanced visibility enables administrators to quickly identify the source of application or VM performance degradation at the host and storage tiers, thereby reducing time to resolution. The SN8700B Director can optimise NVMe over Fibre Channel performance by leveraging integrated, non-intrusive real-time monitoring and alerting. This proactive monitoring of NVMe over Fibre Channel traffic and VMs provides administrators with key insights to maintain optimal network health and performance. IO Insight proactively monitors IO performance and behaviour with integrated network sensors to gain insight into issues and help ensure service levels. These capabilities collect IO statistics from any device port in a non-disruptive and non-intrusive manner and then feed them into monitoring policies that set thresholds and generate alerts. VM Insight applies IO Insight visibility to every VM. integrated VM-, application- and device-level IO latency and IOPS monitoring enables administrators to set a baseline for application performance and identify VMs or physical layers causing performance degradation.
HPE SN8600B 8-slot 32Gb SAN Director

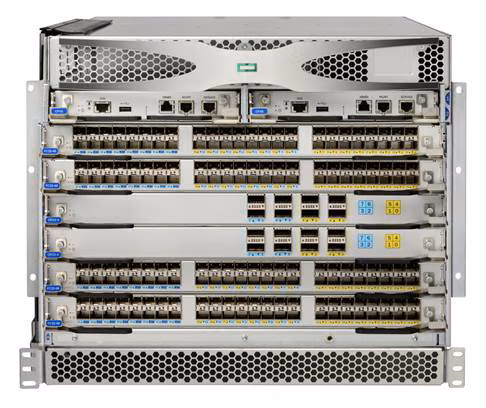

HPE SN8600B 4-slot 32Gb SAN Director
HPE SN8600B 32Gb SAN Directors
HPE offers the most complete and comprehensive range of 32Gb SAN guides. The SN8600B 32Gb SAN Conductor combines innovative hardware, software and integrated network sensors to ensure the industry’s highest levels of operational stability, ease of management and redefined application performance. Breakthrough 32 Gbps performance accelerates application response times, eliminates I/O bottlenecks, and unleashes the full performance of flash and next-generation NVMe-based storage. They consistently deliver 5 out of 9 availability in the world’s most demanding data centres. With non-disruptive, hot-swappable components and no single point of failure design, the SN8600B is a true enterprise-class guide for today’s storage infrastructure.
The HPE SN8600B SAN Director is available in two modular form factors (port-side inlet and port-side exhaust models) to increase business agility through seamless storage connectivity and flexible deployment.
– Built for large enterprise networks, the SN8600B 8-slot Director is a 14U chassis with eight vertical blade slots providing up to 384 32 Gbps Fibre Channel device ports and 32 additional 128 Gbps inter-enclosure link (ICL) ports. This provides up to 20.48 Tbps of chassis bandwidth for next-generation I/O and bandwidth-intensive applications. – The SN8600B 4-slot Director is designed for mid-size networks and features four horizontal blade slots for up to 192 32 Gbps Fibre Channel device ports and 16 additional 128 Gbps ICL ports. This provides up to 10.24 Tbps of total chassis bandwidth, making it an ideal foundation for highly virtualised environments.
– The following optional blades can be installed in each blade slot:
– HPE SN8600B 32Gb 64-Port Fibre Channel Blade The HPE SN8600B 32Gb 64-Port Fibre Channel Blade provides 64 32Gbps Fibre Channel ports or 10Gb/25Gb/40Gb Fibre Channel over Ethernet (FCoE) connectivity through 16 front QSFP ports and supports NVMe. the blade comes pre-bundled with 8 32Gb QSFP fibres.
– The HPE SN8600B 32Gb 48-Port Fibre Channel Port Blade provides 48 32 Gbps Fibre Channel ports and supports NVMe. 2 options are available – bundled with 48 32Gb SFP+ and standard configuration (no SFP+).
– The HPE SN8600B 32Gb SAN Expansion Blade provides 16 ports for 32 Gbps Fibre Channel connectivity, 16 ports for 1/10 Gigabit Ethernet (GbE) connectivity, and 2 ports for 40 GbE connectivity for Fibre Channel and IP replicated traffic to support long range disaster recovery and data protection storage solutions. 2 options are available – bundled ( 16) 32Gb SFP+ and standard configuration (without SFP+).
The HPE SN8600B 32Gb SAN Director offers two airflow modes: non-port-side inlet (NPI) and non-port-side exhaust (NPE or reverse airflow) to support our customers’ cooling strategies. This also provides our customers with the flexibility to install data centre equipment in racks based on cooling requirements, which enhances hot/cold aisle network design decisions.
Chassis connectivity utilises fibre-optic inter-chassis links (ICLs), providing 128 Gbps bandwidth over QSFP links. These links can support distances of up to 2 kilometres and connect up to eight SN8600B guides, enabling a flatter, faster, simpler architecture that improves consolidation while reducing network complexity and cost.
ICL supports scalable core edge and active-active mesh chassis topologies. These high-density chassis topologies reduce inter-switch cabling by up to 75 per cent and release up to 25 per cent of server and storage ports. This maximises overall port density in minimal rack space while freeing up front device ports for server and storage connectivity.
The SN8600B 8-slot guide supports 32 ICL ports, equivalent to 128 32 Gbps ports (4.096 Tbps), while the SN8600B 4-slot guide supports 16 ICL ports, equivalent to 64 32 Gbps ports (2.048 Tbps). The SN86000B ICL is backward compatible and can connect to SN8000B ICL ports, including 2km QSFP connections at 16 Gbps (4×16). In addition, the SN8600B ICL allows multi-guide connections without the need for an enterprise ICL licence.
The HPE Power Pack+ toolset provides breakthrough hardware and software solutions that help simplify fabric monitoring, improve operational stability, and dramatically reduce costs by continuously monitoring fabric health and performance and providing practical insights to quickly resolve network issues. It is pre-configured on each SN8600B 8-slot guide and SN8600B 4-slot guide. Power Pack+ also provides the foundation for integration into HPE storage management tools, enabling infrastructure management through a single management platform.
Fabric Vision technology, included in HPE PowerPack+ software, is the cornerstone of on-demand datacentre autonomous SANs, helping to simplify monitoring, maximise network availability and significantly reduce costs. In addition to IO Insight and VM Insight, Fabric Vision helps organisations meet service level agreements (SLAs) with innovative monitoring, management and diagnostic capabilities that enable administrators to avoid problems before they impact operations.
The new Fabric Vision enhancements leverage IO Insight and VM Insight, which are included in Fabric Vision, to provide organisations with deeper visibility into the performance of their environments across the storage fabric or at the VM level. This enhanced visibility enables administrators to quickly identify the source of application or VM performance degradation at the host and storage tiers, thereby reducing time to resolution. The SN8600B Director can optimise NVMe over Fibre Channel performance by leveraging integrated, non-intrusive real-time monitoring and alerting. This proactive monitoring of NVMe over Fibre Channel traffic and VMs provides administrators with key insights to maintain optimal network health and performance. IO Insight proactively monitors IO performance and behaviour with integrated network sensors to gain insight into issues and help ensure service levels. This capability collects IO statistics from any device port in a non-disruptive and non-intrusive manner and then feeds them into monitoring policies that set thresholds and generate alerts. VM Insight applies IO Insight visibility to every VM. Integrated VM-, application-, and device-level IO latency and IOPS monitoring enables administrators to set a baseline for application performance and identify the VMs or physical layers that are causing performance degradation.
To protect your investment, the HPE SN8600B guide offers three generations of backward compatible support for 4, 8 and 16 Gbps Fibre Channel products. In addition, the SN8600B guide supports future Fibre Channel products, can be used as a 64Gb storage-ready networking platform, and allows current 32Gb and future switch blade modules to be added to the chassis.
SN8700B 64Gb 8-slot SAN Director
– With 48-port 64Gbps port blades: 30.9Tb/s of aggregate chassis bandwidth (384 device ports with a 64Gb/s data rate plus 32 4x50Gb ICLs)
– With 64 64G port blades: 39.6Tb/s of aggregate chassis bandwidth (512 device ports with a 64G data rate plus 32 4xGen7 ICLs)
– With 64-port 32Gbps port blades: 22.8Tb/s of aggregate chassis bandwidth (512 device ports with a 32Gbps data rate plus 32 4x50Gb ICLs)
SN8700B 64Gb 4-Slot SAN Director
– With 48-port 64Gbps port blades: 15.5Tb/s of aggregate chassis bandwidth (192 device ports with a 64Gbps data rate plus 16 4x50Gb ICLs)
– With 64 64G port blades: 39.6Tb/s of aggregate chassis bandwidth (512 device ports with a 64G data rate plus 32 4xGen7 ICLs)
– With 64-port 32Gbps port blades: 11.4Tb/s of aggregate chassis bandwidth (256 device ports with a 32Gbps data rate plus 16 4x50Gb ICLs)
SN8600B 32Gb 8-slot SAN Director
– Up to 512 ports (equivalent to 640 with ICLs) at 32 Gb speed
– 20.48 Tbps aggregate chassis bandwidth
– 32 ICL ports, providing the equivalent of 128 32 Gbps ports (4.096 Tbps),
– 2.048 Tbps bandwidth per slot, providing line-rate performance for the HPE SN8600B 64-port blade
SN8600B 32Gb 4-Slot SAN Director
– Up to 256 ports (equivalent to 256 with ICLs) at 32 Gb speed
– 10.24 Tbit/s aggregate chassis bandwidth
– 16 ICL ports, providing the equivalent of 64 32 Gbps ports (2.048 Tbps)
– 2.048 Tbps bandwidth per slot, providing line-rate performance for the HPE SN8600B 64-port blade
SAN scalability
| Family Information
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features | SN8000B 4-Slot SAN Director and 4-Slot SAN Director Power Pack+ | SN8600B 4-slot SAN Director Power Pack+ | SN8700B 4-Slot SAN Director Power Pack+ |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers | Cloud Optimized Data Centers |
| Port Bandwidth | Up to 16Gbps | Up to 32Gbps | Up to 64Gbps |
| Aggregate device bandwidth |
5.1 Tbps | 10.24 Tbps | 15.5 Tbps |
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | ||
| Storage system support | HPE Primera, 3PAR StoreServ, Nimble, StoreVirtual , P9500/XP7, MSA | ||
| Ports | Up to 256 SFP | Up to 256 32 Gbps ports or a 320-port equivalent with 16 ICL ports. | 256 ports – 192 device ports with a 64Gbps data rate plus 16 4x50Gb ICLs or
320 ports – 256 device ports with a 32Gbps data rate plus 16 4x50Gb ICLs |
| SFP | B-series | B-Series | B-series Secure |
| Advanced Trunking |
Included with Power Pack or Optional Upgrade | Included with Power Pack | Included with Power Pack |
| Adaptive Networking | Included | Included | Yes (included) |
| Form factor | 9U | 9U | 9U |
| Zoning Software | Yes (included) | Yes (Included) | Yes (included) |
| Hot plug, redundant power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | SN6500B 16Gb FC Switch and SN6500B 16Gb FC Power Pack+ | SN6650B 32Gb FC Switch and SN6650B 32Gb FC PP+ Switch | SN6750B FC Switch |
| Targeted Environment | Workgroups, Departments | Workgroups, Departments | Workgroups, Departments |
| Fibre Channel Port Bandwidth | 16Gbps | 32Gb | 64Gbps |
| Ethernet | N/A | NA | NA |
| Aggregate device bandwidth |
768-1536 Gbps | 4Tbps | 8.2Tbps |
| OS Support | Notes: Please Refer to SPOCK https://www.hpe.com/storage/spock | ||
| Storage system support | HPE Primera, 3PAR StoreServ, Nimble, StoreVirtual , P9500/XP7, MSA | ||
| FC Ports | 48 or 96 Enabled
96 Max |
48 or 96 Enabled
128 Max utilizing QSFP ports |
48 or 96 Enabled
128 Max utilizing DD ports |
| SFP | B-series | B-series | B-series |
| Advanced Trunking |
Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ | Included |
| Adaptive Networking | Included | Included | Included |
| Form factor | 2U | 2U | 2U |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | SN6000B 16 Gb FC Switch and SN6000B 16 Gb FC Power Pack+ | SN6600B 32 Gb FC Switch | SN6700B 64Gb with 24 32Gb Integrated Secure SFP28 |
| Targeted Environment | Workgroups, Departments | Workgroups, Departments | Workgroups, Departments |
| Fibre Channel Port Bandwidth | 16 Gbps | 32 Gbps | 64Gb |
| Aggregate device bandwidth |
384- 768 Gbps | 2 Tbps | 3.5 Tbps |
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | ||
| Storage system support | HPE Primera, 3PAR StoreServ, Nimble, StoreVirtual , P9500/XP7, MSA | ||
| FC Ports | 24 or 48 Enabled 48 Max |
24 or 48 enabled
64 Max |
24 Enabled
56 Max |
| SFP | B-series | B-series Optics (16 Gb or 32 Gb) | B-series Secure
24 32Gb SFP28 included |
| Advanced Trunking |
Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included in Power Pack+ on all switches |
| Adaptive Networking | Included | Included | Included |
| Form factor | 1U | 1U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included |
| Hot plug, redundant power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes (integrated with power supply) | Yes (integrated with power supply) | Yes (integrated with power supply) |
| Features | SN3000B 16Gb FC Switch | SN3600B 32Gb FC Switch and SN3600B 32Gb FC Power Pack+ |
| Targeted Environment | Workgroups, Departments | Workgroups, Departments |
| Fibre Channel Port Bandwidth | 16Gbps | 32Gbps |
| Aggregate device bandwidth |
192-384 Gbps | 768 Gbps |
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | |
| Storage system support | HPE Primera, 3PAR StoreServ, Nimble, StoreVirtual , P9500/XP7, MSA | |
| FC Ports | 12 or 24 Enabled 24 Max |
8 or 24 Enabled 24 Max |
| SFP | B-series | B-series |
| Advanced Trunking |
Included with Power Pack+ Upgrade | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included |
| Form factor | 1U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies |
Optional | N/A |
| Hot plug fans | Yes (integrated with power supply) | Yes (integrated with power supply) |
| Features | SN4000B SAN Extension Switch | 2600 Extension SAN Switch | SN4700B SAN Extension Switch |
| Targeted Environment | Data Centers | Data Centers | Data Centers |
| Fibre Channel Port Bandwidth | 16Gbps | 32Gbps | 64Gbps |
| Ethernet | 1/10/40Gbps Ethernet | 1/10Gbps Ethernet | 1/10/25/100Gbps Ethernet |
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | ||
| Storage system support | Alletra, Primera, Nimble, 3PAR StoreServ, StoreVirtual , P9500/XP, MSA | ||
| FC Ports | 24 Enabled 24 Max |
4 or 12 Enabled 12 Max |
24 Enabled
24 Max |
| Ethernet Ports | 16 ports 1/10GbpsE Enabled 16 Max |
||
2 – 40GbpsE ports2 or 6 Enabled
6 Max
16 1/10/25Gbps Enabled
16 Max
2 100Gbps Enabled
2 Max
SFPB-seriesB-seriesB-seriesAdvanced
TrunkingIncludedIncluded with Optional Upgrade KitIncludedAdaptive NetworkingIncludedIncludedIncludedForm factor2U1U1UZoningIncludedIncludedYes (Included)IncludedHot plug, redundant
power suppliesYesYesYesHot plug fansYesYesYes
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fibre Channel ports |
|
||
| Control processor | Redundant (active/standby) hot swappable control processor modules | ||
| Scalability | Full fabric architecture | ||
| Performance |
– HPE SN8700B 64Gb 48-port Blade – Fibre Channel: 8.5Gbps line speed, full duplex; 10.53Gbps line speed, full duplex; 14.025Gbps line speed, full duplex; 28.05Gbps line speed, full duplex; 57.8Gbps line speed, full duplex. Autosensing of 8, 16, 32, and 64Gbps port speeds depending on SFPs used. 10Gbps port speeds with dedicated SFPs. – HPE SN8700B 64Gb 64-port Blade – Fibre Channel: 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; 57.8Gb/s line speed, full duplex. Autosensing of 8, 16, 32, and 64G port speeds depending on SFPs used. Support for 8G requires a 32G SFP+ LWL or ELWL transceiver. – HPE SN8700B 32Gb Blade – Fibre Channel: 4.25Gbps line speed, full duplex; 8.5Gbps line speed, full duplex; 10.53Gbps line speed, full duplex; 14.025Gbps line speed, full duplex; 28.05Gbps line speed, full duplex. Autosensing of 4, 8, 16, and 32Gbps port speeds depending on SFPs used. 10Gbps port speeds with dedicated SFPs. – HPE SN8600B 32Gb 64port – Fibre Channel: 4.25Gbps line speed, full duplex; 8.5Gbps line speed, full duplex; 14.025Gbps line speed, full duplex; 28.05Gbps line speed, full duplex. Autosensing of 4, 8, 16, and 32Gbps port speeds depending on QSFPs used.
– Fibre Channel: – 4 Gbps line speed, full duplex – 8 Gbps line speed, full duplex – 10 Gbps line speed, full duplex – 16 Gbps line speed, full duplex – 32 Gbps line speed, full duplex – Autosensing of 4, 8, 16, and 32 Gbps port speeds depending on SFPs used. Speed matching between 4, 8, 16, and 32 Gbps port speeds. 10 Gbps port speeds with dedicated SFPs – Fibre Channel over Ethernet: – 10Gb line speed, full duplex – 25Gb line speed, full duplex – 40Gb line speed, full duplex |
||
| ISL Trunking |
|
||
| Chassis Bandwidth |
|
||
| Chassis Bandwidth |
|
||
| Slot bandwidth |
– 3072Gb/s providing line-rate performance for the FC64-48 blade. – 4096Gb/s providing line-rate performance for the FC64-64 blade.
|
||
| Local Switching bandwidth |
– 1536 Gbps for 32/48: 48 ports x 32Gbps (data rate) – 2048 Gbps for 32/64: 64 ports x 32Gbps (data rate) – 3072 Gbps for 64/48: 48 ports x 64Gbps (data rate)
– 1536 Gbps for 32/48: 48 ports x 32Gbps (data rate) – 2048 Gbps for 32/64: 64 ports x 32Gbps (data rate) |
||
| Maximum frame size | 2112-byte payload | ||
| Switch latency |
– HPE SN8700B 64Gb 48-port blade at 64 Gbps speeds: : 460 ns (including FEC); any-port-to-any-port local switching and 1.4 μs blade to blade at 64Gbps, cut-through routing. – HPE SN8700B 32Gb 48-port blade at 32 Gbps speeds: 560 ns (including FEC); any-port-to-any-port local switching and 1.9 μs blade to blade at 32Gbps, cut-through routing.
– HPE SN8600B 48-port blade at 32 Gbps speeds: <900 ns (including FEC); any-port-to-any-port local switching and 2.7 μs blade to blade at 32 Gbps, cut-through routing – HPE SAN Extension blade (32Gb), Fibre Channel to Fibre Channel: <900ns (including FEC) and 2.7 μs any-port-to-any-port at 32 Gbps, cut-through routing |
||
| Frame buffers |
|
||
| Classes of service | Class 2, Class 3, Class F (inter-switch frames)
|
||
| Fibre Channel Port Types |
– HPE SN8700B 8-slot: Up to 512 64G, universal (E_Port, F_Port, EX_Port, M_Port, D_Port, SIM Port, *FICON). – HPE SN8700B 4-slot: Up to 265 64G, universal (F_Port, E_Port, EX_Port, M_Port, D_Port, SIM Port, *FICON). – *Brocade 48 port blade required – HPE SN8600B 32Gb SAN Extension Blade: F_Port, FL_Port, E_Port, SIM, and EX_Port on FC and VE_Port on GbE
– HPE SN8600B 32Gb 64-port FC Blade – HPE SN8600B 32Gb 48-port FC blade: F_Port, E_Port, EX_Port, M_Port, SIM, and D_Port – HPE SN8600B 32Gb SAN Extension Blade: F_Port, E_Port, and EX_Port on FC, and VE_Port on GbE Notes: Self-discovery is based on switch type (U_Port) with an optional port-type control. |
||
| Data traffic types | Fabric Switches supporting unicast, multicast (255 groups), and broadcast | ||
| USB |
– One USB port per control processor for firmware download, support save, and configuration upload or download
– One USB port per control processor for firmware download, support save, and configuration upload or download |
||
| Media types |
– HPE SN8700B 64Gb 48p Blade: – 64G FC SFP56 LC connector: SWL – 32G FC SFP28 LC connector: SWL, LWL, ELWL – 10G FC SFP+ LC connector: SWL, LWL – HPE SN8700B 64Gb 64p Blade – 64G FC SFP-DD SN connector: SWL – 64G FC SFP56 LC connector: SWL, LWL – 32G FC SFP28 LC connector: LWL, ELWL – HPE SN8700B 32Gb 48p Blade: – 32G FC SFP28 LC connector: SWL, LWL, ELWL – 16G FC SFP+ LC connector: SWL, LWL, ELWL – 10G FC SFP+ LC connector: SWL, LWL – The SN8700B Director Chassis will support the HPE SN8600B 32Gb 64-port FC Blade with media outlined below under the section titled “SN8600B 32Gb”.
– HPE SN8600B 32Gb 64-port FC Blade: – 4x32G FC QSFP28 MPO connector: SWL – 4x32G FC QSFP28 SMF LC connector: 2 km(fixed at 4x32G only) – 4x16G FC QSFP+ MPO connector: SWL – FCoE QSFP28 MPO connector: 100GBASE-SR4, 4x25GbE – FCoE QSFP+ MPO connector: 40GBASE-SR4, 4x10GbE – FCoE QSFP+ LC connector: 40GbE BiDi – HPE SN8600B 32Gb 48-port FC blade: – 32G FC SFP28 LC connector: SWL, LWL – 16G FC SFP+ LC connector: SWL, LWL, ELWL – 10G FC SFP+ LC connector: SWL, LWL – HPE SN8600B 32Gb SAN Extension Blade: – 32G FC SFP28 LC connector: SWL, LWL, ELWL – 16G FC SFP+ LC connector: SWL, LWL, ELWL – 10G FC SFP+ LC connector: SWL, LWL – Ethernet QSFP+ MPO connector: 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4 – Ethernet QSFP+ LCconnector: 40GbE BiDi – 10GbE SFP+ LC connector: SR, LR, USR* Notes: *USR – Supported by not sold by HPE – 1GbE SFP+ LC connector: SR, LR – 1GbESFP+copper connector – Supports hot-pluggable Fibre Channel SFP28 at 32 Gbps SWL/LWL; SFP+ at 16 Gbps SWL/LWL/ELWL; SFP at 10 Gbps FC SWL/LWL and Ethernet SFP+ at 1 GbE copper, 1 GbE 1000BASE-SX/LX/CWDM, SFP+ at 10 GbE SR/LR; SFP+ at 10 GbE tunable DWDM 80 km, and QSFP at 40 GbE SR4/LR4/ER4. – Core Routing (CR) blades support hot-pluggable B-series Fibre Channel QSFP at 4×32 Gbps SWL, 4×16 Gbps SWL and 4×16 Gbps 2 km QSFP for ICL connections |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
64G 512-port configuration, including ICLs: Typical: 11,766 Btu/hr; Max: 16,942 Btu/hr.
Power consumed: Typical: 3,447W; Max: 4,964W.
Notes: Input power is at 200 VAC with full PSU redundancy.SN8700B 4-slot SAN Director64G 192-port configuration, including ICLs: Typical: 5,934Btu/hr; Max: 7,771 Btu/hr.
Power consumed: Typical: 1,738W; Max: 2,277W.
Notes: Input power is at 200 VAC with full PSU redundancy.
64G 256-port configuration, including ICLs: Typical: 6,384 Btu/hr; Max: 8,221 Btu/hr.
Power consumed: Typical: 1,870W; Max: 2,409W.
Notes: Input power is at 200 VAC with full PSU redundancy.Heat DissipationSN8600B 8-slot SAN Director
384-port configuration: Typical: 8,836 BTU/hr; Max: 14,485 BTU/hr Power consumed: Typical: 2,589 W; Max: 4,244 W
Notes: Input power is at 200 VAC with full PSU redundancy.
SN8600B 4-slot SAN Director
192-port configuration: Typical: 4,696 BTU/hr; Max: 8,139 BTU/hr Power consumed: Typical: 1,376 W; Max: 2,385 W
Notes: Input power is at 200 VAC with full PSU redundancy.
PowerSN8700BSupported power range
– Standard AC input:
– Range: 90 VAC to 264 VAC auto-volt
– Nominal: 100 VAC to 240 VAC
– 85 VAC to 132 VAC: 1450W
– 180 VAC to 264 VAC: 2870W
In-rush current35 Amps maximum, peak
Frequency50 Hz to 60 Hz (Nominal: 50 Hz to 60 Hz)
SN8600BSupported power range
– Standard AC input:
– Range: 85 VAC to 264 VAC Auto-volt
– Nominal: 100 VAC to 240 VAC
– 85 to 132 VAC: 1,450 W
– 180 to 264 VAC: 2,870 W
In-rush current35 Amps maximum, peak
Frequency50 Hz to 60 Hz (Nominal: 50 Hz to 60 Hz)
Configuration Information
| Description | SKU |
| HPE SN8700B 8-slot Power Pack+ Director Switch | R6A97A |
| Notes:
– 64Gb 512-port capable Fibre Channel Director, 2 control processors, 2 64Gb core blades, rack rails, cable comb Zoning, Web tools, Fabric Vision Enhanced Group Management, Adaptive Networking, ISL Trunking, Extended Fabrics, Integrated Routing and FICON CUP. – Does not include Power Supplies, Fans, Port Blades or SFPs. See below options. |
|
| HPE SN8700B 4-slot Power Pack+ Director Switch | R6A98A |
| Notes:
– 64Gb 256-port capable Fibre Channel Director, 2 control processors, 2 64Gb core blades, rack rails, cable comb Zoning, Web tools, Fabric Vision Enhanced Group Management, Adaptive Networking, ISL Trunking, Extended Fabrics, Integrated Routing and FICON CUP. – Does not include Power Supplies, Fans, Port Blades or SFPs. See below options |
|
| HPE SN8600B 4-slot Power Pack+ Director Switch | Q0U83B |
| Notes:
– 32Gb 256-port or 16Gb 256-port capable Fibre Channel Director, 2 control processors, 2 32 Gb core blades, 2 power supplies, rack rails, cable comb Zoning, Web tools, Fabric Vision Enhanced Group Management, Adaptive Networking, ISL Trunking, Extended Fabrics and FICON CUP. – Does not include Port blades or SFPs. |
|
| HPE SN8600B 4-slot Power Pack+ Port Side Air Intake Director Switch Chassis | R0Q25A |
| Notes:
– 32Gb 512-port or 16Gb 512-port capable Fibre Channel Director, 2 control processors, 2 32 Gb core blades, rack rails, cable comb Zoning, Web tools, Fabric Vision Enhanced Group Management, Adaptive Networking, ISL Trunking, Extended Fabrics and FICON CUP. Does not include Port blades or SFPs. – Does not include Power supply and fan trays. Requires 2 Power supplies (R0Q26A) and 2 fan trays (R0Q27A) fo r1+1 redundancy. For instructions on how to install the Power Supplies and fan trays, please refer to the “Brocade X6-4 Director Hardware Installation Guide” available on the HPE Support Center |
Edward (verified owner) –
Good quality.
Owen (verified owner) –
Good quality.
