HPE SN2600B 32Gb 12/4 4-port 16Gb Short Wave SFP+ SAN Extension Switch
Condition: NOB
RMA Warranty
Description
Overview
As the world embraces digital business, data is becoming more valuable than ever. The expectation to access this data anytime, anywhere, on any device is pushing infrastructure to its limits. IT organisations are under pressure to keep pace with the growing avalanche of data and ensure their valuable information is protected from disaster. Any loss of critical data can lead directly to lost revenue or damage to a company’s brand reputation. To protect data from disaster, storage administrators need a way to achieve sufficient long-distance replication performance, keep data flowing over unreliable WAN connections, and protect data in transit while controlling the cost of devices and long-distance connections. The HPE Storage SAN Extension Switch B-Series SN2600B addresses these challenges by providing a modern replication connectivity solution that cost-effectively and quickly replicates data between sites for fast, continuous data protection. The HPE Storage SAN Extension Switch B-Series SN2600B is a powerful, reliable, and secure switch that handles continuous data transfers between data centres, minimises the impact of disruptions to maintain service level agreements (SLAs), and ensures the security of data transfers between data centres. The switch has inbuilt technology to overcome the latency and packet loss inherent in long distance transmission. It significantly improves replication performance and enables organisations to significantly reduce costs by deploying lower-cost WAN connectivity. The HPE Storage SAN Extension Switch B-Series SN2600B is a cost-effective solution for securely transferring data over long distances at faster speeds for continuous data protection. This powerful, reliable and secure platform is designed to handle the growing volume of data traffic between data centres in Fibre Channel and IP storage environments. The HPE Storage SAN Extension Switch B-Series SN2600B is a powerful platform for mid-sized, multi-site data centre environments implementing disk and tape data protection solutions. The HPE Storage SAN Extension Switch B-Series SN2600B is well suited for:
– Multi-site synchronous and asynchronous storage replication
– Centralised tape backup, recovery and archiving
The HPE Storage SAN Extension Switch B Series SN2600B base configuration provides four 32 Gb/s Fibre Channel ports and two 1GbE Ethernet ports with adaptive rate limiting (ARL) and encryption (IPsec). Upgrade-on-demand licences support all 12 Fibre Channel ports, 10Gb FCIP/FC, Fabric Vision technology, Extended Trunking, Fibre Channel Trunking and Integrated Routing (FCR). The Complete Configuration is a comprehensive bundle that supports all ports, including Brocade Fabric Vision Technology, Extended Trunking, Fibre Channel Trunking, ARL, IPsec, and Integrated Routing.
HPE Storage SAN Extension Switch B-series SN2600B

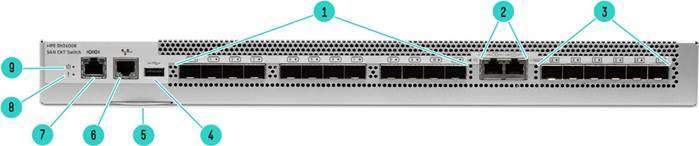

HPE Storage SAN Extension Switch B-series SN2600B Port Numbering
| 1. | 32Gb/s SFP+ FC ports (0-11) | 6. | Ethernet management port (RJ-45) |
| 2. | 1 GbE copper (RJ-45) ports (0-1) | 7. | Serial console port (RJ-45) |
| 3. | 1/10GbE SFP+ ports (2-7) | 8. | System status LED |
| 4. | USB port | 9. | System power LED |
| 5. | Serial number pull-out tab |
Notes: All the ports are connected to a single Gen6 ASIC.
HPE Storage SAN Extension Switch B-series SN2600B
- 12 Fibre Channel ports with link speeds of 4, 8, 16 and 32 Gbps, compatible with short wavelength (SWL) and long wavelength (LWL) a SFP+ transceivers
- Six 1 GbE/10 GbE ports, compatible with copper, ultra-short reach (USR), short reach (SR) and long reach (LR) SFP/SFP+ transceivers
- Two 1 GbE copper (RJ-45) ports
- One RJ-45 Ethernet management port with 10/100/1000 Mbps auto negotiating capability
- One RJ-45 serial management port
- One USB port that provides storage for firmware updates, switch support data, and storage for configuration uploads and downloads
- Rack-mountable 1U chassis
| HPE Storage SAN Extension Switch B-series SN2600B Model | Base | Full or Base w/ Upgrade |
| FC Port Limits | 4 | 12 |
| VE Port Limits | 2 | 4 |
| GE WAN Port Limits | 2 | 6 |
| GE LAN Port LImits | 4 | 4 |
| GE Port Speed Limit | 10Gb/s | 10Gb/s |
| WAN Bandwidth Limit | 1Gb/s | 2.5Gb/s |
| Max IP Extension flows (LAN TCP connections) | 256 | 256 |
| Max UDP Connections | 32 | 32 |
| Family Information | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features | SN6000B 16 Gb FC Switch and SN6000B 16 Gb FC Power Pack+ | SN6600B 32 Gb FC Switch and SN6600B 32 Gb FC Power Pack+ | SN6600B 32 Gb Bundled (SFP+) FC Switch and SN6600B 32 Gb Power Pack+ Bundled (SFP+) FC Switch | SN6700B 64Gb with 24 32Gb Integrated Secure SFP28 |
| Targeted Environment | Workgroups, Departments | Workgroups, Departments | Workgroups, Departments | Workgroups, Departments |
| Fibre Channel Port Bandwidth | 16 Gbps | 32 Gbps | 32 Gbps | 64Gb |
| Aggregate device bandwidth |
384- 768 Gbps | 2 Tbps | 2 Tbps | 3.5 Tbps |
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | |||
| Storage system support | Primera, 3PAR StoreServ, Nimble, StoreVirtual, P9500/XP, MSA | |||
| FC Ports | 24 or 48 Enabled 48 Max |
24 or 48 enabled
64 Max |
24 or 48 Enabled 64 Max |
24 Enabled
56 Max |
| SFP | B-series | B-series (16 Gb or 32 Gb) | B-series, 24 or 48 32 Gb SFP+ included in the box | B-series Secure
24 32Gb SFP28 included |
| Advanced Trunking |
Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included in Power Pack+ on all switches |
| Adaptive Networking | Included | Included | Included | Included |
| Form factor | 1U | 1U | 1U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) | Yes (Included |
| Hot plug, redundant power supplies |
Yes | Yes | Yes | Yes |
| Hot plug fans | Yes (integrated with power supply) | Yes (integrated with power supply) | Yes (integrated with power supply) | Yes (integrated with power supply) |
| Features | SN6500B 16Gb FC Switch and SN6500B 16Gb FC Power Pack+ | SN4000B Power Pack+ SAN Extension Switch | SN2600B SAN Extension Switch |
| Targeted Environment | Workgroups, Departments | Data Centers; long distance replication, multiprotocol SAN Fabrics | Data Centers; long distance replication, multiprotocol SAN Fabrics |
| Fibre Channel Port Bandwidth | 16Gbps | 16Gbps | 32Gbps |
| Ethernet | N/A | 1/10/40 Gbps Ethernet | 1/10Gbps Ethernet |
| Aggregate device bandwidth |
768-1536 Gbps | ||
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | ||
| Storage system support | Primera, 3PAR StoreServ, Nimble, StoreVirtual, P9500/XP, MSA | ||
| FC Ports | 48 or 96 Enabled
96 Max |
24 FC Ports Enabled
24 Max |
4 or 12 FC Enabled 12 Max |
| Ethernet Ports | N/A | 16 Enabled | 2 or 6 Enabled 6 Max |
| SFP | B-series | B-series | B-series |
| Advanced Trunking |
Included with Power Pack+ or Optional Upgrade | Included | Included with Optional Upgrade |
| Adaptive Networking | Included | Included | NA |
| Form factor | 2U | 2U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | SN8000B 8-Slot SAN Director Power Pack+ | SN8600B 8-Slot SAN Director Power Pack+ | SN8700B 8-Slot SAN Director Power Pack+ |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers | Cloud Optimized Data Centers |
| Port Bandwidth | Up to 16Gbps | Up to 32 Gbps | Up to 64Gbps |
| Aggregate device bandwidth |
10.2Tbps | 20.48 Tbps | 31 Tbps |
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | ||
| Storage system support | Primera, 3PAR StoreServ, Nimble, StoreVirtua, P9500/XP, MSA | ||
| Ports | Up to 512 SFP | 512 32 Gbps ports or a 640-port equivalent with 128 Gbps (32 Gbps×4 QSFP ports) | 512 ports – 384 device ports with a 64Gb/s data rate plus 32 4xGen7 ICLs or
640 ports – 512 device ports with a 32Gb/s data rate plus 32 4xGen7 ICLs |
| SFP | B-series | B-series | B-series Secure |
| Advanced Trunking |
Included with Power Pack | Included with Power Pack | Included with Power Pack |
| Adaptive Networking | Included | Included | Yes (included) |
| Form factor | 14U | 14U | 14U |
| Zoning Software | Yes (included) | Yes (included) | Yes (included) |
| Hot plug, redundant power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | SN8000B 4-Slot SAN Director and 4-Slot SAN Director Power Pack+ | SN8600B 4-slot SAN Director Power Pack+ | SN8700B 8-Slot SAN Director Power Pack+ |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers | Cloud Optimized Data Centers |
| Port Bandwidth | Up to 16Gbps | Up to 32Gbps | Up to 64Gbps |
| Aggregate device bandwidth |
5.1 Tbps | 10.24 Tbps | 31 Tbps |
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | ||
| Storage system support | Primera, 3PAR StoreServ, Nimble, StoreVirtual , P5000/XP, MSA | ||
| Ports | Up to 256 SFP | Up to 256 32 Gbps ports or a 320-port equivalent with 16 ICL ports. | 512 ports – 384 device ports with a 64Gb/s data rate plus 32 4xGen7 ICLs or
640 ports – 512 device ports with a 32Gb/s data rate plus 32 4xGen7 ICLs |
| SFP | B-series | B-Series | B-series Secure |
| Advanced Trunking |
Included with Power Pack or Optional Upgrade | Included with Power Pack | Included with Power Pack |
| Adaptive Networking | Included | Included | Yes (included) |
| Form factor | 9U | 9U | 14U |
| Zoning Software | Yes (included) | Yes (Included) | Yes (included) |
| Hot plug, redundant power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | Brocade 16Gb SAN Switch for HPE c-Class BladeSystem | Brocade 8Gb SAN Switch for HPE c-Class BladeSystem | Brocade 16Gb Fibre Channel SAN Switch Module for HPE Synergy |
| Targeted Environment | Enterprise, Datacenters, Workgroups, Departments | Workgroups, Departments | Enterprise, Datacenters, Workgroups, Departments |
| Port Bandwidth | 16 Gbit/sec | 8 Gbit/sec | 16 Gbit/sec |
| Aggregate device bandwidth | 448 Gbit/sec | 192 Gbit/sec | 576 Gb/s (36 ports x 16 Gb/s) |
| OS Support | Notes: Please Refer to SPOCK https://h20272.www2.hpe.com/spock/ | ||
| Storage system Support |
Primera, 3PAR StoreServ, Nimble, StoreVirtual, P9500/XP, MSA | ||
| Ports | 12 external /16 internal | 4 or 8 external / 8 or 16 internal | 8 SFP+ external, 4 QSFP external /12 internal |
| SFP | B-series | B-series | B-series |
| Advanced Trunking | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included | Included |
| Form factor | Embedded | Embedded | Embedded |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies | Yes, in BladeSystem Enclosure | Yes, in BladeSystem Enclosure | Yes, in Synergy Frame |
| Hot plug fans | Yes, in BladeSystem Enclosure | Yes, in BladeSystem Enclosure | Yes, in Synergy Frame |
| Ports | 12 ports 32 Gb/s Fibre Channel capable, universal (E, F, M, D, and EX ports), 6 ports 1GbE/10GbE for LAN and WAN connectivity, two 1GE copper ports for WAN/LAN connectivity, one 10/100/1000 Ethernet (RJ-45); one serial port (RJ-45) and one USB port | ||
| B-series switch interoperability | · 8/8 SAN Switch
· 8/24 SAN Switch · 1606 Extension SAN Switch · SN4000B SAN Extension Switch · SN8000B 8-Slot SAN Backbone Director · SN8000B 4-Slot SAN Director · SN6500B Fibre Channel Switch · SN6000B Fibre Channel Switch · SN3000B Fibre Channel Switch · Brocade 8Gb SAN Switch for HPE BladeSystem c-Class · Brocade 16Gb SAN Switch for HPE BladeSystem c-Class · Brocade 16Gb Fibre Channel SAN Switch Module for HPE Synergy · Brocade 32Gb Fibre Channel SAN Switch Module for HPE Synergy · SN3600B Fibre Channel Switch · SN6600B Fibre Channle Switch · SN6650B Fibre Channel Switch · SN8600B 8-Slot SAN Director · SN8600B 4-Slot SAN Director · SN8700B 8-Slot SAN Director · SN8700B 4-Slot SAN Director
|
||
| Performance | Auto-sensing of 8, 16 and 32 Gbps port speeds. FCIP Performance: 1/10 line speed | ||
| ISL Trunking | Up to eight 32 Gb/s links aggregating to 256 Gb/s per trunk. There is no limit to how many trunk groups can be configured per switch. | ||
| Maximum Fibre Channel replication throughput | 10 Gb/s | ||
| FCIP aggregate bandwidth | 2.5 Gbps | ||
| Fabric latency | Non-blocking shared memory, 900 ns with no contention, cut-through switching at 32 Gb/s | ||
| Maximum frame size | 2112-byte payload | ||
| Maximum MTU size | Ethernet Jumbo Frames 1280 bytes to 9216 bytes | ||
| Classes of service | Class 2, Class 3, Class F (inter-switch frames) | ||
| Port types | F_Port, E_Port, EX_Port (FCR E_Port), D_Port (Diagnostic), M_Port (Mirror), and self-discovery based on switch type (U_Port); VE_Port (FCIP and IP extension) | ||
| Data traffic types | Fibre Channel, FCIP, and IP extension | ||
| USB | One USB port for system log file downloads or firmware upgrades | ||
| Media types | Fibre Channel: B-series hot-pluggable Small Form Factor (SFP) and SFP+, short wavelength (SWL) and long wavelength (LWL), a (available wavelength options vary for 16 Gbps and 32Gb SFPs)
Ethernet: B-series hot-pluggable Small Form Factor (SFP) and SFP+, short reach wavelength (SRWL), long reach wavelength (LRWL), and copper SFP/SFP+ transceivers (available reach options vary from 1 GbE and 10 GbE) |
||
| Fabric services | Simple Name Server (SNS); Registered State Change Notification (RSCN), NTP, RADIUS, RCS (Reliable Commit Service), Dynamic Path Selection (DPS), Exchange-based routing, device-based routing, portbased routing, lossless, Advanced Zoning, Web Tools, Trunking, Extended Fabrics, Fabric Vision, SDDQ | ||
| Licensing options | The following optional extension features can be enabled on the HPE SN2600B SAN Extension base configuration via the upgrade license: • Enable WAN-side throughput from 1 Gb/s to 2.5 Gb/s • Enable 10 GbE port speed on the Ethernet ports • Turn on additional 8 Fibre Channel ports, includes 16 Gb/s SFPs • Enable advanced software features, including Fabric Vision technology, Extension Trunking, Fibre Channel Trunking, and Integrated Routing | ||
| Management | Supported management software | Serial port (9600, 8, 1, no parity, no flow), Command Line Interface (CLI): SSHv2 or Telnet, Web Tools: HTTP/HTTPS, SNMPv1/v3 (FE MIB, FC Management MIB), SANnav Management Portal and SANnav Global View (optional), SMI-S, RADIUS, LDAP | |
| Security | DH-CHAP (between switch and end-device), FCAP switch authentication; FIPS 140-2 L2-compliant, HTTPS, IP filtering, LDAP with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, Role-Based Access Control (RBAC), Secure Copy (SCP), SFTP, SSHv2, SSL, Switch Binding, Trusted Switch | ||
| Extension security | Encryption: AES-GCM-256 IPsec on tunnel (VE_Port), Authentication: ECDSA-P384, Diffie-Hellman: ECDH-P384, PRF: PRF-HMAC-384, Integrity: HMAC-384-192, ESP, Suite B, Connected pWWN FCIP checking | ||
| Management access | 10/100/1000 Ethernet (RJ-45); serial port (RJ-45) and one USB port | ||
| Diagnostics | POST and embedded online/offline diagnostics, including D_Port, WAN Test Tool, FCIP ping, FCIP traceroute, FCping, Pathinfo (FCtraceroute), SupportSave, RAS Log, Syslog, MAPS, SDDQ, Flow Vision, and Ftrace | ||
| Mechanical
|
Enclosure | Back-to-front airflow/non-port-side air intake and power, 1 RU, 19-in., EIA-compliant | |
| Size | Width: 44.0 cm (17.32 in.)
Height: 4.4 cm (1.73 in.) Depth: 45.7 cm (17.74 in.) |
||
| System weight | 7.98 kg (17.6 lb.) empty 8.35 kg (18.4 lb.) fully loaded | ||
| Environmental | Temperature | Operating: 0°C to 40°C (32°F to 104°F) Non-operating: −25°C to 70°C (−13°F to 158°F) | |
| Humidity | Operating: 10% to 85% at 40°C (104°F) Non-operating: 10% to 90% | ||
| Altitude | Operating: 0 to 3000m (9842 ft) Storage: 0 to 12 km (39,370 ft) | ||
| Shock | Operating: 10G, 10 ms, half-sine wave Non-operating: 33G, 11 ms, half-sine wave, 3G Axis | ||
| Vibration | Operating: 0.25g sine, 0.4 grms random, 5 Hz to 500 Hz Non-operating: 5 Hz at 0.5 grms, 10 Hz to 500 Hz at 1.0 grms (sine vibration), 3 Hz to 500 Hz at 1.12 grms (random vibration) | ||
| Airflow | Maximum: 45.0 CFM Nominal: 22.4 CFM | ||
| Power | Power supply | Dual, hot-swappable, redundant, AC input power supplies with integrated system cooling fans | |
| Power inlet | C14; requires C13 plug | ||
| Input voltage | 100 VAC to 240 VAC (nominal), 90 VAC to 264 VAC (range) | ||
| Input line frequency | 50/60 Hz (nominal), 47 Hz to 63 Hz (range) | ||
| Inrush current | 50A peak at 240 VAC for 150 ms | ||
| Power | 100 VAC: 1.29A, 130W, 444 BTU/hr, 135 VA (max config) 200 VAC: 0.65A, 132W, 449 BTU/hr, 146 VA (max config) | ||
Configuration Information
| HPE Storage SAN Extension Switch B-series SN2600B Base | |
| Description | SKU |
| HPE SN2600B 32Gb 12/4 4-port 16Gb Short Wave SFP+ SAN Extension Switch | R6W20A |
|
4 ports 32 Gbps Fibre Channel ports (loaded w/ 4 – 16Gb SW SFP+ optics) and 2 1GbE Ethernet WAN ports with Adaptive Rate Limiting (ARL) and IPsec. All 6 Ethernet ports are active and can be used as ingress ports for IP Extension. Notes: Optional Fibre Channel transceivers are listed below. Ethernet ports require optical or copper transceivers listed below. Some HPE B-series software licenses are now available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses with new part numbers listed in this document are functionally equivalent to the corresponding physical licenses with different part numbers. Some software licenses in this document are represented by two part numbers, the first of which is the E-Delivery version (ending with AE) and the second is the physical version. |
|
| HPE Storage SAN Extension Switch B-series SN2600B Full | |
| HPE SN2600B 32Gb 12/12 Power Pack+ 12-port 16Gb Short Wave SFP+ SAN Extension Switch | R6W21A |
|
12 ports 32Gbps Fibre Channel ports (loaded w/ 12 -16Gb SW SFP+ optics), enables 4 additional ports 1/10GbE Ethernet WAN ports and Power Pack Plus (includes Fabric Vision technology, Extension Trunking, Fibre Channel Trunking, ARL, IPsec, and Integrated Routing) Notes: Optional Fibre Channel transceivers are listed below. Ethernet ports require optical or copper transceivers listed below. Some HPE B-series software licenses are now available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses with new part numbers listed in this document are functionally equivalent to the corresponding physical licenses with different part numbers. Some software licenses in this document are represented by two part numbers, the first of which is the E-Delivery version (ending with AE) and the second is the physical version. |
|
