HPE SN4000B Power Pack+ SAN Extension Switch
Condition: NOB
RMA Warranty
Description
Overview
Today’s IT organisations are under immense pressure to keep up with the ever-increasing data traffic between data centres and the changes brought about by virtualised application workloads. Faced with this challenge, coupled with growing service level agreement (SLA) requirements and recovery expectations, enterprise data centres need to have a disaster recovery plan in place to enable fast, continuous, and easy access to mission-critical data from anywhere in the world. Ultimately, storage administrators want to replicate large amounts of data quickly, reliably, and simply, while minimising operational and capital expenditures. To address this challenge, the HPE Storage SAN Extension Switch B-Series SN4000B with Brocade Fabric Vision technology delivers unprecedented performance, continuous availability, and simplified management to handle the growing volume of data traffic between data centres. The HPE Storage SAN Extension Switch B-Series SN4000B is a purpose-built data centre extension solution that maximises the performance and scalability of large, complex environments, enabling IT organisations to future-proof their storage extension infrastructures by adding more throughput as demand grows. The HPE Storage SAN Extension Switch B-Series SN4000B Data Centre is a powerful platform for large-scale, multi-site data centre environments implementing disk and tape data protection solutions.
HPE Storage SAN Extension Switch B-series SN4000B Data Center is ideal for:
· Data protection for open systems and mainframe
· Multi-site synchronous and asynchronous storage replication
· Centralized tape backup, recovery, and archiving
The HPE Storage SAN Extension Switch B-Series SN4000B configuration is a bundle that includes a comprehensive set of advanced services: Fabric Vision, Extended Trunking, Adaptive Rate Limiting, ISL Trunking, IPsec, Compression, Open Systems Tape Pipelining (OSTP), Fast Write, Adaptive Networking, and Scale-out Fabric. Optional value-added licences for integrated routing, FICON CUPs and advanced FICON® accelerators are available to meet challenging scale-out and storage networking requirements in open systems and mainframe environments. The HPE Storage SAN Extension Switch B-Series SN4000B is fully compatible with the entire B-Series FC switching platform, providing end-to-end advanced 16 Gbit/sec fabric services over long distances with investment protection for hardware and the ability to leverage the expertise and training of data centre staff.

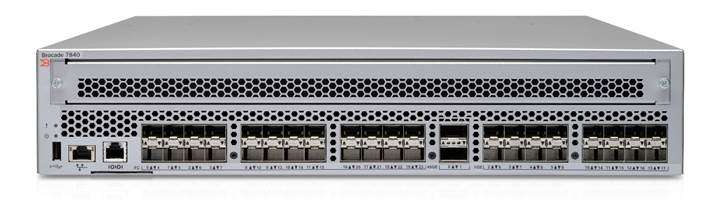

HPE Storage SAN Extension Switch B-series SN4000B

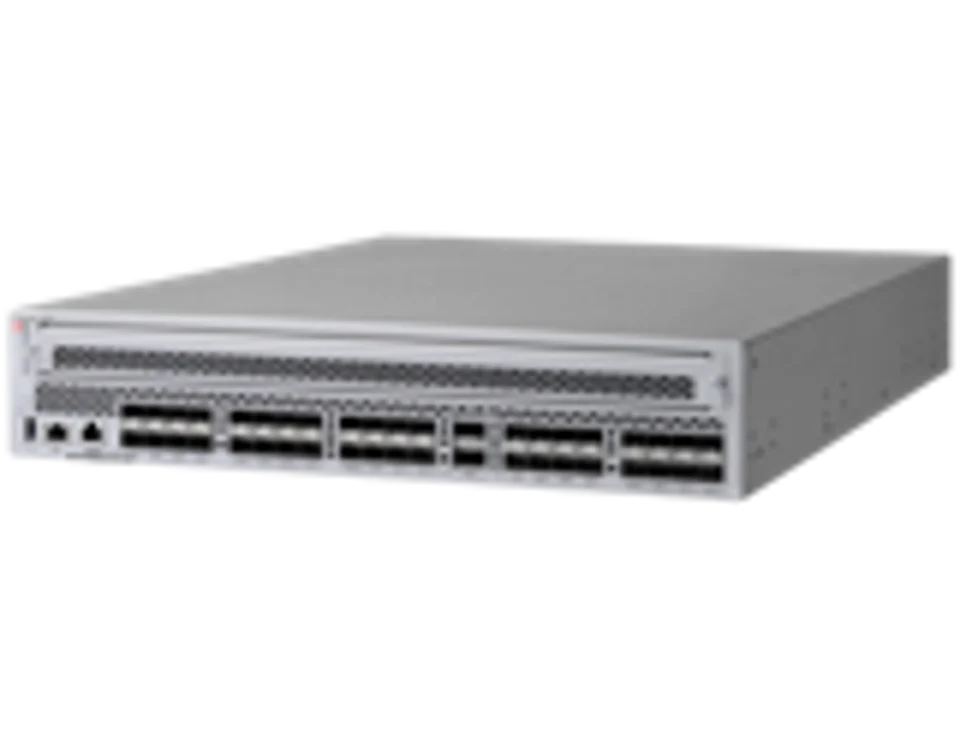

HPE Storage SAN Extension Switch B-series SN4000B
- 24 Fibre Channel ports with link speeds of 4, 8, and 16 Gbps, compatible with short wavelength (SWL), long wavelength (LWL) and extended long wavelength (ELWL) SFP+ transceivers
- Sixteen 1 GbE/10 GbE ports, compatible with copper, ultra-short reach (USR), short reach (SR) and long reach (LR) SFP/SFP+ transceivers
- Two 40 GbE ports, compatible with short reach (SR) and long reach (LR) QSFP transceivers
- Rack-mountable 2U chassis
- One RJ-45 Ethernet management port with 10/100/1000 Mbps auto negotiating capability
- One USB port that provides storage for firmware updates, switch support data, and storage for configuration uploads and downloads
| Family Information | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features | SN6000B 16 Gb FC Switch and SN6000B 16 Gb FC Power Pack+ | SN6600B 32 Gb FC Switch and SN6600B 32 Gb FC Power Pack+ | SN6600B 32 Gb Bundled (SFP+) FC Switch and SN6600B 32 Gb Power Pack+ Bundled (SFP+) FC Switch |
| Targeted Environment | Workgroups, Departments | Workgroups, Departments | Workgroups, Departments |
| Fibre Channel Port Bandwidth | 16 Gbps | 32 Gbps | 32 Gbps |
| Aggregate device bandwidth |
384- 768 Gbps | 2 Tbps | 2 Tbps |
| OS Support | Notes: Please Refer to SPOCK | ||
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | ||
| FC Ports | 24 or 48 Enabled 48 Max |
24 or 48 enabled
64 Max |
24 or 48 Enabled 64 Max |
| SFP | B-series | B-series (16 Gb or 32 Gb) | B-series, 24 or 48 32 Gb SFP+ included in the box |
| Advanced Trunking |
Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included | Included |
| Form factor | 1U | 1U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes (integrated with power supply) | Yes (integrated with power supply) | Yes (integrated with power supply) |
| Features | SN6500B 16Gb FC Switch and SN6500B 16Gb FC Power Pack+ | SN4000B Power Pack+ SAN Extension Switch | 1606 Extension SAN Switch |
| Targeted Environment | Workgroups, Departments | Data Centers; long distance replication, multiprotocol SAN Fabrics | Data Centers |
| Fibre Channel Port Bandwidth | 16Gbps | 16Gbps | 8Gbps |
| Ethernet | N/A | 1/10/40 Gbps Ethernet | 1Gbps Ethernet |
| Aggregate device bandwidth |
768-1536 Gbps | ||
| OS Support | Notes: Please Refer to SPOCK | ||
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | ||
| FC Ports | 48 or 96 Enabled
96 Max |
24 FC Ports Enabled
24 Max |
4 or 16 Enabled 16 Max |
| Ethernet Ports | N/A | 16 Enabled | 2 or 6 Enabled 6 Max |
| SFP | B-series | B-series | B-series |
| Advanced Trunking |
Included with Power Pack+ or Optional Upgrade | Included | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included | Included |
| Form factor | 2U | 2U | 1U |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies |
Yes | Yes | Yes |
| Hot plug fans | Yes | Yes | Yes |
| Features | SN8000B 8-Slot SAN Director Power Pack+ | SN8600B 8-Slot SAN Director Power Pack+ |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers |
| Port Bandwidth | Up to 16Gbps | Up to 32 Gbps |
| Aggregate device bandwidth |
10.2Tbps | 20.48 Tbps |
| OS Support | Notes: Please Refer to SPOCK | |
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | |
| Ports | Up to 512 SFP | 512 32 Gbps ports or a 640-port equivalent with 128 Gbps (32 Gbps×4 QSFP ports) |
| SFP | B-series | B-series |
| Advanced Trunking |
Included with Power Pack | Included with Power Pack |
| Adaptive Networking | Included | Included |
| Form factor | 14U | 14U |
| Zoning Software | Yes (included) | Yes (included) |
| Hot plug, redundant power supplies |
Yes | Yes |
| Hot plug fans | Yes | Yes |
| Features | SN8000B 4-Slot SAN Director and 4-Slot SAN Director Power Pack+ | SN8600B 4-slot SAN Director Power Pack+ |
| Targeted Environment | Cloud Optimized Data Centers | Cloud Optimized Data Centers |
| Port Bandwidth | Up to 16Gbps | Up to 32Gbps |
| Aggregate device bandwidth |
5.1 Tbps | 10.24 Tbps |
| OS Support | Notes: Please Refer to SPOCK | |
| Storage system support | 3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | |
| Ports | Up to 256 SFP | Up to 256 32 Gbps ports or a 320-port equivalent with 16 ICL ports. |
| SFP | B-series | B-Series |
| Advanced Trunking |
Included with Power Pack or Optional Upgrade | Included with Power Pack |
| Adaptive Networking | Included | Included |
| Form factor | 9U | 9U |
| Zoning Software | Yes (included) | Yes (Included) |
| Hot plug, redundant power supplies |
Yes | Yes |
| Hot plug fans | Yes | Yes |
| Features | Brocade 16Gb SAN Switch for HPE c-Class BladeSystem | Brocade 8Gb SAN Switch for HPE c-Class BladeSystem | Brocade 16Gb Fibre Channel SAN Switch Module for HPE Synergy |
| Targeted Environment | Enterprise, Datacenters, Workgroups, Departments | Workgroups, Departments | Enterprise, Datacenters, Workgroups, Departments |
| Port Bandwidth | 16 Gbit/sec | 8 Gbit/sec | 16 Gbit/sec |
| Aggregate device bandwidth | 448 Gbit/sec | 192 Gbit/sec | 576 Gb/s (36 ports x 16 Gb/s) |
| OS Support | Notes: Please Refer to SAN Design Guide https://h20272.www2.hpe.com/spock/ |
||
| Storage system Support |
3PAR StoreServ, StoreVirtual 4000, P9000/XP, P6000/EVA, P2000/MSA | ||
| Ports | 12 external /16 internal | 4 or 8 external / 8 or 16 internal | 8 SFP+ external, 4 QSFP external /12 internal |
| SFP | B-series | B-series | B-series |
| Advanced Trunking | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade | Included with Power Pack+ or Optional Upgrade |
| Adaptive Networking | Included | Included | Included |
| Form factor | Embedded | Embedded | Embedded |
| Zoning Software | Yes (Included) | Yes (Included) | Yes (Included) |
| Hot plug, redundant power supplies | Yes, in BladeSystem Enclosure | Yes, in BladeSystem Enclosure | Yes, in Synergy Frame |
| Hot plug fans | Yes, in BladeSystem Enclosure | Yes, in BladeSystem Enclosure | Yes, in Synergy Frame |
| Ports | 42 ports: 24 Fibre Channel (E, F, M, FL, EX) , sixteen 1/10 and two 40 Gigabit Ethernet (VE) ports |
| B-series switch interoperability |
|
| Performance | Auto-sensing of 4, 8, and 16 Gbps port speeds. FCIP Performance: 1/10/40Gbps line speed |
| ISL Trunking | Up to eight 16 Gbps ports per Brocade Trunk; up to 128 Gbps per trunk. |
| Fibre Channel aggregate bandwidth | 384 Gbps Full Duplex |
| FCIP aggregate bandwidth | 40 Gbps: 2 ports at 20 Gbps (data rate) |
| Fabric latency | 700 ns with no contention, cut-through routing at 16 Gbps |
| Maximum frame size | 2112-byte payload |
| Maximum MTU size | Ethernet Jumbo Frames at 9,000-bytes |
| Classes of service | Class 2, Class 3, Class F (inter-switch frames) |
| Port types | F_Port, E_Port, EX_Port, (FCR E_Port), D_Port (Diagnostic), M_Port (Mirror), and self-discovery based on switch type (U_Port). VE_Port (FCIP and virtual E_Port) |
| Data traffic types | Fabric switches supporting unicast, multicast (255 groups), and broadcast |
| USB | One USB port for system log file downloads or firmware upgrades |
| Media types | Fibre Channel: Brocade hot-pluggable Small Form Factor (SFP) and SFP+, short wavelength (SWL), long wavelength (LWL), and extended long wavelength (ELWL) transceivers (available wavelength options vary for 8 Gbps and 16 Gbps SFPs)
Ethernet: Brocade hot-pluggable Small Form Factor (SFP) and SFP+, short reach wavelength (SRWL), long reach wavelength (LRWL), extended long wavelength (ELWL), and copper SFP/SFP+ transceivers (available reach options vary from 1 GbE, 10 GbE, and 40 GbE) |
| Fabric services | Simple Name Server (SNS); Registered State Change Notification (RSCN), NTP, RADIUS, RCS (Reliable Commit Service), Dynamic Path Selection (DPS), Exchange-based routing, device-based routing, port-based routing, lossless), Brocade Advanced Zoning, Web Tools, Adaptive Networking with QoS, Extended Fabric, ISL Trunking, Fabric Vision technology, and Advanced Extension.
Optional Fabric Services include: Integrated Routing, (FCR), FICON CUP, FICON Management Server (FMS), and Advanced Accelerator for FICON. |
| Licensing options | HPE SN4000B 10Gb WAN Rate Upgrade license
· This upgrade license will increase the maximum available aggregate bandwidth for all tunnels to 10Gbps.
HPE SN4000B 40Gb WAN Rate Upgrade license · This upgrade license will increase the maximum available aggregate bandwidth for all tunnels to 40Gbps. This license can only be installed when the 10Gb WAN Rate Upgrade license is already installed. If removing a WAN Rate Upgrade license, users will need to adjust the aggregate bandwidth capacity for all tunnels to lower limits before removing one or both upgrade license(s). If both the 10 Gb WAN Rate Upgrade and 40Gb WAN Rate Upgrade licenses are installed on a switch, users cannot remove the10Gb WAN Rate Upgrade license before removing the 40Gb WAN Upgrade license. Notes: The base configuration without either upgrade license will support a maximum aggregate bandwidth for all tunnels at 5Gbps. The 10Gb WAN Rate Upgrade and 40Gb WAN Rate Upgrade licenses apply to all FCIP ports on the switch. Without these licenses the switch will only allow 5Gb of FCIP traffic and the 40GbE ports will be disabled. By Adding the 10Gb WAN Upgrade license the throughput limitation is increased to 10Gbps. If the 40Gb WAN Upgrade license is added the 40GbE ports are enabled and all FCIP throughput restrictions are removed.
HPE B-series Integrated Routing license: Integrated Routing is an optional license which provides native Fibre Channel Routing (FCR) on a per port basis.
HPE SAN Switches FICON CUP license: Control Unit Port (CUP) enables host control of switches in mainframe environments
HPE SN4000B FICON Accelerator license:
|
|
| Management | Supported management software | SSH v2, HTTP/HTTPS, SNMP v1/v3, Telnet; SNMP (FE MIB, FC Management MIB); Web Tools; Network Advisor SAN Enterprise or Network Advisor Professional/ Professional Plus (optional); HPE SANnav Management Software; Command Line Interface (CLI); SMI-S RADIUS, LDAP |
| Security | AES-GCM-256 encryption on ISLs, AES-GCM-256 IPsec encryption on virtual ISLs (VE_Port), DH-CHAP (between switches and end devices), FCAP switch authentication; FIPS 140-2 L2-compliant, HTTPS, IP filtering, LDAP with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, User-defined Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch | |
| Management access | 10/100/1000 Ethernet (RJ-45), in-band over Fibre Channel ports; serial port (RJ-45) and one USB port | |
| Diagnostics | POST and embedded online/offline diagnostics, including FCping, Pathinfo (FCtraceroute), etc. | |
| Mechanical | Enclosure | Back-to-front airflow; 2U, 19-inch EIA-compliant, power from back |
| Size | Width: 44 cm (17.3 in.)
Height: 8.6 cm (3.2 in.) Depth: 60.9 cm (24.01 in.) |
|
| System weight | 19 kg (42.0 lb) with two power supplies, without SFP/SFP+ | |
| Environmental | Temperature | Operating: 0°C to 40°C (32°F to 104°F) Non-operating: -25°C to 70°C (-13°F to 158°F) |
| Humidity | Operating: 10% to 85% (non-condensing) Non-operating: 10% to 90% (non-condensing) |
|
| Altitude | Operating: Up to 3000 m (9842 ft) Storage: Up to 12 km (39,370 ft) |
|
| Shock | Operating: 20 g, 6 ms, half-sine Non-operating: 33 g, 11 ms, half-sine, 3/eg Axis |
|
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random 5 to 500 Hz |
|
| Heat dissipation | Maximum 22 ports: 590 BTU/hr | |
| Airflow | Maximum 60 CFM; nominal 44 CFM | |
| Power | Power supply | Dual hot-swappable redundant power supplies |
| Power inlet | C14; requires C13 plug | |
| Input voltage | 85 to 264 VAC nominal | |
| Input line frequency | 47 to 63 Hz | |
| Inrush current | Maximum of 60 amps for period of 10 to 150 ms | |
| Power | Short-range optics: Nominal 388 watts/1,324 BTU/hr; maximum 454 watts/1,550 BTU/hr Long-range optics: Nominal 426 watts/1,454 BTU/hr; maximum 492 watts/1,679 BTU/hr |
Configuration Information
| HPE SN4000BPower Pack+ SAN Extension Switch | |
| Description | SKU |
| HPE SN4000B Power Pack+ SAN Extension Switch | E7Y73C |
| 42 ports (24 16Gb Fibre Channel , 16 1/10 GbE and 2 40 Gigabit Ethernet) Extension switch for Fibre Channel over Internet Protocol (FCIP) traffic forwarding over IP wide area networks (WAN). Includes Power Pack.
Notes: – Fibre Channel ports require optical transceivers listed below. Ethernet ports require optical or copper transceivers listed below. – Some HPE B-series software licenses are now available through the Electronic Delivery (E-Delivery) mechanism. The E-Delivery software licenses with new part numbers listed in this document are functionally equivalent to the corresponding physical licenses with different part numbers. Some software licenses in this document are represented by two part numbers, the first of which is the E-Delivery version (ending with AE) and the second is the physical version. |
|
