HPE Storage Switch M-series SN2100M

Description

Overview

The HPE M Series with NVIDIA Cumulus® Linux Series Ethernet Switches meets the complex networking needs, growth, and expansion of today’s data centres, and is ideally suited for top-of-rack (TOR) deployments, as well as for virtualised environments, hyper-converged infrastructures, and storage deployments. HPE M Series Ethernet switches give you the right amount of network bandwidth and deliver consistent, zero-packet-loss performance for high-performance and storage workloads.

The HPE Storage Switch M-Series SN2100M with NVIDIA Cumulus® Linux is based on the first generation of NVIDIA SpectrumTM switches and is built for leaf/trunk/super trunk data centre applications. The half-width 1U SN2100M provides maximum flexibility, offering port speeds from 1GbE to 100GbE and port densities that enable full rack connectivity to any server. In addition to advanced features, the SN2100M offers a fully shared 16MB packet buffer on-chip and flexible port usage. The uplink ports allow multiple blocking ratios to meet any application requirement. The SN2100M is ideally suited for building cloud-scale Layer 2 and Layer 3 networks. The SN2100M platform delivers high performance, consistent low 300 nanosecond pass-through latency, and supports advanced software-defined networking features, making it ideal for web-scale IT, cloud, hyper-converged storage, and data analytics applications. The HPE Storage Switch M-Series SN2100M provides a high-density, side-by-side 1/10/25/100GbE switching solution that scales up to 64 subports per switch in a single rack unit (1RU) using QSFP28 branch cables to meet the growing demands of today’s storage, database, and data centre environments. The SN2100M is uniquely designed for maximum rack performance. Its design allows two switches to be placed side-by-side in a single 1RU slot in a 19-inch rack, providing high availability for hosts. Each SN2100M features 16 QSFP28 slots with 3.2Tb/s of switching capacity, including 2.38 Bpps of processing power when running 16 ports at 100GbE, and 6.4Tb/s and 4.76Bpps when two units are deployed side-by-side in 1RU rack space.

Delivering the highest feature set at the right price enables you to leverage your Ethernet infrastructure to best support a variety of use cases, including media and entertainment; streaming video, the financial services industry, virtualised data centres and next-generation storage, including software-defined storage and NVMe® flash. The HPE Storage Switch M-Series SN2100M comes with factory-integrated NVIDIA Cumulus® Linux for immediate deployment. With HPE Storage Switch M Series switches, you can:

• Optimize Storage— modernize your network to eliminate limitations and bottlenecks that can be caused by the addition of flash storage.
• Enjoy efficient network performance— avoid packet loss, provide predictable performance with line-rate packet delivery across all ports and all packet sizes
• Realize breakthrough economics— make better use of your data center resources with the highest port density per rack unit and the industry’s lowest power consumption.
• Accelerate business innovation— utilize 1/10/40Gbps Ethernet connectivity for existing workloads and enhance connectivity utilizing built-in 25/100 Gbps capabilities to respond quickly to business needs and to stay on the leading edge of Ethernet switching technology.

HPE Storage Switch M-series SN2100M Ethernet switches are based on the high-performance 25GbE NRZ encoding capable Spectrum-1 ASIC and are ideally suited for both top-of-rack leaf and fixed configurations with capabilities:

• Ethernet port speeds from 1Gbps to 100Gbps
• 16 100/40GbE QSFP28 ports

– All 16 QSFP28 ports support split x4 or x2 mode (16×4=64 breakout ports maximum)

• 16MB of fully-shared packet buffering
• Optional per port or global store-and-forward switching for noisy fabric error containment
• Feature-rich layer 2 and layer 3 forwarding
• Ultra-low latency with true cut through performance, Zero packet loss performance with NVMe TCP and RoCEV2 RDMA, DCBX, PFC, ECN support

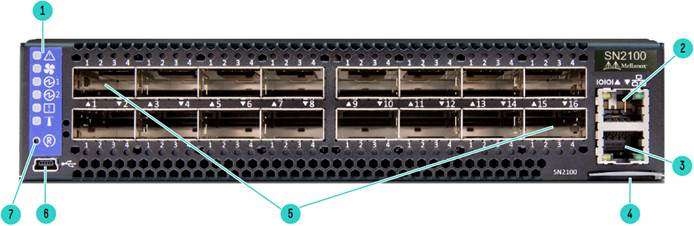

HPE Storage Switch M-series SN2100M Front View

1.	System Status LEDs (System;  Fan;  Power Supply; Unit Identifier)	5.	1-16 40/100GbE QSFP28 Ports
2.	IOIOI RS232 Serial Console Port: 115200 BAUD	6.	USB 2.0 Mini conformant (USB 1.0 not supported)
3.	MGMT0  100Mb/s to 1Gb/s Port	7.	Password Reset Button – refer to the Single User Mode Boot Recovery section in the Cumulus Linux User Guide
4.	Inventory Information Pull-Out Tab

Notes:

– Port Connectivity options, all ports support 1GbE – 100GbE (100GbE QSFP28 can be configured as 100GbE or 40GbE)

– Each QSFP28  port can breakout (Optical/DAC/AOC) into four 10 GbE sub-ports

– Each QSFP28 port can breakout (Optical/DAC/AOC) into four 25 GbE sub-ports

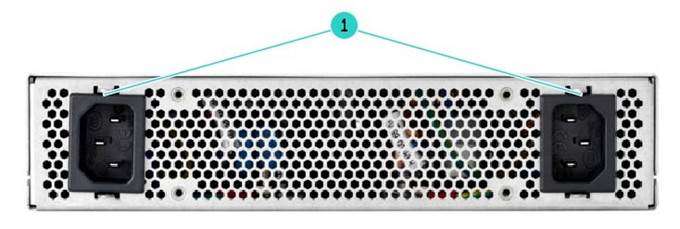

HPE Storage Switch M-series SN2100M Rear View

1.	Power Supply and Fans (non-replaceable)

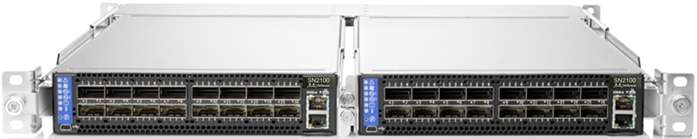

Figure 3:  M-Series 2 x SN2100M (With 1U Rack Installation Kit Q2F25A)

Family Information (M-series with NVIDIA Cumulus® Linux)
	HPE SN2010M S2T75A	HPE SN2100M S2T76A	HPE SN3420M S2T77A	HPE  SN3700cM S2T78A
Description	Ideal ½ width ToR  1/10/25/40/100GbE	Ideal ½ width ToR 1/10/25/40/100GbE	1/10/25GbE ToR 40/100GbE	40/100GbE ToR
Ports Speeds	18 x 1/10/25GbE + 4×40/100GbE Breakout – 16×1/10/25GbE	16×40/100GbE Breakout – 64×1/10/25GbE	48×1/10/25GbE + 12×40/100GbE Breakout – 48×1/10/25GbE	32×40/100GbE Breakout – 128×1/10/25GbE
Minimum Configuration	18 + 4 Ports	16 Ports	48 + 12 Ports	32 ports
Size	1U ( ½ 19″ wide)	1U ( ½ 19″ wide)	1U	1U
Switching Capacity	1.7Tb/s	3.2Tb/s	4.8Tb/s	6.4Tb/s
Processing Capacity	1.26Bpps	2.38Bpps	3.58Bpps	4.76Bpps
Forwarding Technology	Cut Through and Store-and-forward	Cut Through and Store-and-forward	Cut Through and Store-and-forward	Cut Through and Store-and-forward
Latency	300ns	300ns	425ns	425ns
Typical Power Consumption (ATIS)	66W	74W	202W	242W
Energy Efficiency	full load: 91.3% @ 115Vac/60Hz, 92.6% @ 230Vac/50Hz	full load: 91.3% @ 115Vac/60Hz , 92.6% @ 230Vac/50Hz	80 Plus Gold	80 Plus Gold
Supported NOS**	NVIDIA Cumulus® Linux	NVIDIA Cumulus® Linux	NVIDIA Cumulus® Linux	NVIDIA Cumulus® Linux
System Memory	8GB	8GB	8GB	8GB
SSD Memory	16GB	16GB	32GB	32GB
Packet Buffer	16MB	16MB	42MB	42MB
1GbE  Mgmt Port	1 RJ45	1 RJ45	1 RJ45	1 RJ45
Serial Port	1 RJ45	1 RJ45	1 RJ45	1 RJ45
USB Port	1 Mini USB 2.0	1 Mini USB 2.0	1 Type A USB 3.0	1 Micro USB 2.0
Airflow	Power-to-Connector (P2C) airflow	Power-to-Connector (P2C) airflow	Power-to-Connector (P2C) airflow	Power-to-Connector (P2C) airflow
Power Supplies	2 (1+1 redundant) not replaceable	2 (1+1 redundant) not replaceable	2 (1+1 redundant)	2 (1+1 redundant)
Fans	2 fans not replaceable	2 fans not replaceable	5 (N+1 redundant)	4 (N+1 redundant)
Power Supplies with integrated fans	Frequency: 50-60Hz Input range: 100-264Vac Input current 4.5A-2.9A IEC C14 To C13	Frequency: 50-60Hz Input range: 100-264Vac Input current 4.5A-2.9A IEC C14 To C13	Frequency: 50-60Hz Input range: 100-264Vac Input current 7.1A-2.8A IEC C14 To C13	Frequency: 50-60Hz Input range: 100–264Vac Input current 13A-7A IEC C14 To C13
Size	1.72’’ x 7.87’’ x 20’’(43.9mm x 200mm x 508mm)	1.72’’ x 7.87’’ x 20’’ (43.9mm x 200mm x 508mm)	1.72’’ x 17.24’’ x 18.29’’(44mm x 438mm x 464.6mm)	1.72’’ x 16.84’’ x 22’’(44mm x 428mm x 559mm)
Weight	4.5kg (9.9lbs)	4.54kg (10lbs)	8.5kg (18.8lbs)	14kg (30.9lbs)



Model	HPE SN4600cM  100GbE 64QSFP28  Switch S2T80A	HPE SN3700M  200GbE  32QSFP56  Switch S2T79A	HPE SN4700M  400GbE 32QSFP-DD  Switch S2T81A
Description	40/100GbE Aggregation /ToR/EoR/ Super Spine	40/50/100/200GbE Aggregation/ToR/ Super Spine	40/50/100/200/ 400GbE Aggregation /ToR/EoR/ Super Spine
Ports Speeds	64 x40/100GbE Breakout – 128 x 1/10/ 25GbE	32×40/100/200GbE Breakout – 128×1/10 /25/50GbE	32×40/100/200/ 400GbE Breakout – 128×1/10/ 25/50GbE
Minimum Configuration	64 QSFP28 Ports	32 QSFP 56 Ports	32 QSFP-DD Ports
Size	2U	1U	1U
Switching Capacity	12.8Tb/s	12.8Tb/s	25.6Tb/s
Processing Capacity	8.4Bpps	8.33Bpps	8.4Bpps
Forwarding Technology	Cut Through and Store-and-forward	Cut Through and Store-and-forward	Cut Through and Store-and-forward
Latency	500ns	425ns	500ns
Typical Power Consumption (ATIS)	466 watts	250 watts	630 watts
Supported NOS**	NVIDIA Cumulus® Linux	NVIDIA Cumulus® Linux	NVIDIA Cumulus® Linux
System Memory	8GB	8GB	16GB
SSD Memory	30GB	32GB	60GB
Packet Buffer	64MB	42MB	64MB
1GbE Mgmt Port	1 RJ45	1 RJ45	1 RJ45
Serial Port	1 RJ45	1 RJ45	1 RJ45
USB Port	1 Type A USB 2.0	1 Micro USB 2.0	1 Type A USB 2.0
Airflow	Power-to-Connector airflow	Power-to-Connector airflow	Power-to-Connector airflow
Power Supplies	2 (1+1 redundant)	2 (1+1 redundant)	2 (1+1 redundant)
Energy Efficiency	80 Plus Gold	80 Plus Gold	80 Plus Gold
Fans	3 (N+1 redundant)	6 (N+1 redundant)	6 (N+1 redundant)
Power Supplies with integrated fans	Frequency: 50-60Hz Input range: 100-264Vac Input current 10A–6A @200Vac-240Vac C14 TO C15 EUR + CCC C14 TO C15 UL	Frequency: 50-60Hz Input range: 100–264Vac Input current 13A-7A @200Vac- 240Vac IEC C14 To C13	Frequency: 50-60Hz Input range: 100–264Vac Input current 15A-10A @200Vac-240Vac C14 TO C15 EUR + CCC C14 TO C15 UL
Size	3.46’’ x 16.85’’ x 22.3’’ (88mm x 428mm x 568.5mm)	1.72’’ x 16.84’’ x 22’’ (44mm x 428mm x 559mm)	1.72″ x 16.85″ x22.3″ (44mm x 428mm x 568.5mm)
Weight	14.64kg (32.3lbs)	14kg (30.9lbs)	11.6kg (25.6lbs)



Notes: **There are separate M-Series SKUs for ONIE, ONYX™ and NVIDIA Cumulus® switch models.

Environment
Operating temperature	0°C to 40°C Notes: SN4700M 0°C to 35°C
Non-Operating temperature	-40ºC to 70ºC
NEBs and ETSI operating temperature	-5°C to 55°C
Operating relative humidity (operational)
Noncondensing	10%  to  85%
Operating Altitude	0 – 3050m
Compliant	RoHS
Safety/ EMC	CB, cTUVus, CE, CU, S_Mark, CE, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC

Electrical characteristics
Frequency	50/60 Hz
Voltage	100 – 264 Vac

Ethernet Ports Maximum High Power Support



• SN3420M

– Ports  1-6 Power Class 3 (2.5W)

– Ports 7-48  Power Class 1 (1.5W)

– Ports 49-52, 54, 56, 58, 60 Power Class 4 (3.5W)

– Ports 53, 55, 57, 59 Power Class 7 (5W)



• SN3700cM

– Ports 1, 2, 31, 32 Power class 7 (5W)

– Ports 3-30 Power class 4 (3.5W)



• SN3700M

– Ports 1-32 Power class 7 (5W)

– Ports 1, 2, 21, 22 Power class 8 (6.5W)



• SN4600cM

– Ports 1-48   Power Class 4 (3.5W)

– Ports 49-64 Power Class 7 (5W)



• SN4700M

– All Ports 1-32 Power Class 48 (12W) – QSFP-DD new method Watt *4



• SN2010M

– Ports 1,2,17,18 Power Class 3 (2.5W)

– Ports 3-16 Power Class1 (1.5W)

– Ports 19-22 Power Class (4.5W)



• SN2100M

– Ports 1,2,15,16 Power Class 7 (5W)

– Ports 3-14 Power Class 4 (3.5W)

---

Configuration Information

Description		SKU
HPE 100GbE 16QSFP28 Power to Connector Airflow Half Width Switch SN2100M with NVIDIA Cumulus HPE 100GbE 16QSFP28 Power to Connector Airflow Half Width Switch SN2100M with NVIDIA Cumulus® Linux		S2T76A
· HPE 100GbE 16QSFP28 P2C Sw SN2100M w/NVD,  AC power
HPE SN2100M Rack Installation Kit		Q2F25A
· Rack installation kit for SN2100M (S2T76A) or SN2100M (S2T75A)
