HPE StoreEver MSL 1/8 G2 0-drive Tape Autoloader
Condition: NOB
RMA Warranty
Description
Overview
HPE StoreEver MSL entry-level tape automation meets the demanding storage requirements of organisations that need unattended backup, disaster recovery or archiving capabilities. MSL 1/8 Autoloaders and MSL2024 Tape Libraries offer a wide range of storage capacity and technology choices, including LTO-9, LTO-8, LTO-7 or LTO-6 Ultrium tape drives. HPE’s web-based remote management solution, Command View for Tape Libraries (CVTL), makes MSL 1/8 autoloaders and MSL2024 tape libraries easy to manage from any remote location, eliminating the need for remote office IT staff. Manage tape media inside and outside the library quickly and easily using standard barcode readers, configurable mail slots, and removable cartridges. If tapes are lost or stolen, data encryption options are available to protect critical business data from unauthorised access. MSL investment protection and uncertain data growth can be easily managed within the MSL library portfolio. Quickly add capacity and/or performance with MSL 1/8 tape autoloaders or tool-less drive upgrades in MSL2024 tape libraries, or move tape drive suites to the MSL3040 or MSL6480 for library scalability and additional enterprise-class features. Use HPE StoreEver TapeAssure Advanced (a licensed feature of CVTL) to proactively receive detailed information about MSL tape automation. Information about libraries, drives, and media is monitored for utilisation, operational performance, and life and health information. Proactively receive notifications to prevent problems if any library, drive, or tape media parameters fall below Hewlett Packard Enterprise recommended standards.
HPE StoreEver MSL 1/8 Tape Autoloader

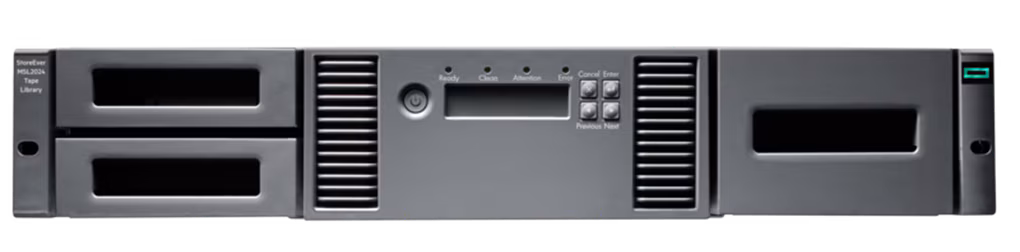

HPE StoreEver MSL2024 Tape Library
| MSL Entry-level Tape Automation Comparison | ||
| MSL 1/8 Tape Autoloader | MSL2024 | |
| Drive Technology Supported | LTO-9 Ultrium 45000
LTO-8 Ultrium 30750 LTO-7 Ultrium 15000 LTO-6 Ultrium 6250 |
LTO-9 Ultrium 45000
LTO-8 Ultrium 30750 LTO-7 Ultrium 15000 LTO-6 Ultrium 6250 |
| Maximum Number of Drives | 1 | 2 |
| Maximum Capacity (2.5:1 compression) | 360 TB(LTO-9, 8 slots) | 1.08 PB (LTO-9, 24 slots) |
| Maximum Data Transfer (Native) | 1TB/hr (1 LTO-9 drive) | 2.16 TB/hr (2 LTO-9 drives) |
| Drive Interface | 8 Gb Native Fibre Channel 12 Gb/sec SAS (LTO-9) 6 Gb/sec SAS (LTO-8 and earlier) |
8 Gb Native Fibre Channel 12 Gb/sec SAS (LTO-9) 6 Gb/sec SAS (LTO-8 and earlier) |
| 1/8 Tape Autoloader | MSL2024 | |||
| Drive Technology | LTO-9 Ultrium 45000
LTO-8 Ultrium 30750 LTO-7 Ultrium 15000 LTO-6 Ultrium 6250 |
LTO-9 Ultrium
LTO-8 Ultrium 30750 LTO-7 Ultrium 15000 LTO-6 Ultrium 6250 |
||
| Maximum Number of Drives | 1 | Up to2 | ||
| Number of Slots | 8 | 24 | ||
| Drive Interface | 8 Gb Native Fibre Channel
12 Gb/sec SAS (LTO-9) 6 Gb/sec SAS (LTO-8 and earlier) |
8 Gb Native Fibre Channel
12 Gb/sec SAS (LTO-9) 6 Gb/sec SAS (LTO-8 and earlier) |
||
| Maximum Capacity |
Native | 144 TB (LTO-9)
96 TB (LTO-8) 48 TB (LTO-7) 20 TB (LTO-6) |
432 TB (LTO-9)
288 TB (LTO-8) 144 TB (LTO-7) 60 TB (LTO-6) |
|
| Compressed (2.5:1) | 360 TB (LTO-9)
240 TB (LTO-8) 120 TB (LTO-7) 50 TB (LTO-6) |
1.08 PB (LTO-9)
720 TB (LTO-8) 360 TB (LTO-7) 150 TB (LTO-6) |
||
| Maximum Transfer Rate | Native | 1.08 TB/hr (1x LTO-9)
1.08 TB/hr (1x LTO-8) 1.08 TB/hr (1x LTO-7) 0.57 TB/hr (1x LTO-6) |
2.16 TB/hr (2x LTO-9)
2.16 TB/hr (2x LTO-8) 2.16 TB/hr (2x LTO-7) 1.15 TB/hr (2x LTO-6) |
|
| Dimensions | Out-of-Box (HxWxD) | 1.7 x 19 x 31.9 in (4.4 x 48.2 x 80.9 cm) | 3.4 x 18.9 x 31.7 in (8.7 x 48 x 80.6 cm) | |
| Shipping (HxWxD) | 10 x 23 x 39 in (25 x 58 x 99 cm) | 10.7 x 23.2 x 38.9 in (27.1 x 58.9 x 98.7 cm) | ||
| Weight | Out of box | 20.3 lb (9.2 kg) | 32.9 lb (14.9 kg) | |
| Shipping | 28.7 lb (13 kg) | 56.9 lb (25.8 kg) | ||
| Notes: The weight of each library varies somewhat based on the type and number of LTO tape drives contained in the configuration. The weights shown here are for MSL2024 configurations with 1/2 drives respectively per model. Configurations with different numbers of tape drives can be calculated by adding or subtracting the weight of a tape drive. An LTO-6 Ultrium 6250 drive weighs 2.10 kg/4.63 lbs. | ||||
| Reliability | MSBF (mean swaps between failures) | 2 million robot load/unload cycles | ||
| MTBF (mean time between failures) | 100,000 hours (based on 1M MSBF) | |||
| Average Cartridge Swap Time (drive to slot, slot to drive) | 34 seconds | 45 seconds | ||
| Initialization Time | 76 seconds | 80 to 120 seconds | ||
| Inventory Time | 52 seconds
(using bar code labeled cartridges) |
1:20 minutes (using bar code labeled cartridges) |
||
| Connectors | Mini-SAS (MSL SAS LTO-8 and earlier models only)
Mini-SAS HD (MSL SAS LTO-9 model only) |
|||
| LED Indicators (on front panel) |
Ready LED (Green): shows ready status information Clean LED (Amber): shows fault status information Attention LED (Amber): shows fault status information Error LED (Amber): shows fault status information |
||
| Management Interface | 10/100 Mbits/second, auto-configuring interface. RJ-45 connection. Https configurable. | ||
| Power | 80 Watts (max) | MSL2024: 168 Watts (max) | |
| Input Requirements | 100 to 240 VAC, 50 to 60 Hz, 2.5 Amperes | ||
| Relative Humidity (non-condensing) |
Operating | 20% to 80% | |
| Shipping | 20% to 90% | ||
| Temperature Range (wet bulb) |
Operating (LTO-6 to LTO-8) | 5°C to 40°C | 50° to 95° F (10° to 35° C) |
| Operating (LTO-9) | 59° to 89° F (15° to 32° C) | 59° to 89° F (15° to 32° C) | |
| Shipping | -40°C to 60°C | -22° to 140° F (-30° to 60° C) | |
| Notes: Library operating temperature limits are based on the industry standard tape limit. | |||
| Altitude | Operating | 13,000 ft (4000 m) | |
| Shipping | 35,000 ft (10,675 m) | ||
Configuration Information
| HPE StoreEver MSL Tape Automation | |
| Description | SKU |
| HPE StoreEver MSL 1/8 G2 0-drive Tape Autoloader | R1R75A |
| Notes:
– Includes 8 slots, zero drives. – This product is TAA (Trade Agreements Act) compliant. |
|
| HPE StoreEver MSL2024 0-drive Tape Library | AK379A |
| Notes:
– Includes 24 slots, zero drives. – This product is TAA (Trade Agreements Act) compliant. – MSL2024 rack-rail extends approximately 27.5 to 33 inches (69.8 to 83.8 cm) |
|
