HPE MSL3040 Scalable Base Module
Condition: NOB
RMA Warranty
Description
Overview
The HPE StoreEver MSL3040 helps you modernise and become a truly data-first organisation, improving competitiveness and success. You can manage valuable archived data more efficiently, leverage its power to identify customer needs before your competitors, or gain insights to develop products and services faster. The MSL3040 is a future-proof, highly scalable, easy-to-manage, network resilient tape system that you can massively scale in a few simple steps to protect up to 28.8 petabytes of compressed data using LTO-9 technology.

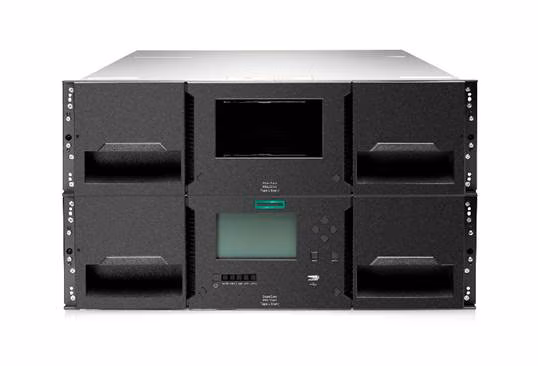

HPE StoreEver MSL3040 Tape Library
Industry leading scalability – from 40-slot Base Library Module to 640 slots in a 48U Rack with 15 Expansion Modules
| MSL3040 | |
| Drive Technology Supported | LTO-9 Ultrium 45000
LTO-8 Ultrium 30750 LTO-7 Ultrium 15000 LTO-6 Ultrium 6250 |
| Maximum Number of Drives | 48 HH |
| Maximum Capacity (2.5:1 compression) | 1.8 PB (LTO-9, 40 slots)
28.8 PB (LTO-9, 640 slots) |
| Maximum Data Transfer (Native) | 51.4 TB/hr (48 LTO-9 drives) |
| Drive Interface | 8 Gb/sec Fibre Channel 12 Gb/sec SAS (LTO-9) 6 Gb/sec SAS (LTO-8 and earlier) |
| Mail Slots | 5 slots per module |
Compatibility
Hewlett Packard Enterprise’s extensive compatibility testing program assures that your HPE MSL Tape Libraries work with leading servers, operating systems, and backup software applications – and not just those sold by Hewlett Packard Enterprise. The MSL libraries work seamlessly in many environments, making them especially suitable if you have a mixed system environment. For the complete and latest list of servers, workstations, operating systems, and backup software that support the MSL tape libraries, reference the HPE StoreEver Compatibility Matrix (Formerly EBS) at: HPE Storage Single Point of Connectivity Knowledge – SPOCK
| MSL3040 | ||
| Drive Technology | LTO-9 Ultrium 45000
LTO-8 Ultrium 30750 LTO-7 Ultrium 15000 LTO-6 Ultrium 6250 |
|
| Maximum Number of Drives – Per Module |
3 HH (per Module) | |
| – Per fully expanded Library | 48 HH (per Library) | |
| Number of Slots – Per Module |
40 (Base Module)/40 (Expansion Module) | |
| – Per fully expanded Library | 640 (per Library)
Notes: (if installing an S0D78A please see the table above) |
|
| Drive Interface | 8 Gb Native Fibre Channel
12 Gb/sec SAS (LTO-9) |
|
| Maximum Capacity |
Native – Per Base Module |
720 TB (LTO-9, 40 slots)
480 TB (LTO-8, 40 slots) 240 TB (LTO-7, 40 slots) |
| – Per Full Library | 11.52 PB (LTO-9, 640 slots)
7.68PB (LTO-8, 640 slots) 3.84 PB (LTO-7, 640 slots) 1.92 PB (LTO-6, 640 slots) |
|
| Compressed (2.5:1) – Per Module |
1.8 PB (LTO-9, 40 slots)
1.2 PB (LTO-8, 40 slots) 600 TB (LTO-7, 40 slots) |
|
| – Per Library | 28.8 PB (LTO-9, 640 slots)
19.2 PB (LTO-8, 640 slots) 3.8 PB (LTO-6, 640 slots) |
|
| Maximum Transfer Rate | Native – Per Module |
3.24 TB/hour (with 3 LTO-9 drives)
3.24 TB/hour (with 3 LTO-8 drives) 3.24 TB/hour (with 3 LTO-7 drives) |
| – Per Library | 51.5 TB/hr (with 48 LTO-9 drives)
51.5 TB/hr (with 48 LTO-8 drives) 51.5 TB/hr (with 48 LTO-7 drives) 32 TB/hr (with 48 LTO-6 drives) |
|
| Compressed (2.5:1) – 3 HH drives Per Module
|
Up to 8.1TB/hr (with 3 LTO-9 drives)
Up to 8.1TB/hr (with 3 LTO-8 drives) Up to 8.1TB/hr (with 3 LTO-7 drives) 4.3 TB/hr (with 3 LTO-6 drives) |
|
| – 48HH drives Per Library | Up to 129.6 TB/hr (with 48 LTO-9 drives)
Up to 129.6 TB/hr (with 48 LTO-8 drives) Up to 129.6 TB/hr (with 48 LTO-7 drives) 68.8 TB/hr (with 48 LTO-6 drives) |
|
| Dimensions | Out-of-Box (HxWxD) | 5.24 X 18.98 X 35.04 in (13.3 x 48.2 x 89.0 cm) |
| Shipping (HxWxD) | 12.68 X 27.17 X 45.67 in (32.2 x 69.0 x 116 cm) | |
| MSL3040 | ||
| Weight | Out of box | Base module: 44.09 lbs (20kg)
Expansion module: 33.07 lbs (15kg) Redundant Power Supply: 3 lbs (1kg) Drives (either FC or SAS, LTO-6 thru 9): 5 lbs (2kg) |
| Shipping | Base module: 68.34 lbs (31 kg)
Expansion module: 52.91 lbs (24kg) |
|
Configuration Information
| HPE StoreEver MSL3040 | ||||||||||||||||
| Base Module | ||||||||||||||||
| Description | SKU | |||||||||||||||
| HPE MSL3040 Scalable Base Module | Q6Q62C | |||||||||||||||
| Notes:
– This product is TAA (Trade Agreements Act) compliant. – The base module is 3U rack mountable. – Base module enables 40 slots – Standard power supply is included with the base module. – Redundant power supply is not included as standard, if required it needs to be added to the order. This needs to be factory integrated, #0D1, in order to be TAA compliant. Redundant power supply is hot-swappable. – It does not contain any tape drives, up to 3 HH tape drives may be added to the base module – MSL3040 rack-rail extends between approximately 683 and 900mm (between 68.3 and 90 cm). |
||||||||||||||||
| Kit Contents
· 2.5M PDU Power Cord, C13/C14, 10A · Rack-mount hardware · Getting started poster · Power Supply |
||||||||||||||||
| HPE StoreEver MSL3040 Scalable Library Expansion Module | Q6Q63A | |||||||||||||||
| Notes:
– Expansion module activates 40 slots. – This product is TAA (Trade Agreements Act) compliant. – The expansion module is 3U rack mountable. – It does not contain any tape drives, up to 3 HH tape drives may be added to the expansion module. If drives are added to the expansion module, then a power supply is required. Standard or redundant power supplies are not included. If needed, these will have to be added to the order. Redundant power supply is hot-swappable. If TAA compliance is required, power supplies need to be factory integrated, #0D1. |
||||||||||||||||
| Kit Contents
· Rack-mount hardware · Getting started poster · Module interconnect cable (expansion module only) |
||||||||||||||||
| HPE StoreEver MSL3040 48U Spooling Kit | S0D78A | |||||||||||||||
| Notes: The HPE StoreEver MSL3040 48U Spooling Kit can only be installed in existing HPE StoreEver MSL3040 Base Modules, versions Q6Q62A and Q6Q62B. This kit contains a new spooling mechanism and instructions to upgrade the existing Q6Q62A and Q6Q62B versions of the MSL3040 base library to allow up to 15 modules to be added to the existing MSL3040 base module. The spooling kit will allow installation of up to 7 expansion modules above and up to 8 expansion modules below the base library module, allowing an MSL3040 library of 48U rack height maximum. | ||||||||||||||||
|
||||||||||||||||
