HPE Synergy 12000 Configure-to-order Frame with 10x Fans
Condition: NOB
RMA Warranty
Description
Overview

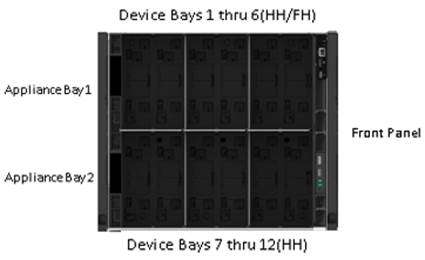

HPE Synergy 12000 Frame – Front View

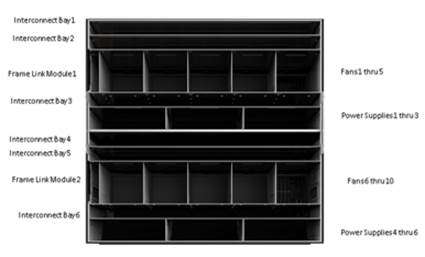

HPE Synergy 12000 Frame – Rear View
| · 6 Zones for Compute and Storage | · 6 Interconnect Module Bays (3+3 Redundancy) |
| · 2 Appliance Bays for Management | · 10 Fan Bays |
| · Front Panel, for Synergy Console connections | · 6 Power Supplies Bays (N+N, N+1 Redundancy) |
| Notes: See Device Bay Population Guidelines in the section below | · 2 Frame Link Module Slots |
HPE Synergy 12000 Frame, is the base for all Synergy products and supports.
- Up to 12 half-height or 6 full-height Compute Modules, Zone designs allow space for double wide half height and full height Compute and/or Storage devices, mixing allowed in designated areas.
- Ten fans and a single Frame Link Module is required with every system.
- Two appliance bays for redundant management appliances, embedded HPE OneView (additional solution options in future)
- Up to six Power Supplies bays for redundant power line with Titanium-class efficiency power supplies
- Up to 6 Interconnect bays for full redundancy of 3 fabrics.
- Two (2) slots for Frame Link Modules, offering links to multiple frames through a private air-gapped management network.
- HPE Synergy management that maximizes power and cooling efficiency.
- HPE Intelligent Resources technology built-in to every frame and option for Auto-Discovery of resources
|
|||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||
Configuration Information
Step 1: Select the desired model, configuration, and quantity of HPE Synergy Frames and options per Frame (required)
| HPE Synergy Frame
Notes: – Frames listed below include KVM connections for Synergy Console and Synergy Composer (HPE OneView) via access on the Front Panel of the Frames. Additional management appliances, Frame Link Modules, power supply kits, power cables, interconnects, additional fans, etc. are added in the following steps. – Frames listed below include the required blanking panels (device bay, interconnect module, power, redundant Appliance bays, and Frame Link Modules as required per the ordered configuration. If the configuration is modified later, additional blanking panels (ordered separately) may be required. |
|
| HPE Synergy 12000 Configure-to-order Frame | P51174-B21 |
| Notes:
– This Frame is required when a Synergy 480 Gen11 compute module is ordered. – This Frame does not include hot-plug fans, a total of 10 units of HPE Synergy 12000 High-Capacity Fan SKU: P51175-B21 is required when this Frame is selected. – The Frame includes KVM ports built-in, and the blanks based on the configuration of the Frame. |
|
| HPE Synergy 12000 TAA-compliant Configure-to-order Frame with 2×4 Frame Link Module | P51174-B22 |
| Notes:
– This Frame is required when a Synergy 480 Gen11 compute module is ordered. – This Frame does not include hot-plug fans, a total of 10 units of HPE Synergy 12000 High-Capacity Fan SKU: P51175-B21 is required when this Frame is selected. – This Frame includes 2, 4-Port Frame Link Modules and 10 hot-plug fans, with KVM ports built-in, and the blanks based on the configuration of the Frame. – This section lists some of the required and optional steps to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends contacting your local sales representative for information on Factory Integrated Model product offerings and requirements. |
|
| HPE Synergy 12000 Configure-to-order Frame with 10x Fans | P06011-B21 |
| Notes:
– This Frame includes 10 hot-plug fans, with KVM ports built-in, and the blanks based on the configuration of the Frame. – The hot-plug fans included in this Frame do not support Synergy Gen11 compute modules. – To support Synergy 480 Gen11 compute modules, all existing fans must be replaced with High-Capacity Fans (SKU: P51175-B21). These fans are fully compatible with select HPE Synergy Frame SKUs, such as 797740-B21, P51174-B21, P51174-B22, P06011-B21, and P06011-B22. Furthermore, the HPE Synergy High-Capacity Fan can be effortlessly swapped in without any interruptions to the Synergy Frame. Review the document provided at https://support.hpe.com/hpesc/public/docDisplay?docId=c05348240en_us&page=GUID-187C4C86-57CB-45F0-BEDC-789272EBCC1F.html for instructions on upgrading your current Frame to Gen11.
|
|
| HPE Synergy 12000 TAA-compliant Configure-to-order Frame with 2×4 Frame Link Module 10x Fans | P06011-B22 |
| Notes:
– This Frame includes 2, 4-Port Frame Link Modules and 10 hot-plug fans, with KVM ports built-in, and the blanks based on the configuration of the Frame. The hot-plug fans included in this Frame do not support Synergy Gen11 compute modules. To support Synergy 480 Gen11 compute modules, all existing fans must be replaced with High-Capacity Fans (SKU: P51175-B21). – HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. |
|
| HPE Synergy 12000 High Capacity Fan Kit | P51175-B21 |
Select the Frame power options (required)
Synergy Power Supplies (Up to 6Power Bays)
| HPE 6x 2650W Performance Hot Plug Titanium Plus FIO Power Supply Kit | 798096-B21 |
| Notes:
– This option contains Intelligent Auto-Discovery features for HPE OneView. – This option is for factory installation only. – The bundle includes a quantity of 6 HPE 2650W Titanium 96% PSU so a full Frame can be configured with a single part number. – HPE Synergy Power supplies meet multiple Energy Efficiency Initiatives: 2650W, 96%: Climate Savers Computing Initiative TITANIUM and ECOS Consulting 80 Plus Titanium. |
|
| HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit | 798095-B21 |
| Notes:
– This option contains Intelligent Auto-Discovery features for HPE OneView. – HPE Synergy Power supplies meet multiple Energy Efficiency Initiatives: 2650W, 96%: Climate Savers Computing Initiative Titanium and ECOS Consulting 80 Plus Titanium. |
|
| HPE 2650W -48VDC Hot Plug Power Supply Kit | 798099-B21 |
| Notes: HPE Synergy 2650W -48VDC Power Supplies provide 93% energy efficiency. | |
| HPE 2900-3400W Hot Plug Titanium Power Supply Kit | 876929-B21 |
| Notes:
– HPE Synergy 2900–3400W Power Supplies provide 95% energy efficiency. – This option ONLY supports 230-240VAC input. – Synergy 12000 Frame only supports this option at a 230-240VAC input. Operating this option at a lower input voltage may result in exceeding the rating of power cords and/or power distribution equipment. |
|
| HPE 3000W Titanium Hot Plug Power Supply Kit | P27749-B21 |
| Notes:
– IMPORTANT: This Power Supply is available in NA only. – HPE Synergy 3000W Power Supplies provide 96% energy efficiency. – This option ONLY supports 208VAC. |
|
| HPE 6x 3000W Titanium Hot Plug FIO Power Supply Kit | P27750-B21 |
| Notes:
– IMPORTANT: This Power Supply is available in NA only. – HPE Synergy 3000W Power Supplies provide 96% energy efficiency. – This option ONLY supports 208VAC. – The bundle includes a quantity of 6 HPE 3000W Power Supplies so a full Frame can be configured with a single part number. |
|
| HPE Synergy Dual Slot Power Supply Adapter | P44074-B21 |
| Notes:
– This Adapter is required when an HPE 1800-2200W Hot Plug Power Supply is ordered. – This Adapter supports up to 2 Power Supplies per power bay |
| HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit | P44712-B21 | |
| Notes:
– IMPORTANT: This Power Supply must be installed in pairs, 2 per power bay using the HPE Synergy Dual Flex Slot Power Supply Adapter with a total of 12 Power Supply for a full Frame configuration – The HPE Synergy Dual Flex Slot Power Supply Adapter is required when this Power Supply is ordered. – HPE 1800-2200W FS Power Supplies provide 96% energy efficiency. – To connect PDUs with C20 power outlets, you will need to order a HPE C20 – C13 WW 250V 15Amp 2.0m Jumper Cord (SKU: AF590A) for each power supply. This cord supports C13 power outlets and is necessary to connect PDUs with C20 outlets. – When using the C20 to C13 15Amp Jumper cord SKU: AF590A in North America only, it is possible to achieve power of 2200W even at lower input voltages like 208VAC. |
||
Step 2: Select Management Appliance Options
| HPE Synergy Frame Management Appliance Options | ||
| HPE Synergy Composer2 Management Appliance | 872957-B21 | |
| HPE Synergy TAA-compliant Composer2 Management Appliance | 872957-B22 | |
| Notes: HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. | ||
| HPE Synergy Composer2 Management Appliance Kit | P54624-B21 | |
| Notes: This option is not available for factory installation. | ||
| Step 3: Select optional Redundant Synergy Frame Link Modules
|
||
| HPE Synergy Frame Link Modules | ||
| Notes: Every Synergy 12000 Frame requires two Frame Link Modules. For redundancy and linking multiple frames it is REQUIRED that two Frame Link Modules be purchased for each Frame connected/linked. | ||
| CAUTION: Both FLM units of a redundant pair in a Synergy Frame must be of the same generation. | ||
| HPE Synergy 4-port Frame Link Module | 876852-B21 | |
| Notes: The 4-port Frame Link Module comes with a 10 Gb/s private Ethernet networking solution included and requires a DAC or AOC cabling between Frames for connection to multiple Frames or forming a management ring between multiple Frames. Multiple DAC and AOC cables are offered through Hewlett Packard Enterprise. | ||
| The Frame Link Module is the control and information link for a highly intelligent self-aware system of hardware options. It provides a direct link for resource information to the Synergy Composer (powered by HPE OneView). The link module provides an option for an air-gapped 10GbE management network ring that allows for multi-frame connectivity. Single or multiple Frames directly linked through this management network can be automatically discovered by HPE OneView along with their resources (compute, storage, networking, and other options) the instant they are plugged in and/or powered on. | ||
Management Network
See Frame Link Topology below.

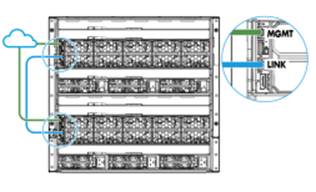

Single Frame MGMT Port and LINK Port Topology
Multiple Frame MGMT Port and LINK Port Topology
HPE Frame Link Topology Cables
HPE Synergy Frame Link Module CAT6A 1.2m Cable 861412-B21
Notes: For linking consecutive Frames
HPE Synergy Frame Link Module CAT6A 3m Cable 861413-B21
Notes: For linking bottom Frames to top Frames in a rack.
Copper Cables (DAC)
DAC Cables connect SFP+ ports using copper cable with built-in transceivers.
Notes:
– For use between Synergy 4-port FLMs, and for connecting management uplinks to other SFP+ network connections.
– Direct Attach Cables (DAC) use copper cables with built-in transceivers on each end.
CAUTION: Cable type determines the distance limit of connections.
· Active DAC cables @ 10Gbps = 15 meters (max)
· Passive DAC cables = ~5 meters
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable 487655-B21
HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable 537963-B21
Fiber Cables
Fiber Cables connect SFP+ ports using fiber cables with transceivers.
Notes:
– For use connecting between Synergy 4-port FLMs and for connecting management uplinks to other SFP+ network connections.
– HPE Synergy 4-port FLMs have SFP+ 10Gbps 2-fibre ports.
– Solutions can be created by using either OM3 or OM4 fibre cables with transceivers on each end.
– For distances over 50m, fibre cables are typically purchased from other suppliers.
CAUTION: Cable type and transceivers determine the distance limit of connections.
· Fiber cable use with SR transceivers = 300m (max)
· Fiber cable use with LR transceivers = 10km (max)
· Fiber cable use with ER transceivers = 40km (max)
OM3 Fibre Cables
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable AJ833A
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable AJ834A
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable AJ835A
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable AJ836A
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable AJ837A
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable AJ838A
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable AJ839A
OM4 Fibre Cables
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable QK732A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable QK733A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable QK734A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable QK735A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable QK736A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable QK737A
Transceivers
Transceiver use should consider bandwidth, port types, and port counts.
Transceivers (10 Gbps) for connecting SFP+ ports using fiber cables.
HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver 455883-B21
Notes: Typical transceiver for use with single-mode fiber cable (short range).
HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver 455886-B21
Notes: Typical transceiver for use with single-mode fiber cable (long range).
Transceivers (10 Gbps) for connecting SFP+ ports to RJ45 ports using CAT6A cables.
HPE 10GBase-T SFP+ Transceiver 813874-B21
Notes:
– Typical 10GbE transceiver for connecting CAT6A cables to SFP+ ports on the HPE Synergy 4-port FLM.
861412-B21 HPE CAT6A 4-foot Cable
861413-B21 HPE CAT6A 10-foot Cable
861414-B21 HPE CAT6A 21-foot Cable
Transceivers (1 Gbps) for connecting SFP+ ports (for use with MGMT ports only).
HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver 453151-B21
Notes: Typical 1Gb transceiver for use with fibre cable (<100m).
HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver 453154-B21
Notes: Typical 1Gb transceiver for connecting CAT cables to SFP+ ports on the HPE Synergy 4-port FLM.
Step 4: Select 1 or more interconnect switches/link modules for each Frame (as required)
For more information related to Frame interconnect modules and switches and cables required please consult the specific Interconnect Switches/Module QuickSpecs.
Notes: The HPE Synergy 12000 Frame provides Slots for 3 redundant Fabrics as shown here. Redundancy is 1 & 4, 2 & 5 and 3 & 6.
The following is a list of various HPE Synergy 12000 Frame Interconnect switches and link modules (Virtual Connect, Ethernet, Fibre Channel, SAS and Satellite Interconnect Modules). A pair of interconnects must be ordered if redundancy is required. For detailed interconnect options, consult the specific Synergy Interconnect Switches/Modules QuickSpecs.
Notes:
– Interconnect bays provide direct connect to Mezzanines within the Compute Modules in the front bays of the Frame. All Compute Mezzanine 1’s connect to ICM slots 1 with redundancy in slot 4. All Compute Mezzanine 2’s connect to ICM slots 2 with redundancy in slot 5. All Compute Mezzanine 3’s connect to ICM slots 3 with redundancy in slot 6.
– For HPE Best Practices placement see notes with each ICM and place the associated mezzanines in the Compute slots associated with the ICM slots.
– The HPE Synergy interconnects ship as single units unless otherwise noted. Interconnects must be ordered in quantities of two for redundancy support.
– Options to specific Synergy interconnects are not included in the list below. Consult the individual interconnect QuickSpecs to obtain part numbers for interconnect options such as cables, SFPs, etc.
HPE Synergy Network Interconnects
HPE Virtual Connect SE 100Gb F32 Module for Synergy 867796-B21
Mellanox SH2200 TAA-compliant Switch Module for HPE Synergy 866573-B21
HPE Synergy 50Gb Interconnect Link Module 867793-B21
HE Synergy 10Gb Pass-Thru Module 799330-B21
Notes: HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country.
HPE Storage and SAS Switch
Notes: The HPE Synergy Storage Module and 12Gb SAS connection modules are supported on all Synergy 12000 Frame(s).
HPE Synergy D3940 12Gb SAS CTO Drive Enclosure with 40 SFF (2.5in) Drive Bays 835386-B21
Notes: The HPE Synergy Storage Module requires at least one and a maximum of two 12Gb SAS Connection Modules per frame.
12Gb SAS Connection Modules per frame
HPE Synergy D3940 Redundant I/O Adapter 757323-B21
Notes: One I/O Adapter is configured automatically in each Synergy D3940 Storage Module. A second I/O Adapter can be selected for redundancy.
HPE Synergy 12Gb SAS Connection Module with 12 Internal Ports 755985-B21
Notes: A SAS Connection Module must be placed in ICM bay 1 and ICM bay 4. If only configuring a single module in the frame, a connection module in ICM bay 1 will support storage modules in bays 1 – 6. A connection module in ICM bay 4 will support storage modules in bays 7-12. A second connection module can be configured in the frame for failover.
HPE Synergy SAN Interconnects
Notes:
– HPE Fibre Channel interconnect switches and modules supporting up to a 32Gbps internal port downlink speed (connection speed from the compute modules to the interconnect) are supported on all HPE Synergy 12000 Frames.
– For a list of complete FC SAN Switch Module SAN management software, hardware, cables and transceiver options for HPE Synergy, please refer to the Brocade FC Switch Module QuickSpecs for HPE Synergy.
Brocade 32Gb/20 4SFP+ Power Pack+ Fibre Channel SAN Switch Module for HPE Synergy Q2E57A
HPE Virtual Connect SE 32Gb Fibre Channel Module for Synergy 876259-B21
HPE Virtual Connect SE 16Gb Fibre Channel Module for HPE Synergy P08477-B21
HPE Synergy Converged Network Adapters
HPE Synergy 6820C 25/50Gb Converged Network Adapter P02054-B21
HPE Synergy 4820C 10/20/25Gb Converged Network Adapter 876449-B21
HPE Synergy Ethernet Adapters
HPE Synergy 6810C 25/50Gb Ethernet Adapter 867322-B21
HPE Synergy 6410C 25/50Gb Ethernet Adapter 868779-B21
HPE Synergy Fibre Channel Host Bus Adapters
HPE Synergy 5830C 32Gb Fibre Channel Host Bus Adapter 777456-B21
HPE Synergy 5330C 32Gb Fibre Channel Host Bus Adapter 870828-B21
HPE Synergy Transceivers and Cable options
Notes: Check the QuickSpecs for each Synergy interconnect module to view the complete list of supported transceivers and cables.
HPE Synergy 100GbE/4x25GbE/4x32GbFC QSFP28 Transceiver 882251-B21
Notes:
– Mixing of Ethernet and Fiber Channel port types is not supported with the transceiver above.
– 4x8Gb FC, 4x16Gb FC, and 4x32Gb FC modes are all supported.
HPE 100Gb QSFP28 MPO SR4 100m Transceiver 845966-B21
HPE 100Gb QSFP28 Bidirectional Transceiver 845972-B21
HPE Synergy Dual 10GBASE-T QSFP+ 30m RJ45 Transceiver 838327-B21
HPE QSFP28 to SFP28 Adapter 845970-B21
HPE B-series 4×16 Short Wave QSFP Transceiver K2Q87A
HPE Synergy 300Gb Interconnect Link 2.1m Direct Attach Copper Cable 876680-B21
HPE Synergy 300Gb Interconnect Link 3m Active Optical Cable 876689-B21
HPE Synergy 300Gb Interconnect Link 5m Active Optical Cable 876692-B21
Notes: The following cables can be used for 100Gb uplink connections on the Mellanox SH2200 Switch Module (866573-B21). Check its QuickSpecs to view the complete list of supported transceivers and cables.
HPE 100Gb QSFP28 to QSFP28 7m Active Optical Cable 845410-B21
HPE 100Gb QSFP28 to QSFP28 15m Active Optical Cable 845414-B21
| HPE Best Practices for ICM Slot Priority Placement |
| · Best practices for ICM Slot priority placements are to use:
– Fabric 1 for the storage fabric (ICM bays 1 and 4), where the SAS storage ICM takes precedence over FC ICMs, – Fabric 2 for a secondary Ethernet fabric or storage fabric, if two of either are present (ICM bays 2 and 5), and – Fabric 3 for the main Ethernet/Converged fabric (ICM bays 3 and 6). · Populate both respective ICM bays for each fabric in support of module redundancy. · Do not mix different types of Ethernet, Fibre Channel, or SAS ICMs in any redundant Interconnect Bay Set. Also, the two interconnect slots of an Interconnect Bay Set cannot support different types of fabrics (Ethernet, Fibre Channel, SAS). · Both ICM bays within a fabric must contain the same ICM module unless the fabric is a Synergy Composable Fabric. – For Synergy Composable Fabrics the frame can be populated with combinations of Primary or Satellite modules depending on the intended multi-frame configuration. · ICM Bays are set up to be redundant: 1 and 4, 2 and 5, 3 and 6. – Primary bays are 1, 2 and 3. – Do not place an Ethernet interconnect in slots 1, 2, 4, or 5 unless interconnect slots 3 and/or 6 are filled. – Do not place Fibre Channel interconnects in ICM slots 1 or 4 if slots 2 and 5 are free unless you have compute modules with unpopulated CPU2 sockets. |
| Step 5: HPE Synergy Storage Module (Optional)
|
||
| HPE Synergy Storage Modules | ||
| Notes: The HPE Synergy Storage Module and 12Gb SAS connection modules are supported on all Synergy 12000 Frame(s). | ||
| HPE Synergy D3940 12Gb SAS CTO Drive Enclosure with 40 SFF (2.5in) Drive Bays | 835386-B21 | |
| Notes: The HPE Synergy Storage Module requires at least one and a maximum of two 12Gb SAS Connection Modules per frame. | ||
| HPE Synergy D3940 Redundant I/O Adapter | 757323-B21 | |
| Notes: One I/O Adapter is configured automatically in each Synergy D3940 Storage Module. A second I/O Adapter can be selected for redundancy. | ||
| HPE Synergy 12Gb SAS Connection Module with 12 Internal Ports | 755985-B21 | |
| Notes: A SAS Connection Module must be placed in ICM bay 1 and ICM bay 4. If only configuring a single module in the frame, a connection module in ICM bay 1 will support storage modules in bays 1 – 6. A connection module in ICM bay 4 will support storage modules in bays 7-12. A second connection module can be configured in the frame for failover. | ||
| Step 6: Select your Rack (optional) | ||
| HPE Data Center Racks
Notes: – Hewlett Packard Enterprise highly recommends the use of racks with a depth of 1200mm (47.2 in) or deeper to ensure adequate space in the back of the rack for cable and power management. Additional Hewlett Packard Enterprise Data Center racks are available other than those listed below. For more information on the full line of Hewlett Packard Enterprise Data Center Racks and rack accessories, please see. https://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html#Portfolio – Static load capacity for Advanced G2 and Enterprise G2 racks is 3000 lbs. and represents the maximum weight load for racks that are configured directly in the data center and will never be moved with installed equipment. Dynamic load capacity is 2250 lbs. for Advanced G2 racks and 3000 lbs. for Enterprise G2 racks. Dynamic load capacity represents the maximum load capacity for racks that are shipped fully configured using a shock pallet rack model option. Due to the Dynamic load capacity limitations for Advanced G2 racks, a limit of 2-3 Synergy frames is recommended based on the overall load weight of all equipment included in a single rack.
|
||
| HPE Advanced G2 Series Racks | ||
| HPE 42U 600mmx1200mm G2 Kitted Advanced Pallet Rack with Side Panels and Baying | P9K09A | |
| HPE 42U 600mmx1200mm G2 Kitted Advanced Shock Rack with Side Panels and Baying | P9K10A | |
| HPE 42U 800mmx1200mm G2 Kitted Advanced Pallet Rack with Side Panels and Baying | P9K15A | |
| Notes:
– Hewlett Packard Enterprise provides both standard pallet and shock pallet shipping options for most racks. If there is a requirement to transport the rack with any IT equipment installed, Hewlett Packard Enterprise highly recommends choosing a shock pallet option to protect your equipment during transport. – HPE Network Racks are designed for dense network equipment. These racks have the front vertical rails moved back 75mm to facilitate front to rear cabling and have additional bristle covered cable access slots in the front and on top of the racks to prevent mixing of hot and cold air and to allow for large cable bundles. |
||
| Step 7: Select rack power distribution unit (PDU) (optional) | ||
| Notes:
– A pair of PDUs must be ordered for AC feed redundancy. – HPE G2 PDUs with C13 and/or C19 outlets support HPE IEC Locking Power Cords. One locking power cord is included with each compatible PDU model. Additional IEC Locking Power Cords are available for purchase from HPE – see Power Cord section for additional details. – Additional HPE Power Distribution Units (PDUs) are available compared to those listed below. For a complete list of all Hewlett Packard Enterprise PDUs, please visit: https://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html
|
||
| HPE Power Distribution Units (PDUs) | ||
| HPE G2 Basic Single-Phase Power Distribution Units | ||
| HPE G2 Basic Modular 4.9kVA/L6-30P 24A/208V Outlets (6) IEC C19/1U Horizontal NA/JP PDU | P9Q39A | |
| HPE G2 Basic 4.9kVA/L6-30P 24A/208V Outlets (36) C13 (6) C19/Vertical NA/JP PDU | P9Q42A | |
| HPE G2 Basic Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/1U Horizontal INTL PDU | P9Q43A | |
| HPE G2 Basic 7.3kVA/60309 3-wire 32A/230V Outlets (36) C13 (6) C19/Vertical INTL PDU | P9Q46A | |
| HPE G2 Basic Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/1U Horizontal NA/JP PDU | P9Q47A | |
| HPE G2 Basic 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (6) C19/Vertical NA/JP PDU | P9Q48A | |
| HPE G2 Basic 9.2kVA/50A Term Block 40A/208V Outlets (30) C13 (6) C19/Vertical WW PDU | P9Q49A | |
| HPE G2 Basic 11kVA/60309 63A 3-wire 48A/230V Outlets (30) C13 (6) C19/Vertical INTL PDU | P9Q50A | |
| HPE G2 Basic Modular 14.4kVA/60309 63A 3-wire 48A/230V Outlets (6) C19/1U Horizontal INTL PDU | P9Q51A | |
| Notes: G2 PDU Extension Bars can be added to any PDU model with an available C19 outlet. See “Extension Bars” section for more details. | ||
| HPE G2 Metered Single-Phase Power Distribution Units | ||
| HPE G2 Metered Modular 4.9kVA/L6-30P 24A/208V Outlets (6) IEC C19/1U Horizontal NA/JP PDU | P9R51A | |
| HPE G2 Metered 4.9kVA/L6-30P 24A/208V Outlets (32) C13 (6) C19/Vertical NA/JP PDU | P9R53A | |
| HPE G2 Metered Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/1U Horizontal INTL PDU | P9R54A | |
| HPE G2 Metered 7.3kVA/60309 3-wire 32A/230V Outlets (32) C13 (6) C19/Vertical INTL PDU | P9R56A | |
| HPE G2 Metered 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (6) C19/Vertical NA/JP PDU | P9R57A | |
| HPE G2 Metered Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/1U Horizontal NA/JP PDU | P9R77A | |
| Notes: G2 PDU Extension Bars can be added to any PDU model with an available C19 outlet. See “Extension Bars” section for more details. | ||
| HPE G2 Switched Single-Phase Power Distribution Units | ||
| HPE G2 Switched 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU | P9S14A | |
| HPE G2 Switched 7.3kVA/60309 3-wire 32A/230V Outlets (20) C13 (4) C19/Vertical INTL PDU | P9S17A | |
| Notes: G2 PDU Extension Bars can be added to any PDU model with an available C19 outlet. See “Extension Bars” section for more details.
|
||
| HPE G2 Metered & Switched Single-Phase Power Distribution Unit | ||
| HPE G2 Metered/Switched 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU | P9S15A | |
| HPE G2 Metered/Switched 7.3kVA/60309 3-wire 32A/230V Outlets (20) C13 (4) C19/Vertical INTL PDU | P9S18A | |
| Notes: G2 PDU Extension Bars can be added to any PDU model with an available C19 outlet. See “Extension Bars” section for more details. | ||
| HPE C20 – C13 WW 250V 15Amp 2.0m Jumper Cord | AF590A | |
| HPE PDU Extension Bars | ||
| HPE G2 IEC C20 Input/(4) C13 (2) C19 Expansion Outlets/PDU Extension Bar Kit | P9Q67A | |
| HPE G2 IEC C20 Input/(7) 5-20R Expansion Outlets/PDU Extension Bar Kit | P9Q68A | |
| Notes: G2 Extension Bars Kits include 2 extensions bars per kit. G2 Extension Bars can be used with any HPE PDU; however, C20 receptacle on input power cord will only lock onto compatible G2 Basic, Metered, Switched, and Metered & Switched PDUs. | ||
| Step 8: Select an uninterruptible power system (UPS) (optional) | ||
| Notes: Additional HPE Uninterruptable Power Systems (UPSs) are available other than those listed here. For a complete list of all Hewlett Packard Enterprise UPS options and additional information, please visit: https://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html | ||
| Step 9: Select power cords (optional) | |
| Notes:
– For additional power cable information, please visit: https://www.hpe.com/psnow/doc/c05324691.HTML?jumpid=in_pb-psnow-red – For Carrier Grade (NEBS-compliant) configurations, including Seismic Rack Kits and Cable Kits used with the -48VDC Power Supply, please see: http://h20195.www2.hpe.com/v2/redirect.aspx?/products/quickspecs/16023_div/16023_div.HTML
|
|
| Power Distribution Unit (PDU) Power Jumper Cords | |
| HPE C19 – C20 WW 250V 16Amp Flint Gray 1.20m Jumper Cord | AF575A |
| HPE C19 – C20 WW 250V 16Amp Flint Gray 2.0m Jumper Cord | AF574A |
| HPE C19-C20 IN 250V 16Amp 2.5m Black Jumper Cord | R1C66A |
|
HPE Locking IEC Power Cords(C19-C20) |
|
| Notes: These IEC power cords will lock onto the G2 PDUs and will also lock onto the Synergy power supplies. | |
| HPE C19 – C20 WW 250V 16Amp 2m Black Locking Power Cord | Q0P72A |
| HPE Locking IEC Power Cords (C19-C20) | |
| HPE C19 – C20 WW 250V 16Amp 2m 6-pack Black Locking Power Cord | Q0R17A |
|
High Voltage Direct Current (HVDC) Power Jumper Cords |
|
| HPE SAFDGRID-SAFDGRID 277V 15Amp DC 2.0m Jumper Cord | J6X00A |
| Additional HPE Power Cords | |
| HPE High Line Power Cords 200 – 240V AC | |
| HPE C19 – Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord | AF593A |
| HPE C19 – CEE-VII EU 250V 16Amp 3.6m Power Cord | AF576A |
| Power Cords used with 277VAC Power Supply | |
| HPE SDG23A-SDG23B 277V 0.76m Jumper Cord | P9B75A |
| HPE SDG23A-SDG23B 277V 2.0m Jumper Cord | P9B77A |
| HPE SAFDGRID-SAFDGRID 277V 15Amp DC 2.0m Jumper Cord | J6X00A |
Nolan (verified owner) –
Very well worth the money.
Aiden (verified owner) –
Good service.
