HPE Synergy 480 Gen10 Plus CTO Compute Module
Condition: NOB
RMA Warranty
Description
Overview
HPE Synergy is the first platform built from the ground up for composable infrastructure, providing an experience that enables IT to create and deliver new value instantly and consistently. It is a single infrastructure that reduces operational complexity for legacy workloads and increases operational velocity for new types of applications and services. Through a single interface, HPE Synergy combines physical and virtual compute, storage and fabric pools into any configuration for any application. As an extensible platform, it easily supports a variety of applications and operational models such as virtualisation, hybrid cloud and DevOps. with HPE Synergy, IT can become not only an internal service provider, but also a business partner to rapidly roll out new applications that become business. HPE Synergy supports new dual-socket compute modules that deliver performance, scalability, density optimisation, storage simplicity and configuration flexibility for a variety of workloads, including business processing, IT infrastructure, web infrastructure, collaboration and high-performance computing. The HPE Synergy 480 Gen10 Plus compute module features a dual-socket, half-height form factor that delivers exceptional capacity, efficiency and flexibility to support demanding workloads. Featuring the latest Intel® Xeon® Scalable processors, HPE DDR4 Smart Memory supporting up to 4TB per processor, flexible storage controller options, and three I/O connectors, HPE Synergy 480 Gen10 Plus compute modules are designed to create flexible pools of compute capacity in composable infrastructures, making them the ideal platform for general-purpose enterprise workload performance, both now and in the future. workload performance for today and tomorrow’s general purpose enterprise workloads. Achieve the right balance of performance, flexibility and density for your legacy or new business applications. HPE Synergy 480 Gen10 Plus Compute Modules offer more performance, capacity and flexibility options to meet your workload needs. Featuring the latest Intel® Xeon® Scalable processors, HPE Intelligent Memory, more storage solutions and capacity, unique intelligent arrays, and new GPU options, the Synergy 480 Gen10 Plus Compute is a great fit for any of your workloads, now and in the future!
HPE Synergy offers additional compute module options (with separate QuickSpecs), including:
– HPE Synergy 660 Gen10 (2-4 socket, general purpose)
Note: This product will not be updated and will continue through the Synergy Intel Cascade Lake programme until EOL 2023 Q3.
Front View – HPE Synergy 480 Gen10 Plus Compute Module
| 1. | UID LED | 5. | Compute Module handle release latch |
| 2. | Health Status LED | 6. | Quick Access Panel |
| 3. | Mezzanine NIC status LED | 7. | Removable drive cage1 |
| 4. | Power On/Stand by button and system power LED | 8. | Pull Out Label2 |
Notes:
– 1Options for 2, 4 drive bays, drive less or single PCIe slot GPU options.
– 2Tab used for ID information on product. External USB 3.0 connector & iLO USB connection (behind serial label pull tab)

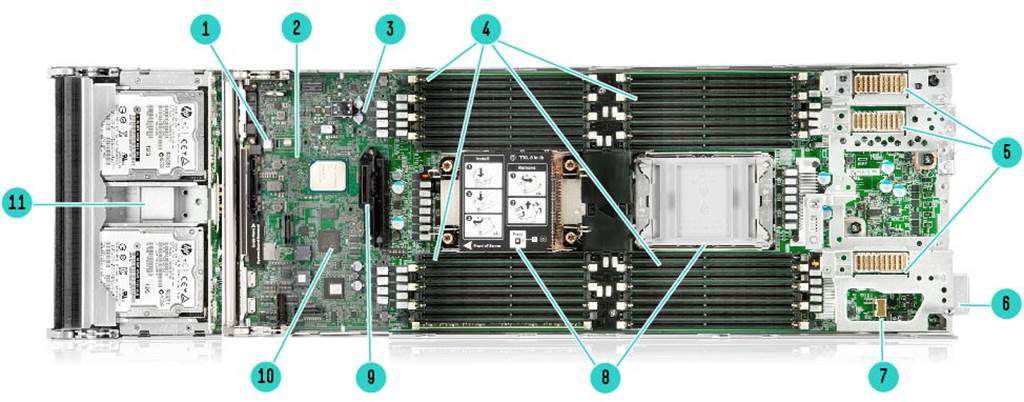

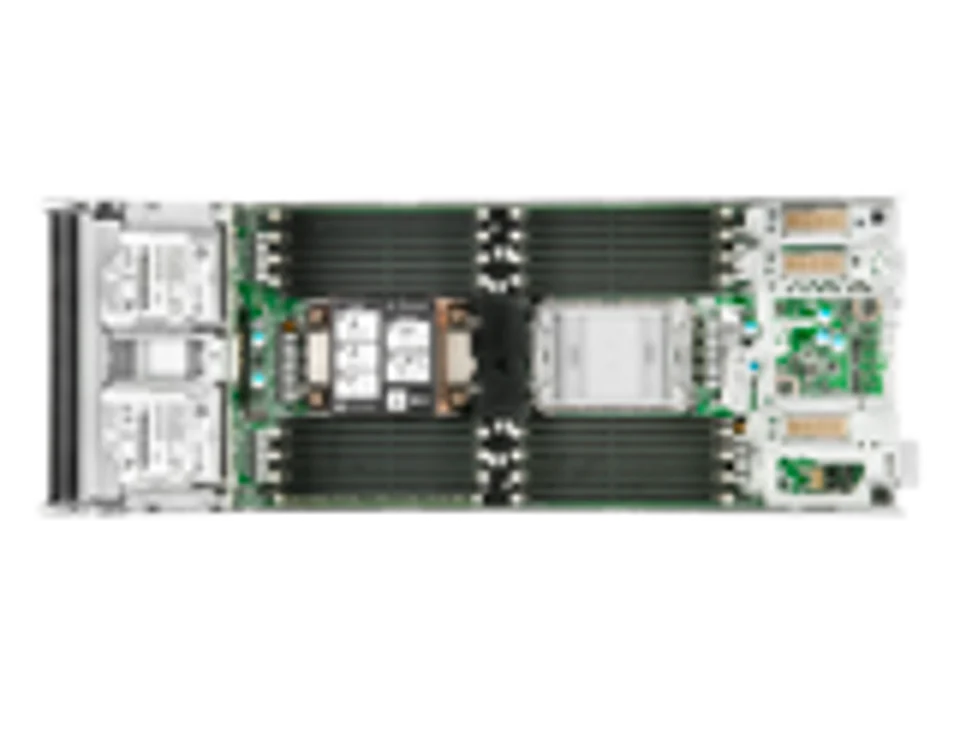

Synergy 480 Gen10 Plus Compute Module
(Drive Cage removed)
| 1. | Single microSD Slot | 6. | Compute Module Power and Management connector |
| 2. | TPM connector2 | 7. | Smart Array Energy Pack connection |
| 3. | USB 3.03 | 8. | Up to two (2) Gen3 Intel® Xeon® Scalable Family processors |
| 4. | Thirty Two (32) DDR4 DIMM memory slots4 | 9. | Connection point for Optional Drive Cage solutions6 |
| 5. | Mezzanine connectors5 (3 x16 PCIe 4.0) | 10. | iLO chipset2 |
| 11 | Selectable front cage options1 |
Notes:
– 12x Drive bays(SAS/SATA), 4x Drive Bays( 4x NVMe or 2x NVMe + 2x SAS/SATA), Drive less or Single PCIe Cage for select GPU options.
– 2Under drive cage
– 3Boot port under drive cage (mSD or USB)
– 416 per processor
– 53 x16 PCIe 4.0
– 6Including Dual M.2 Boot Drive HW RAID1 Boot Solution. (HPE NS204i-d Gen10+ Boot Controller connects under drive cage)
Form Factor
- SingleSlot Blade – Half-Height
Chassis Types
- Single Compute chassis for CTO
- 2 SFF Drive Cage Option(CTO/BTO), same as in use for Gen10
- 4 SFF NVMe Drive Cage solution with options for 2x NVMe and 2x SATA/SAS, (with newMicroChip Smart RAID P416ie-m controller).
- Drive Less Cage Option
- Front PCIe Enablement Kit
System Fans
- Comewith Frame by default and not this product.
Dimensions (H x W x D)
With Bezel
- 6.35 x 21.4 x 60.0 cm
- 2.5 x 8.43 x 23.62 in
Weight (approximate)
- 8.16 kg / 18 lb
Maximum: all processors, 24 DIMMs, drives, mezzanine cards, and one flash cache battery installed) - 6.57 kg / 14.5 lb
Minimum: one processor and 1 DIMM installed
Configuration Information
| CTO Compute Module | HPE Synergy 480 Gen10 Plus CTO Compute Module |
| SKU Number | P22139-B21 |
| TAA SKU 1 | P22139-B22 |
| Processor | Up to 2 Selectable Intel Xeon Scalable Family Processors Generation 3 below |
| DIMM Slots | Up to 32 DIMM slots(16 per processor-) selectable below |
| Storage | Optional, not included in above SKUs: selectable 2 Drive, 4 Drive Direct Connect or no Drive cage options below. |
| Storage Controllers | Optional, not included in above SKUs:
HPE NS204i-d SY Gen10+ Boot Controller(with 2x M.2 480GB M.2 Drives included) Front Drive Cage Controller Options: Software RAID – S100i Chipset SATA, Essential RAID – E208i-c, Performance RAID–P204i-c, Direct Connect for 4 Drive NVMe option and MicroChip Smart RAID P416ie-m SATA/SAS Mezzanine option for split 4 Drive option(2x NVMe and 2x SAS/SATA) and D3940 Storage Module (cables selectable) |
| Drives supported | Optional, not included in above SKUs::
SAS/SATA/NVMe/M.2/ uFF |
| IO Expansion/ Mezzanine slots | 3x 16 PCIe 3.0 Slots for Mezzanine Options |
| Network | Optional, not included in above SKUs:: (HPE Synergy HPE Synergy 4820c 10/20/25 CNA, HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters, HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters |
| Graphic Processing Units | Optional Mezzanine and PCI Module solutions |
| Security | iLO 5 |
| USB and MicroSD | 1 Internal USB 3.0, 1 Internal microSD |
| Management | OneView 3.1 and iLO 5 Advanced (standard) |
