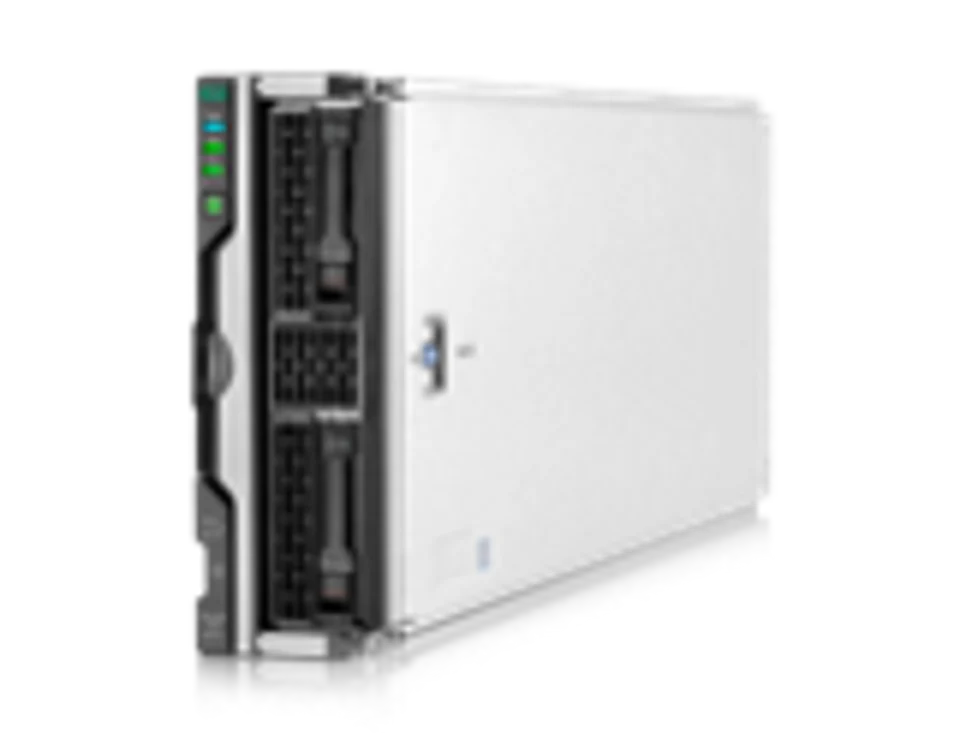

HPE Synergy 480 Gen11 CTO Compute Module
Condition: NOB
RMA Warranty
Description
Overview
HPE Synergy is the first platform built from the ground up for composable infrastructure, providing an experience that enables IT to create and deliver new value instantly and consistently. It is a single infrastructure that reduces operational complexity for legacy workloads and increases operational velocity for new types of applications and services. Through a single interface, HPE Synergy combines physical and virtual compute, storage and fabric pools into any configuration for any application. As a scalable platform, it easily supports a variety of applications and operational models such as virtualisation, hybrid cloud and DevOps. with HPE Synergy, IT can become not only an internal service provider, but also a business partner to rapidly roll out new applications that become business.
HPE Synergy 480 Gen11 compute modules deliver exceptional capacity, efficiency and flexibility in a two-socket, half-height form factor to support demanding workloads. Featuring 4th and 5th generation Intel® Xeon® Scalable processors with up to 64 cores, up to 4 TB of HPE DDR5 Intelligent Memory per processor, flexible storage controller options, and multiple I/O connectors, the HPE Synergy 480 Gen11 Compute Module is designed to create flexible pools of compute power in a composable infrastructure that is ideal for the performance of general-purpose enterprise workloads, now and in the future. ideal platform for the performance of today’s and tomorrow’s general purpose enterprise workloads.

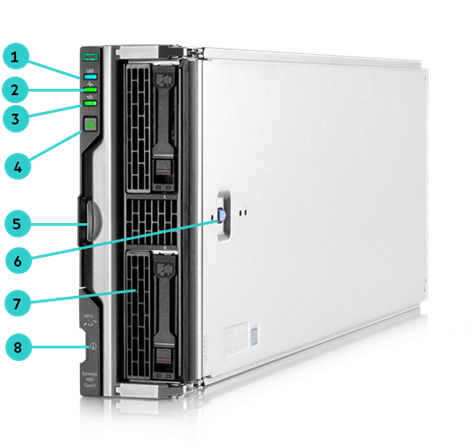

Front View – HPE Synergy 480 Gen11 Compute Module
| 1. | UID LED | 5. | Compute Module handle release latch |
| 2. | Health Status LED | 6. | Quick Access Panel |
| 3. | Mezzanine NIC status LED | 7. | Removable drive cage1 |
| 4. | Power On/Stand by button and system power LED | 8. | Pull Out Label2 |
Notes:
– 1Options for 2, 4, 8 drive bays, or drive-less.
– 2Tab used for ID information on product. External USB 3.0 connector & iLO USB connection (behind serial label pull tab)
Synergy 480 Gen11 Compute Module
(Drive Cage removed)
| 1. | Internal USB 3.0 | 7 | Connection point for Optional Drive Cage solutions2 |
| 2. | Thirty Two (32) DDR5 DIMM memory slots1 | 8. | HPE NS204i-d Gen11 Boot Controller Connector |
| 3. | Mezzanine connectors (3 x16 PCIe 5.0) | 9. | Embedded TPM |
| 4. | Compute Module Power and Management connector | 10. | External USB 3.0 |
| 5. | Storage Controller Energy Pack connection | 11. | External USB iLO |
| 6. | Up to two (2) Gen4 or Gen5 Intel® Xeon® Scalable Family processors | 12. | Selectable front cage options3 |
Notes:
– 116 per processor
– 22x Drive bays(SAS/SATA/NVMe), 4x Drive Bays( 4x NVMe Direct Connect or 4x SAS/SATA/NVMe) or Drive-less.
– 3HPE NS204i-d Gen11 Boot Controller connects under drive cage
Form Factor
- SingleSlot Blade – Half-Height
Chassis Types
- Single Compute chassis for CTO
- 2 SFF SAS/SATA/NVMe Premium Drive Cage Option
- 4 SFF SAS/SATA/NVMe Premium Drive Cage Option
- 4 SFF NVMe Direct Connect Drive Cage Option
- 8 EDSFF NVMe E3.S Direct Connect Drive Cage Option
- Drive-Less Cage Option
System Fans
- Comewith Frame by default and not this product.
Notes: The HPE Synergy SY480 Gen11 Compute Module requires the Synergy 12000 Frame to be configured with the HPE Synergy 12000 High Capacity Fan Kits.
Dimensions (H x W x D)
With Bezel
- 6.35 x 21.4 x 60.0 cm
- 2.5 x 8.43 x 23.62 in
Weight (approximate)
- 8.16 kg / 18 lb
Maximum: all processors, 32 DIMMs, drives, mezzanine cards, and one flash cache battery installed - 6.57 kg / 14.5 lb
Minimum: one processor and 1 DIMM installed
Configuration Information
| CTO Compute Module | HPE Synergy 480 Gen11 CTO Compute Module |
| SKU Number | P39531-B21 |
| TAA SKU 1 | P39531-B22 |
| Processor | Up to 2 Selectable Intel Xeon Scalable Family Processors Generation 4 or 5 |
| DIMM Slots | Up to 32 DIMM slots(16 per processor) selectable below |
| Storage | Optional, not included in above SKUs: selectable 2 Drive, 4 Drive, 4 Drive Direct Connect, 8 Drive Direct Connect or no Drive cage options below. |
| Storage Controllers | Optional, not included in above SKUs:
HPE NS204i-d SY Gen11 Boot Controller Front Drive Cage Controller Options: HPE SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller for 2 and 4 Drive Premium Drive Cages and D3940 Storage Module (cable selectable), Intel VROC SW RAID capable for 4 Drive Direct Connect Drive Cage. |
| Drives supported | Optional, not included in above SKUs::
SAS/SATA/NVMe/M.2 |
| IO Expansion/ Mezzanine slots | 3x 16 PCIe 5.0 Slots for Mezzanine Options |
| Network | Optional, not included in above SKUs:: (HPE Synergy 6820c 25/50Gb CNA, HPE Synergy 4820c 10/20/25 CNA, HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters, HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters |
| Security | iLO 6 |
| USB and MicroSD | 1 Internal USB 3.0 |
| Management | OneView 8.2 and iLO 6 Advanced (standard) |
